Kimpex Portable Electric Winch User Manual

ແນະນຳ

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Kimpex Portable Electric Winch. Please read this manual thoroughly before using the product to ensure proper handling and to prevent injury or damage.

ສິນຄ້າເກີນview

ອົງປະກອບລວມ

Figure 1: Complete Kimpex Portable Electric Winch Kit

The Kimpex Portable Electric Winch kit includes the following:

• Portable Electric Winch Unit with 30ft/9m (5.4 mm gage) steel cable and hook
• ການຄວບຄຸມໄລຍະໄກແບບມີສາຍ
• ການຄວບຄຸມໄລຍະໄກໄຮ້ສາຍ
• Power Battery Cables
• Hand Crank for manual operation
• ແຜ່ນຕິດ
• Carrying Accessories Bag

ຄຸນນະສົມບັດທີ່ສໍາຄັນ

• Strength: 2500 lbs capacity
• Winch Type: Electric
• Cable Included: Yes, heavy duty 5.4 mm gage steel cable of 30ft/9m length
• Motor: 12 V DC motor, 25 amps, 300 W input power
• Control: Remote control included (wired and wireless)
• Manual Use: Hand crank for manual operation

ຂໍ້ມູນຄວາມປອດໄພ

Always prioritize safety when operating the winch. Failure to follow these instructions can result in serious injury or property damage.

• ອ່ານຄູ່ມື: ເຂົ້າໃຈຂັ້ນຕອນການດໍາເນີນງານ ແລະ ຄໍາເຕືອນດ້ານຄວາມປອດໄພທັງໝົດກ່ອນການນໍາໃຊ້.
• ໃສ່ອຸປະກອນປ້ອງກັນ: Always wear heavy-duty gloves and eye protection when operating the winch.
• ກວດ​ສອບ​ກ່ອນ​ການ​ນໍາ​ໃຊ້​: Before each use, inspect the winch, cable, hook, and all connections for signs of wear, damage, or corrosion. Do not use if any component is damaged.
• ການຕິດຕັ້ງທີ່ປອດໄພ: Ensure the winch is securely mounted to a stable, appropriate anchor point capable of withstanding the pulling force.
• Maintain Clear Area: Keep hands, hair, clothing, and jewelry clear of the cable, hook, and fairlead during operation. Keep bystanders at a safe distance.
• ຫຼີກເວັ້ນການໂຫຼດເກີນ: Do not exceed the rated pulling capacity of 2500 lbs. Overloading can damage the winch and cause cable breakage.
• ການເຊື່ອມຕໍ່ຫມໍ້ໄຟ: Connect the winch directly to a 12V DC battery. Ensure correct polarity (red to positive, black to negative). Avoid short circuits.
• ການດູແລສາຍໄຟ: Do not allow the cable to kink, fray, or overlap unevenly on the drum. Always keep a minimum of 5 wraps of cable on the drum.
• Controlled Operation: Use short, controlled pulls. Avoid continuous operation for extended periods to prevent motor overheating. Allow the motor to cool down between pulls.
• Never Disconnect Under Load: Do not disconnect power or attempt to free a stuck cable while the winch is under load.
• Use Hand Crank Safely: When using the hand crank, ensure the motor is disengaged and the area is clear.

ຕັ້ງຄ່າ

ການຫຸ້ມຫໍ່

Carefully remove all components from the packaging. Verify that all items listed in the 'Included Components' section are present and undamaged. Retain packaging for future storage or transport.

ການເຊື່ອມຕໍ່ພະລັງງານ

The Kimpex Portable Electric Winch operates on a 12V DC power source. Use the provided power battery cables to connect the winch directly to a vehicle's 12V battery or a suitable portable 12V power supply.

1. Ensure the winch is turned off and the area is clear.
2. Connect the red positive (+) cable clamp to the positive terminal of the 12V battery.
3. Connect the black negative (-) cable clamp to the negative terminal of the 12V battery.
4. ໃຫ້ແນ່ໃຈວ່າການເຊື່ອມຕໍ່ແມ່ນປອດໄພແລະບໍ່ມີການກັດກ່ອນ.

ການຕິດຕັ້ງແລະການຈັດວາງ

The portable design allows for flexible mounting. The winch can be temporarily mounted using the provided mounting plate or secured to a stable surface. Ensure the mounting point is strong enough to handle the maximum pulling force.

Figure 2: Kimpex Winch Unit - Angled View

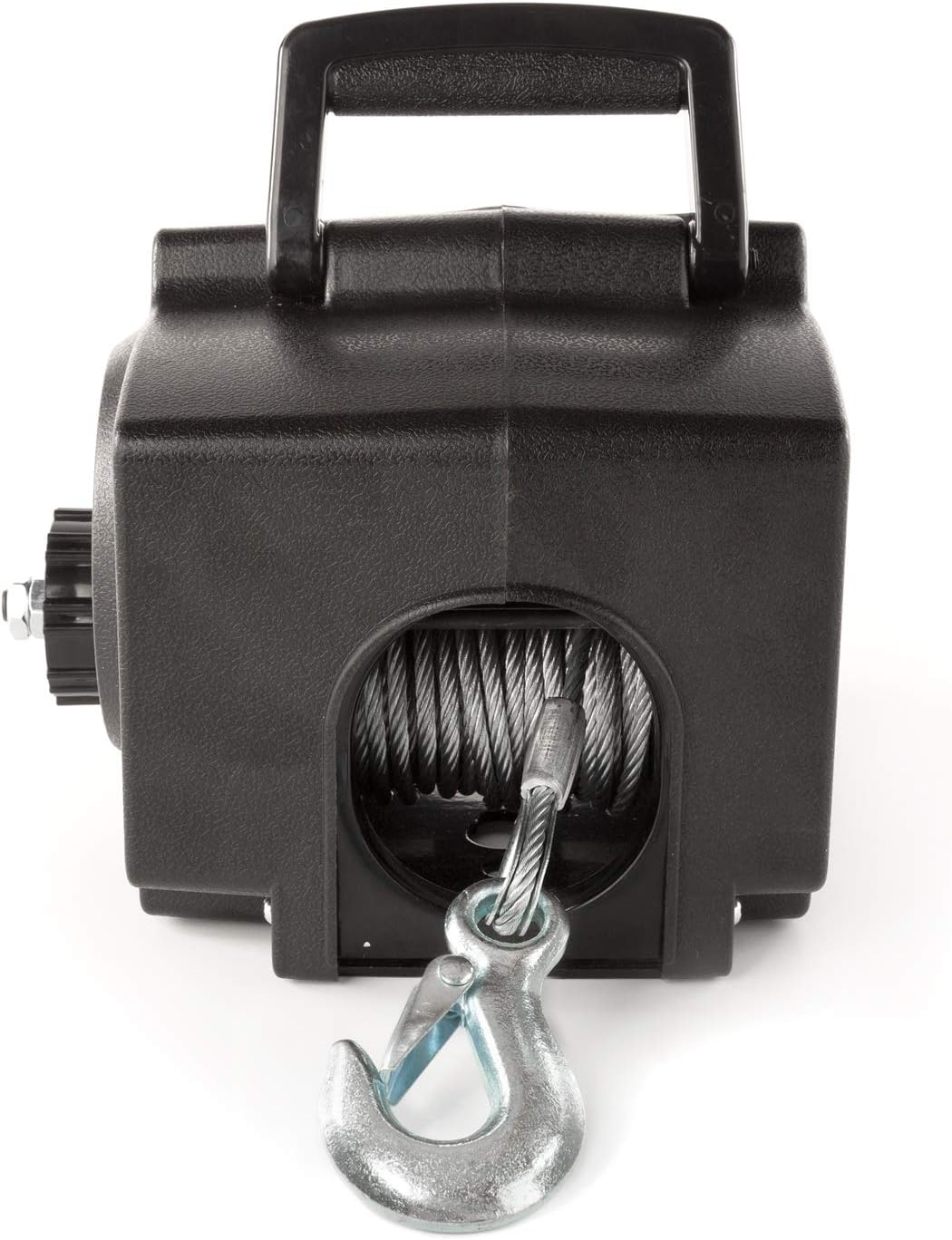

Figure 3: Kimpex Winch Unit - Front View

ຄໍາແນະນໍາການດໍາເນີນງານ

ການດໍາເນີນງານພື້ນຖານ

The winch can be operated using either the wired or wireless remote control. Both remotes typically have 'IN' (wind in) and 'OUT' (wind out) buttons.

1. Ensure the winch is securely connected to the power source and the object to be moved.
2. Confirm the cable is properly spooled on the drum and the hook is securely attached to the load.
3. Stand clear of the cable path and maintain a safe distance from the winch and load.
4. Press the 'IN' button on the remote to retract the cable and pull the load.
5. Press the 'OUT' button to extend the cable.
6. Release the button to stop the winch.

Winching Procedures

• ຈຸດຈອດ: Always use a strong, stable anchor point for winching.
• Cable Spooling: Ensure the cable spools evenly and tightly on the drum. Uneven spooling can damage the cable and winch.
• Short Pulls: For heavy loads, use short, controlled pulls to prevent motor overheating. Allow the motor to cool down between pulls.
• Hand Crank Use: In case of power loss or for fine adjustments, the hand crank can be used. Ensure the motor is disengaged before using the hand crank.

ບໍາລຸງຮັກສາ

Regular maintenance will extend the life and ensure the safe operation of your Kimpex Portable Electric Winch.

• ການກວດສອບສາຍ: Regularly inspect the steel cable for frays, kinks, broken strands, or corrosion. Replace the cable immediately if any damage is found.
• ການກວດກາ Hook: Check the hook for deformation, cracks, or excessive wear. Ensure the safety latch operates freely.
• ການເຊື່ອມຕໍ່ໄຟຟ້າ: Periodically check all electrical connections for tightness and corrosion. Clean terminals as needed.
• ທໍາຄວາມສະອາດ: After use, clean the winch unit with a damp ຜ້າ. ຫ້າມໃຊ້ສານເຄມີທີ່ຮຸນແຮງ ຫຼືຈຸ່ມຫົວໜ່ວຍໃນນ້ຳ.
• ການເກັບຮັກສາ: Store the winch in a dry, clean environment, preferably in its carrying accessories bag, away from direct sunlight and extreme temperatures. Ensure the cable is neatly spooled before storage.
• ການດູແລຫມໍ້ໄຟ: If using a portable battery, follow the battery manufacturer's guidelines for charging and maintenance.

ການແກ້ໄຂບັນຫາ

ພາກນີ້ສະຫນອງການແກ້ໄຂບັນຫາທົ່ວໄປທີ່ທ່ານອາດຈະພົບ.

ຂໍ້ມູນຈໍາເພາະ

ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information, technical support, or service inquiries regarding your Kimpex Portable Electric Winch, please contact Kimpex customer service directly or visit their official webເວັບໄຊ. ກະ​ລຸ​ນາ​ເກັບ​ຮັກ​ສາ​ໃບ​ຮັບ​ເງິນ​ການ​ຊື້​ຂອງ​ທ່ານ​ເປັນ​ຫຼັກ​ຖານ​ຂອງ​ການ​ຊື້​ສໍາ​ລັບ​ການ​ຮຽກ​ຮ້ອງ​ການ​ຮັບ​ປະ​ກັນ​ໃດໆ​.
