Dimplex Sierra 60-Inch Electric Fireplace Heater User Manual

1. ບົດແນະນຳ

Thank you for choosing the Dimplex Sierra 60-inch Electric Linear Fireplace. This versatile electric fireplace heater is designed to enhance your living space with its modern aesthetic and functional heating capabilities. This manual provides essential information for safe installation, operation, and maintenance of your new fireplace.

ຮູບ 1.1: ດ້ານຫນ້າ view of the Dimplex Sierra 60-inch Electric Fireplace Heater with realistic flames.

2. ຂໍ້ມູນຄວາມປອດໄພທີ່ສໍາຄັນ

ກະລຸນາອ່ານຄໍາແນະນໍາທັງຫມົດຢ່າງລະອຽດກ່ອນທີ່ຈະຕິດຕັ້ງແລະດໍາເນີນການ. ການບໍ່ປະຕິບັດຕາມຄໍາແນະນໍາເຫຼົ່ານີ້ອາດຈະເຮັດໃຫ້ໄຟຟ້າຊ໊ອກ, ໄຟໄຫມ້, ຫຼືການບາດເຈັບສ່ວນບຸກຄົນ.

• ໃຫ້ຖອດສາຍໄຟອອກກ່ອນທຳຄວາມສະອາດ ຫຼື ບຳລຸງຮັກສາໃດໆສະເໝີ.
• ຫ້າມໃຊ້ເຕົາໄຟດ້ວຍສາຍໄຟ ຫຼືປລັກສຽບທີ່ເສຍຫາຍ.
• Keep combustible materials at least 3 feet (0.9 m) from the front of the fireplace.
• The glass panel remains cool to the touch, making it safe for households with children and pets. However, the heater outlet can become hot.
• Ensure the fireplace is plugged into a standard 120V, 15 Amp ວົງຈອນທີ່ອຸທິດຕົນ.
• ຫ້າມກີດຂວາງລົມ.

3. ເນື້ອໃນຊຸດ

ກວດ​ສອບ​ວ່າ​ອົງ​ປະ​ກອບ​ທັງ​ຫມົດ​ແມ່ນ​ມີ​ຢູ່​ກ່ອນ​ທີ່​ຈະ​ເລີ່ມ​ຕົ້ນ​ການ​ຕິດ​ຕັ້ງ​:

• 1 x Dimplex Sierra 60-Inch Electric Fireplace Unit
• 1 x Multi-function Remote Control
• 3 x Ember Bed Options (Realistic Logs, Vibrant Crystals, Versatile Pebbles)
• 1 x Table Stand (for tabletop installation)
• Mounting Hardware (screws, drywall anchors)
• ຄູ່ມືຜູ້ໃຊ້

4. ການຕິດຕັ້ງ

The Dimplex Sierra fireplace offers flexible installation options: wall-mounted, recessed, or tabletop.

4.1 Dimensions and Planning

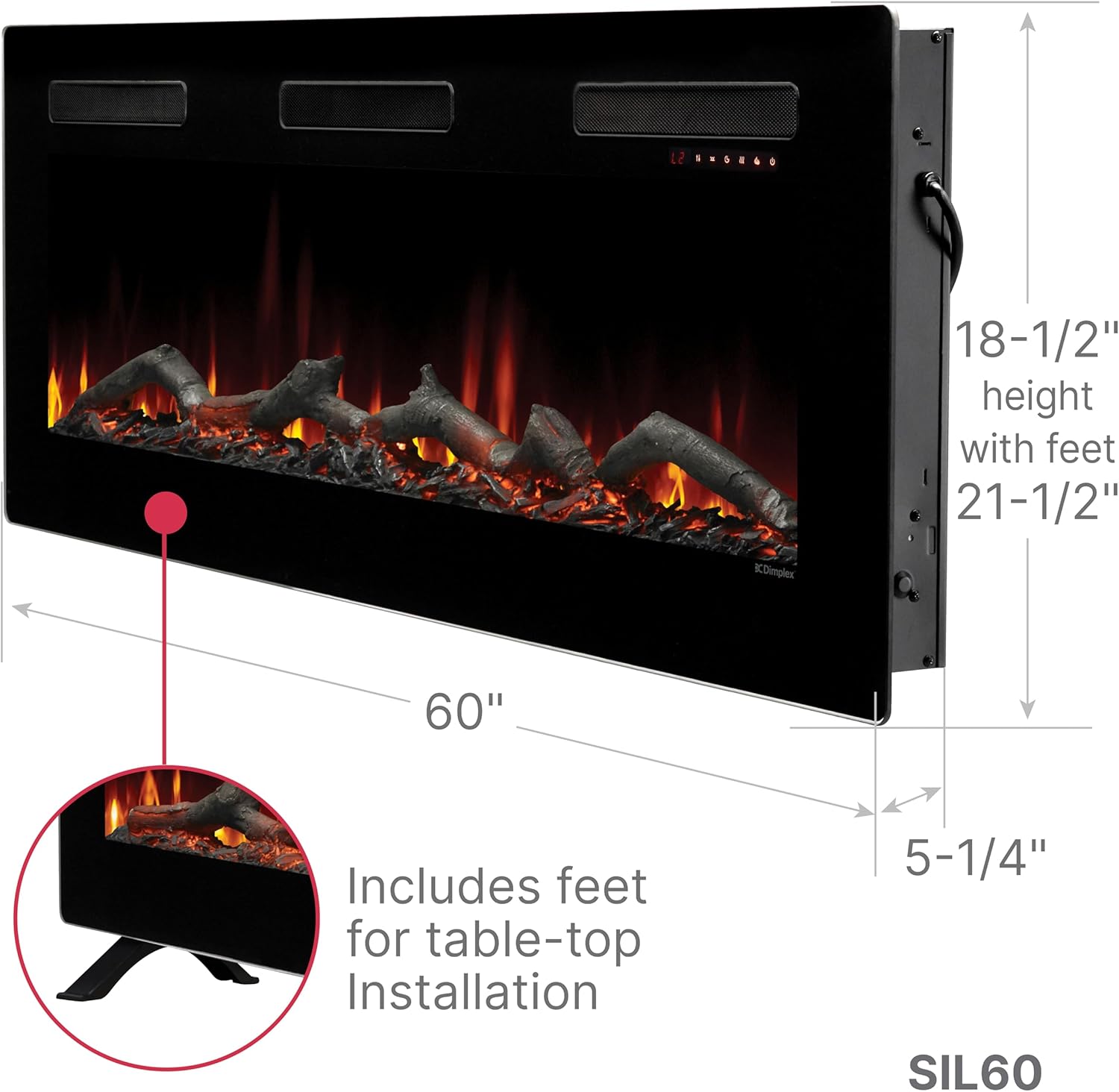

Figure 4.1: Product dimensions for installation planning. The unit measures 60"W x 19.5"H x 5.2"D (with feet, 21.5"H).

4.2 ທາງເລືອກການຕິດຕັ້ງ

Figure 4.2: The fireplace can be used as a tabletop unit, fully recessed into a wall, or wall-mounted.

4.2.1 ການຕິດຕັ້ງຕິດຝາ

1. Select a suitable location on a wall, ensuring it is near a standard 120V outlet.
2. Remove the mounting bracket from the back of the fireplace unit.
3. Mark the desired height and center point on the wall. Use a level to ensure the bracket is straight.
4. Secure the mounting bracket to the wall using the provided screws and drywall anchors (if not mounting into a stud).
5. Carefully lift the fireplace unit and hook it onto the installed mounting bracket. Ensure it is securely seated.
6. Secure the unit to the bottom of the mounting bracket with the provided screws to prevent accidental lifting.

4.2.2 Recessed Installation

1. Construct a framed opening in the wall according to the fireplace dimensions (60"W x 19.5"H x 5.2"D). Ensure adequate clearance for ventilation.
2. Run electrical wiring to the opening, ensuring it meets local electrical codes.
3. Carefully slide the fireplace unit into the framed opening.
4. Secure the unit to the framing using appropriate screws.

4.2.3 Tabletop Installation

1. Attach the provided table stand feet to the bottom of the fireplace unit using the designated screws.
2. ວາງຫນ່ວຍງານຢູ່ເທິງພື້ນທີ່ຮາບພຽງທີ່ຫມັ້ນຄົງ.
3. Ensure proper clearance around the unit for ventilation.

5. ຕັ້ງຄ່າ

5.1 Media Bed Options

Your Dimplex Sierra fireplace includes three interchangeable media bed options to customize your ambiance.

Figure 5.1: Choose from vibrant crystals, realistic logs, or versatile pebbles for your ember bed.

1. Carefully remove the front glass panel by unscrewing the retaining screws.
2. Place your desired media (crystals, logs, or pebbles) into the ember bed tray.
3. Replace the front glass panel and secure it with the retaining screws.

6. ຄໍາແນະນໍາການດໍາເນີນງານ

Your fireplace can be operated using the multi-function remote control or the hidden touch controls on the unit.

6.1 ຫນ້າທີ່ຄວບຄຸມໄລຍະໄກ

Figure 6.1: Multi-function remote control for convenient operation.

• ເປີດ/ປິດ: ເປີດ ຫຼື ປິດເຕົາໄຟ.
• ການຄວບຄຸມໄຟ: Adjusts flame color and intensity.
• ເປີດ/ປິດຄວາມຮ້ອນ: Activates or deactivates the heating function (1400W heater, warms up to 1,000 sq. ft.).
• ໂມງຈັບເວລາ: ຕັ້ງໂມງຈັບເວລາປິດອັດຕະໂນມັດ.
• ຕຽງ Ember: ປ່ຽນສີຂອງຕຽງນອນ.
• ການຄັດເລືອກລະດັບ: Adjusts various settings like brightness or heat level.

6.2 ແຕະການຄວບຄຸມ

Hidden touch controls are located on the unit's front panel, mirroring the remote control functions.

6.3 ການຕັ້ງຄ່າຄວາມຮ້ອນ

The fireplace features a 1400-watt heater capable of warming rooms up to 1,000 square feet. The heat function can be operated independently of the flame effects, allowing for year-round ambiance.

6.4 Flame and Ember Bed Customization

Personalize your fireplace experience by adjusting flame and ember bed colors. Multiple color options are available to match your mood or decor.

Vibrant Crystals

Realistic Logs

Versatile Pebbles

7. ບໍາລຸງຮັກສາ

ການບຳລຸງຮັກສາເປັນປະຈຳຮັບປະກັນປະສິດທິພາບທີ່ດີທີ່ສຸດ ແລະ ອາຍຸການໃຊ້ງານທີ່ຍາວນານຂອງເຕົາໄຟຂອງທ່ານ.

• ທໍາຄວາມສະອາດ: ເຊັດພື້ນຜິວພາຍນອກດ້ວຍຜ້າອ່ອນໆ, ງamp ຜ້າ. ຢ່າໃຊ້ເຄື່ອງເຮັດຄວາມສະອາດຂັດຫຼືສານລະລາຍ.
• ທໍາຄວາມສະອາດແກ້ວ: For the glass panel, use a glass cleaner and a soft cloth.
• ການລະບາຍອາກາດ: Ensure the air intake and outlet vents are free from dust and obstructions. Periodically vacuum the vents.
• ດອກໄຟ: The LED flame effect system is designed for long life and typically does not require replacement.

8. ການແກ້ໄຂບັນຫາ

ຖ້າເຈົ້າປະສົບບັນຫາກັບເຕົາໄຟຂອງເຈົ້າ, ໃຫ້ອ້າງອີງເຖິງບັນຫາທົ່ວໄປ ແລະວິທີແກ້ໄຂບັນຫາຕໍ່ໄປນີ້:

9. ຂໍ້ມູນຈໍາເພາະ

10. ວິດີໂອຜະລິດຕະພັນຢ່າງເປັນທາງການ

Watch this official video from Glen Dimplex Americas Company for an overview of the Sierra Series Heater.

11. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

The Dimplex Sierra Electric Fireplace Heater comes with a 90-day limited warranty. For warranty claims, technical support, or replacement parts, please contact Dimplex customer service. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official Dimplex webເວັບໄຊ ຫຼືຕິດຕໍ່ສາຍການຊ່ວຍເຫຼືອລູກຄ້າຂອງເຂົາເຈົ້າ.
