FIYAPOO 4K 5G Wireless Miracast Dongle M7-5G Instruction Manual

1. ຜະລິດຕະພັນເກີນview

The FIYAPOO 4K 5G Wireless Miracast Dongle is designed to facilitate screen mirroring from your devices to a larger display. It supports various interactive multi-screen features, including Airplay, DLNA, Miracast, and Chromecast. This portable dongle allows you to stream high-definition videos, photos, and presentations from your smartphone, tablet, or computer to an HDTV or projector.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​ປະ​ກອບ​ມີ​:

• Support for Airplay, DLNA, Miracast, and Chromecast.
• ການອອກແບບກະທັດຮັດແລະເຄື່ອນທີ່.
• ເປີດໃຊ້ viewing of videos and games on larger screens.
• Simple plug-and-play operation; no dedicated app or driver installation required.
• Automatic online firmware upgrades.
• HDMI output with Full HD 1080p support.

2. ເນື້ອໃນຊຸດ

ກະລຸນາກວດສອບວ່າລາຍການທັງໝົດມີຢູ່ໃນຊຸດ:

• 1 x WiFi Display Receiver (Miracast Dongle)
• 1 x Micro USB WiFi Cable
• 1 x ຄູ່ມືຜູ້ໃຊ້
• 1 x ສາຍ HDMI

3. ຂໍ້ມູນຈໍາເພາະ

4. ຄໍາແນະນໍາການຕິດຕັ້ງ

Follow these steps to connect your FIYAPOO Miracast Dongle. Ensure all cables are securely connected for proper functionality.

1. ເຊື່ອມຕໍ່ກັບຈໍສະແດງຜົນ: Plug the HDMI connector of the dongle into an available HDMI port on your TV, projector, or monitor.
2. ສະຫນອງພະລັງງານ: Connect the USB cable to a power adapter (minimum 5V/1A) to supply power to the dongle. The dongle requires stable power to operate.
3. ເລືອກການປ້ອນຂໍ້ມູນ: On your display device (TV/projector), switch the input source to the corresponding HDMI port where the dongle is connected.
4. ໜ້າຈໍເບື້ອງຕົ້ນ: The FIYAPOO main screen will appear on your display, showing the SSID (network name) and password for the dongle's Wi-Fi network.
5. Connect Device to Dongle Wi-Fi: On your smartphone, tablet, or computer, go to Wi-Fi settings and connect to the FIYAPOO dongle's network (SSID displayed on screen). The default password is usually 12345678.
6. Access Setup Page (Optional): ເປີດ ກ web browser on your connected device and enter the IP address http://192.168.203.1 (as shown on the dongle's display) to access the setup page. Here you can configure settings like connecting the dongle to your home Wi-Fi network for internet access.

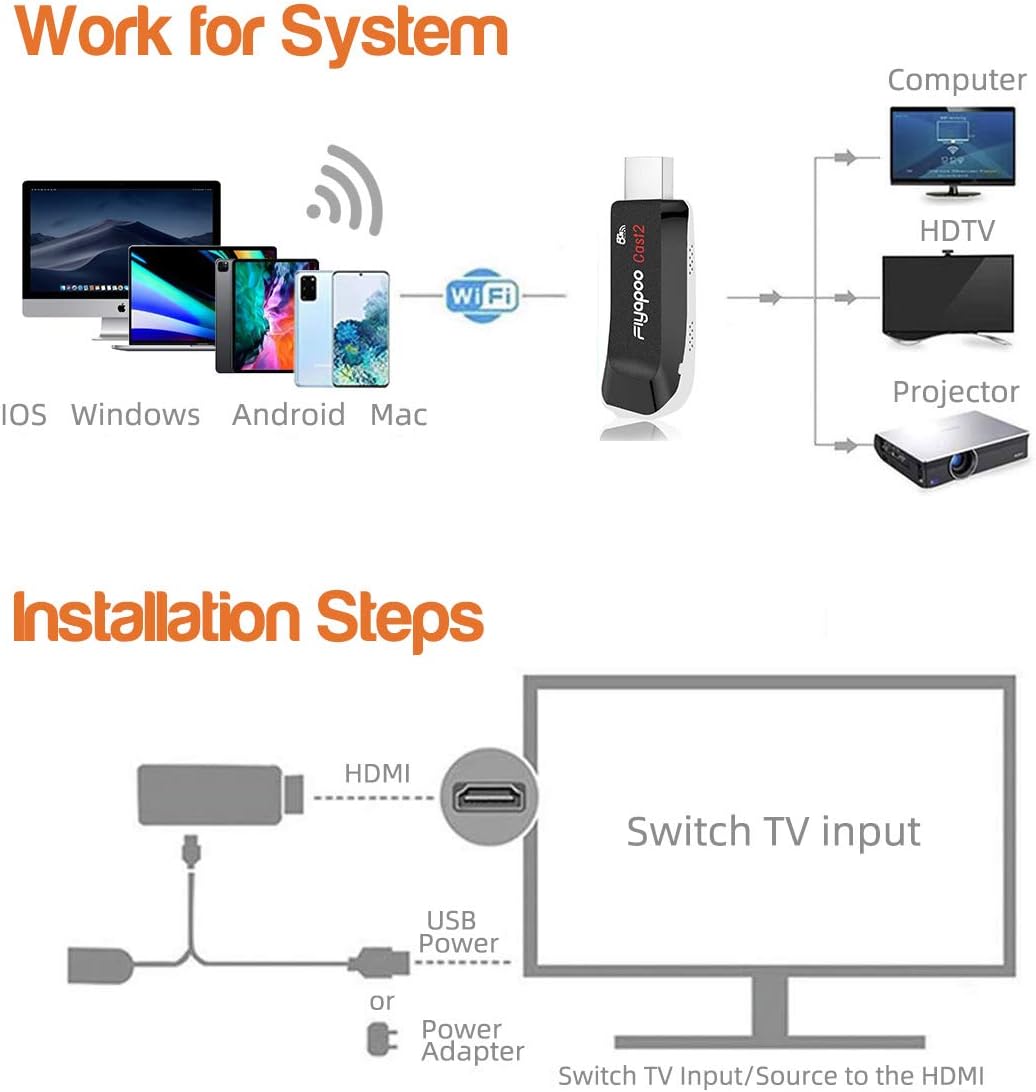

Figure 1: Basic connection diagram for the Miracast dongle.

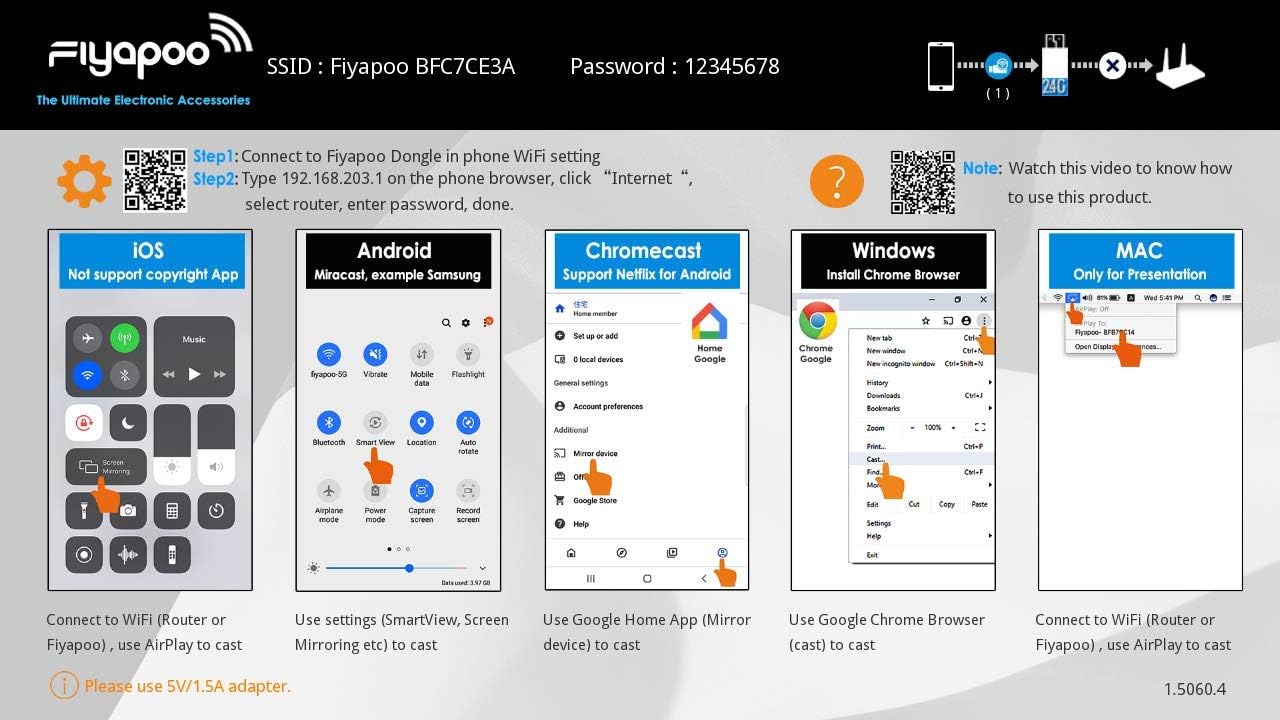

Figure 2: Fiyapoo dongle setup screen with Wi-Fi details and device-specific connection guidance.

5. ຄໍາແນະນໍາການດໍາເນີນງານ

Once connected, you can begin mirroring content from your device to the large screen using the appropriate casting protocol.

General Mirroring Steps:

1. ປລັກ: Connect the dongle to your TV and power source.
2. ເຊື່ອມຕໍ່: Connect your smart device to the dongle's Wi-Fi network.
3. ກະຈົກ: Initiate screen mirroring from your device using Airplay, Miracast, or Chromecast.

Device-Specific Mirroring:

• iOS Devices (iPhone, iPad, MacBook, iMac): Use AirPlay. Swipe down from the top-right corner (or up from the bottom for older models) to open Control Center, then tap 'Screen Mirroring' and select the FIYAPOO dongle.
• Android Devices (Samsung, Google Pixel, LG, Huawei, etc.): Use Miracast or Chromecast. Look for options like 'SmartView', 'Screen Mirroring', 'Cast', or 'Wireless Display' in your device's settings or quick panel. For Chromecast, use the Google Home app.
• ອຸປະກອນ Windows: Open the Google Chrome browser, click the three-dot menu, select 'Cast...', then choose 'Cast tab' or 'Cast desktop' and select the FIYAPOO dongle.
• Mac Devices: Use AirPlay. Click the AirPlay icon in the menu bar and select the FIYAPOO dongle.

Figure 3: System compatibility and connection flow.

ຮູບທີ 4: ຕົວຢ່າງample of content mirrored to a large screen.

Figure 5: Enhanced gaming experience through screen mirroring.

Figure 6: Benefits of 5GHz Wi-Fi for reduced delay.

Figure 7: Supported applications for casting content.

6. ຄວາມເຂົ້າກັນໄດ້

The FIYAPOO Miracast Dongle is compatible with a wide range of operating systems and devices:

• Android: Version 5.0 and later (e.g., Samsung Galaxy S9/S8/S7/Note 8/5/4, Google Pixel 2, LG, Sony, Huawei).
• iOS: Version 9.0 and later (e.g., iPhone, iPad, MacBook, iMac).
• Windows: Version 8.1 and later.
• Mac: Version 10.9 and later.

7. ໝາຍເຫດສຳຄັນ ແລະ ການແກ້ໄຂບັນຫາ

• ການສະຫນອງພະລັງງານ: The dongle requires a stable power supply of at least 5V/1A. Insufficient power can lead to unstable performance or failure to operate.
• Encrypted Content (Netflix, Amazon Prime Video): Only Android smartphones support mirroring encrypted video content from services like Netflix and Amazon Prime Video. iOS devices do not support this functionality due to copyright protection.
• ປັບຄ່າໂຮງງານ: If the dongle is not functioning correctly, you can perform a factory reset by pressing the 'Fn' button located on the side of the dongle.
• ການອັບເດດທາງອອນລາຍ: The dongle supports automatic online firmware updates when connected to Wi-Fi, ensuring you have the latest features and improvements.
• ວິດີໂອສອນສອນ: For additional assistance, you can refer to video tutorials available online. A playlist of instructional videos can be found at: FIYAPOO YouTube Playlist.

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

FIYAPOO is committed to providing quality products and customer service.

• ນະໂຍບາຍສົ່ງຄືນ 30 ມື້: You may return the product within 30 days of purchase without justification.
• ການປ່ຽນແທນ 365 ມື້: In case of any quality issues, the product is eligible for a replacement within 365 days from the purchase date.
• ຕິດຕໍ່ລູກຄ້າ: For any issues or to request a replacement, please contact FIYAPOO customer support directly.
