Protmex PT2800U Weather Station User Manual

1. ບົດແນະນຳ

Thank you for choosing the Protmex PT2800U Weather Station. This device provides accurate indoor and outdoor temperature and humidity readings, barometric pressure, and a weather forecast. It features a colorful LCD display for easy readability. Please read this manual carefully before operating the device to ensure proper use and to maximize its lifespan.

2. ເນື້ອໃນຊຸດ

• Protmex PT2800U Main Unit (Receiver)
• ເຊັນເຊີໄຮ້ສາຍພາຍນອກ (ເຄື່ອງສົ່ງສັນຍານ)
• ອະແດັບເຕີໄຟ (DC 5V)
• ຄູ່ມືຜູ້ໃຊ້

3. ຜະລິດຕະພັນເກີນview

3.1 Main Unit and Wireless Sensor

The Protmex PT2800U Weather Station consists of a main display unit and a wireless outdoor sensor. The main unit displays all weather data, time, and forecast, while the sensor collects outdoor temperature and humidity data and transmits it wirelessly to the main unit.

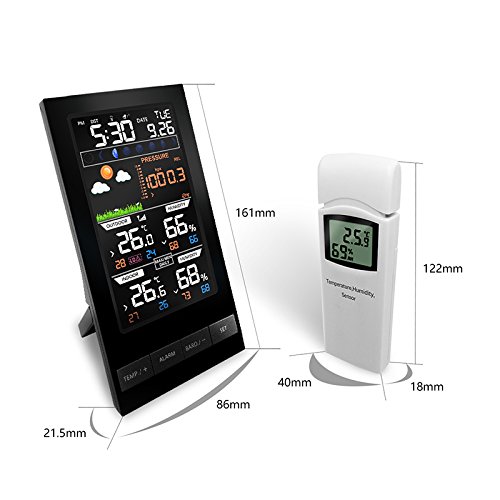

ຮູບທີ 1: Protmex PT2800U Weather Station main unit and wireless sensor with dimensions. The main unit measures approximately 161mm in height and 86mm in width. The sensor measures approximately 122mm in height and 40mm in width.

3.2 Main Unit Features (Rear View)

The rear of the main unit includes essential ports and features for operation and placement.

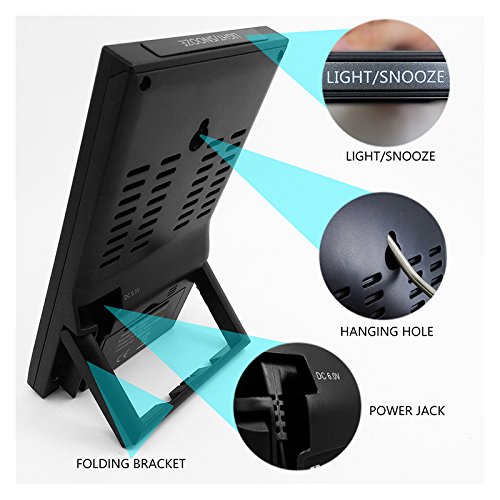

ຮູບທີ 2: ຫລັງ view of the main unit. Key features include the DC 5V power jack, a folding bracket for tabletop placement, and the LIGHT/SNOOZE button located on the top edge. A hanging hole is also visible for wall mounting.

3.3 Battery Compartments and Hanging Holes

Both the main unit and the wireless sensor require batteries for operation and feature hanging holes for flexible placement.

ຮູບທີ 3: ກັບຄືນໄປບ່ອນ view of the main unit and wireless sensor. The main unit requires 3x AAA batteries, and the sensor requires 2x AA batteries. Both units have hanging holes for wall mounting.

3.4 LCD Display Layout

The colorful LCD display provides a comprehensive overview of all weather data and time information.

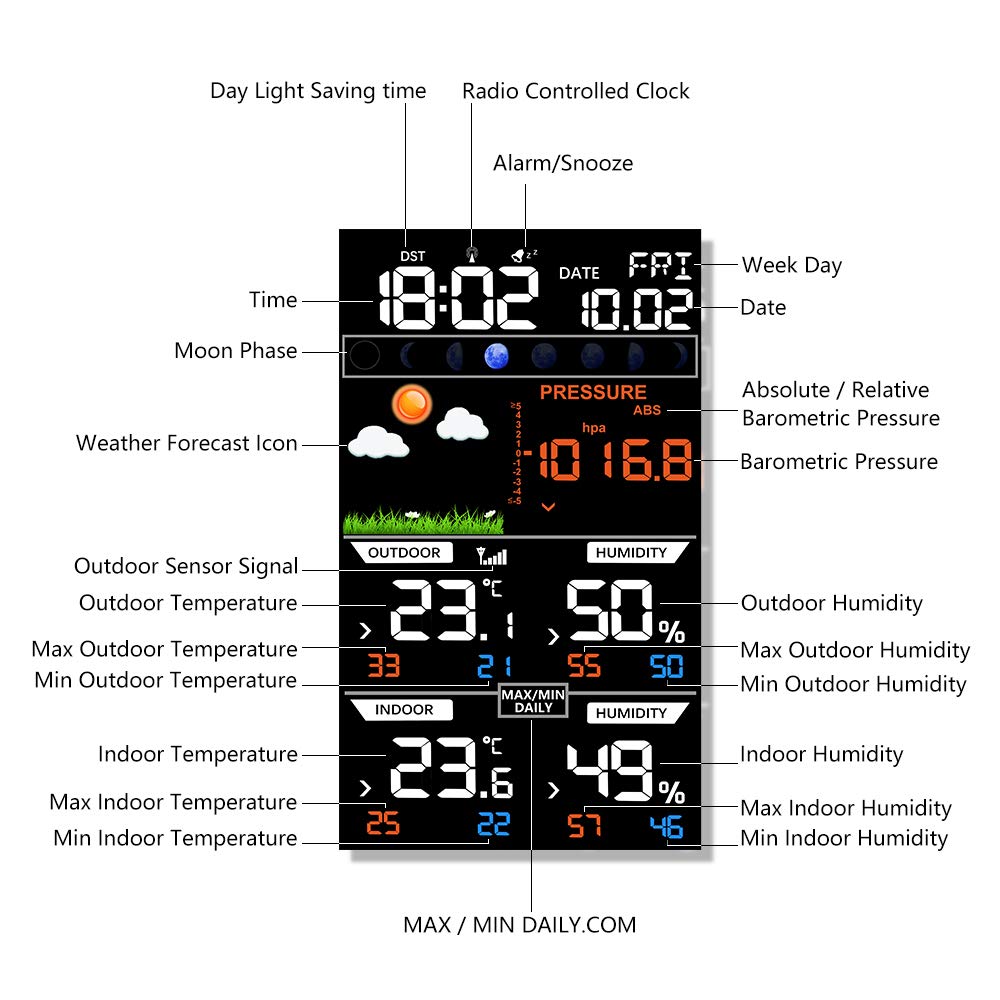

ຮູບທີ 4: Detailed LCD display layout. Sections include Day Light Saving time (DST), Radio Controlled Clock (RCC), Time, Moon Phase, Weather Forecast Icon, Absolute/Relative Barometric Pressure, Barometric Pressure value, Outdoor Sensor Signal, Outdoor Temperature, Max/Min Outdoor Temperature, Outdoor Humidity, Max/Min Outdoor Humidity, Indoor Temperature, Max/Min Indoor Temperature, Indoor Humidity, Max/Min Indoor Humidity, Alarm/Snooze indicator, Date, and Week Day.

4. ຕັ້ງຄ່າ

4.1 ການສ້າງພະລັງງານຂອງຫນ່ວຍງານ

1. ເຊັນເຊີກາງແຈ້ງໄຮ້ສາຍ: Open the battery compartment on the back of the sensor. Insert 2x AA batteries, observing the correct polarity (+/-). Close the compartment.
2. ຫົວໜ່ວຍຫຼັກ: Open the battery compartment on the back of the main unit. Insert 3x AAA batteries, observing the correct polarity (+/-). Close the compartment. For continuous display and backlight, connect the provided DC 5V power adapter to the power jack on the back of the main unit and plug it into a wall outlet.

4.2 ການວາງເຊັນເຊີ

Place the wireless outdoor sensor in a shaded, dry location away from direct sunlight and precipitation to ensure accurate readings. Ensure it is within the transmission range of the main unit (typically up to 60 meters in open air). Avoid placing it near large metal objects or electronic devices that could interfere with the signal.

ຮູບທີ 5: Example placement of the main unit indoors and the wireless sensor outdoors (or in a suitable location like a balcony or window sill) to ensure optimal signal reception.

4.3 ການຊິ້ງຂໍ້ມູນເບື້ອງຕົ້ນ

Once both units are powered on, the main unit will automatically search for and connect to the outdoor sensor. This may take a few minutes. The outdoor temperature and humidity readings will appear on the main unit's display once connected. If synchronization fails, ensure both units are within range and try re-inserting batteries in both units.

4.4 ການກຳນົດເວລາ ແລະ ວັນທີ

Refer to the 'Operating Instructions' section for details on how to manually set the time, date, and other preferences using the control buttons.

5. ຄໍາແນະນໍາການດໍາເນີນງານ

The main unit features several buttons for configuration and display adjustments:

• TEMP/+ Button: Used to switch between Celsius (°C) and Fahrenheit (°F) temperature units. In setting mode, it increases values.
• ປຸ່ມປຸກ: ເຄີຍ view ຫຼື ຕັ້ງເວລາປຸກ.
• BAND/- Button: Used to switch between absolute and relative barometric pressure. In setting mode, it decreases values.
• ປຸ່ມ SET: Used to enter and confirm settings for time, date, and other parameters.
• LIGHT/SNOOZE Button: Activates the backlight temporarily. When an alarm sounds, press to activate snooze function.

5.1 ການຕັ້ງຄ່າເວລາ ແລະ ວັນທີ

1. ກົດຄ້າງໄວ້ SET ກົດປຸ່ມເປັນເວລາ 3 ວິນາທີເພື່ອເຂົ້າສູ່ໂໝດຕັ້ງເວລາ. ຕົວເລກຊົ່ວໂມງຈະກະພິບ.
2. ໃຊ້ TEMP/+ or BAND/- ປຸ່ມເພື່ອປັບຊົ່ວໂມງ.
3. ກົດ SET to confirm and move to the next setting (minute, year, month, day, 12/24 hour format, DST, RCC).
4. Repeat steps 2 and 3 until all settings are configured. Press SET ເພື່ອອອກຈາກໂໝດການຕັ້ງຄ່າ.

5.2 ການຕັ້ງຄ່າໂມງປຸກ

1. ກົດ ປຸກ ປຸ່ມຄັ້ງດຽວເພື່ອ view ທີ່ໃຊ້ເວລາປຸກໄດ້.
2. ກົດຄ້າງໄວ້ ປຸກ button for 3 seconds to enter alarm setting mode. The hour digit will flash.
3. ໃຊ້ TEMP/+ or BAND/- ປຸ່ມເພື່ອປັບຊົ່ວໂມງ ແລະນາທີ.
4. ກົດ ປຸກ ເພື່ອຢືນຢັນແລະອອກ.
5. ເພື່ອເປີດໃຊ້ງານ/ປິດການແຈ້ງເຕືອນ, ໃຫ້ກົດປຸ່ມ ປຸກ ກົດປຸ່ມຊ້ຳໆຈົນກວ່າໄອຄອນສັນຍານເຕືອນຈະປາກົດ/ຫາຍໄປໃນໜ້າຈໍສະແດງຜົນ.

5.3 ການສະແດງອຸນຫະພູມ ແລະ ຄວາມຊຸ່ມຊື່ນ

• The display shows current indoor and outdoor temperature and humidity.
• ກົດ TEMP/+ ປຸ່ມ​ເພື່ອ​ສະ​ຫຼັບ​ລະ​ຫວ່າງ Celsius (°C) ແລະ Fahrenheit (°F).
• The display also shows maximum and minimum recorded values for indoor and outdoor temperature and humidity. These values typically reset daily.

5.4 ຄວາມກົດດັນຂອງບັນຍາກາດ ແລະ ການພະຍາກອນອາກາດ

• The weather station displays current barometric pressure.
• ກົດ BAND/- button to switch between absolute and relative barometric pressure.
• The weather forecast icons (e.g., sunny, cloudy, rainy) are based on changes in barometric pressure over time. These are predictions and may not always perfectly match actual weather conditions.

6. ບໍາລຸງຮັກສາ

• ການປ່ຽນແບັດເຕີຣີ: Replace batteries in both the main unit and the sensor when the low battery indicator appears on the display. Always replace all batteries at the same time.
• ທໍາຄວາມສະອາດ: ເຮັດຄວາມສະອາດພື້ນຜິວຂອງຈໍສະແດງຜົນ ແລະ ເຄື່ອງດ້ວຍຜ້າທີ່ອ່ອນນຸ້ມ.amp ຜ້າ. ຢ່າໃຊ້ເຄື່ອງເຮັດຄວາມສະອາດຂັດຫຼືສານລະລາຍ.
• ການດູແລເຊັນເຊີ: Ensure the outdoor sensor remains protected from extreme weather conditions. Regularly check for any obstructions around the sensor that might affect readings.
• ການເກັບຮັກສາ: ຖ້າເກັບຮັກສາອຸປະກອນໄວ້ເປັນເວລາດົນ, ເອົາແບັດເຕີລີທັງໝົດອອກເພື່ອປ້ອງກັນການຮົ່ວໄຫຼ.

7. ການແກ້ໄຂບັນຫາ

8. ຂໍ້ມູນຈໍາເພາະ

• ຍີ່ຫໍ້: ໂປຣຕ໌ເມັກ
• ຕົວແບບ: PT2800U
• ປະເພດການສະແດງ: Digital, Colorful LCD
• ແຫຼ່ງພະລັງງານ (ໜ່ວຍຫຼັກ): DC 5V Power Adapter (included) or 3x AAA Batteries (not included)
• ແຫຼ່ງພະລັງງານ (ເຊັນເຊີ): ຫມໍ້ໄຟ AA 2x (ບໍ່ລວມ)
• ຮູບແບບ: ທັນສະໄຫມ
• ຮູບຮ່າງ: ຮູບສີ່ຫລ່ຽມ
• ຟັງຊັນ: Indoor/Outdoor Temperature, Indoor/Outdoor Humidity, Barometric Pressure, Weather Forecast, Time, Date, Alarm, Snooze, Moon Phase, DST, RCC.

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

Protmex products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the warranty card included in your package or contact Protmex customer support.

If you encounter any issues or have questions regarding the operation of your PT2800U Weather Station, please contact Protmex customer support through the retailer where the product was purchased or visit the official Protmex webເວັບ​ໄຊ​ສໍາ​ລັບ​ການ​ຊ່ວຍ​ເຫຼືອ​.
