Ikon IK-9210 12 Liter Halogen Convection Oven Instruction Manual

1. ບົດແນະນຳ

ຂອບໃຈສໍາລັບການຊື້asing the Ikon IK-9210 12 Liter Halogen Convection Oven. This appliance is designed for healthy, oil-free cooking, offering versatility and efficiency in your kitchen. Please read this manual thoroughly before operating the appliance to ensure safe and optimal performance. Keep this manual for future reference.

2. ຄໍາແນະນໍາຄວາມປອດໄພທີ່ສໍາຄັນ

ເມື່ອໃຊ້ເຄື່ອງໃຊ້ໄຟຟ້າ, ຄວນລະວັງຄວາມປອດໄພຂັ້ນພື້ນຖານສະເໝີ, ລວມທັງສິ່ງຕໍ່ໄປນີ້:

• ອ່ານຄໍາແນະນໍາທັງຫມົດກ່ອນທີ່ຈະນໍາໃຊ້.
• ຢ່າແຕະພື້ນຜິວທີ່ຮ້ອນ. ໃຊ້ດ້າມຈັບ ຫຼື ບິດ.
• ເພື່ອ​ປ້ອງ​ກັນ​ໄຟ​ຟ້າ, ຢ່າ​ເອົາ​ສາຍ​ໄຟ, ປລັກ​ສຽບ, ຫຼື​ຫົວ​ໜ່ວຍ​ຫຼັກ​ໃນ​ນ້ຳ ຫຼື​ຂອງ​ແຫຼວ​ອື່ນໆ.
• ການເບິ່ງແຍງຢ່າງໃກ້ຊິດແມ່ນມີຄວາມຈໍາເປັນໃນເວລາທີ່ອຸປະກອນໃດໆຖືກນໍາໃຊ້ໂດຍຫຼືຢູ່ໃກ້ກັບເດັກນ້ອຍ.
• ຖອດປລັກອອກຈາກປລັກສຽບໃນເວລາທີ່ບໍ່ໄດ້ໃຊ້ແລະກ່ອນທີ່ຈະເຮັດຄວາມສະອາດ. ປ່ອຍໃຫ້ເຢັນກ່ອນທີ່ຈະໃສ່ຫຼືເອົາຊິ້ນສ່ວນ.
• ຫ້າມ​ນຳ​ໃຊ້​ເຄື່ອງ​ໃຊ້​ທີ່​ມີ​ສາຍ​ໄຟ ຫຼື ປລັກ​ສຽບ​ທີ່​ເສຍ​ຫາຍ, ຫຼື ຫຼັງ​ຈາກ​ເຄື່ອງ​ໃຊ້​ຜິດ​ປົກ​ກະ​ຕິ ຫຼື​ໄດ້​ຮັບ​ຄວາມ​ເສຍ​ຫາຍ​ໃນ​ທຸກ​ຮູບ​ແບບ.
• ການນໍາໃຊ້ອຸປະກອນເສີມທີ່ບໍ່ແນະນໍາໂດຍຜູ້ຜະລິດເຄື່ອງໃຊ້ອາດຈະເຮັດໃຫ້ເກີດການບາດເຈັບ.
• ຢ່າໃຊ້ນອກ.
• ຢ່າປ່ອຍໃຫ້ສາຍໄຟແຂວນໃສ່ຂອບໂຕະ ຫຼືໂຕະ, ຫຼືແຕະພື້ນຜິວທີ່ຮ້ອນ.
• ຢ່າວາງໃສ່ ຫຼືຢູ່ໃກ້ກັບເຕົາແກ໊ສຮ້ອນ ຫຼືເຕົາໄຟຟ້າ, ຫຼືໃນເຕົາອົບທີ່ມີຄວາມຮ້ອນ.
• ຕ້ອງໃຊ້ຄວາມລະມັດລະວັງເປັນຢ່າງຍິ່ງໃນເວລາເຄື່ອນຍ້າຍເຄື່ອງທີ່ບັນຈຸນ້ຳມັນຮ້ອນ ຫຼືຂອງແຫຼວຮ້ອນອື່ນໆ.
• ສຽບປລັກສຽບໃສ່ເຄື່ອງທຸກຄັ້ງກ່ອນ, ຈາກນັ້ນສຽບສາຍໃສ່ປລັກສຽບໃສ່ຝາ. ເພື່ອຕັດການເຊື່ອມຕໍ່, ເຮັດໃຫ້ການຄວບຄຸມໃດໆ "ປິດ", ຫຼັງຈາກນັ້ນເອົາປລັກອອກຈາກເຕົ້າສຽບຝາ.
• ຢ່າໃຊ້ເຄື່ອງໃຊ້ອື່ນນອກເໜືອໄປຈາກການໃຊ້ທີ່ຕັ້ງໃຈ.

3. ຜະລິດຕະພັນເກີນview

Familiarize yourself with the components of your Ikon Halogen Convection Oven.

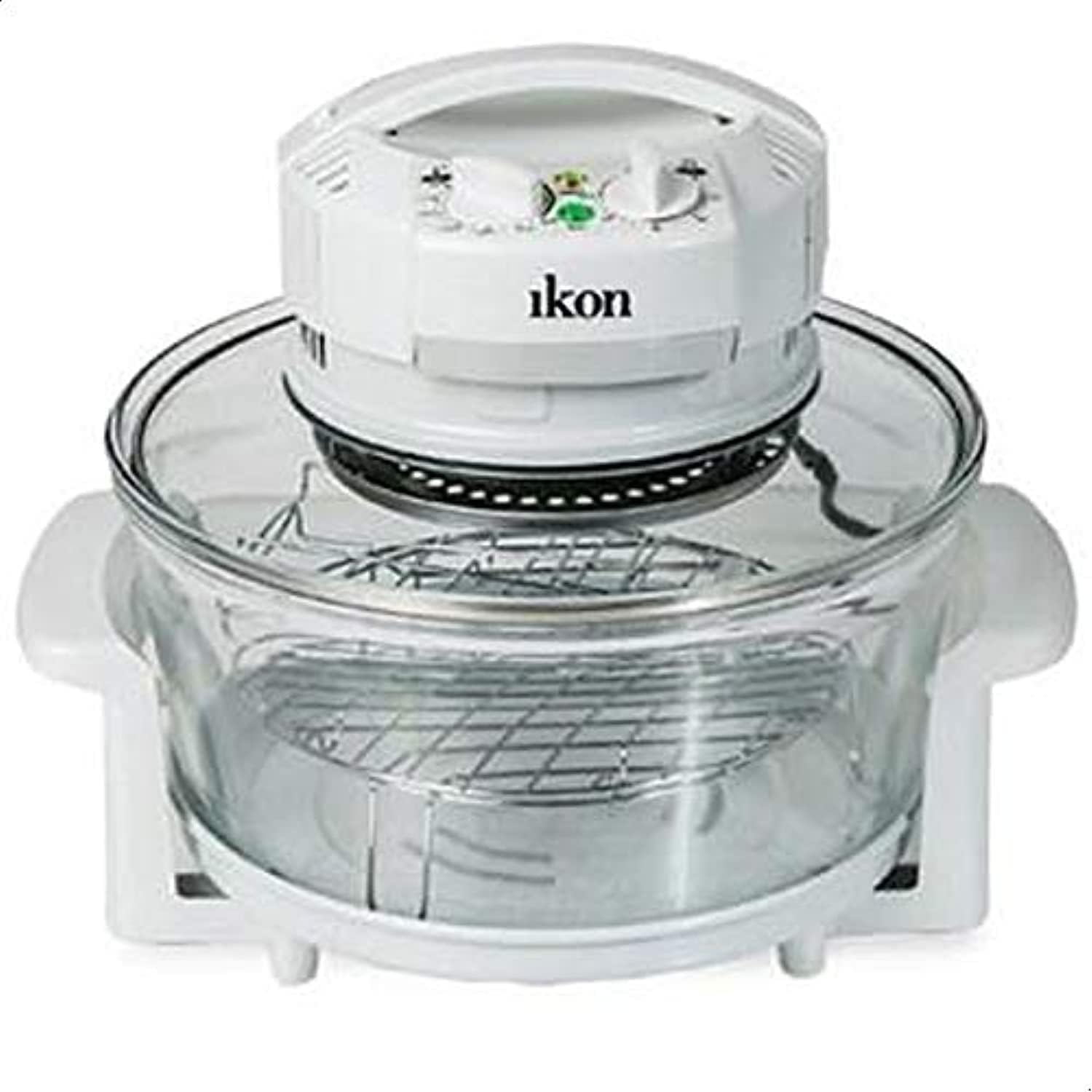

ຮູບທີ 1: Ikon IK-9210 Halogen Convection Oven. This image shows the complete unit, including the white control head with the Ikon logo, the clear glass bowl, and the metal racks inside. The handles on the side of the glass bowl are also visible.

ອົງປະກອບ:

• ຫົວ​ຫນ້າ​ຄວບ​ຄຸມ​: Contains the heating element, fan, temperature control knob, and timer knob.
• ຖ້ວຍແກ້ວ: The main cooking chamber, made of heat-resistant glass.
• High Rack: For cooking items closer to the heating element.
• Low Rack: For cooking items further from the heating element.
• ຕາກ: For safely handling hot racks and food.
• Extension Ring (Optional/Included): Increases the oven's capacity for larger items.

4. ຕັ້ງຄ່າ

1. ການຫຸ້ມຫໍ່: ເອົາວັດສະດຸຫຸ້ມຫໍ່ ແລະອຸປະກອນເສີມທັງໝົດອອກຢ່າງລະມັດລະວັງ. ຮັກສາການຫຸ້ມຫໍ່ສໍາລັບການເກັບຮັກສາຫຼືການຂົນສົ່ງໃນອະນາຄົດ.
2. ທໍາຄວາມສະອາດເບື້ອງຕົ້ນ: Before first use, wash the glass bowl, racks, and tongs in warm, soapy water. Rinse thoroughly and dry. Wipe the control head with a damp cloth. Do not immerse the control head in water.
3. ການຈັດວາງ: Place the oven on a stable, heat-resistant surface, ensuring adequate ventilation around the unit. Do not place it near flammable materials or other heat sources.
4. ສະພາແຫ່ງ: Place the glass bowl on its base. Insert the desired cooking rack (high or low) into the bowl.
5. ການເຊື່ອມຕໍ່ພະລັງງານ: Ensure the appliance is unplugged before placing the control head onto the glass bowl. Once assembled, plug the power cord into a grounded electrical outlet.

5. ຄໍາແນະນໍາການດໍາເນີນງານ

The Ikon IK-9210 oven uses halogen heating and convection technology for even and efficient cooking.

ການ​ດໍາ​ເນີນ​ງານ​ພື້ນ​ຖານ​:

1. ກະກຽມອາຫານ: Place your food on the appropriate rack inside the glass bowl.
2. Secure Control Head: Carefully place the control head onto the glass bowl, ensuring it sits securely.
3. ຕັ້ງຄ່າອຸນຫະພູມ: Turn the temperature control knob to the desired cooking temperature. The range is typically from 65°C to 250°C (150°F to 480°F).
4. ຕັ້ງເວລາ: Turn the timer knob to the desired cooking time. The oven will start heating once the timer is set. A light will indicate operation.
5. ຂະ​ບວນ​ການ​ປຸງ​ແຕ່ງ​ອາ​ຫານ​: The oven will automatically turn off once the set time has elapsed. A bell may sound.
6. ເອົາອາຫານອອກ: Using oven mitts and the provided tongs, carefully remove the control head and place it on a heat-resistant surface. Then, remove your cooked food.

ເຄັດລັບສໍາລັບຜົນໄດ້ຮັບທີ່ດີທີ່ສຸດ:

• Preheating is generally not required for most dishes due to rapid heating.
• For even browning, turn food halfway through the cooking process.
• When using the extension ring, cooking times may need to be slightly adjusted.
• Refer to a convection oven cooking chart for specific food types and cooking durations.

6. ການທໍາຄວາມສະອາດແລະບໍາລຸງຮັກສາ

ການທໍາຄວາມສະອາດເປັນປົກກະຕິຮັບປະກັນອາຍຸຍືນແລະປະສິດທິພາບທີ່ດີທີ່ສຸດຂອງເຕົາອົບຂອງທ່ານ.

1. ຖອດປລັກອອກສະເໝີ: Before cleaning, ensure the oven is unplugged from the power outlet and has completely cooled down.
2. Glass Bowl and Accessories: The glass bowl, racks, and tongs can be washed in warm, soapy water or placed in a dishwasher. Rinse thoroughly and dry completely.
3. ຫົວ​ຫນ້າ​ຄວບ​ຄຸມ​: Wipe the exterior of the control head with a damp cloth. For stubborn stains, use a mild detergent. Do not immerse the control head in water or spray it with liquids.
4. Self-Cleaning Function (if applicable): If your model features a self-cleaning function, add a small amount of water and detergent to the glass bowl, set the temperature to 100°C (212°F), and the timer for 10-15 minutes. The circulating hot air will help loosen food residue. Afterwards, scrub and rinse the bowl.
5. ການເກັບຮັກສາ: ເກັບຮັກສາເຕົາອົບໃນບ່ອນທີ່ເຢັນ, ແຫ້ງໃນເວລາທີ່ບໍ່ໄດ້ໃຊ້.

7. ການແກ້ໄຂບັນຫາ

ອ້າງອີງໃສ່ພາກນີ້ສໍາລັບບັນຫາທົ່ວໄປແລະການແກ້ໄຂຂອງພວກເຂົາ.

8. ຂໍ້ມູນຈໍາເພາະ

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information or technical support, please refer to the warranty card included with your product or contact your local Ikon distributor or customer service center. Please have your model number (IK-9210) and purchase date available when contacting support.

For further assistance, you may visit the official Ikon website (if available) or contact the retailer where the product was purchased.
