LiNKFOR Digital Optical Audio 3x1 Switch Instruction Manual

1. ການແນະນໍາ ແລະຫຼາຍກວ່າview

The LiNKFOR Digital Optical Audio 3x1 Switch is designed to expand the optical audio input capabilities of your audio system. It allows you to connect up to three optical fiber signal sources (SPDIF/TosLink) to a single SPDIF/TosLink receiving device, such as a soundbar, amplifier, or headphones. This device is ideal for managing multiple digital audio sources without constantly plugging and unplugging cables.

It supports various audio formats including LPCM2.0, DTS, and Dolby-AC3 at 96Khz. Please note that it does not support 7.1CH Dolby Digital Plus or Dolby TrueHD, as these formats cannot be transmitted via fiber optic cable and require an HDMI cable for transmission.

The switch supports long-distance signal transmission up to 40 meters (130 feet) when using optical fiber cables with loss less than 0.2Db/m. Its high-grade aluminum alloy design ensures overall shielding without signal interference, contributing to high-quality audio signal transmission. Additionally, it features over-voltage protection to prevent damage from incompatible power adapters.

2. ເນື້ອໃນຊຸດ

ກະ​ລຸ​ນາ​ກວດ​ສອບ​ເນື້ອ​ໃນ​ຂອງ​ຊຸດ​ເພື່ອ​ໃຫ້​ແນ່​ໃຈວ່​າ​ລາຍ​ການ​ທັງ​ຫມົດ​ມີ​ຢູ່​:

• 1 x LiNKFOR Digital Optical Audio 3x1 Switch (Model ULKVC233c)
• 1 x ໜ່ວຍຄວບຄຸມໄລຍະໄກ
• 1 x 1m Optical Cable
• ສາຍໄຟ USB 1 x
• 2 x ຫມໍ້ໄຟ AAA (ສໍາລັບການຄວບຄຸມໄລຍະໄກ)
• 1 x ຄູ່ມືຜູ້ໃຊ້

3. Product Features and Diagrams

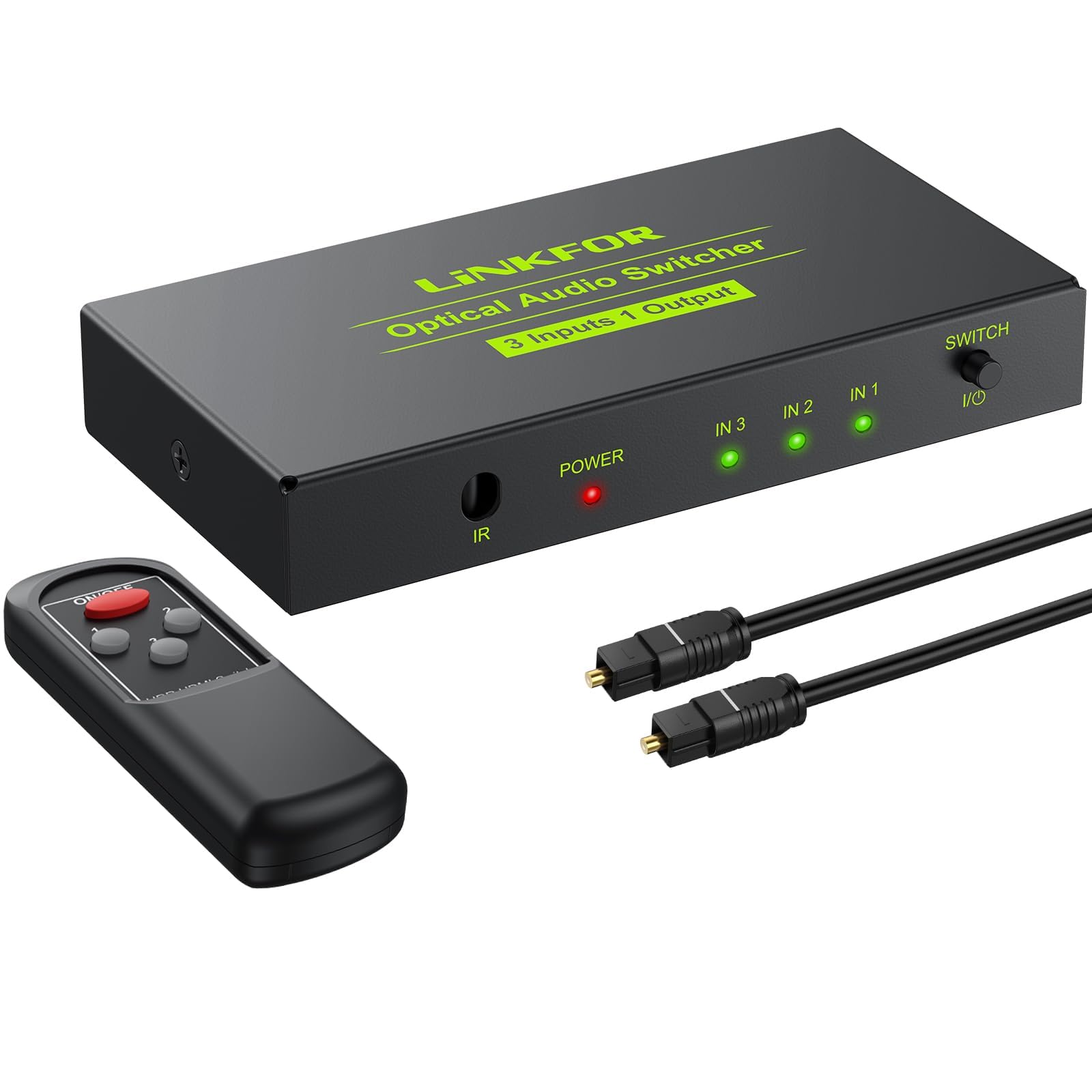

The LiNKFOR Digital Optical Audio 3x1 Switch features a compact design with clearly labeled ports and indicators for ease of use.

3.1. ແຜນຜັງອຸປະກອນ

• Input Ports (IN 1, IN 2, IN 3): Connect your optical audio source devices here.
• Output Port (OUT): Connect your optical audio receiving device here.
• USB 5V Power Input: Connect the provided USB power cable to power the device.
• ຕົວຮັບ IR: ສຳລັບຮັບສັນຍານຈາກຣີໂມດຄວບຄຸມ.
• ເລືອກ Switch: Button to manually cycle through input sources.
• Input Indicators (IN 1, IN 2, IN 3): ໄຟ LED ຈະສະຫວ່າງຂຶ້ນເພື່ອສະແດງອິນພຸດທີ່ເລືອກໃນປະຈຸບັນ.
• ຕົວຊີ້ບອກພະລັງງານ: LED illuminates when the device is powered on.

3.2. ຂະ ໜາດ

3.3. ຟັງຊັນຄວບຄຸມໄລຍະໄກ

4. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

Follow these steps to set up your LiNKFOR Digital Optical Audio 3x1 Switch:

1. Connect Input Sources: Use optical fiber cables to connect your source devices (e.g., PS3, Blue-Ray player, DVD, HDTV) to the IN 1, IN 2, and IN 3 ports on the switch.
2. ເຊື່ອມຕໍ່ອຸປະກອນສົ່ງອອກ: Connect your optical audio receiving device (e.g., soundbar, amplifier, headphones) to the OUT port on the switch using an optical fiber cable.
3. ເຊື່ອມຕໍ່ພະລັງງານ: Connect the provided USB power cable to the DC 5V input port on the switch. Plug the other end of the USB cable into a 5V USB power source (e.g., a USB wall adapter, TV USB port, or computer USB port). The Power indicator LED will light up.

4.1. ຕິດຕັ້ງວິດີໂອສາທິດ

5. ຄໍາແນະນໍາການດໍາເນີນງານ

Once all connections are made and the device is powered on, you can select your desired audio input source:

• ການປ່ຽນດ້ວຍມື: Press the 'Select Switch' button on the front panel of the device to cycle through the input sources (IN 1, IN 2, IN 3). The corresponding input indicator LED will light up to show the active source.
• ການປ່ຽນການຄວບຄຸມໄລຍະໄກ: Use the provided remote control to directly select an input source by pressing the corresponding number button (1, 2, or 3). Ensure the remote is pointed towards the IR Receiver on the switch.

6. ການແກ້ໄຂບັນຫາ

If you encounter issues with your LiNKFOR Digital Optical Audio 3x1 Switch, please refer to the following common problems and solutions:

• ບໍ່ມີສຽງອອກ:
  • Ensure all optical cables are securely connected to both the source devices, the switch, and the receiving device.
  • Verify that the switch is powered on and the Power indicator LED is lit.
  • Check that the correct input source is selected on the switch (the corresponding IN LED should be lit).
  • Confirm that your audio source device is outputting audio in a supported format (LPCM2.0, DTS, or Dolby-AC3).
  • Ensure your receiving device (soundbar, amplifier) is set to the correct optical input and supports the incoming audio format.
• Distorted or Intermittent Sound:
  • Check optical cables for damage or kinks. Replace if necessary.
  • Ensure the optical cable is not excessively long or of poor quality, which can lead to signal degradation.
  • Verify that the audio format from the source is compatible and not an unsupported format like 7.1CH Dolby Digital Plus.
• ການຄວບຄຸມໄລຍະໄກບໍ່ເຮັດວຽກ:
  • Check if the batteries in the remote control are correctly inserted and have sufficient power. Replace if needed.
  • Ensure there are no obstructions between the remote control and the IR Receiver on the switch. Maintain a clear line of sight.
  • Confirm the remote control is within its effective operating range (typically up to 5 meters).
• ບັນຫາພະລັງງານ:
  • Ensure the USB power cable is securely connected to both the switch and the power source.
  • Try a different 5V USB power source or adapter.
  • ອຸປະກອນມີ over-voltage protection; ensure you are using a compatible 5V power supply.

7. ຂໍ້ມູນຈໍາເພາະ

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

This LiNKFOR product comes with a ການຮັບປະກັນຂອງຜູ້ຜະລິດໜຶ່ງປີ. Additionally, customers are entitled to ສະຫນັບສະຫນູນດ້ານວິຊາການຕະຫຼອດຊີວິດຟຣີ. For any questions, troubleshooting assistance, or warranty claims, please contact LiNKFOR customer service.
