YOSE POWER E-Bike Battery XH259-10J User Manual

1. ບົດແນະນຳ

Thank you for choosing the YOSE POWER E-Bike Battery. This manual provides essential information for the safe and efficient use, installation, and maintenance of your 24V 15.6Ah Lithium-ion replacement battery, model XH259-10J. Please read this manual carefully before using the product and keep it for future reference.

Important Note: Before purchasing or installing, always verify the voltage and physical dimensions of your original battery to ensure compatibility.

2. ຜະລິດຕະພັນເກີນview

The YOSE POWER XH259-10J battery is designed for electric bicycles, offering reliable power and a long lifespan. It features an intelligent Battery Management System (BMS) for enhanced safety and performance.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​:

• High Quality Cells: Utilizes TOP A GRADE ZELL original cells for optimal performance.
• BMS ອັດສະລິຍະ: Prevents overcharging, over-discharging, overcurrent, and short circuits, ensuring protection and a long service life.
• ການອອກແບບທີ່ເຂັ້ມແຂງ: Features drop protection, high and low temperature protection, and is waterproof and dustproof.
• ຊີວິດຮອບວຽນຂະຫຍາຍ: ອອກແບບມາສຳລັບຮອບວຽນການສາກໄຟຫຼາຍກວ່າ 1000 ຄັ້ງ.
• Vibration Protection: Built to withstand typical e-bike vibrations.
• ການອອກແບບ Ergonomic: Robust aluminum cover with a dedicated guide rail for easy installation and removal. The handle is made of ABS + PC alloy for comfortable transport.

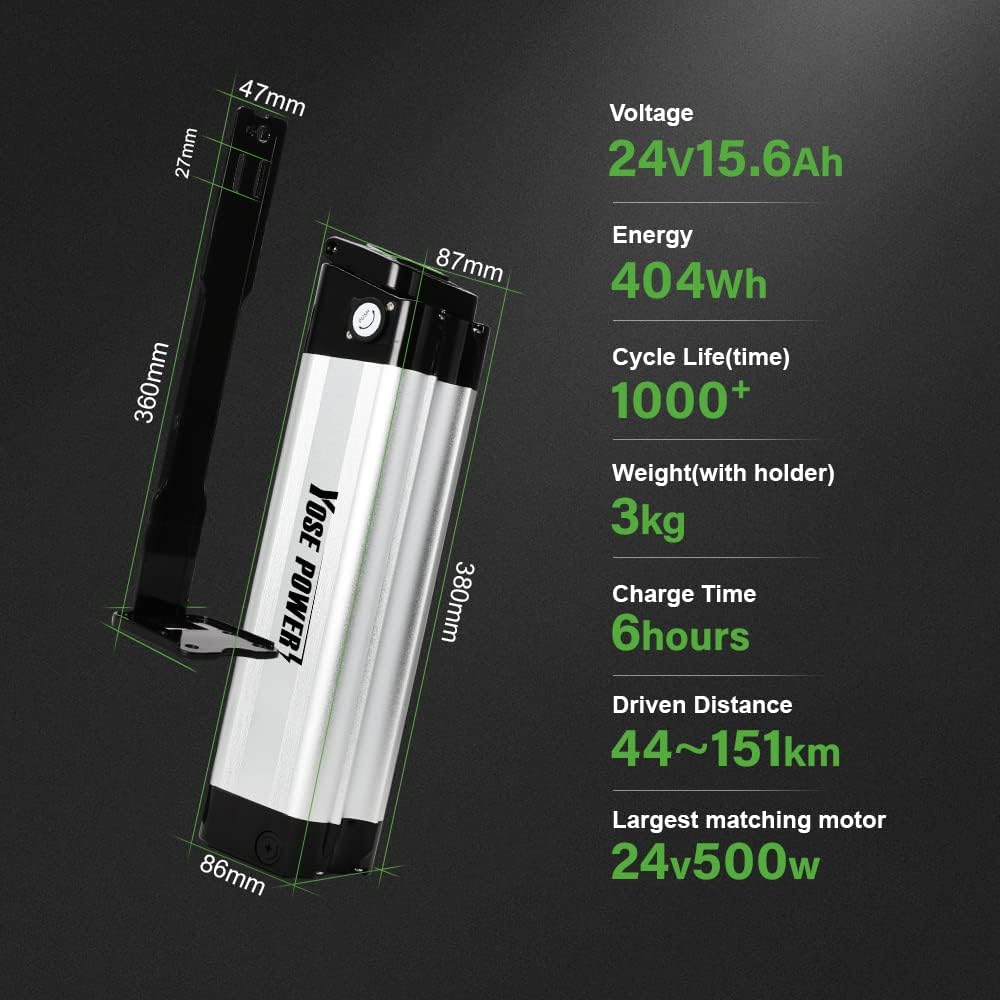

3. ຂໍ້ກໍານົດດ້ານວິຊາການ

Below are the detailed technical specifications for your YOSE POWER E-Bike Battery.

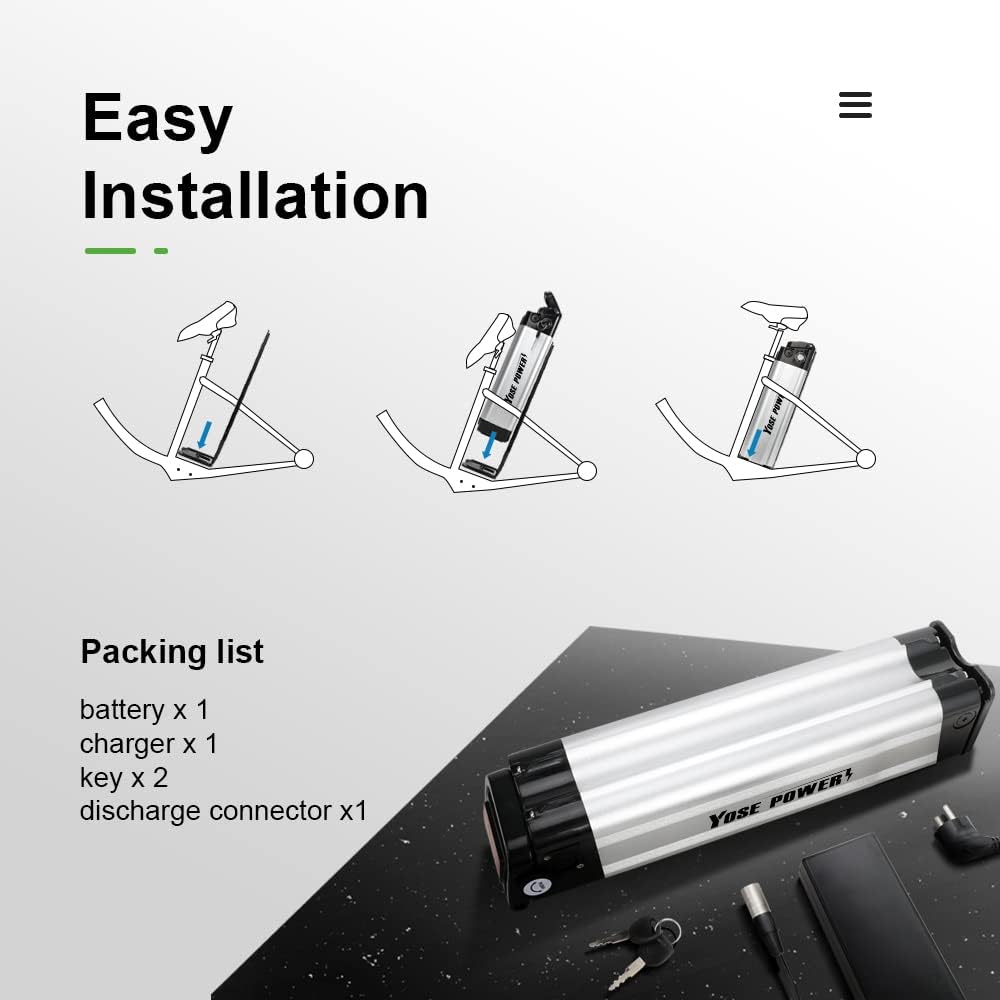

4. ເນື້ອໃນຊຸດ

Upon opening your YOSE POWER E-Bike Battery package, please ensure all the following items are present:

• 1 x YOSE POWER E-Bike Battery (XH259-10J)
• 1 x Battery Charger (29.4V 2A)
• 2 x ກະແຈ
• 1 x Discharge Connector

5. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

The YOSE POWER battery is designed for easy installation and removal thanks to its dedicated guide rail system.

5.1 ຂັ້ນຕອນການຕິດຕັ້ງ

1. Ensure your e-bike is turned off and secured.
2. Align the battery with the mounting rail on your e-bike frame.
3. Slide the battery firmly onto the rail until it clicks into place.
4. Use the provided key to lock the battery securely to the frame.
5. Connect the discharge connector to your e-bike's motor system.

5.2 ຂັ້ນຕອນການໂຍກຍ້າຍ

1. Ensure your e-bike is turned off.
2. Unlock the battery from the frame using the key.
3. Carefully slide the battery off the mounting rail.
4. Disconnect the discharge connector if necessary.

6. ຄໍາແນະນໍາການດໍາເນີນງານ

6.1 ອົງປະກອບຫມໍ້ໄຟ

• ສັບປ່ຽນພະລັງງານ: Controls the battery's power output. Turn to 'ON' for use, 'OFF' for storage or installation/removal.
• Charge Socket: Port for connecting the charger to replenish the battery.
• Discharge Socket: Port for connecting the battery to the e-bike's motor system.

6.2 ຕົວຊີ້ວັດພະລັງງານຫມໍ້ໄຟ

The battery is equipped with a power indicator to show the remaining charge level.

Press the power button on the battery to illuminate the indicator lights. Each light typically represents a percentage of the total charge:

• All lights on: 100% Power
• Four lights on: 80% Power
• Three lights on: 60% Power
• Two lights on: 40% Power
• One light on: 20% Power (Recharge soon)

6.3 ການສາກແບັດເຕີຣີ

Always use the original YOSE POWER charger provided with your battery.

1. Ensure the battery is turned OFF before charging.
2. Connect the charger to the battery's charge socket.
3. ສຽບສາຍສາກເຂົ້າໃສ່ປລັກສຽບຝາມາດຕະຖານ.
4. ໂດຍປົກກະຕິແລ້ວໄຟສະແດງສັນຍານສາກໄຟຈະສະແດງສີແດງໃນລະຫວ່າງການສາກໄຟ ແລະ ປ່ຽນເປັນສີຂຽວເມື່ອສາກເຕັມແລ້ວ.
5. Once fully charged, disconnect the charger from the wall outlet first, then from the battery.

7. ການ ບຳ ລຸງຮັກສາແລະການເກັບຮັກສາ

Proper maintenance and storage will extend the life and performance of your battery.

• ການສາກໄຟປົກກະຕິ: If the battery is not used for an extended period, maintain its charge at approximately 40% and recharge it every three months.
• ສະພາບແວດລ້ອມການເກັບຮັກສາ: Store the battery in a dry, cool, and isolated environment. Avoid extreme temperatures, direct sunlight, and high humidity.
• ການປົກປ້ອງທາງດ້ານຮ່າງກາຍ: Protect the battery from excessive pressure, impacts, and contact with children.
• ທໍາຄວາມສະອາດ: Use a dry, soft cloth to clean the battery. Do not use water or other liquids.
• ການຖິ້ມຂີ້ເຫຍື້ອ: Do not dispose of the battery with ordinary household waste. Follow local regulations for lithium-ion battery recycling.

8. ການແກ້ໄຂບັນຫາ

If you encounter issues with your YOSE POWER E-Bike Battery, consider the following general troubleshooting steps:

• ແບັດເຕີຣີບໍ່ໄດ້ສາກ: Ensure the charger is correctly connected to both the battery and the power outlet. Check if the power outlet is functional. Verify the charger's indicator light.
• Battery Not Powering E-Bike: Ensure the battery is securely locked onto the frame and the power switch is in the 'ON' position. Check all connections between the battery and the e-bike's motor system.
• ຊ່ວງຫຼຸດ: Battery performance can be affected by temperature, terrain, rider weight, and e-bike settings. Ensure the battery is fully charged before each ride. Over time, all batteries experience some capacity degradation.
• ພຶດຕິກໍາທີ່ຜິດປົກກະຕິ: If the battery exhibits unusual heat, smell, or visible damage, immediately discontinue use and contact customer support.

ສຳລັບບັນຫາທີ່ຍັງຄົງຄ້າງຢູ່, ກະລຸນາອ້າງອີງໃສ່ພາກສ່ວນການຮັບປະກັນ ແລະ ການສະໜັບສະໜູນສຳລັບຂໍ້ມູນຕິດຕໍ່.

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

YOSE POWER is committed to providing high-quality products and customer service.

9.1 ຂໍ້ມູນການຮັບປະກັນ

• ການຮັບປະກັນຫມໍ້ໄຟ: 18 ເດືອນນັບຈາກວັນທີຊື້.
• Charger Warranty: 12 ເດືອນນັບຈາກວັນທີຊື້.
• ນະໂຍບາຍການສົ່ງຄືນ: 30 days no-reason return from the date of purchase.

All batteries undergo a Quality Control (QC) test before leaving the factory and are CE, ROHS, and UN38.3 certified.

9.2 After-Sales Service (SAV)

If you need to return or exchange an item, or require technical assistance beyond the warranty period, please contact YOSE POWER customer service first. They will provide the correct return address and activate the service procedure.

Do not return the package yourself without prior authorization to avoid refusal by the warehouse and potential delays in your refund.

YOSE POWER continues to provide technical support and accessory purchase options even after the warranty period has expired.

10. ຂໍ້ມູນຄວາມປອດໄພທີ່ສໍາຄັນ

Please observe the following safety precautions to prevent injury or damage to the battery:

• ຫ້າມຖອດປະກອບ, ເປີດ ຫຼື ຈີກຊຸດແບັດເຕີຣີ.
• ຫ້າມບໍ່ໃຫ້ແບັດເຕີຣີເກີດຄວາມຮ້ອນ ຫຼືໄຟໄໝ້. ຫຼີກເວັ້ນການເກັບຮັກສາໄວ້ໃນແສງແດດໂດຍກົງ.
• Do not short-circuit the battery. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
• ຫ້າມບໍ່ໃຫ້ແບັດແບັດຖືກກະທົບກົນຈັກ.
• ໃນກໍລະນີທີ່ມີຫມໍ້ໄຟຮົ່ວ, ຢ່າປ່ອຍໃຫ້ຂອງແຫຼວເຂົ້າໄປໃນຜິວຫນັງຫຼືຕາ. ຖ້າມີການຕິດຕໍ່, ລ້າງພື້ນທີ່ທີ່ຖືກກະທົບດ້ວຍນ້ໍາຈໍານວນຫຼວງຫຼາຍແລະຊອກຫາຄໍາແນະນໍາຈາກແພດ.
• ຫ້າມໃຊ້ເຄື່ອງສາກໃດໆນອກເໜືອໄປຈາກທີ່ສະໜອງໃຫ້ສະເພາະກັບອຸປະກອນ.
• ຮັກສາແບັດເຕີຣີໃຫ້ສະອາດ ແລະແຫ້ງ.
• ຢ່າປະໄວ້ແບັດເຕີຣີໃນການສາກດົນໆເມື່ອບໍ່ໄດ້ໃຊ້.
• Do not use the battery for any application other than that for which it was intended.
• ຮັກສາໃຫ້ໄກຈາກເດັກນ້ອຍ.
