MOOER Micro Preamp 18 Custom 100 (MMPA18) Instruction Manual

1. ຜະລິດຕະພັນເກີນview

ເຄື່ອງ MOOER Micro Preamp 18 Custom 100 (MMPA18) is a compact digital preamp pedal designed to accurately recreate the sound, dynamics, and response of popular tube amplifiers. Utilizing advanced digital technology, this pedal offers a versatile solution for guitarists seeking high-quality amplifier tones in a miniature form factor.

Key features include dual channels for diverse tonal options, an integrated speaker cabinet simulation for direct recording or PA connection, and dual operating modes to adapt to various performance and recording setups.

2. ຄຸນສົມບັດ

• Sonically accurate digital recreations of classic tube amplifier ກ່ອນamp ພາກສ່ວນ.
• Dual channels for versatile clean and gain tones.
• Integrated speaker cabinet simulation for direct output.
• Dual operating modes to suit various user needs.
• ການອອກແບບກະທັດຮັດແລະທົນທານ.

3. ການຄວບຄຸມແລະການເຊື່ອມຕໍ່

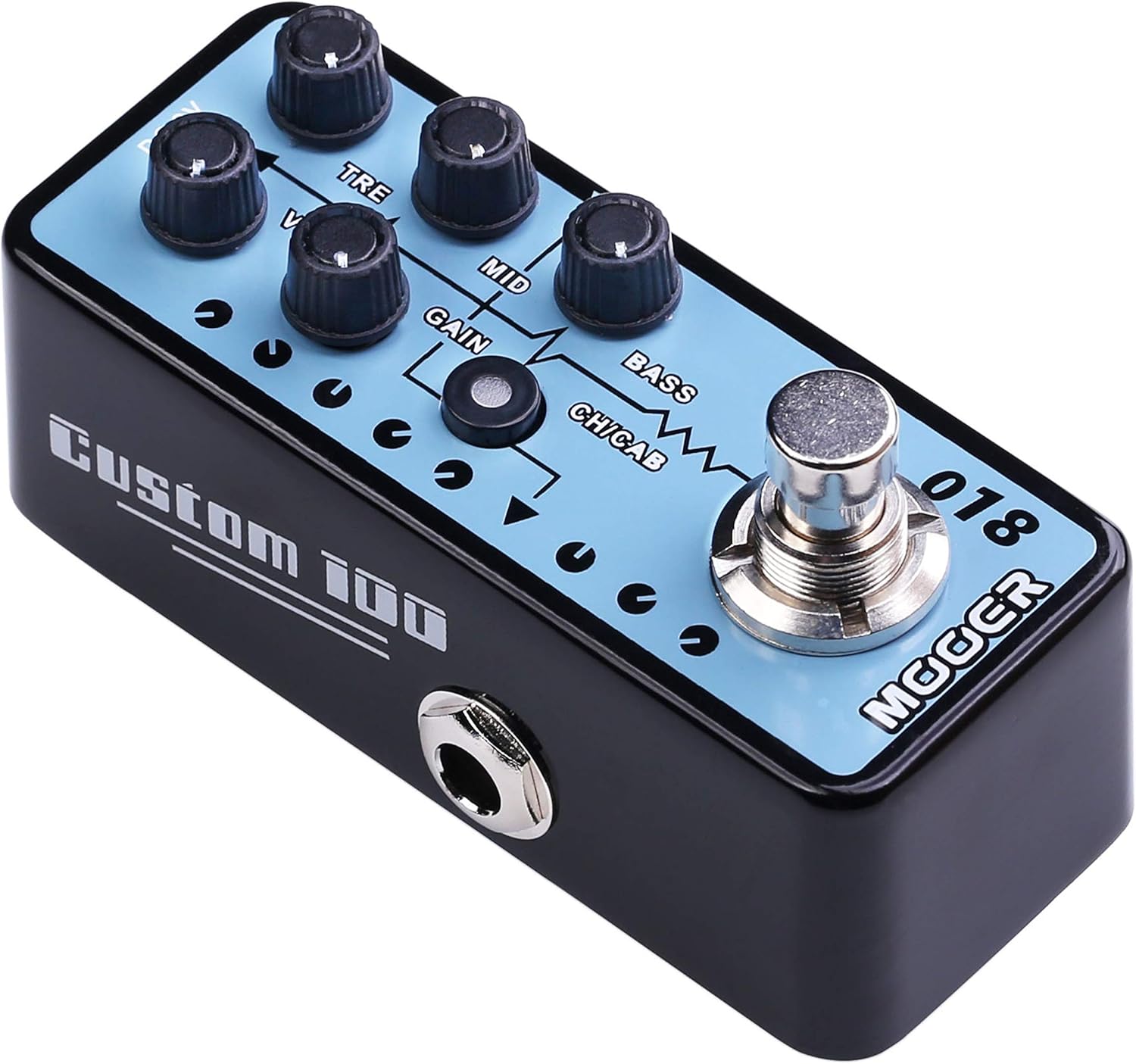

ຮູບທີ 1: ທາງເທິງ view ຂອງ MOOER Micro Preamp 18 Custom 100, highlighting the control knobs and footswitch.

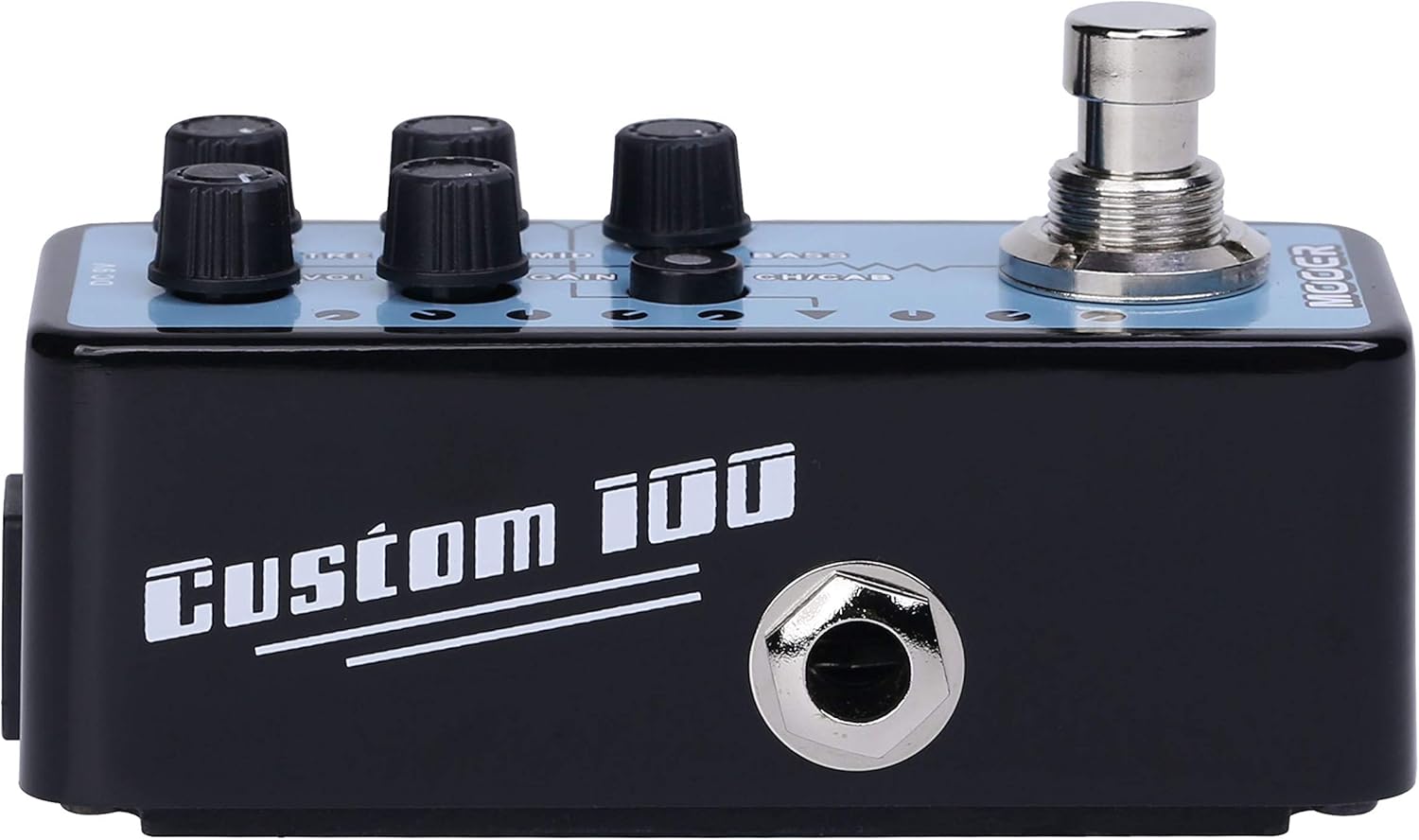

ຮູບ 2: ຂ້າງ view ຂອງ MOOER Micro Preamp 18 Custom 100, illustrating the 1/4" input and output jacks.

ການຄວບຄຸມ:

• VOL (ປະລິມານ): ປັບລະດັບຜົນຜະລິດໂດຍລວມຂອງ preamp.
• TRE (ສຽງສູງ): ຄວບຄຸມການຕອບສະໜອງຄວາມຖີ່ສູງ.
• MID (Middle): Adjusts the mid-range frequency response.
• ໄດ້ຮັບ: Controls the amount of overdrive/distortion.
• ເບສ: ປັບການຕອບສະໜອງຄວາມຖີ່ຕໍ່າ.
• CH/CAB (Channel/Cabinet Simulation Switch): This switch serves two functions:
  • In normal operation, it switches between the two available channels (e.g., Clean and Gain).
  • When held down, it toggles the integrated speaker cabinet simulation on or off.
• ສະຫຼັບຕີນ: Engages or bypasses the pedal.

ການເຊື່ອມຕໍ່:

• Input Jack (1/4" / 6.35mm): ເຊື່ອມຕໍ່ກີຕ້າ ຫຼືເຄື່ອງມືອື່ນໆຂອງທ່ານທີ່ນີ້.
• Output Jack (1/4" / 6.35mm): ເຊື່ອມ​ຕໍ່​ກັບ​ຂອງ​ທ່ານ​ amplifier, audio interface, or other effects pedals.
• DC 9V Input: Connect a 9V DC power adapter (center negative, 300mA minimum).
• USB 2.0 (Hardware Interface): For firmware updates or potential software integration.

4. ການຕິດຕັ້ງແລະການດໍາເນີນງານ

ການຕັ້ງຄ່າເບື້ອງຕົ້ນ:

1. ຮັບປະກັນຂອງທ່ານ amplifier and other audio equipment are turned off.
2. ເຊື່ອມຕໍ່ guitar ຂອງທ່ານກັບ ປ້ອນຂໍ້ມູນ Jack of the MMPA18.
3. ເຊື່ອມ​ຕໍ່ ຜົນໄດ້ຮັບ Jack of the MMPA18 to the input of your amplifier ຫຼືການໂຕ້ຕອບສຽງ.
4. Connect a 9V DC power adapter (center negative, 300mA minimum) to the ການປ້ອນຂໍ້ມູນ DC 9V.
5. ເປີດຂອງທ່ານ amplifier and other audio equipment.

ການ​ດໍາ​ເນີນ​ງານ​ພື້ນ​ຖານ​:

• Engaging/Bypassing: Press the footswitch to turn the preamp effect on or off. The LED indicator will illuminate when the effect is active.
• ການປ່ຽນຊ່ອງ: ຫຍໍ້ໆ ກົດເຂົ້າ CH/CAB switch to toggle between the two channels (e.g., a clean channel and a gain channel). The LED color or state may change to indicate the active channel.
• ການຈຳລອງຕູ້: ກົດຄ້າງໄວ້ CH/CAB switch for a few seconds to activate or deactivate the integrated speaker cabinet simulation. This is particularly useful when connecting directly to a mixing console, audio interface, or headphones, providing a more natural, mic'd cabinet sound.
• ການປັບໂທນ: ໃຊ້ VOL, TRE, MID, GAIN, ແລະ ເບສ knobs to sculpt your desired tone. Experiment with different settings for each channel.

5. ບໍາລຸງຮັກສາ

• ທໍາຄວາມສະອາດ: ໃຊ້ຜ້າອ່ອນໆ, ແຫ້ງເພື່ອເຮັດຄວາມສະອາດ pedal. ຫຼີກລ້ຽງການເຮັດຄວາມສະອາດຂັດຫຼືສານລະລາຍ.
• ການເກັບຮັກສາ: ເກັບຮັກສາ pedal ໃນບ່ອນທີ່ເຢັນ, ແຫ້ງ, ຫ່າງຈາກແສງແດດໂດຍກົງແລະອຸນຫະພູມທີ່ສຸດ.
• ການສະຫນອງພະລັງງານ: Always use a compatible 9V DC (center negative) power supply with a minimum of 300mA. Using an incorrect power supply can damage the unit and void the warranty.
• ການເຊື່ອມຕໍ່: ກວດເບິ່ງການເຊື່ອມຕໍ່ສາຍເຄເບີ້ນທັງໝົດເປັນໄລຍະໆສຳລັບການສວມໃສ່. ໃຫ້ແນ່ໃຈວ່າ Jacks ບໍ່ມີຝຸ່ນແລະສິ່ງເສດເຫຼືອ.

6. ການແກ້ໄຂບັນຫາ

• ບໍ່ມີສຽງ:
  • Check all cable connections (guitar, pedal, amplifier, power supply).
  • Ensure the power supply is correctly connected and providing power.
  • Verify the pedal is engaged (LED illuminated).
  • Check the volume settings on the pedal and your ampມີຊີວິດຊີວາ.
• ຄຸນນະພາບສຽງບໍ່ດີ / ສຽງລົບກວນຫຼາຍເກີນໄປ:
  • ຮັບປະກັນວ່າສາຍໄຟທັງໝົດຢູ່ໃນສະພາບດີ ແລະ ມີການປ້ອງກັນຢ່າງຖືກຕ້ອງ.
  • Try a different power supply to rule out power-related noise.
  • Adjust the GAIN knob; very high gain settings can introduce noise.
  • If using the cabinet simulation, ensure it is appropriate for your output device.
  • Ensure the pedal is not placed too close to power transformers or other sources of electromagnetic interference.
• ກະເບື້ອງຕີນບໍ່ຕອບສະໜອງ:
  • ຕັດການເຊື່ອມຕໍ່ແລະເຊື່ອມຕໍ່ການສະຫນອງພະລັງງານໃຫມ່.
  • If issues persist, contact MOOER support.
• ຄວາມຮ້ອນເກີນ: While normal operation may cause some warmth, excessive heat could indicate an issue. Ensure proper ventilation and use the correct power supply. If the pedal becomes unusually hot, discontinue use and contact support.

7. ຂໍ້ມູນຈໍາເພາະ

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

MOOER products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official MOOER website. In case of any issues or technical support needs, please contact MOOER customer service through their official channels.

ສໍາລັບການຊ່ວຍເຫຼືອເພີ່ມເຕີມ, ທ່ານສາມາດໄປຢ້ຽມຢາມໄດ້ MOOER Store on Amazon.
