ແນະນຳ
This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your Maxima 20L Single Basket Deep Fryer with Drain Tap. Please read this manual thoroughly before initial use and keep it for future reference. This appliance is designed for professional use in commercial kitchens and catering environments.
ຄໍາແນະນໍາຄວາມປອດໄພທີ່ສໍາຄັນ
ປະຕິບັດຕາມຄວາມລະມັດລະວັງດ້ານຄວາມປອດໄພຂັ້ນພື້ນຖານສະເໝີເມື່ອໃຊ້ເຄື່ອງໃຊ້ໄຟຟ້າເພື່ອຫຼຸດຜ່ອນຄວາມສ່ຽງຕໍ່ການເກີດອັກຄີໄພ, ໄຟຟ້າຊອດ ແລະ ການບາດເຈັບ.
- ອ່ານຄໍາແນະນໍາທັງຫມົດກ່ອນທີ່ຈະນໍາໃຊ້.
- ຢ່າແຕະພື້ນຜິວທີ່ຮ້ອນ. ໃຊ້ດ້າມຈັບ ຫຼື ບິດ.
- ເພື່ອປ້ອງກັນໄຟຟ້າ, ຢ່າເອົາສາຍໄຟ, ປລັກສຽບ, ຫຼືເຄື່ອງໃຊ້ໃນນ້ຳຫຼືຂອງແຫຼວອື່ນໆ.
- ການເບິ່ງແຍງຢ່າງໃກ້ຊິດແມ່ນມີຄວາມຈໍາເປັນໃນເວລາທີ່ອຸປະກອນໃດໆຖືກນໍາໃຊ້ໂດຍຫຼືຢູ່ໃກ້ກັບເດັກນ້ອຍ.
- ຖອດປລັກອອກຈາກປລັກສຽບໃນເວລາທີ່ບໍ່ໄດ້ໃຊ້ແລະກ່ອນທີ່ຈະເຮັດຄວາມສະອາດ. ປ່ອຍໃຫ້ເຢັນກ່ອນທີ່ຈະໃສ່ຫຼືຖອດຊິ້ນສ່ວນ, ແລະກ່ອນທີ່ຈະເຮັດຄວາມສະອາດເຄື່ອງໃຊ້.
- ຢ່າໃຊ້ອຸປະກອນໃດໆທີ່ມີສາຍໄຟ ຫຼື ປລັກໄຟທີ່ເສຍຫາຍ, ຫຼື ຫຼັງຈາກອຸປະກອນເຮັດວຽກຜິດປົກກະຕິ ຫຼື ໄດ້ຮັບຄວາມເສຍຫາຍໃດໆ. ຕິດຕໍ່ພະນັກງານບໍລິການທີ່ມີຄຸນວຸດທິເພື່ອກວດສອບ, ສ້ອມແປງ ຫຼື ປັບປ່ຽນ.
- ການນໍາໃຊ້ອຸປະກອນເສີມທີ່ບໍ່ແນະນໍາໂດຍຜູ້ຜະລິດເຄື່ອງໃຊ້ອາດຈະເຮັດໃຫ້ເກີດການບາດເຈັບ.
- ຢ່າໃຊ້ນອກ.
- ຢ່າປ່ອຍໃຫ້ສາຍໄຟແຂວນໃສ່ຂອບໂຕະ ຫຼືໂຕະ, ຫຼືແຕະພື້ນຜິວທີ່ຮ້ອນ.
- ຢ່າວາງໃສ່ ຫຼືຢູ່ໃກ້ກັບເຕົາແກ໊ສຮ້ອນ ຫຼືເຕົາໄຟຟ້າ, ຫຼືໃນເຕົາອົບທີ່ມີຄວາມຮ້ອນ.
- ຕ້ອງໃຊ້ຄວາມລະມັດລະວັງເປັນຢ່າງຍິ່ງໃນເວລາເຄື່ອນຍ້າຍເຄື່ອງທີ່ບັນຈຸນ້ຳມັນຮ້ອນ ຫຼືຂອງແຫຼວຮ້ອນອື່ນໆ.
- ສຽບປລັກສຽບໃສ່ເຄື່ອງທຸກຄັ້ງກ່ອນ, ຈາກນັ້ນສຽບສາຍໃສ່ປລັກສຽບໃສ່ຝາ. ເພື່ອຕັດການເຊື່ອມຕໍ່, ເຮັດໃຫ້ການຄວບຄຸມໃດໆ "ປິດ", ຫຼັງຈາກນັ້ນເອົາປລັກອອກຈາກເຕົ້າສຽບຝາ.
- ຢ່າໃຊ້ເຄື່ອງໃຊ້ອື່ນນອກເໜືອໄປຈາກການໃຊ້ທີ່ຕັ້ງໃຈ.
- ໃຫ້ແນ່ໃຈວ່າເຄື່ອງໃຊ້ຖືກວາງຢູ່ເທິງພື້ນຜິວທີ່ຫມັ້ນຄົງ, ທົນທານຕໍ່ຄວາມຮ້ອນ.
- Never fill the oil above the MAX fill line or below the MIN fill line.
- Always ensure the drain tap is securely closed before filling with oil and during operation.
ເນື້ອໃນຊຸດ
ເມື່ອແກະກ່ອງອອກແລ້ວ, ໃຫ້ກວດສອບວ່າອົງປະກອບທັງໝົດມີຢູ່ ແລະ ບໍ່ເສຍຫາຍ. ການຫຸ້ມຫໍ່ຄວນປະກອບມີ:
- Maxima 20L Deep Fryer Unit
- Frying Basket with handle
- ຝາປິດ
- Heating Element with control panel
- Oil Draining Tap (pre-installed)
- ຄູ່ມືແນະ ນຳ (ເອກະສານນີ້)

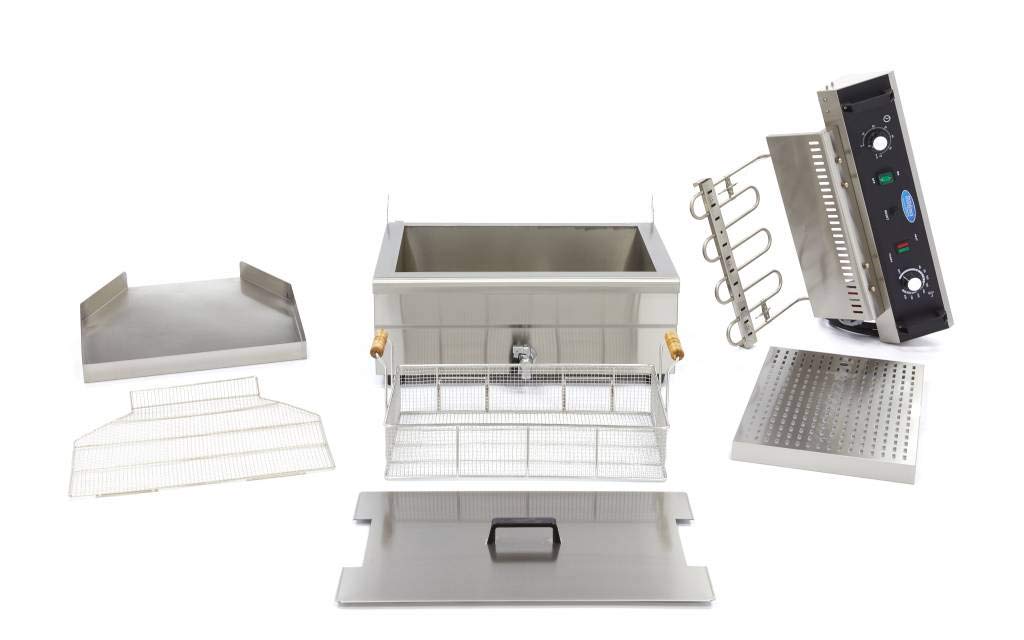

ຮູບທີ 1: ລະເບີດ view showing the main components of the Maxima 20L Deep Fryer, including the main unit, heating element, frying basket, lid, and cold zone plate.
ສິນຄ້າເກີນview
Familiarize yourself with the various parts of your deep fryer before operation.

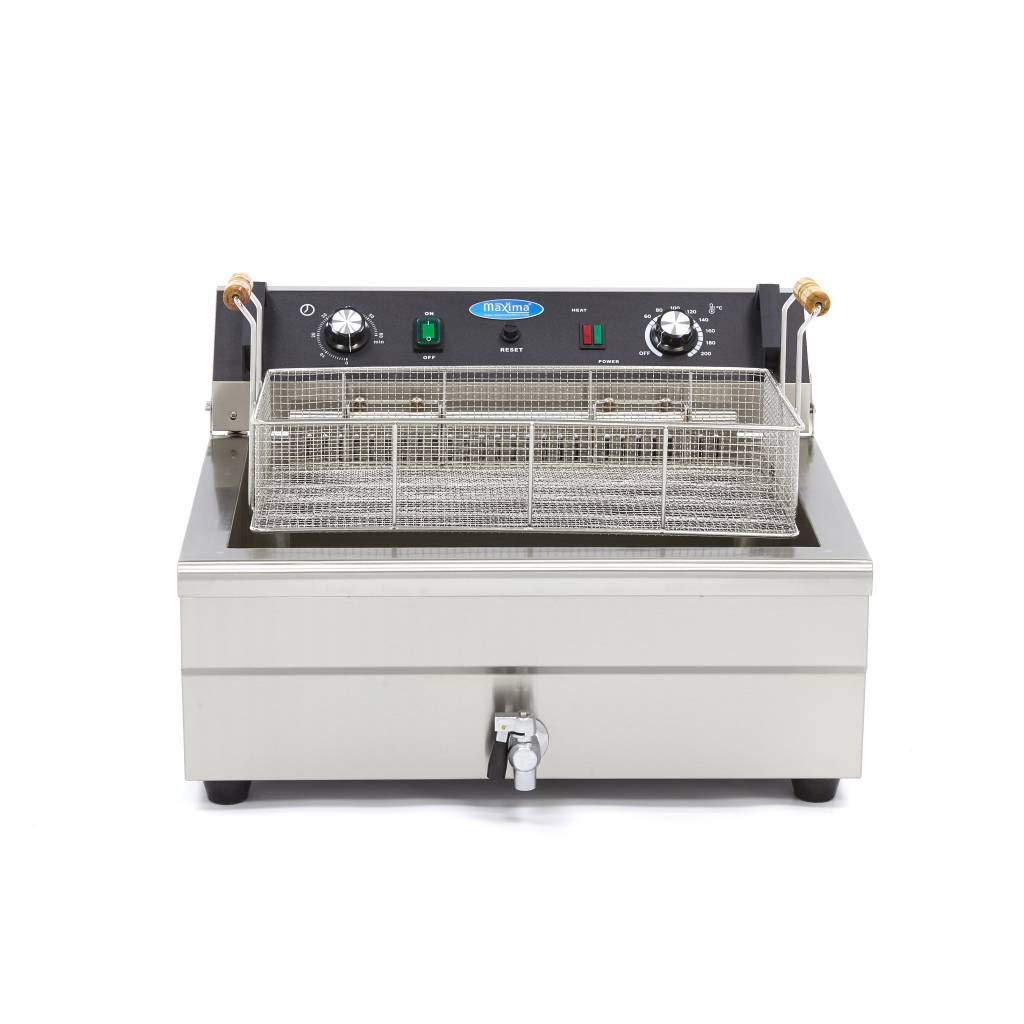

ຮູບທີ 2: ດ້ານໜ້າ view of the Maxima 20L Deep Fryer, showing the control panel, frying basket, and drain tap.
ຮູບທີ 3: ລົງລຸ່ມ view of the deep fryer with the frying basket in place and the lid open, revealing the oil pan.

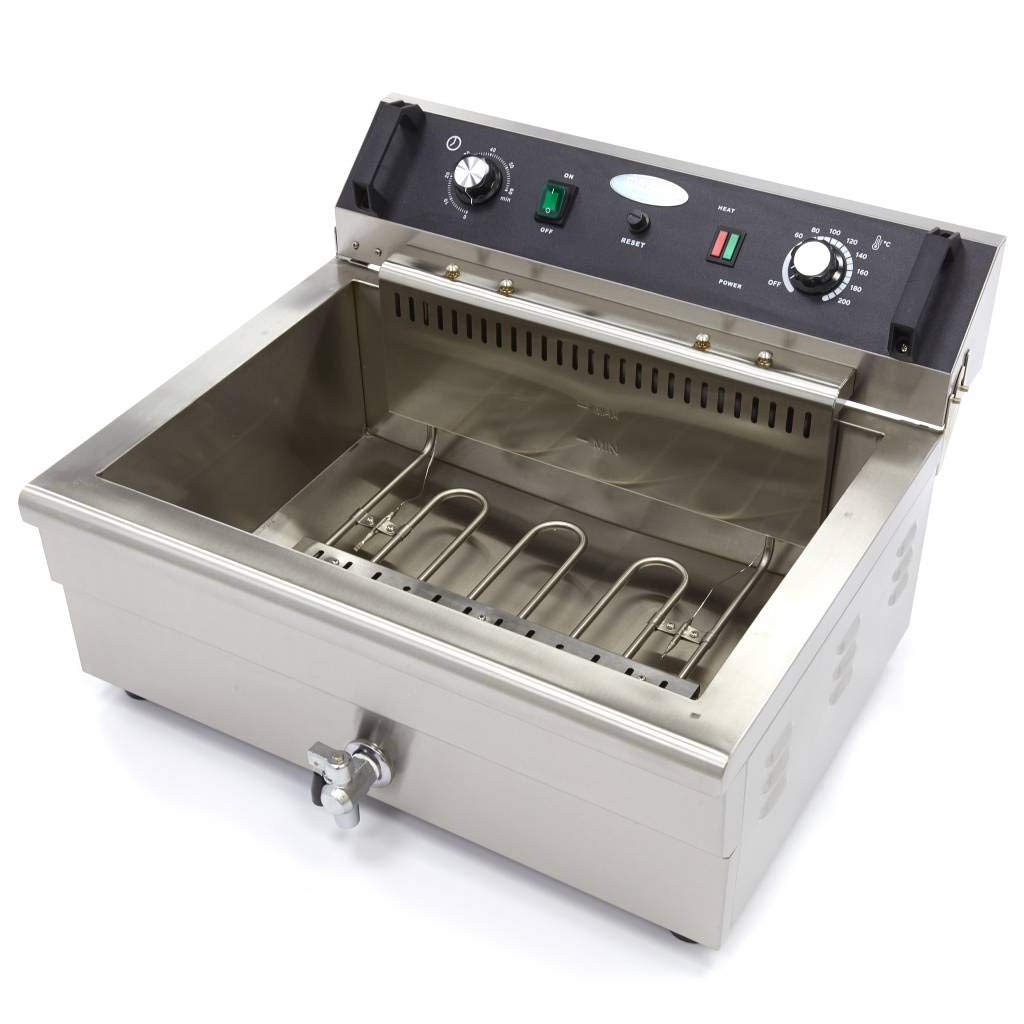

ຮູບທີ 4: ພາຍໃນ view of the deep fryer, highlighting the heating element and the cold zone area beneath it.
ຄໍາແນະນໍາການຕິດຕັ້ງ
- ການຫຸ້ມຫໍ່: Carefully remove all packaging materials. Inspect the fryer for any damage incurred during shipping.
- ການຈັດວາງ: Place the deep fryer on a stable, level, and heat-resistant surface. Ensure there is adequate ventilation around the unit. Do not place it near flammable materials.
- ທໍາຄວາມສະອາດເບື້ອງຕົ້ນ: Before first use, clean the oil pan, frying basket, and lid with warm soapy water. Rinse thoroughly and dry completely. Ensure the heating element and electrical components do not come into contact with water.
- ການເຊື່ອມຕໍ່ພະລັງງານ: Connect the power plug to a suitable electrical outlet. This appliance requires a 400 Volt connection with 4500 KW power. Ensure your electrical supply matches these requirements.
- ການຕື່ມນ້ຳມັນ: Ensure the drain tap is securely closed. Fill the oil pan with frying oil. The oil level must be between the MIN and MAX markings indicated on the inside of the pan. Do not overfill or underfill.
ຮູບທີ 5: ຂ້າງ view illustrating the robust power connection required for the deep fryer.
ຄໍາແນະນໍາການດໍາເນີນງານ
- ເປີດ: Ensure the fryer is properly filled with oil and connected to power. Turn the main power switch to the "ON" position.
- ຕັ້ງຄ່າອຸນຫະພູມ: Use the temperature control knob to select the desired frying temperature. The indicator light will illuminate, showing that the heating element is active.
- ການທຳຄວາມຮ້ອນລ່ວງໜ້າ: Allow the oil to preheat to the set temperature. The indicator light will turn off once the desired temperature is reached. It will cycle on and off during operation to maintain the temperature.
- ອາຫານທອດ: Carefully place food into the frying basket. Do not overload the basket, as this can lower the oil temperature significantly and result in soggy food. Slowly lower the basket into the hot oil.
- ເວລາປຸງແຕ່ງອາຫານ: Fry food for the recommended time or until golden brown and cooked through.
- ການເອົາອາຫານອອກ: Carefully lift the frying basket out of the oil. Allow excess oil to drain back into the pan. Place fried food on a wire rack or paper towels to further drain.
- ປິດພະລັງງານ: After use, turn the temperature control knob to the lowest setting and switch the main power to "OFF". Unplug the appliance from the power outlet.
Note on Cold Zone: This fryer features an integrated cold zone. This area below the heating element collects food debris, preventing it from burning and extending the life of your frying oil.
ການບໍາລຸງຮັກສາແລະການທໍາຄວາມສະອາດ
Regular cleaning and maintenance are crucial for the longevity and hygiene of your deep fryer.
- ເຢັນລົງ: Always allow the oil and the fryer to cool completely before cleaning. This can take several hours.
- ນ້ຳມັນເຊື້ອໄຟ: Place a suitable container under the drain tap. Open the drain tap to empty the oil from the pan. Filter the oil if it is still suitable for reuse, or dispose of it responsibly.
- ເອົາອົງປະກອບອອກ: Carefully remove the frying basket, lid, and heating element assembly. The heating element can be lifted out for easier cleaning of the pan.
- Clean Pan and Components: Wash the oil pan, basket, and lid with warm soapy water and a non-abrasive sponge. For stubborn residue, a specialized fryer cleaner may be used. Rinse thoroughly and dry completely.
- ອົງປະກອບຄວາມຮ້ອນທີ່ສະອາດ: ເຊັດອົງປະກອບຄວາມຮ້ອນດ້ວຍການໂຄສະນາamp ຜ້າ. ຢ່າຈຸ່ມອົງປະກອບຄວາມຮ້ອນ ຫຼື ແຜງຄວບຄຸມລົງໃນນໍ້າ.
- ປະກອບຄືນໃໝ່: Once all parts are clean and dry, reassemble the fryer. Ensure the heating element is correctly seated before refilling with oil.
ຮູບທີ 6: The interior of the fryer, showing the removable cold zone plate for thorough cleaning.
ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| Fryer ບໍ່ຮ້ອນຂຶ້ນ. | No power supply; thermostat set too low; safety cut-out activated. | Check power connection and outlet; increase temperature setting; press the reset button on the control panel. If the issue persists, contact service. |
| ນ້ຳມັນບໍ່ຮອດອຸນຫະພູມທີ່ຕ້ອງການ. | Overloaded basket; insufficient preheating time; faulty thermostat. | Reduce food quantity; allow more time for preheating; contact service if thermostat is suspected. |
| ອາຫານປຽກ ຫຼື ບໍ່ກອບ. | Oil temperature too low; too much food in basket; food contains too much moisture. | Ensure oil is at correct temperature; fry in smaller batches; pat food dry before frying. |
| ການສູບຢາຫຼາຍເກີນໄປຈາກນ້ຳມັນ. | ນ້ໍາມັນເກົ່າຫຼືປົນເປື້ອນ; ອຸນຫະພູມນ້ໍາມັນສູງເກີນໄປ. | Replace oil; check temperature setting. |
ຂໍ້ມູນຈໍາເພາະ
| ຊື່ຕົວແບບ | Maxima 20L Single Basket Deep Fryer with Drain Tap |
| ໝາຍເລກຕົວແບບ | 8719632124221 |
| ຍີ່ຫໍ້ | ສູງສຸດ |
| ວັດສະດຸ | ສະແຕນເລດ |
| ຂະໜາດ (L x W x H) | 64ຊມ x 42ຊມ x 55ຊມ |
| ນ້ຳໜັກ | 15 ກິໂລກຣາມ |
| ແຫຼ່ງພະລັງງານ | Mains Powered |
| ສະບັບtage | 400 ໂວນ |
| ວັດtage | 4500 KW |
| ຄວາມອາດສາມາດນ້ໍາມັນ | 20 ລິດ |

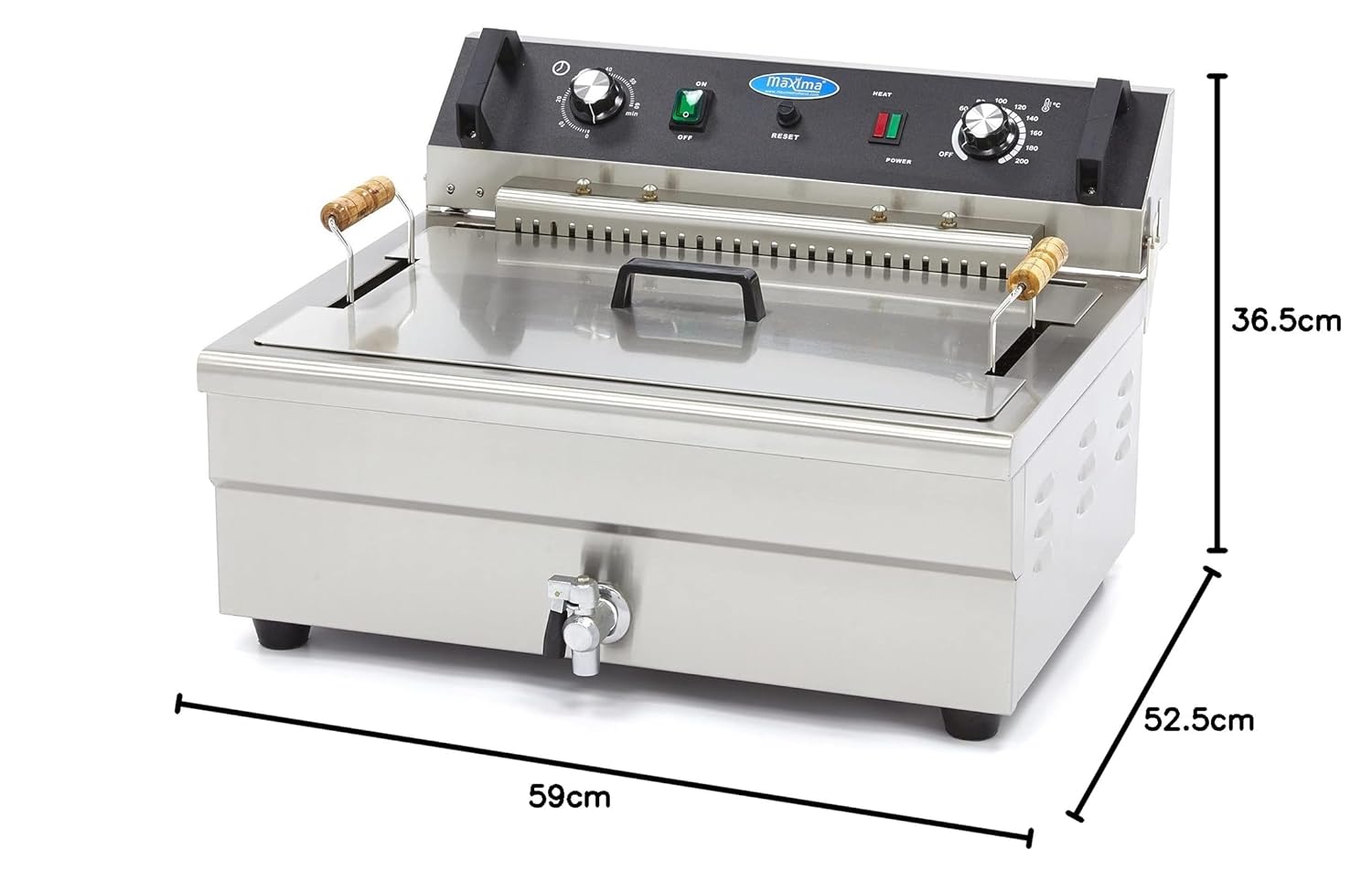

ຮູບທີ 7: Dimensional drawing of the Maxima 20L Deep Fryer, showing length, width, and height measurements.
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
This Maxima deep fryer comes with a ການຮັບປະກັນ 1 ປີຕໍ່ກັບຂໍ້ບົກພ່ອງຂອງຜູ້ຜະລິດ ຈາກວັນທີ່ຊື້. ກະລຸນາຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນ.
For technical support, spare parts, or warranty inquiries, please contact your retailer or visit the official Maxima Kitchen Equipment website. Refer to the contact information provided with your purchase documentation.
ຊັບພະຍາກອນອອນໄລນ໌: For additional information and product updates, you may visit the Maxima Brand Store.
