Partsam 3-Inch Round Marine LED Light (Model 193495) Instruction Manual

1. ບົດແນະນຳ

This manual provides essential instructions for the proper installation, operation, and maintenance of your Partsam 3-Inch Round Marine LED Light. This versatile light is designed for marine applications, serving as a navigation, transom, cabin, cockpit, stern, or anchor light. Its robust construction and IP68 waterproof rating ensure reliable performance in various marine environments.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​:

• Longevity and Low Draw: Utilizes efficient LED technology.
• ຄໍາຮ້ອງສະຫມັກອະເນກປະສົງ: Suitable for vertical transoms, interior cabins, or as a courtesy light.
• ຂະໜາດ: 3-inch diameter.
• ສະບັບtage: Operates on 12 Volts DC.
• ປະເພດ LED: Features 12-5050-SMD LEDs for bright illumination.
• ການກໍ່ສ້າງທົນທານ: Polished 304 Marine Stainless Steel Bezel and PC Lens.
• ການປະເມີນກັນນ້ໍາ: IP68 submersible, designed to withstand marine conditions.

2. ຂໍ້ມູນຄວາມປອດໄພ

Please read and understand all safety instructions before installing or operating this product. Failure to follow these instructions may result in electrical shock, fire, or damage to the product or vessel.

• Always disconnect power to the installation area before beginning any electrical work.
• Ensure proper wiring connections (positive to positive, negative to negative) to prevent damage to the LED light.
• Use appropriate marine-grade wiring and connectors for all electrical connections.
• ກວດສອບການສະຫນອງພະລັງງານ voltage ກົງກັບປະລິມານທີ່ລະບຸໄວ້ຂອງຜະລິດຕະພັນtage (12 Volts DC).
• Do not modify the light in any way, as this may compromise its waterproof integrity and void the warranty.
• While the light is IP68 submersible, ensure all connections are properly sealed and protected from water ingress during installation.

3. ເນື້ອໃນຊຸດ

ກວດ​ສອບ​ວ່າ​ອົງ​ປະ​ກອບ​ທັງ​ຫມົດ​ແມ່ນ​ມີ​ຢູ່​ກ່ອນ​ທີ່​ຈະ​ເລີ່ມ​ຕົ້ນ​ການ​ຕິດ​ຕັ້ງ​:

• 1 x Partsam 3-Inch Round Marine LED Light
• screws ການຕິດຕັ້ງ
• ການຕິດຕັ້ງ Gasket

4. ການຕິດຕັ້ງ

4.1. ການຕິດຕັ້ງ

1. Choose a suitable mounting location on your vessel. The light is designed for surface mounting with its quality flange construction.
2. Place the mounting gasket on the back of the light to ensure a watertight seal.
3. Mark the positions for the mounting screws using the light's bezel as a template.
4. Drill pilot holes for the mounting screws. Ensure the pilot holes are appropriately sized for the provided screws to prevent cracking the plastic or stripping the screws.
5. Secure the light to the mounting surface using the provided fasteners. Do not overtighten.

Figure 1: Product Dimensions. The light has a 3.0-inch diameter and a depth of 1.0 inch (0.65 inch from the mounting surface).

4.2. ສາຍໄຟ

The light operates on 12 Volts DC. It includes a lead wire (positive) and a ground wire (negative) for complete installation.

1. Identify the positive (+) and negative (-) wires from your vessel's 12V DC power supply.
2. Connect the red lead wire from the LED light to the positive (+) wire of your vessel's power supply.
3. Connect the black ground wire from the LED light to the negative (-) wire of your vessel's power supply.
4. Ensure all electrical connections are secure and properly insulated using marine-grade connectors and heat shrink tubing to maintain the IP68 waterproof integrity.

Figure 2: Easy Installation. The light comes with pre-attached lead and ground wires for straightforward connection to a 12V DC power source.

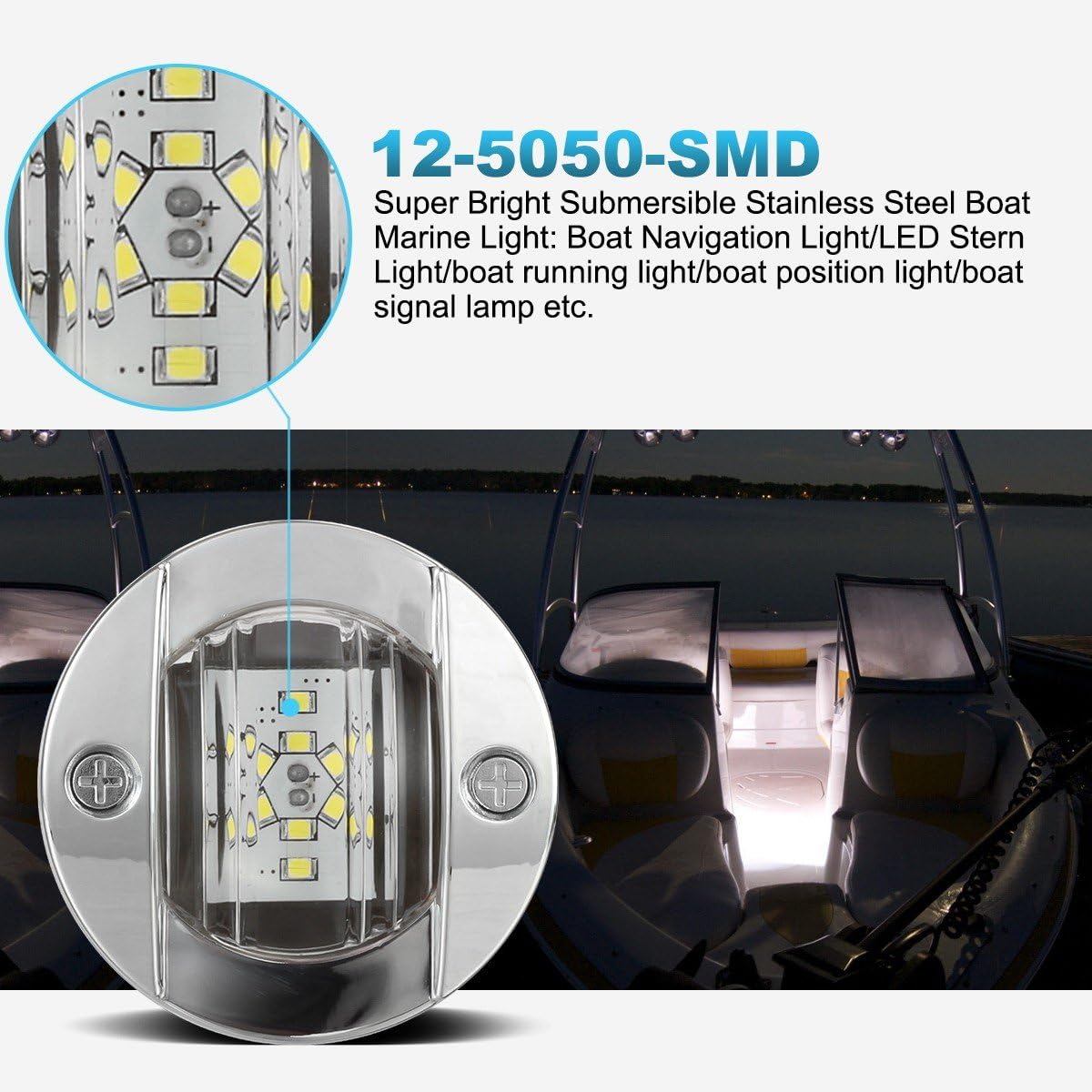

Figure 3: 12-5050-SMD LED Array. This image highlights the super bright submersible LED array, suitable for various marine lighting needs.

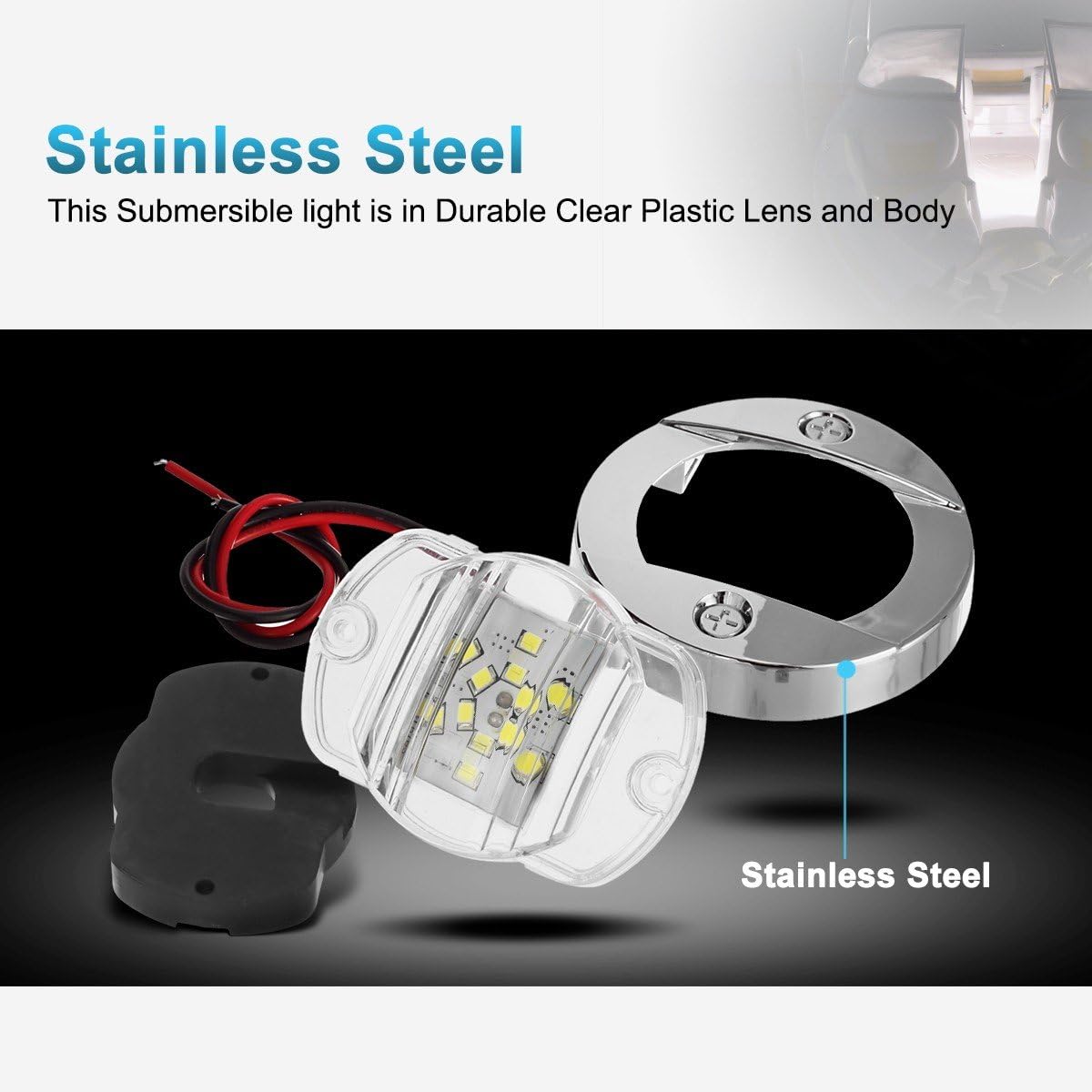

Figure 4: Stainless Steel Construction. The light features a polished 304 marine stainless steel bezel and a durable clear plastic lens and body.

5. ການດໍາເນີນງານ

Once properly installed and wired, the Partsam 3-Inch Round Marine LED Light operates by simply applying 12 Volts DC power. It can be connected to an existing switch on your vessel or a new switch can be installed to control its power.

• ການທໍາງານ: The light provides bright, white illumination suitable for various purposes including transom lighting, interior cabin lighting, cockpit courtesy lighting, or as a stern/anchor light.
• ຄວາມຄ່ອງແຄ້ວ: Its compact design allows it to be used in any application where a reliable 12V LED light is needed.

Figure 5: Bright Illumination. This image demonstrates the powerful light output when the unit is active.

Figure 6: Widely Used. The light is universal for 12V marine vehicles, including pontoon boats, fishing boats, kayaks, and sailboats.

6. ບໍາລຸງຮັກສາ

The Partsam 3-Inch Round Marine LED Light is designed for durability and minimal maintenance. Regular inspection and cleaning will help ensure its longevity and optimal performance.

• ທໍາຄວາມສະອາດ: Periodically clean the lens with a soft cloth and mild soap and water to remove salt residue, dirt, or marine growth. Avoid abrasive cleaners or harsh chemicals that could damage the lens or bezel.
• ການກວດກາ: Regularly inspect the wiring and connections for any signs of corrosion, fraying, or damage. Ensure the mounting screws remain tight.
• ຄວາມສົມບູນກັນນ້ໍາ: The IP68 rating ensures protection against water ingress. However, if the light has been subjected to impact or extreme conditions, inspect the seals and housing for any cracks or damage.

Figure 7: IP68 Waterproof. The light is fully submersible, protecting against water, dirt, snow, or dust.

7. ການແກ້ໄຂບັນຫາ

If your Partsam Marine LED Light is not functioning as expected, refer to the following common issues and solutions:

8. ຂໍ້ມູນຈໍາເພາະ

9. ການຮັບປະກັນແລະການສະ ໜັບ ສະ ໜູນ

Partsam products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the product packaging or contact Partsam customer service directly. Keep your purchase receipt for warranty claims.

10. ຂໍ້ມູນຜະລິດຕະພັນທີ່ກ່ຽວຂ້ອງ

ວິດີໂອຕໍ່ໄປນີ້ໃຫ້ລາຍລະອຽດທົ່ວໄປview of Partsam LED lighting products, including various marine lights. While not exclusively focused on this specific model, it showcases the brand's commitment to quality and variety in marine and vehicle lighting solutions.
