ACOPOWER HY-ACBag-S320 Solar Generator 150WH

1. ບົດແນະນຳ

Thank you for choosing the ACOPOWER HY-ACBag-S320 Solar Generator. This portable power station is designed to provide reliable power for your electronic devices, whether you're camping, during emergencies, or for general outdoor use. Please read this manual thoroughly before operating and keep it for future reference.

2. ສິ່ງທີ່ຢູ່ໃນກ່ອງ

Upon unboxing your ACOPOWER HY-ACBag-S320, ensure all components are present and in good condition. The package typically includes:

• ACOPOWER HY-ACBag-S320 Solar Generator Unit
• ເຄື່ອງສາກໄຟ AC Wall
• ສາຍສາກລົດ
• ຄູ່ມືຜູ້ໃຊ້

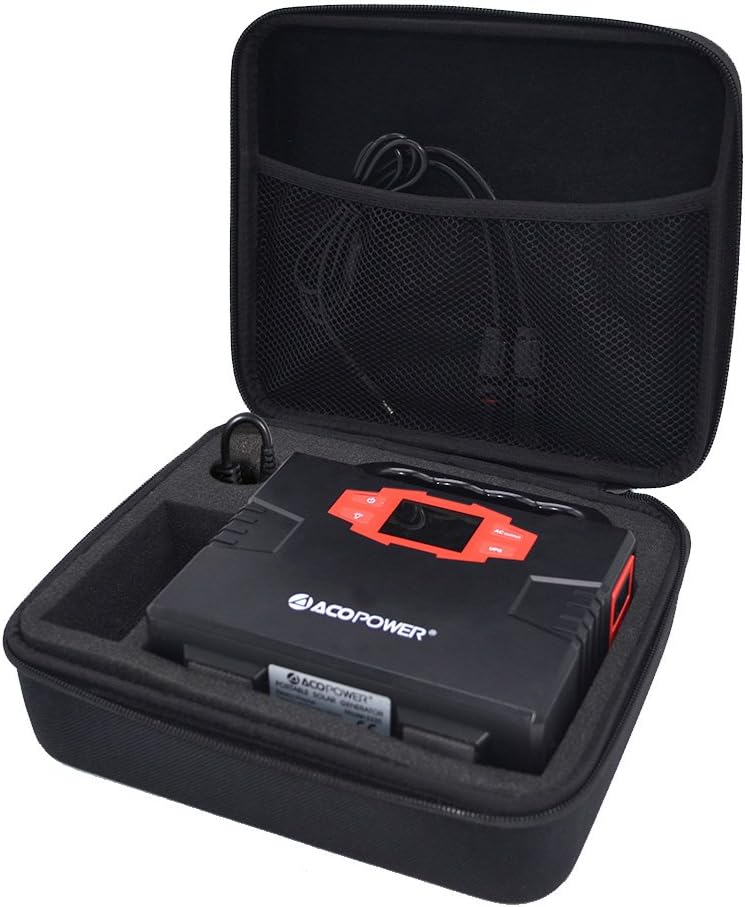

Figure 1: The ACOPOWER HY-ACBag-S320 Solar Generator unit neatly packed within its protective case, alongside its charging cables.

ຮູບທີ 2: A ລາຍລະອຽດ view of the mesh pocket within the generator's carrying case, designed to store cables and smaller accessories securely.

3. ຕັ້ງຄ່າ

3.1 ການສາກໄຟເບື້ອງຕົ້ນ

Before first use, fully charge the solar generator. Connect the AC wall charger to the DC input port on the generator and plug it into a standard wall outlet. The LED display will indicate charging status. Charging is complete when the battery icon is full.

3.2 Connecting Solar Panels (Optional)

If using an external solar panel (sold separately), connect the solar panel to the DC input port of the generator. Ensure the solar panel is placed in direct sunlight for optimal charging efficiency. The unit is compatible with various solar panels, including the ACOPOWER foldable solar panel shown in the video, which is highly portable.

Figure 3: The compact and portable design of the solar generator in its closed case, ready for transport or storage.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

4.1 Turning On/Off AC Output

To turn on the AC output, single-click the AC button. The LED display will show 'AC' indicating the output is active. To turn off the AC output, press the AC button again. ໝາຍເຫດ: The AC output will shut down automatically if a short circuit or overload is detected. Remove the device causing the issue to recover from protection.

4.2 ການນໍາໃຊ້ພອດ USB

Connect your USB digital appliances (e.g., smartphones, tablets) to the USB output ports. The generator will automatically provide power.

4.3 Emergency Light Function

To use the emergency light, press the light button. Press it again to cycle through different brightness levels or modes. Press and hold to turn off the light.

5. ບໍາລຸງຮັກສາ

• Keep the unit dry and away from all corrosive substances, fire, and water.
• ເກັບຮັກສາໄວ້ໃນບ່ອນທີ່ເຢັນ, ແຫ້ງ, ຫ່າງຈາກແສງແດດໂດຍກົງ.
• ຫຼີກລ່ຽງການຕົກ ຫຼື ກະທົບກັບຕົວເຄື່ອງຢ່າງຮຸນແຮງ.
• ຢ່າພະຍາຍາມຖອດປະກອບ ຫຼື ສ້ອມແປງເຄື່ອງດ້ວຍຕົວທ່ານເອງ. ໃຫ້ຕິດຕໍ່ພະນັກງານທີ່ມີຄຸນວຸດທິເພື່ອຂໍຄວາມຊ່ວຍເຫຼືອ.

6. ການແກ້ໄຂບັນຫາ

6.1 AC Output Shutdown

If the AC output shuts down, it indicates a short circuit or overload. Disconnect the problematic device and restart the generator. Ensure the connected device's wattage does not exceed the generator's capacity.

6.2 ອຸປະກອນບໍ່ສາກໄຟ

Check all cable connections. Ensure the power source (wall outlet, car charger, or solar panel) is functioning correctly. If using a solar panel, verify it is receiving adequate sunlight.

7. ຂໍ້ມູນຈໍາເພາະ

8. ການຮັບປະກັນແລະການສະ ໜັບ ສະ ໜູນ

ACOPOWER products are manufactured to the highest quality standards. For warranty information, technical support, or any questions regarding your product, please visit the official ACOPOWER webຫຼື ຕິດຕໍ່ບໍລິການລູກຄ້າຂອງເຂົາເຈົ້າ. ກະລຸນາເກັບຫຼັກຖານການຊື້ຂອງທ່ານໄວ້ເພື່ອການຮຽກຮ້ອງການຮັບປະກັນ.
