FAAC 455D 790917 Control Unit for 230V Swing Gate Motors

1. ບົດແນະນຳ

ຄູ່​ມື​ນີ້​ໃຫ້​ຄໍາ​ແນະ​ນໍາ​ລະ​ອຽດ​ສໍາ​ລັບ​ການ​ຕິດ​ຕັ້ງ​, ການ​ດໍາ​ເນີນ​ງານ​, ແລະ​ການ​ບໍາ​ລຸງ​ຮັກ​ສາ​ຂອງ​ FAAC 455D 790917 Control Unit. This unit is designed to manage 230V swing gate automation systems. Please read this manual carefully before installation and operation to ensure proper function and safety.

2. ຄໍາແນະນໍາຄວາມປອດໄພ

• Installation must be performed by qualified personnel in compliance with local electrical safety regulations.
• Always disconnect the main power supply before performing any installation, maintenance, or troubleshooting.
• ໃຫ້ແນ່ໃຈວ່າການເຊື່ອມຕໍ່ໄຟຟ້າທັງຫມົດແມ່ນປອດໄພແລະຖືກ insulated ຢ່າງຖືກຕ້ອງ.
• Keep hands, clothing, and other objects clear of moving gate parts during operation.
• Do not allow children to play near the gate or with the control devices.
• Install appropriate safety devices such as photocells and safety edges to prevent injury or damage.

3. ເນື້ອໃນຊຸດ

ກວດ​ສອບ​ວ່າ​ຊຸດ​ຂອງ​ທ່ານ​ມີ​ລາຍ​ການ​ດັ່ງ​ຕໍ່​ໄປ​ນີ້​:

• FAAC 455D 790917 Control Unit (1 unit)
• ຄູ່ມືແນະ ນຳ (ເອກະສານນີ້)

4. ຕັ້ງຄ່າ

4.1. ການຕິດຕັ້ງໜ່ວຍຄວບຄຸມ

Select a suitable, weather-protected enclosure for the control unit. Ensure adequate ventilation and protection from moisture. Mount the unit securely using appropriate fasteners. The enclosure should be easily accessible for maintenance but secure from unauthorized access.

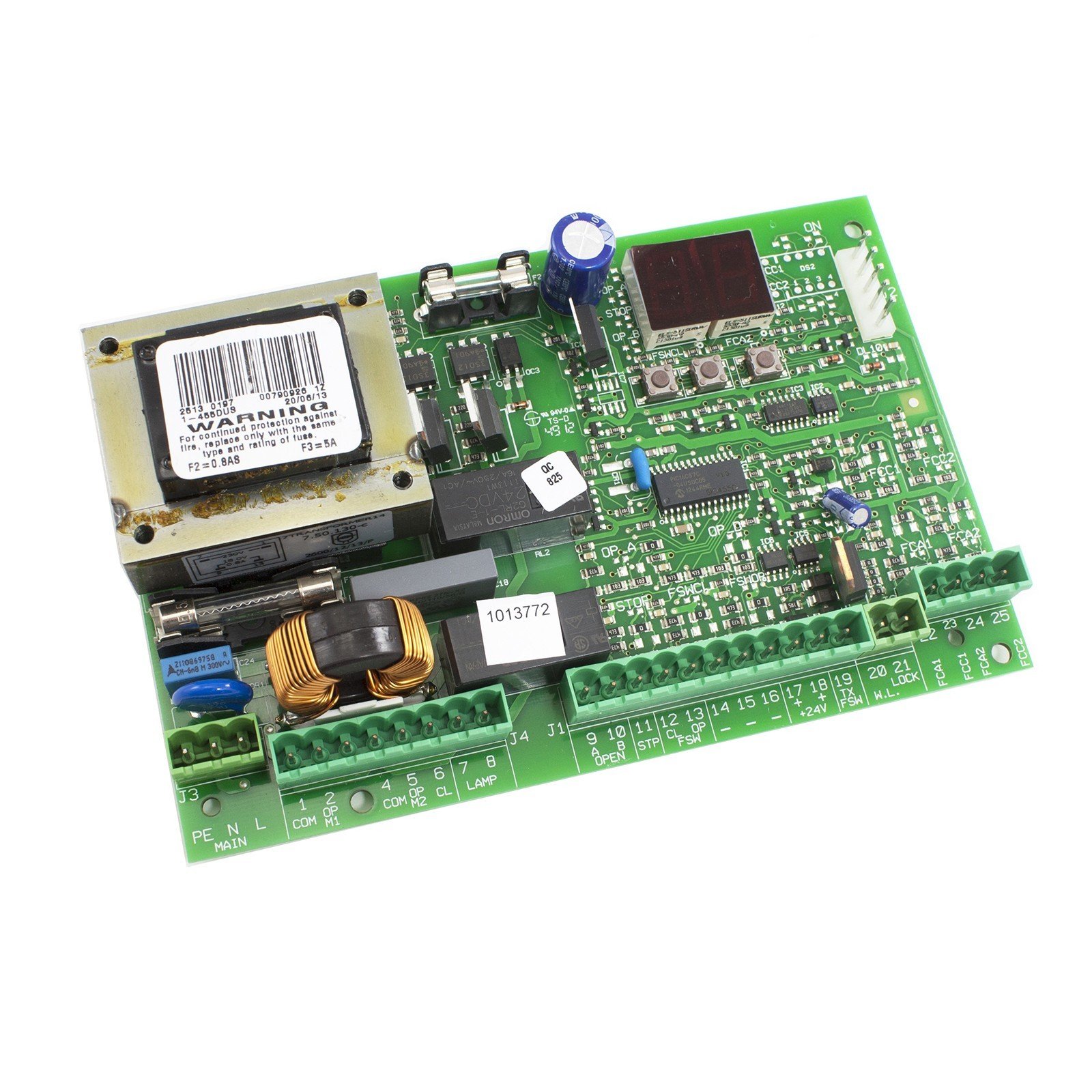

This image displays the FAAC 455D 790917 control unit, a compact electronic board designed for managing 230V swing gate motors. It features various terminals for power input, motor connections, safety devices, and accessories.

4.2. ການເຊື່ອມຕໍ່ໄຟຟ້າ

All electrical connections must be made with the main power supply disconnected.

• ການສະຫນອງພະລັງງານ: Connect the 230V AC mains power supply to the designated terminals. Ensure the power supply is protected by an appropriate circuit breaker and residual current device (RCD).
• ການເຊື່ອມຕໍ່ມໍເຕີ: Connect the 230V swing gate motor(s) to the motor output terminals as per the wiring diagram provided with the unit. Ensure correct phasing for motor direction.
• ອຸປະກອນຄວາມປອດໄພ: Connect photocells, safety edges, and emergency stop buttons to their respective terminals. These devices are crucial for safe operation.
• ອຸປະກອນເສີມ: Connect remote control receivers, keypads, intercom systems, and other control devices to the appropriate input terminals.

4.3. ການຂຽນໂປຣແກຣມເບື້ອງຕົ້ນ

Refer to the detailed wiring diagrams and programming instructions provided with the unit for initial setup, motor calibration, and remote control pairing. This process typically involves setting motor parameters, operating logic, and learning remote controls.

5. ປະຕິບັດການປະຕູຮົ້ວ

5.1. ການດໍາເນີນງານພື້ນຖານ

Once installed and programmed, the gate can be operated via remote control, keypad, or other connected access control devices. A single command typically initiates an open/close cycle. Subsequent commands may pause or reverse the gate movement depending on the programmed logic.

5.2. ຢຸດສຸກເສີນ

In case of emergency, activate the emergency stop button (if installed) to immediately halt gate movement. This button should be clearly visible and easily accessible.

5.3. ຄູ່ມືການປ່ອຍ

In case of power failure or malfunction, use the gate's manual release mechanism to operate it manually. Refer to your specific gate motor's manual for the correct procedure to disengage the motor and move the gate by hand.

6. ບໍາລຸງຮັກສາ

6.1. ກວດກາເປັນປົກກະຕິ

Periodically inspect all electrical connections for signs of wear, corrosion, or loose terminals. Check the physical condition of the control unit and its enclosure for any damage or ingress of moisture.

6.2. ທໍາຄວາມສະອາດ

Keep the control unit and its enclosure clean and free from dust, insects, and debris. Do not use abrasive cleaners, solvents, or high-pressure water, as these can damage the electronic components.

6.3. Professional Inspection

It is recommended to have the entire gate automation system, including the control unit, inspected by a qualified technician at least once a year to ensure optimal performance and safety.

7. ການແກ້ໄຂບັນຫາ

• ປະຕູບໍ່ຕອບສະໜອງ: Check the main power supply, ensure the remote control battery is functional, and verify all safety device connections (e.g., photocells are not obstructed).
• ປະຕູຢຸດກາງຮອບວຽນ: This often indicates activation of a safety device. Check photocells for obstructions, inspect safety edges, and ensure no mechanical obstructions are impeding gate movement.
• Irregular Operation: If the gate operates erratically or not as expected, consult the detailed programming section of the manual to verify settings, motor calibration, and limit switch adjustments.
• No Power to Control Unit: Check the circuit breaker and RCD for the gate's power supply. Ensure all power connections to the control unit are secure.

If problems persist after performing these checks, contact a qualified technician for assistance.

8. ຂໍ້ມູນຈໍາເພາະ

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information and technical support, please contact your authorized FAAC dealer or the point of purchase. Keep your purchase receipt as proof of purchase. Do not attempt to repair the control unit yourself, as this may void the warranty and pose safety risks.
