1. ບົດແນະນຳ
This manual provides essential information for the proper installation and maintenance of the Webasto Thermo Top Evo 4 Parking Heater Standard Installation Kit. This kit is designed to facilitate the integration of a Webasto Thermo Top Evo 4 parking heater into compatible gasoline and diesel vehicles. Adherence to these instructions is crucial for safe and efficient operation of the heating system.
For optimal performance and safety, it is highly recommended that installation be performed by a qualified professional.
2. ຄໍາແນະນໍາຄວາມປອດໄພ
- ການຕິດຕັ້ງແບບມືອາຊີບ: Installation of this kit and the parking heater should only be carried out by trained and authorized personnel. Incorrect installation can lead to serious hazards, including fire, carbon monoxide poisoning, or vehicle damage.
- ຄວາມເຂົ້າກັນໄດ້ຂອງຍານພາຫະນະ: Ensure the kit and heater are compatible with your specific vehicle model and fuel type (gasoline or diesel) before beginning installation. Refer to your vehicle's manufacturer guidelines.
- Fuel and Electrical Systems: Exercise extreme caution when working with vehicle fuel and electrical systems. Disconnect the vehicle's battery before starting any electrical work. Ensure no fuel leaks occur during or after installation.
- ທໍ່ລະບາຍອາກາດ: The parking heater produces exhaust fumes. Ensure the exhaust system is properly routed and sealed to prevent fumes from entering the vehicle's cabin. Never operate the heater in enclosed spaces without adequate ventilation.
- ຄວາມຮ້ອນ ແລະ ພື້ນຜິວຮ້ອນ: The heater and its components can become very hot during operation. Allow sufficient cooling time before handling. Ensure proper clearance from heat-sensitive materials.
- ຊິ້ນສ່ວນຕົ້ນສະບັບ: ໃຊ້ຂອງແທ້ເທົ່ານັ້ນ Webasto parts and accessories. The use of non-approved parts may compromise safety and void the warranty.
3. ເນື້ອໃນຊຸດ
Verify that all components listed below are present and undamaged before proceeding with installation. The exact contents may vary slightly based on specific vehicle applications.

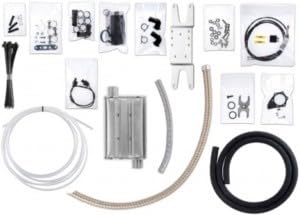

ຮູບພາບ 1: ຕົວຢ່າງample ຂອງ Webasto Thermo Top Evo 4 Standard Installation Kit components. This image illustrates various parts typically included in the kit, such as hoses, clamps, wiring, and mounting brackets, designed to integrate the parking heater into a vehicle.
- Fuel line and connections
- Coolant hoses and clamps
- Exhaust pipe and muffler
- ທໍ່ລະບາຍອາກາດການເຜົາໃຫມ້
- Wiring harness and electrical connectors
- Mounting brackets and fasteners
- Small parts and accessories (e.g., cable ties, seals)
- User manual and installation guide (this document)
4. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ
ພາກສ່ວນນີ້ອະທິບາຍຂັ້ນຕອນທົ່ວໄປສໍາລັບການຕິດຕັ້ງ Webasto Thermo Top Evo 4 Parking Heater Standard Installation Kit. Due to the complexity and safety implications, professional installation is mandatory.
- ການກະກຽມ:
- ຈອດລົດຢູ່ເທິງພື້ນລະດັບໜຶ່ງ ແລະຈັບເບຣກບ່ອນຈອດລົດ.
- ຖອດແບັດເຕີລີຂອງລົດເພື່ອປ້ອງກັນອັນຕະລາຍຈາກໄຟຟ້າ.
- Ensure the engine and coolant system are cool.
- Gather all necessary tools and safety equipment.
- Heater Mounting:
- Select an appropriate mounting location for the parking heater, typically in the engine compartment or under the vehicle, ensuring adequate clearance and protection from road debris.
- Secure the heater using the provided mounting brackets and fasteners.
- Coolant System Integration:
- Integrate the heater into the vehicle's coolant circuit using the supplied coolant hoses and clamps. Follow the specific coolant circuit diagram provided with the main heater unit.
- ໃຫ້ແນ່ໃຈວ່າການເຊື່ອມຕໍ່ທັງຫມົດແມ່ນແຫນ້ນແລະບໍ່ຮົ່ວໄຫຼ.
- ການເຊື່ອມຕໍ່ລະບົບນໍ້າມັນເຊື້ອໄຟ:
- Connect the fuel line from the vehicle's fuel tank (or a dedicated fuel standpipe) to the heater's fuel pump, and then to the heater itself.
- Ensure all fuel connections are securely fastened and free from leaks.
- Exhaust and Air Intake:
- Install the exhaust pipe and muffler, routing them away from heat-sensitive components and ensuring exhaust gases are safely discharged outside the vehicle.
- Connect the combustion air intake pipe, ensuring it draws clean air and is protected from water ingress.
- ການເຊື່ອມຕໍ່ໄຟຟ້າ:
- Connect the wiring harness to the heater, control unit, and vehicle's electrical system according to the wiring diagram.
- ໃຫ້ແນ່ໃຈວ່າການເຊື່ອມຕໍ່ໄຟຟ້າທັງຫມົດແມ່ນປອດໄພແລະຖືກ insulated ຢ່າງຖືກຕ້ອງ.
- ເຊື່ອມຕໍ່ແບັດເຕີຣີຂອງລົດຄືນໃໝ່.
- Initial Start-up and Testing:
- After installation, perform an initial start-up and thorough leak check of the fuel and coolant systems.
- Verify proper operation of the heater and its controls.
Refer to the detailed installation instructions provided with the main Webasto Thermo Top Evo 4 heater unit for specific vehicle-dependent procedures and diagrams.
5. Operating the Parking Heater
This installation kit provides the necessary components to integrate the Webasto Thermo Top Evo 4 parking heater. The operation of the heater itself is controlled via its dedicated control unit (e.g., MultiControl, Telestart, ThermoCall), which is typically purchased separately or included with the main heater unit.
Please refer to the separate operating manual provided with your Webasto Thermo Top Evo 4 parking heater control unit for detailed instructions on how to:
- Start and stop the heater manually.
- Program heating times.
- Adjust heating duration and temperature settings.
- Utilize remote control or smartphone app functions (if applicable).
Ensure the vehicle's fuel tank has sufficient fuel for heater operation. The heater draws a small amount of fuel directly from the vehicle's tank.
6. ບໍາລຸງຮັກສາ
ການບຳລຸງຮັກສາເປັນປະຈຳຮັບປະກັນອາຍຸການໃຊ້ງານທີ່ຍາວນານ ແລະ ປອດໄພຂອງອຸປະກອນ Webasto parking heater system. While this kit itself requires minimal maintenance, the integrated heater unit does.
- ການກວດກາປະຈຳປີ: It is recommended to have the entire parking heater system, including the components from this installation kit, inspected annually by an authorized Webasto service center. This inspection should cover:
- Checking all fuel and coolant connections for leaks.
- Inspecting the exhaust system for damage or blockages.
- Verifying the integrity of electrical connections and wiring.
- Checking the combustion air intake for obstructions.
- ການດໍາເນີນງານລະບົບ: Operate the parking heater for approximately 10-15 minutes once a month, even during warmer periods, to prevent components from seizing and to ensure proper function.
- ທໍາຄວາມສະອາດ: Keep the area around the heater and its air intake/exhaust free from dirt, leaves, and other debris.
Do not attempt to repair or modify the heater or its components yourself. Always consult an authorized Webasto service partner for any repairs or servicing.
7. ການແກ້ໄຂບັນຫາ
ຖ້າເຈົ້າ Webasto parking heater system is not functioning correctly, consider the following common issues. For complex problems, contact an authorized service center.
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ເຄື່ອງເຮັດຄວາມຮ້ອນບໍ່ເລີ່ມຕົ້ນ | Low fuel level in vehicle tank ຫມໍ້ໄຟລົດຕ່ໍາ voltage ຟິວເປົ່າ ການເຊື່ອມຕໍ່ໄຟຟ້າຜິດພາດ |
Refuel vehicle ສາກແບັດເຕີຣີລົດ Check and replace fuse (refer to heater manual) Inspect wiring harness connections |
| Heater starts but shuts down quickly | Overheating (coolant flow issue) Fuel supply interruption ການອຸດຕັນຂອງໄອເສຍ |
Check coolant level and circulation Inspect fuel line for kinks or blockages Clear exhaust pipe |
| Excessive smoke or unusual odors | ການເຜົາໃຫມ້ບໍ່ສົມບູນ ນໍ້າມັນຮົ່ວ ການຮົ່ວໄຫຼຂອງທໍ່ໄອເສຍ |
Immediately shut down heater. Do not operate. Contact authorized service. |
For specific error codes or advanced diagnostics, consult the operating manual of your Webasto Thermo Top Evo 4 heater unit or contact a Webຄູ່ຮ່ວມງານບໍລິການ asto.
8. ຂໍ້ມູນຈໍາເພາະ
The following specifications pertain to the Webasto Thermo Top Evo 4 Parking Heater Standard Installation Kit and the compatible heater unit.
- ໝາຍເລກຕົວແບບ: 1314818 ດ
- Compatible Heater: Webasto Thermo Top Evo 4
- Fuel Type Compatibility: ນ້ຳມັນ, ກາຊວນ
- Product Dimensions (Kit Packaging): 38.7 x 28.1 x 15.6 ຊມ (15.2 x 11.1 x 6.1 ນິ້ວ)
- ນ້ຳໜັກສິນຄ້າ (ຊຸດ): 3.16 ກິໂລ (6.97 ປອນ)
- ຜູ້ຜະລິດ: WEBASTO
- ASIN: B019IPPSL8
Note: Specifications for the actual Thermo Top Evo 4 heater unit (e.g., heating power, fuel consumption) are provided in its separate documentation.
9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Webasto products are manufactured to high-quality standards. For information regarding the warranty period and terms for your Webasto Thermo Top Evo 4 Parking Heater Standard Installation Kit and the associated heater unit, please refer to the warranty card included with your product or visit the official Webast webເວັບໄຊ.
ສຳລັບການຊ່ວຍເຫຼືອດ້ານເຕັກນິກ, ການບໍລິການ, ຫຼື ເພື່ອຊອກຫາຜູ້ໄດ້ຮັບອະນຸຍາດ Webasto service partner, please contact Webasto customer service directly or visit their official webເວັບໄຊ:
Always provide your product model number (1314818D) and serial number when seeking support.
