Sonero IMS060 Infrared Motion Detector Plug-in Instruction Manual

1. ບົດແນະນຳ

This manual provides essential information for the proper installation, operation, and maintenance of your Sonero IMS060 Infrared Motion Detector. This device is designed to automatically control lighting circuits based on detected movement, contributing to energy cost reduction. It is suitable for indoor use.

• ຕົວແບບ: Sonero IMS060
• ມຸມກວດຫາ: 120°
• ໄລຍະການກວດຫາ: ເຖິງ 9 ແມັດ
• ປະເພດການປົກປ້ອງ: IP20 (ສໍາລັບການນໍາໃຊ້ພາຍໃນເຮືອນເທົ່ານັ້ນ)
• ການ​ຕັ້ງ​ຄ່າ​ປັບ​ໄດ້​: Light sensitivity (3-2000 lux) and time delay (10 seconds - 7 minutes)

2. ຄໍາແນະນໍາຄວາມປອດໄພ

ກະລຸນາອ່ານ ແລະ ເຂົ້າໃຈຄຳແນະນຳດ້ານຄວາມປອດໄພທັງໝົດກ່ອນທີ່ຈະຕິດຕັ້ງ ຫຼື ໃຊ້ງານອຸປະກອນ. ການບໍ່ປະຕິບັດຕາມຄຳແນະນຳເຫຼົ່ານີ້ອາດຈະເຮັດໃຫ້ເກີດໄຟຟ້າຊັອດ, ໄຟໄໝ້ ຫຼື ການບາດເຈັບສາຫັດ.

• ອຸ​ປະ​ກອນ​ນີ້​ໄດ້​ຖືກ​ອອກ​ແບບ​ສໍາ​ລັບ​ການ​ ໃຊ້ພາຍໃນເຮືອນເທົ່ານັ້ນຢ່າໃຫ້ມັນຖືກຄວາມຊຸ່ມຊື່ນ, ຝົນ ຫຼື ອຸນຫະພູມສູງເກີນໄປ.
• ໃຫ້ແນ່ໃຈວ່າການປິດການສະຫນອງພະລັງງານກ່ອນທີ່ຈະຕິດຕັ້ງຫຼືບໍາລຸງຮັກສາ.
• ຫ້າມຖອດປະກອບ ຫຼືແກ້ໄຂອຸປະກອນ. ອ້າງອີງການບໍລິການທັງໝົດໃຫ້ກັບບຸກຄະລາກອນທີ່ມີຄຸນວຸດທິ.
• ຮັກສາໃຫ້ໄກຈາກເດັກນ້ອຍ.
• Ensure the electrical outlet used is compatible with the device's plug type.

3. ຜະລິດຕະພັນເກີນview

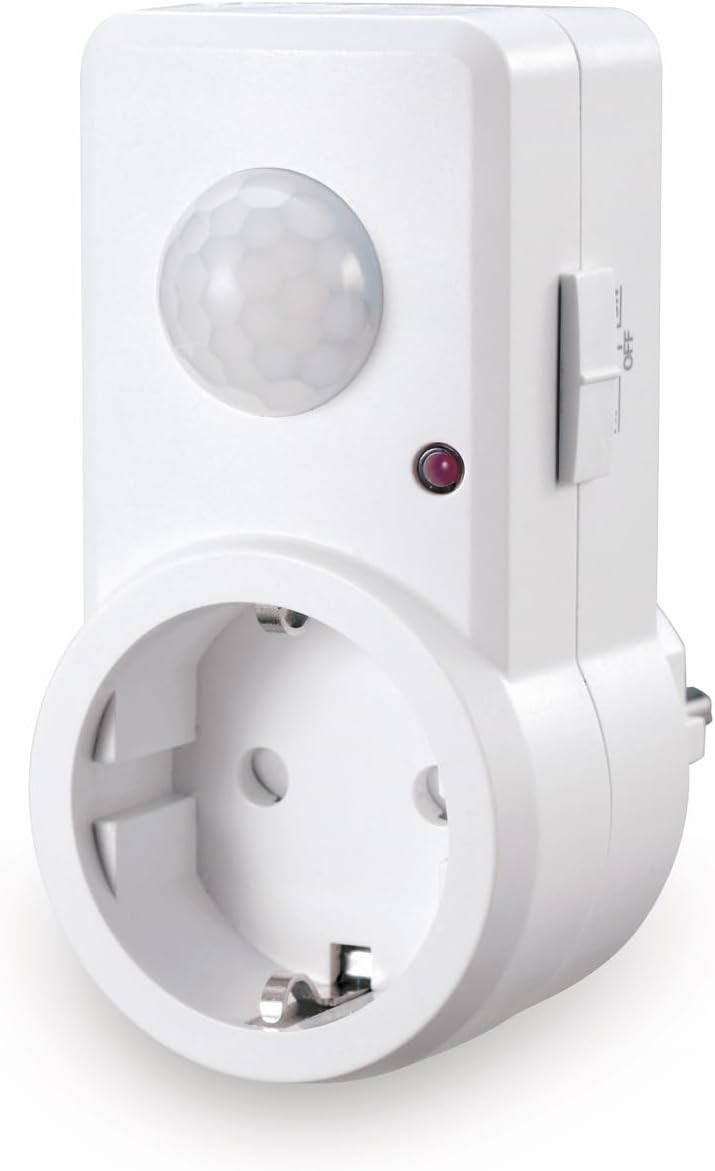

The Sonero IMS060 is a compact plug-in motion detector. It features an infrared sensor on the front to detect movement and a standard electrical socket for connecting a load. The back of the device has the electrical plug for insertion into a wall outlet.

4. ຕັ້ງຄ່າ

1. ແກະກ່ອງ: Carefully remove the Sonero IMS060 from its packaging.
2. ເລືອກສະຖານທີ່: Choose an indoor electrical outlet that is within the desired detection range (up to 9 meters) and angle (120°) of the area where motion detection is required. Avoid placing the detector near heat sources, direct sunlight, or areas with strong air currents, as these can cause false triggers.
3. ປລັກອິນ: Insert the Sonero IMS060 directly into a compatible wall electrical outlet. Ensure a secure connection. Note: This device features a European-style plug. Verify compatibility with your local electrical outlets before use.
4. ເຊື່ອມຕໍ່ການໂຫຼດ: Plug the electrical appliance or light fixture you wish to control into the socket on the front of the Sonero IMS060.

5. ຄໍາແນະນໍາການດໍາເນີນງານ

The Sonero IMS060 features adjustable settings for optimal performance:

• ຄວາມອ່ອນໄຫວແສງສະຫວ່າງ (LUX): This setting determines the ambient light level at which the motion detector will activate. You can adjust it continuously from 3 lux (darkness) to 2000 lux (daylight). For example, set it to a lower lux value if you only want the light to turn on when it's dark, or to a higher value if you want it to activate even in brighter conditions.
• ເລື່ອນເວລາ (TIME): This setting controls how long the connected appliance or light remains on after motion is last detected. It is continuously adjustable from 10 seconds to 7 minutes. Set a shorter time for quick passages or a longer time for areas where prolonged illumination is needed.

Refer to the adjustment dials or switches on the device for specific control points. Test the settings after adjustment to ensure they meet your requirements.

6. ບໍາລຸງຮັກສາ

To ensure the longevity and proper functioning of your Sonero IMS060, follow these simple maintenance guidelines:

• ທໍາຄວາມສະອາດ: Disconnect the device from the power outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use abrasive cleaners, solvents, or excessive moisture.
• ການກວດກາ: ກວດເບິ່ງອຸປະກອນ ແລະ ການເຊື່ອມຕໍ່ຂອງມັນເປັນໄລຍະເພື່ອເບິ່ງສັນຍານຄວາມເສຍຫາຍ ຫຼື ການສວມໃສ່.
• ສະພາບແວດລ້ອມ: Maintain the device in a clean, dry indoor environment within its specified temperature range.

7. ການແກ້ໄຂບັນຫາ

• ອຸປະກອນບໍ່ເປີດ:
  • Ensure the device is securely plugged into a functioning electrical outlet.
  • Verify that the electrical outlet itself has power.
• Light does not turn on with motion:
  • Check the light sensitivity (LUX) setting. If set too high, the detector may not activate in bright conditions.
  • Ensure the connected light bulb or appliance is working correctly.
  • Verify that the motion sensor is not obstructed.
  • Confirm that the motion is within the detection range and angle.
• Light stays on continuously or triggers falsely:
  • Adjust the time delay (TIME) setting to a shorter duration.
  • Check for environmental factors like heat sources (heaters, direct sunlight), strong air currents, or pets that might be causing false triggers.
  • Ensure the sensor lens is clean.
• Plug Incompatibility: This device uses a European-style plug. If your local outlets are different (e.g., UK, US, Belgian), an appropriate adapter is required. Ensure any adapter used is rated for the device's power requirements and is certified for safety.

8. ຂໍ້ມູນຈໍາເພາະ

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

Sonero products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase or visit the official Sonero webເວັບໄຊ. ຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮ້ອງຂໍການຮັບປະກັນ.
