ແນະນຳ
The TYLT VU Solo is a single-coil Qi wireless charging pad designed to provide convenient and efficient wireless charging for compatible smartphones and devices. This manual provides instructions for setting up, operating, maintaining, and troubleshooting your VU Solo charging pad.
ຄຸນນະສົມບັດທີ່ສໍາຄັນປະກອບມີ:
- ການສາກໄຟໄຮ້ສາຍ Qi: Wirelessly charges any Qi-enabled phone without the need for direct cable connections to the device.
- Alignment Ledge: Features an adjustable alignment ledge to ensure optimal device placement for consistent charging.
- ການອອກແບບຕ້ານການເລື່ອນ: A vibrant silicone surface prevents your phone from slipping, and a micro-suction base secures the pad to surfaces.
- ຄວາມເຂົ້າກັນໄດ້ຂອງກໍລະນີ: Designed to charge through most phone cases and covers.
ເນື້ອໃນຊຸດ
- TYLT VU Solo Qi Wireless Charging Pad
- ສາຍສາກ USB
- ຄູ່ມືຜູ້ໃຊ້ (ເອກະສານນີ້)
Note: A wall power adapter (USB-A to AC) is not included and must be supplied by the user. For optimal performance, a 2.0A or higher output USB power adapter is recommended.
ຄໍາແນະນໍາການຕິດຕັ້ງ
- ເຊື່ອມຕໍ່ແຜ່ນສາກໄຟ: Insert the micro USB end of the provided USB charging cable into the port on the back of the TYLT VU Solo charging pad.
Image: TYLT VU Solo charging pad connected to its USB cable.
- ເຊື່ອມຕໍ່ກັບພະລັງງານ: Plug the standard USB-A end of the cable into a compatible USB power adapter (not included) and then plug the adapter into a wall outlet. Alternatively, you can plug the USB-A end into a powered USB port on a computer or other device, though charging speed may vary.
- ການຈັດວາງ: Place the TYLT VU Solo on a flat, stable surface. The micro-suction base will help secure it.
ຄໍາແນະນໍາການດໍາເນີນງານ
- Initial Device Alignment: For the first use with a new device, place your Qi-enabled smartphone or device onto the charging pad. Adjust its position until the charging indicator on your phone activates.

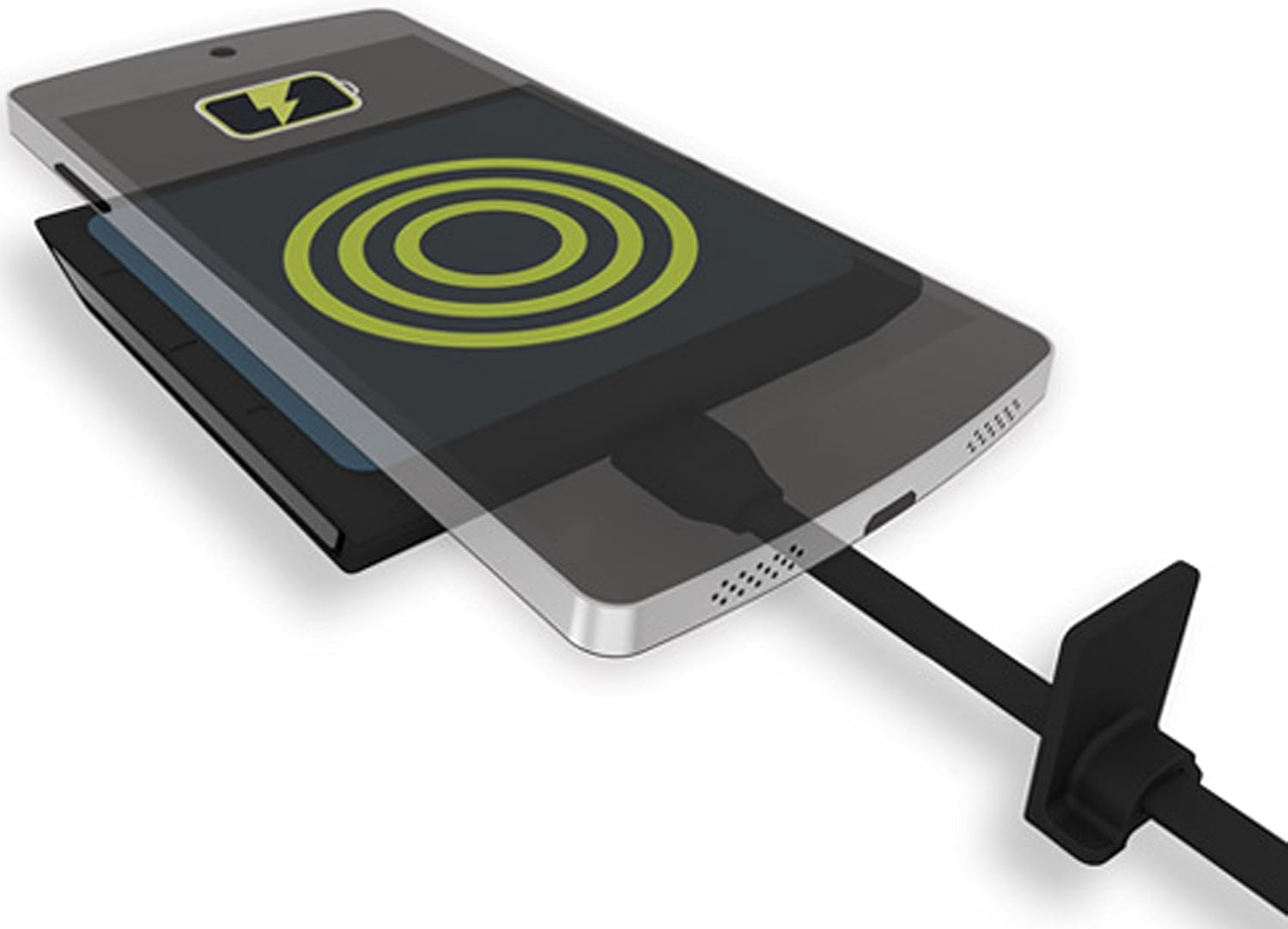

Image: A smartphone wirelessly charging on the TYLT VU Solo pad, indicated by a charging icon.
- Set Alignment Ledge: Once optimal charging is achieved, slide the adjustable alignment ledge on the charging pad to touch the top edge of your device. This will help ensure consistent placement for future charging sessions.
- ຕົວຊີ້ບອກການສາກໄຟ: The TYLT VU Solo features an LED indicator. A solid green light indicates that the device is charging at full capacity. A blinking light may indicate charging below capacity or an alignment issue.
- Charging Through Cases: The VU Solo is designed to charge through most non-metallic phone cases. If charging is inconsistent, try removing your phone case.
ບໍາລຸງຮັກສາ
- ທໍາຄວາມສະອາດ: Disconnect the charging pad from power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surface. Do not use harsh chemicals or abrasive cleaners.
- ການເກັບຮັກສາ: Store the charging pad in a cool, dry place when not in use.
- ຫຼີກເວັ້ນການເສຍຫາຍ: Do not drop the device or expose it to extreme temperatures or moisture.
ການແກ້ໄຂບັນຫາ
- ອຸປະກອນບໍ່ສາກໄຟ ຫຼື ສາກຊ້າ:
- Ensure your device is Qi-enabled.
- Verify the charging pad is properly connected to a working power source.
- Adjust the device's position on the pad to ensure proper coil alignment. Use the alignment ledge.
- Remove any thick or metallic phone cases that might interfere with wireless charging.
- Ensure your power adapter provides sufficient output (recommended 2.0A or higher). Lower amperage adapters may result in slower charging.
- Avoid placing metal objects (e.g., credit cards, keys) between your phone and the charging pad.
- LED indicator is blinking:
- A blinking light often indicates an issue with device alignment or insufficient power input. Re-position your device or check your power adapter.
- Device or charging pad feels warm during charging:
- It is normal for wireless charging to generate some heat. If the device or pad becomes excessively hot, discontinue use and contact support.
ຂໍ້ມູນຈໍາເພາະ
| ໝາຍເລກຕົວແບບ: | VUSOLOGY-T |
| ຂະໜາດຜະລິດຕະພັນ: | 3.36 x 0.54 x 3.39 ນິ້ວ |
| ນ້ໍາຫນັກລາຍການ: | 2.56 ອອນ |
| ການປ້ອນຂໍ້ມູນ Voltage: | 9 Volts (via USB) |
| ວັດtage: | 5 ວັດ |
| ການເຊື່ອມຕໍ່: | Wireless (Qi Standard) |
| ອຸປະກອນທີ່ເຂົ້າກັນໄດ້: | Qi-enabled Cellular Phones (e.g., iPhone 8/X/later, Samsung Galaxy S7/S8/S9/later, Google Nexus, LG G6) |
Image: Detailed compatibility chart for the TYLT VU Solo, listing various manufacturers and models with integrated Qi or requiring a back shell.
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
TYLT warrants this product to be free of defects in design, assembly, material, or workmanship for a period of ຫນຶ່ງປີ ຈາກວັນທີ່ຊື້.
During the warranty period, TYLT will repair or replace, at its option, any defective product free of charge, excluding shipping charges for the product.
For warranty claims or technical support, please refer to the official TYLT webເວັບໄຊ ຫຼືຕິດຕໍ່ບໍລິການລູກຄ້າຂອງເຂົາເຈົ້າໂດຍກົງ. ຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮັບປະກັນຄວາມຖືກຕ້ອງ.
