Alarm Controls TS-18 Under Desk Surface Mount Push Button User Manual

ແນະນຳ

This manual provides detailed instructions for the installation, operation, and maintenance of the Alarm Controls TS-18 Under Desk Surface Mount Push Button. Please read this manual thoroughly before installation and use to ensure proper function and safety.

ສິນຄ້າເກີນview

The Alarm Controls TS-18 is a robust, surface-mount push button designed for various control applications. It features an SDT (Single-Pole, Double-Throw) momentary switch, providing reliable contact closure for activation. Its design allows for convenient under-desk or other surface mounting.

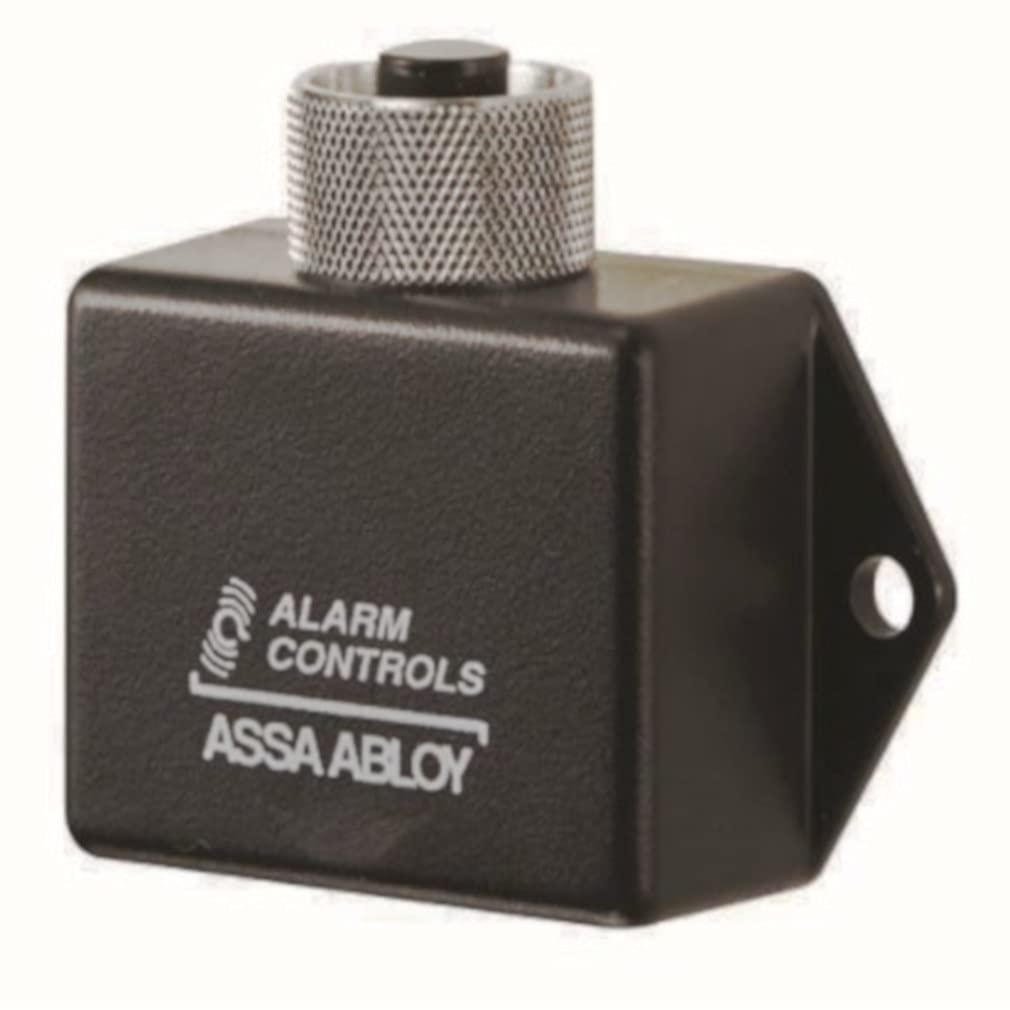

ຮູບທີ 1: Alarm Controls TS-18 Under Desk Surface Mount Push Button. This image shows the compact design of the push button, suitable for discreet installation.

ຄຸນນະສົມບັດທີ່ສໍາຄັນ:

SDT Momentary Switch: Provides a temporary contact closure when pressed.
ການຈັດອັນດັບການຕິດຕໍ່: 4A @ 28VDC, suitable for low-voltage ວົງຈອນຄວບຄຸມ.
Surface Mount Design: Easy installation on various surfaces, including under desks.

ຂໍ້ມູນຈໍາເພາະ

ຄຸນສົມບັດ	ລາຍລະອຽດ
ໝາຍເລກຕົວແບບ	TS-18
ປະເພດສະຫຼັບ	SDT Momentary
ການຈັດອັນດັບການຕິດຕໍ່	4A @ 28VDC
ປະເພດການຕິດຕັ້ງ	Surface Mount (Under Desk)
ຂະໜາດສິນຄ້າ	3 x 5 x 2 ນິ້ວ
ຍີ່ຫໍ້	ການຄວບຄຸມໂມງປຸກ
ຜູ້ຜະລິດ	ການຄວບຄຸມໂມງປຸກ
ASIN	B008UTF8RS
UPC	765066001988

ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

The TS-18 push button is designed for surface mounting. Proper installation is crucial for reliable operation. It is recommended that installation be performed by a qualified technician, especially when connecting to existing electrical systems.

ຂັ້ນຕອນການຕິດຕັ້ງ:

ເລືອກສະຖານທີ່ຕິດຕັ້ງ: Select a flat, stable surface, such as the underside of a desk or counter, where the button will be easily accessible but protected from accidental activation.
ຮັບປະກັນຫນ່ວຍບໍລິການ: Use appropriate screws (not included) to securely fasten the TS-18 to the chosen surface. Ensure the unit is firmly attached to prevent movement during operation.
ສາຍໄຟ:
- Identify the appropriate wiring terminals on the TS-18. As an SDT (Single-Pole, Double-Throw) switch, it typically has common, normally open (NO), and normally closed (NC) terminals.
- Connect the control wires from your system (e.g., access control panel, alarm system) to the corresponding terminals on the TS-18. Refer to your system's documentation for specific wiring requirements.
- ໃຫ້ແນ່ໃຈວ່າການເຊື່ອມຕໍ່ທັງຫມົດແມ່ນປອດໄພແລະຖືກ insulated ຢ່າງຖືກຕ້ອງເພື່ອປ້ອງກັນບໍ່ໃຫ້ວົງຈອນສັ້ນ.
ການທໍາງານຂອງການທົດສອບ: After installation and wiring, test the button's operation with the connected system to confirm it functions as intended.

ສຳຄັນ: Always disconnect power to the system before performing any wiring to prevent electrical shock or damage to components.

ຄໍາແນະນໍາການດໍາເນີນງານ

The TS-18 is a momentary push button. Its operation is straightforward:

ການເປີດໃຊ້ງານ: Press the button firmly. The internal switch contacts will change state (e.g., Normally Open contacts will close, Normally Closed contacts will open) for as long as the button is held down.
ການປິດໃຊ້ງານ: Release the button. The internal switch contacts will return to their original state.

The specific action triggered by pressing the button (e.g., unlocking a door, activating an alarm) depends on the system to which the TS-18 is connected.

ບໍາລຸງຮັກສາ

The Alarm Controls TS-18 push button requires minimal maintenance to ensure long-term reliability.

ທໍາຄວາມສະອາດ: Periodically wipe the surface of the button with a soft, dry cloth to remove dust and debris. Avoid using abrasive cleaners or solvents, which may damage the finish.
ການກວດກາ: Annually inspect the mounting screws and wiring connections to ensure they remain secure. Check for any signs of wear or damage to the button or its housing.
ການກວດສອບການທໍາງານ: Periodically test the button's operation to confirm it activates the connected system reliably.

ການແກ້ໄຂບັນຫາ

If the TS-18 push button is not functioning as expected, consider the following common issues:

ບັນຫາ	ສາເຫດທີ່ເປັນໄປໄດ້	ການແກ້ໄຂ
Button does not activate system	ສາຍໄຟບໍ່ຖືກຕ້ອງ ຂາດສາຍເຊື່ອມຕໍ່ ປຸ່ມຜິດພາດ Issue with the connected system	Verify wiring against system diagrams. ກວດສອບການເຊື່ອມຕໍ່ສາຍໄຟທັງໝົດສຳລັບຄວາມແໜ້ນໜາ. Test the button with a multimeter for continuity. Consult the manual for the connected system.
Button feels stuck or unresponsive	ການຂັດຂວາງທາງຮ່າງກາຍ ຄວາມລົ້ມເຫຼວຂອງກົນຈັກພາຍໃນ	Inspect for debris around the button. If internal failure is suspected, replacement may be necessary.

For persistent issues, contact Alarm Controls customer support or a qualified technician.

ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For information regarding warranty coverage, technical support, or replacement parts for your Alarm Controls TS-18 push button, please contact Alarm Controls directly or refer to their official webເວັບໄຊ. ຮັກສາໃບຮັບເງິນການຊື້ຂອງທ່ານສໍາລັບການຮ້ອງຂໍການຮັບປະກັນ.

ຜູ້ຜະລິດ: ການຄວບຄຸມໂມງປຸກ
