1. ບົດແນະນຳ
Welcome to the world of creative embroidery with your new Janome 350E Memory Craft Embroidery Machine. This machine is designed to bring your embroidery visions to life with ease and precision. This manual provides essential information for setting up, operating, and maintaining your machine to ensure optimal performance and longevity.
2. ຄໍາແນະນໍາຄວາມປອດໄພ
Before operating your Janome 350E, please read and understand all safety instructions. Keep this manual in a safe place for future reference.
- Always unplug the machine from the electrical outlet immediately after using and before cleaning, making any adjustments, or performing any maintenance.
- Do not operate the machine with a damaged cord or plug. If the machine is not working properly, has been dropped or damaged, or dropped into water, return it to an authorized Janome service center for examination and repair.
- ເອົານິ້ວມືຫ່າງຈາກທຸກໆສ່ວນທີ່ເຄື່ອນຍ້າຍ. ຕ້ອງມີການດູແລພິເສດຮອບເຂັມຂັດຂອງເຄື່ອງຫຍິບ.
- Use only accessories recommended by the manufacturer as contained in this manual.
- ຫ້າມຖິ້ມ ຫຼືໃສ່ວັດຖຸໃດນຶ່ງໃສ່ບ່ອນເປີດໃດໆ.
- ຢ່າໃຊ້ນອກ.
- ຢ່າປະຕິບັດບ່ອນທີ່ຜະລິດຕະພັນ aerosol (ສີດ) ຖືກໃຊ້ຫຼືບ່ອນທີ່ອົກຊີຖືກປະຕິບັດ.
- ເພື່ອຕັດການເຊື່ອມຕໍ່, ຫັນການຄວບຄຸມທັງຫມົດໄປຫາຕໍາແຫນ່ງປິດ, ຫຼັງຈາກນັ້ນເອົາປລັກອອກຈາກເຕົ້າສຽບ.
3. ຜະລິດຕະພັນເກີນview
The Janome 350E is an embroidery-only machine featuring a range of functions to enhance your creative projects.

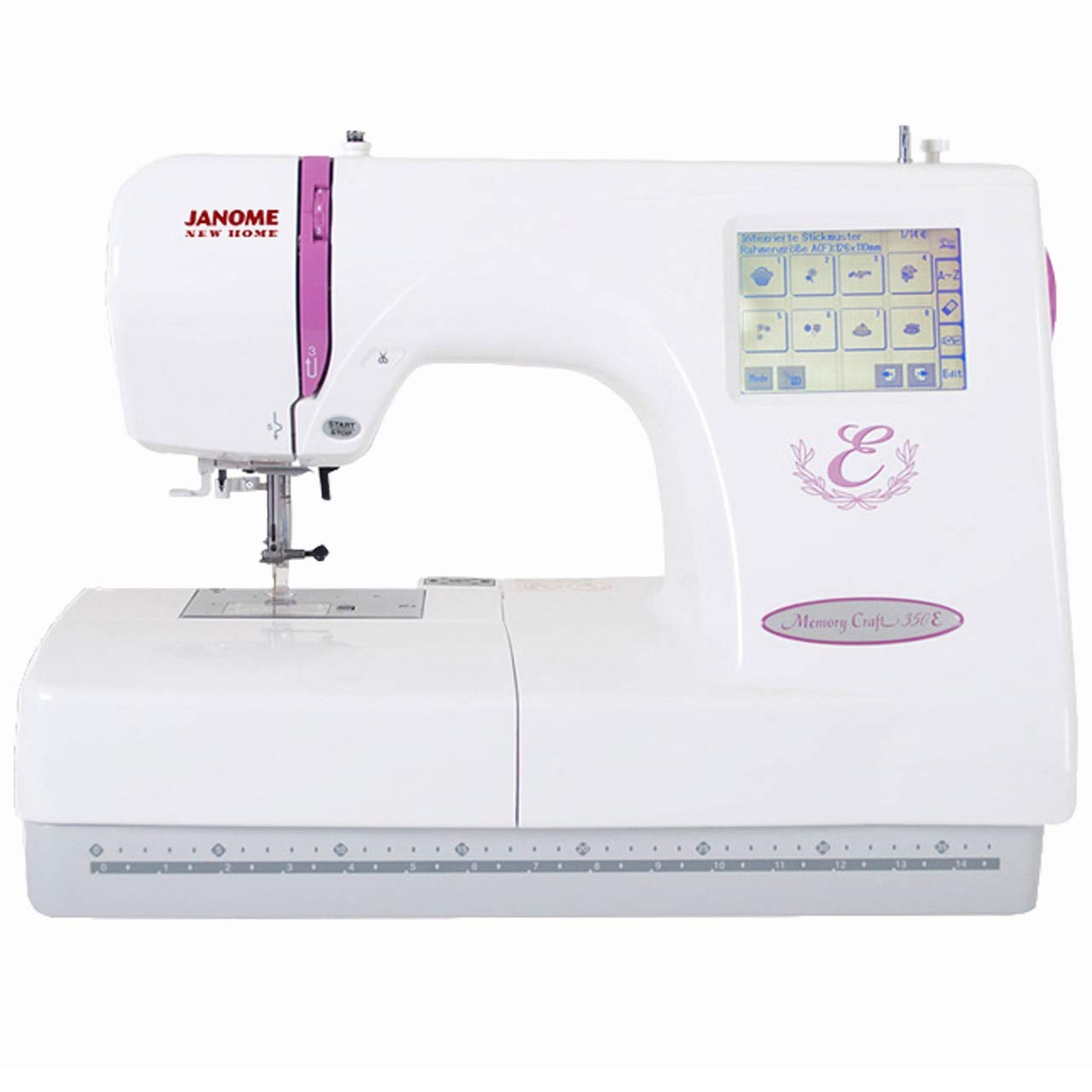

ຮູບທີ 3.1: ດ້ານໜ້າ view of the Janome 350E Memory Craft Embroidery Machine. This image displays the machine's overall design, including the needle area, embroidery arm, and the integrated LCD touchscreen on the right side.
ຮູບທີ 3.2: ຫລັງ view of the Janome 350E Memory Craft Embroidery Machine. This perspective shows the power input, main power switch, and ventilation grilles on the back of the machine.
ຄຸນນະສົມບັດທີ່ສໍາຄັນ:
- Built-in Designs: 100 unique embroidery designs.
- Embroidery Area: Maximum embroidery size of 5.5” x 7.9” (140mm x 200mm).
- ຈໍ LCD Touchscreen: Backlit for clear visibility and easy navigation.
- Monogramming Fonts: 3 built-in fonts for personalized projects.
- Design Transfer: Convenient design transfer via USB.
- Automatic Bobbin Winding: ເຮັດໃຫ້ການກະກຽມກະບອກມ້ວນງ່າຍຂຶ້ນ.
- ການປົກຫຸ້ມຂອງຝຸ່ນ: Included for machine protection.
4. ຕັ້ງຄ່າ
4.1 ການເຊື່ອມຕໍ່ພະລັງງານ
- ວາງເຄື່ອງຢູ່ເທິງພື້ນທີ່ຮາບພຽງທີ່ຫມັ້ນຄົງ.
- Ensure the power switch (refer to Figure 3.2) is in the 'OFF' position.
- ເຊື່ອມຕໍ່ສາຍໄຟເຂົ້າກັບພະລັງງານເຂົ້າຂອງເຄື່ອງ ແລະ ຈາກນັ້ນເຂົ້າກັບປລັກໄຟຟ້າທີ່ເໝາະສົມ.
4.2 ການມ້ວນດ້າມ
The Janome 350E features automatic bobbin winding. Follow the instructions in the machine's quick start guide for proper bobbin placement and winding procedure.
4.3 ການເກຍເຄື່ອງຈັກ
The machine requires manual threading. Refer to the numbered threading path indicated on the machine body and in the detailed threading diagrams in your quick start guide.
ຮູບທີ 4.1: Close-up of the thread tension adjustment dial and thread cutter on the Janome 350E. Ensure proper tension for consistent stitch quality.
ຮູບທີ 4.2: ລະອຽດ view of the needle area on the Janome 350E, showing the needle, presser foot, and needle plate. This area is crucial for precise embroidery.
4.4 Hooping Fabric
Select the appropriate hoop size for your design. Place stabilizer and fabric securely within the hoop, ensuring the fabric is taut and wrinkle-free. Attach the hooped fabric to the embroidery unit.
5. ການດໍາເນີນງານຂອງເຄື່ອງຈັກ
5.1 Selecting Designs
Turn on the machine. The backlit LCD touchscreen will display the main menu. You can select from the 100 built-in designs or load your own.
ຮູບທີ 5.1: The Janome 350E LCD screen showing a selection of built-in embroidery designs. Users can navigate and select designs directly from this interface.
5.2 Transferring Designs via USB
To use custom designs, save them to a USB flash drive in a compatible format (e.g., .jef). Insert the USB drive into the machine's USB port. Use the touchscreen interface to navigate to the USB drive and select your desired design. It is recommended to use smaller capacity USB drives and limit the number of designs per drive for optimal machine recognition.
5.3 Starting Embroidery
- Once a design is selected and positioned, ensure the fabric is correctly hooped and attached.
- ຫຼຸດລົງຕີນກົດ.
- Press the Start/Stop button to begin the embroidery process.
- Monitor the embroidery process. The machine will typically alert you for thread changes or if an error occurs.
ຮູບທີ 5.2: The Janome 350E actively embroidering a design on hooped fabric. This illustrates the machine's functionality during an embroidery project.
5.4 Bobbin Monitoring
The machine is designed to provide a low bobbin warning. However, this warning may not always be consistent. It is advisable to periodically check your bobbin thread level, especially during longer embroidery sequences, to prevent interruptions.
6. ບໍາລຸງຮັກສາ
Regular maintenance ensures your Janome 350E continues to perform reliably.
- ທໍາຄວາມສະອາດ: Regularly clean the bobbin area, feed dogs, and needle plate with a small brush to remove lint and dust.
- ການໃສ່ນໍ້າມັນ: Refer to your detailed instruction manual for specific oiling points and frequency. Use only recommended sewing machine oil.
- ການທົດແທນເຂັມ: Replace the needle frequently, especially if it becomes bent, dull, or if you notice skipped stitches.
- ການເກັບຮັກສາ: When not in use, cover the machine with the provided dust cover to protect it from dust and debris.
7. ການແກ້ໄຂບັນຫາ
This section addresses common issues you might encounter with your Janome 350E.
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| LCD Screen Clarity Issues | Display settings may change, or screen may fade. | Adjust brightness/contrast settings on the screen. If issues persist, contact an authorized service center. |
| Inconsistent Low Bobbin Warning | Sensor inconsistency. | Manually check bobbin thread levels frequently during embroidery. |
| Machine Not Recognizing USB Designs | ບໍ່ຖືກຕ້ອງ file format, too many designs on USB, or incompatible USB drive. | Ensure designs are in .jef format. Use smaller capacity USB drives (e.g., 2GB or 4GB) and limit designs to fewer than 20 per drive. Ensure designs are in the correct folder structure (e.g., MY DESIGN). |
| Skipped Stitches or Poor Stitch Quality | Incorrect threading, dull/bent needle, incorrect tension, or wrong stabilizer. | Re-thread the machine, replace the needle, adjust thread tension, and ensure appropriate stabilizer is used for your fabric. |
| Machine Locks Up or Displays Error Message | Sensor issue, mechanical jam, or software error. | Turn the machine off, wait a few minutes, then turn it back on. If the error persists, consult your dealer or an authorized service center. |
8. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຂະໜາດສິນຄ້າ | 15"D x 22"W x 21"H (38.1 cm D x 55.88 cm W x 53.34 cm H) |
| ນ້ໍາຫນັກລາຍການ | 26.98 ປອນ (12.24 ກິໂລ) |
| ແຫຼ່ງພະລັງງານ | ໄຟຟ້າສາຍ |
| ການອອກແບບຖັກແສ່ວ | 100 built-in designs |
| ຂະໜາດການປັກແສ່ວສູງສຸດ | 5.5" x 7.9" (140ມມ x 200ມມ) |
| Standard Hoops Included | Large: 5.5” x 7.9” (140mm x 200mm), Standard: 5” x 4.3” (126mm x 110mm) |
| ຈໍສະແດງຜົນ | Backlit LCD Touchscreen |
| Monogramming Fonts | 3 fonts |
| Design Transfer | USB |
| Needle Threading System | ຄູ່ມື |
| Bobbin Winding ອັດຕະໂນມັດ | ແມ່ນແລ້ວ |
| Case/Cover Included | ການປົກຫຸ້ມຂອງຂີ້ຝຸ່ນ |
9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
For warranty information, please refer to the documentation included with your purchase or visit the official Janome website. If you encounter issues that cannot be resolved using this manual's troubleshooting section, please contact your authorized Janome dealer or Janome customer support for assistance. Ensure you have your machine's model number (350E) and serial number ready when contacting support.
