Soehnle Luggage Travel Scale Model 66172 Instruction Manual

ແນະນຳ

The Soehnle Luggage Travel Scale Model 66172 is designed to help you accurately weigh your luggage, preventing unexpected overweight baggage fees. Its compact and lightweight design makes it an ideal travel companion. This digital scale features an easy-to-read LCD display and a sturdy carrying strap, capable of weighing items up to 110 pounds (50 kg) with 0.2-pound (100g) increments. It also includes an add-weight function and unit conversion between kilograms, pounds, and stone.

ຕັ້ງຄ່າ

ການຕິດຕັ້ງຫມໍ້ໄຟ

The scale requires one 3-volt Lithium Metal battery (CR2032), which is included. To install or replace the battery:

1. ຊອກຫາຊ່ອງໃສ່ຫມໍ້ໄຟຢູ່ດ້ານລຸ່ມຂອງຂະຫນາດ.
2. Use a small Phillips-head screwdriver to open the battery compartment cover.
3. ໃສ່ແບັດເຕີຣີ CR2032, ຮັບປະກັນວ່າດ້ານບວກ (+) ຫັນຂຶ້ນເທິງ.
4. ປິດຝາປິດຝາຫມໍ້ໄຟ.

ເປີດເຄື່ອງເບື້ອງຕົ້ນ

Press the power button (usually marked with a circle or 'ON/OFF') to turn on the scale. The display will show '0.00' or '8888' briefly before settling on '0.00' with the current unit of measurement (e.g., kg, lb, st).

ຄໍາແນະນໍາການດໍາເນີນງານ

ການຊັ່ງນໍ້າໜັກກະເປົາ

To accurately weigh your luggage:

1. ກວດສອບວ່າຂະໜາດແມ່ນເປີດຢູ່ ແລະສະແດງ '0.00'.
2. Attach the sturdy carrying strap of the scale to the handle of your luggage. Make sure the connection is secure.
3. Lift the scale and luggage together, holding the scale horizontally and steadily.
4. ລໍຖ້າໃຫ້ໜ້າຈໍຄົງທີ່. ນ້ຳໜັກຈະຖືກສະແດງຢູ່ໜ້າຈໍ LCD.
5. Lower the luggage gently. The weight reading will typically hold on the display for a few seconds after the load is removed.

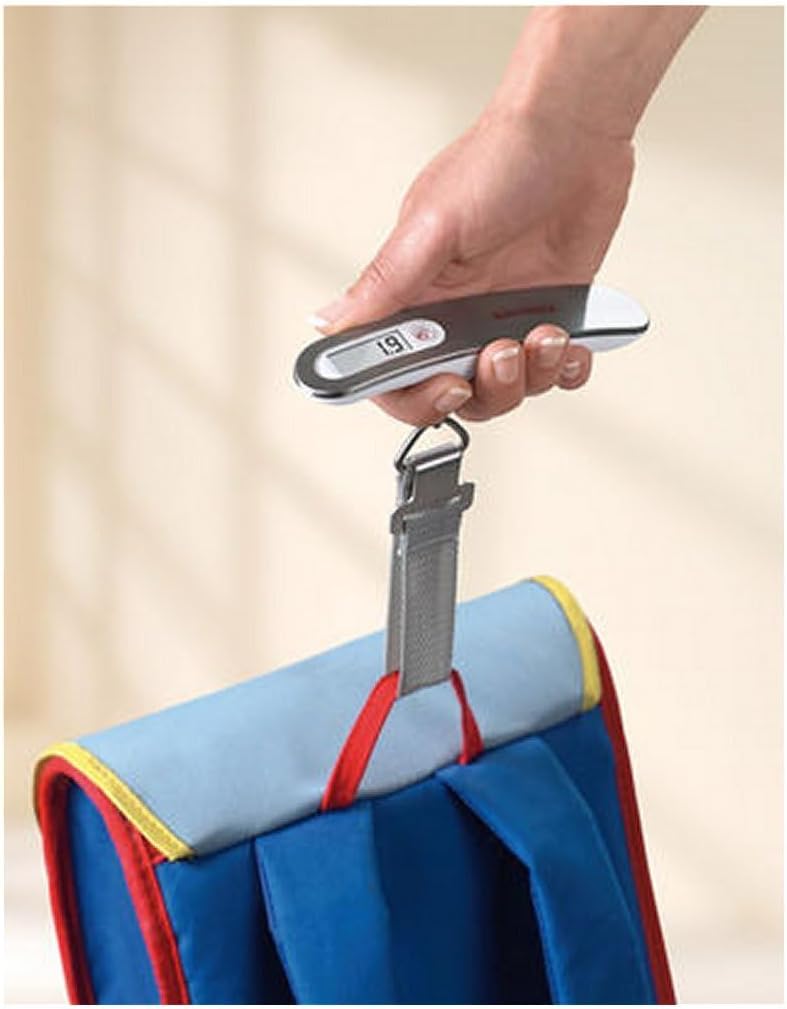

Image: The Soehnle Luggage Travel Scale in use, demonstrating how to attach the strap to an item for weighing.

ຮູບພາບ: A close-up view of the Soehnle Luggage Travel Scale displaying a weight, attached to a backpack handle.

ການແປງຫນ່ວຍ

To switch between measurement units (kilograms, pounds, or stone):

• With the scale powered on and displaying '0.00', press the 'UNIT' button (often the same as the power button, or a separate button if available).
• Each press will cycle through the available units: kg → lb → st. Select your preferred unit before weighing.

Add-Weight Function (Tare)

The add-weight (tare) function allows you to weigh multiple items consecutively without removing the previous item from the scale. This is useful for adding items to a bag and measuring the incremental weight.

1. Weigh the first item as described above.
2. While the first item is still on the scale and its weight is displayed, press the 'TARE' button (often the same as the power/unit button, or a dedicated button). The display will reset to '0.00'.
3. Add the next item to the scale. The display will show the weight of only the newly added item.
4. ເຮັດຊ້ຳຕາມຕ້ອງການ.

ບໍາລຸງຮັກສາ

ທໍາຄວາມສະອາດ

To clean your scale, wipe it with a soft, damp ຜ້າ. ຫ້າມ​ໃຊ້​ເຄື່ອງ​ເຮັດ​ຄວາມ​ສະ​ອາດ​ທີ່​ມີ​ຮອຍ​ຂີດ​ຂ່ວນ ຫຼື​ຈຸ່ມ​ນ້ຳ​ໃສ່.

ການເກັບຮັກສາ

Store the scale in a cool, dry place away from direct sunlight and extreme temperatures. Remove the battery if the scale will not be used for an extended period to prevent leakage.

ການແກ້ໄຂບັນຫາ

• Display shows 'Lo' or is dim: ແບັດເຕີຣີເຫຼືອໜ້ອຍ ແລະຕ້ອງປ່ຽນແທນ.
• ການອ່ານບໍ່ຖືກຕ້ອງ: Ensure the scale is held steadily and horizontally during weighing. Avoid touching the luggage or the strap while weighing. Recalibrate by turning off and on, then re-weigh.
• Display shows 'Err' or 'O-Ld': The luggage exceeds the maximum weight capacity of 110 lbs (50 kg). Remove some weight to prevent damage to the scale.
• ຂະໜາດບໍ່ເປີດ: ກວດສອບວ່າແບັດເຕີຣີຖືກຕິດຕັ້ງຢ່າງຖືກຕ້ອງ ແລະ ມີພະລັງງານພຽງພໍຫຼືບໍ່. ໃຫ້ປ່ຽນແບັດເຕີຣີຖ້າຈຳເປັນ.

ຂໍ້ມູນຈໍາເພາະ

ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

The Soehnle Luggage Travel Scale Model 66172 comes with a 3-year warranty from the date of purchase, covering manufacturing defects under normal use. For warranty claims or technical support, please contact Soehnle customer service through their official webເວັບໄຊທ໌ຫຼືຮ້ານຂາຍຍ່ອຍບ່ອນທີ່ຜະລິດຕະພັນໄດ້ຖືກຊື້. ກະລຸນາເກັບຫຼັກຖານການຊື້ຂອງທ່ານໄວ້ເພື່ອກວດສອບການຮັບປະກັນ.
