ແນະນຳ
This manual provides detailed instructions for the assembly, operation, and maintenance of your SLIK Pro 700 DX Tripod with 700DX 3-Way, Pan-and-Tilt Head. Designed for stability and versatility, this titanium-colored tripod supports up to 19.8 lb and features a robust aluminum, magnesium, and titanium-alloy construction. Proper use and care will ensure optimal performance and longevity of your equipment.
ຮູບ 1: ເກີນview of the SLIK Pro 700 DX Tripod Kit, highlighting key components like the pan head, leg angle adjustment, center column, rubber feet, and flip locks.
ຕັ້ງຄ່າ
- ການຫຸ້ມຫໍ່: Carefully remove the tripod and 3-way pan-and-tilt head from the included carry bag. Ensure all components are present and undamaged.
- Leg Deployment: Extend each of the three leg sections by releasing the flip locks. Adjust the leg length as needed. The legs feature a 3-position angle lock, allowing them to be set at 16°, 40°, or 65° angles for stability on various terrains.
- Center Column Adjustment: The push-and-pull center column can be raised or lowered for rapid camera positioning. It is multi-sectional and can be converted to a shortened center column for lower shooting heights.
- ການຕິດກ້ອງຖ່າຍຮູບ: Secure your camera, sport optics, or camcorder to the quick release plate using the 1/4"-20 mount. The plate features an anti-slip cork surface for added grip. Attach the quick release plate to the tripod's pan-and-tilt head using the quick release cam lock.
Figure 2: Close-up of a tripod leg showing the quick-action flip lock for easy height adjustments.

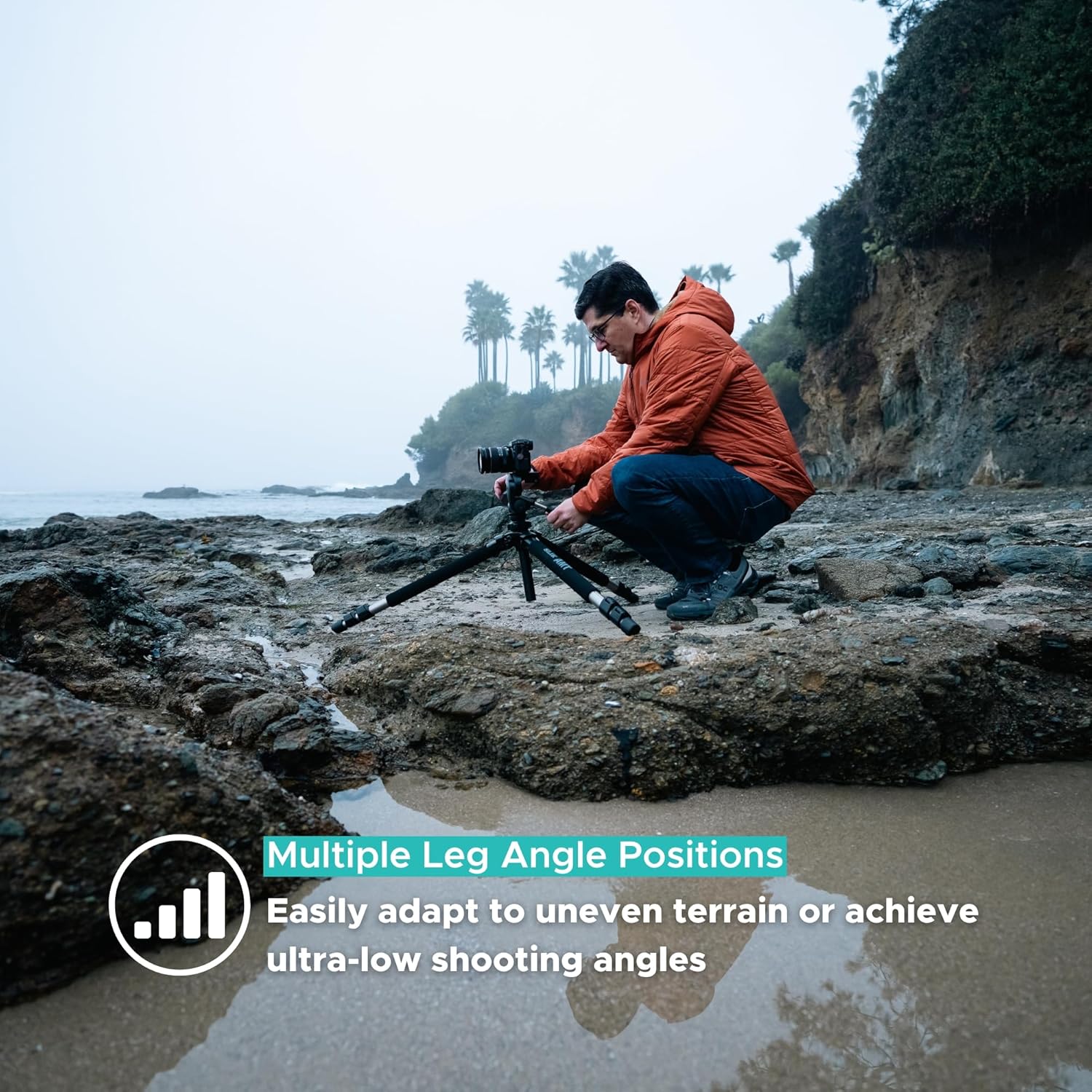

Figure 3: The tripod legs can be set at multiple angles to adapt to uneven terrain or achieve low shooting angles.
ຄໍາແນະນໍາການດໍາເນີນງານ
- ການປັບຄວາມສູງ: The tripod offers a maximum height of 75.0" with the complete column fully raised. For lower shots, the center column can be shortened to allow a minimum height of 16.1".
- Pan-and-Tilt Head Operation: The 3-way pan-and-tilt head allows for 360° rotation and 90° tilt backwards or forwards, as well as sideways for portrait orientation. Each of these three movements functions independently and can be locked into place using the dedicated controls.
- ການຖ່າຍຮູບມຸມຕ່ຳ: The center column is reversible, enabling low-angle photography where the camera is positioned between the tripod's legs.
- ປັບປຸງຄວາມໝັ້ນຄົງ: Foam covers on each leg provide a secure and comfortable grip, while rubber feet enhance stability on various surfaces.
Figure 4: The SLIK Pro 700 DX Tripod provides rock-solid stability, ideal for demanding setups in various environments.
Figure 5: The robust PRO 700DX 3-way pan head is engineered for smooth and accurate camera movement.
ບໍາລຸງຮັກສາ
- ທໍາຄວາມສະອາດ: Wipe down the tripod legs and head with a soft, damp cloth after use, especially if exposed to dirt, sand, or saltwater. Avoid harsh chemicals.
- ການລະບາຍສີ: Periodically check moving parts for smooth operation. Apply a small amount of silicone-based lubricant if necessary, avoiding excessive application.
- ການເກັບຮັກສາ: Store the tripod in its included zippered carry bag to protect it from dust and damage when not in use.
- Foam Grips: The foam covers on the legs provide comfort and grip. If they shift, gently slide them back into position.
ການແກ້ໄຂບັນຫາ
- ກ້ອງຖ່າຍຮູບບໍ່ປອດໄພ: Ensure the quick release plate is properly attached to your camera and fully engaged with the quick release cam lock on the pan-and-tilt head. Verify the 1/4"-20 mount is tightened.
- Legs Not Extending/Retracting Smoothly: Check for any debris or obstructions in the leg sections or flip locks. Clean as necessary. Do not force the mechanisms.
- Head Movement Stiff: Loosen the tension knobs on the pan-and-tilt head slightly. If still stiff, a small amount of lubricant may be applied to the moving parts.
- Tripod Instability: Ensure all leg sections are fully extended and locked, and the leg angle locks are engaged. Verify the center column is securely tightened.
ຂໍ້ມູນຈໍາເພາະ
- ຄວາມອາດສາມາດໂຫຼດ: 19.8 lb
- ຄວາມສູງສູງສຸດ: 75.0"
- ຄວາມສູງຕໍາ່ສຸດທີ່: 16.1" (with shortened center column)
- ຄວາມຍາວພັບ: 29.9"
- ພາກສ່ວນຂາ: 3
- ນ້ຳໜັກ: 7.1 lb
- ວັດສະດຸ: Aluminum, Magnesium, Titanium-Alloy Legs
- ປະເພດຫົວ Tripod: 700DX 3-Way, Pan-and-Tilt Head
- ແຜ່ນປ່ອຍດ່ວນ: 1/4"-20 mount with anti-slip cork surface
- Leg Angle Locks: 3 positions (16°, 40°, 65°)
- ຖັນກາງ: Push-and-pull, multi-sectional, reversible
- ອຸປະກອນເສີມລວມ: ຖົງໃສ່
Figure 6: Visual representation of the SLIK Pro 700 DX Tripod's dimensions and load capacity.
ຮັບປະກັນ
For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official SLIK webເວັບໄຊ. ຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນໃດໆ.
ສະຫນັບສະຫນູນ
If you require further assistance or have questions not covered in this manual, please visit the SLIK Store on Amazon or contact SLIK customer service through their official channels. Please have your model number (615.315) ready when contacting support.
