1. ບົດແນະນຳ
This manual provides detailed instructions for the safe and efficient use of your HumsiENK 24V 320Ah LiFePO4 Lithium Battery. This high-capacity battery is designed for various applications including RVs, solar energy systems, off-grid power, and home energy storage. Please read this manual thoroughly before installation and operation to ensure proper usage and longevity of the product.
Image 1.1: HumsiENK 24V 320Ah LiFePO4 Lithium Battery.
Image 1.2: The HumsiENK 24V 320Ah LiFePO4 battery is suitable for home storage, off-grid systems, RVs, and marine applications.
2. ຂໍ້ມູນຄວາມປອດໄພ
ໃຫ້ປະຕິບັດຕາມຂໍ້ຄວນລະວັງດ້ານຄວາມປອດໄພຕໍ່ໄປນີ້ສະເໝີເພື່ອປ້ອງກັນການບາດເຈັບ ຫຼື ຄວາມເສຍຫາຍຕໍ່ແບັດເຕີຣີ ແລະ ອຸປະກອນທີ່ເຊື່ອມຕໍ່:
- ຫ້າມບໍ່ໃຫ້ເກີດການວົງຈອນຂອງແບັດເຕີລີ່.
- ຢ່າໃຫ້ແບັດເຕີຣີຖືກໄຟ, ຄວາມຮ້ອນເກີນໄປ ຫຼື ແສງແດດໂດຍກົງ.
- ຫ້າມເອົາໝໍ້ໄຟໃສ່ໃນນ້ຳ ຫຼືຂອງແຫຼວອື່ນໆ.
- ຮັບປະກັນການລະບາຍອາກາດທີ່ເໝາະສົມໃນລະຫວ່າງການສາກໄຟ ແລະ ການຄາຍປະຈຸ.
- ໃຊ້ສະເພາະເຄື່ອງສາກທີ່ເຂົ້າກັນໄດ້ທີ່ອອກແບບມາສຳລັບແບັດເຕີຣີ LiFePO4 ເທົ່ານັ້ນ.
- ຮັກສາແບັດເຕີຣີໃຫ້ຫ່າງຈາກເດັກນ້ອຍ ແລະສັດລ້ຽງ.
- ໃສ່ອຸປະກອນປ້ອງກັນສ່ວນຕົວ (PPE) ທີ່ເໝາະສົມ ເຊັ່ນ: ຖົງມື ແລະ ອຸປະກອນປ້ອງກັນດວງຕາ ເມື່ອຈັບໝໍ້ໄຟ.
- Do not attempt to open, disassemble, or repair the battery. Contact qualified personnel for service.
3. ເນື້ອໃນຊຸດ
ກວດສອບວ່າລາຍການທັງຫມົດແມ່ນມີຢູ່ໃນຊຸດ:
- ແບັດເຕີຣີ້ HumsiENK 24V 320Ah LiFePO4 1 ກ້ອນ
- 1 x ຄູ່ມືແນະນຳ (ເອກະສານນີ້)
- 2 x Insulated Terminal Caps
- Screws 4 x M8
4. ຄຸນລັກສະນະຂອງຜະລິດຕະພັນ
The HumsiENK 24V 320Ah LiFePO4 Lithium Battery offers advanced features for reliable power storage:
- Compact Design & High Capacity: This 24V 320Ah battery is designed to replace multiple 12V batteries, reducing wiring complexity and saving installation space. It measures 24.92 x 9.53 x 8.58 inches and weighs 107.92 lbs.
- Advanced LiFePO4 Cells & Bluetooth Monitoring: Built with Grade-A LiFePO4 cells, providing over 15,000 deep cycles at 60% Depth of Discharge (DOD) for an extended lifespan. Integrated Bluetooth connectivity allows remote monitoring of battery status via a dedicated app.
- High Energy & Power Output: Delivers 8192Wh of energy storage and a 5120W high-power output, capable of supporting multiple high-power devices simultaneously.
- Flexible System Expansion: Supports a maximum 2S4P (2 series, 4 parallel) connection, allowing for system expansion up to 65.53 kWh to meet diverse energy requirements.
- Comprehensive BMS Protection: Features a built-in 200A high-performance Battery Management System (BMS) offering over 20 protections, including over-charge, over-discharge, over-current, over-voltage, high-temperature, low-temperature, and short-circuit protection. It includes an intelligent low-temperature cut-off feature, automatically stopping discharge below -4°F (-20°C) and charging below 32°F (0°C), with recovery above 41°F (5°C).

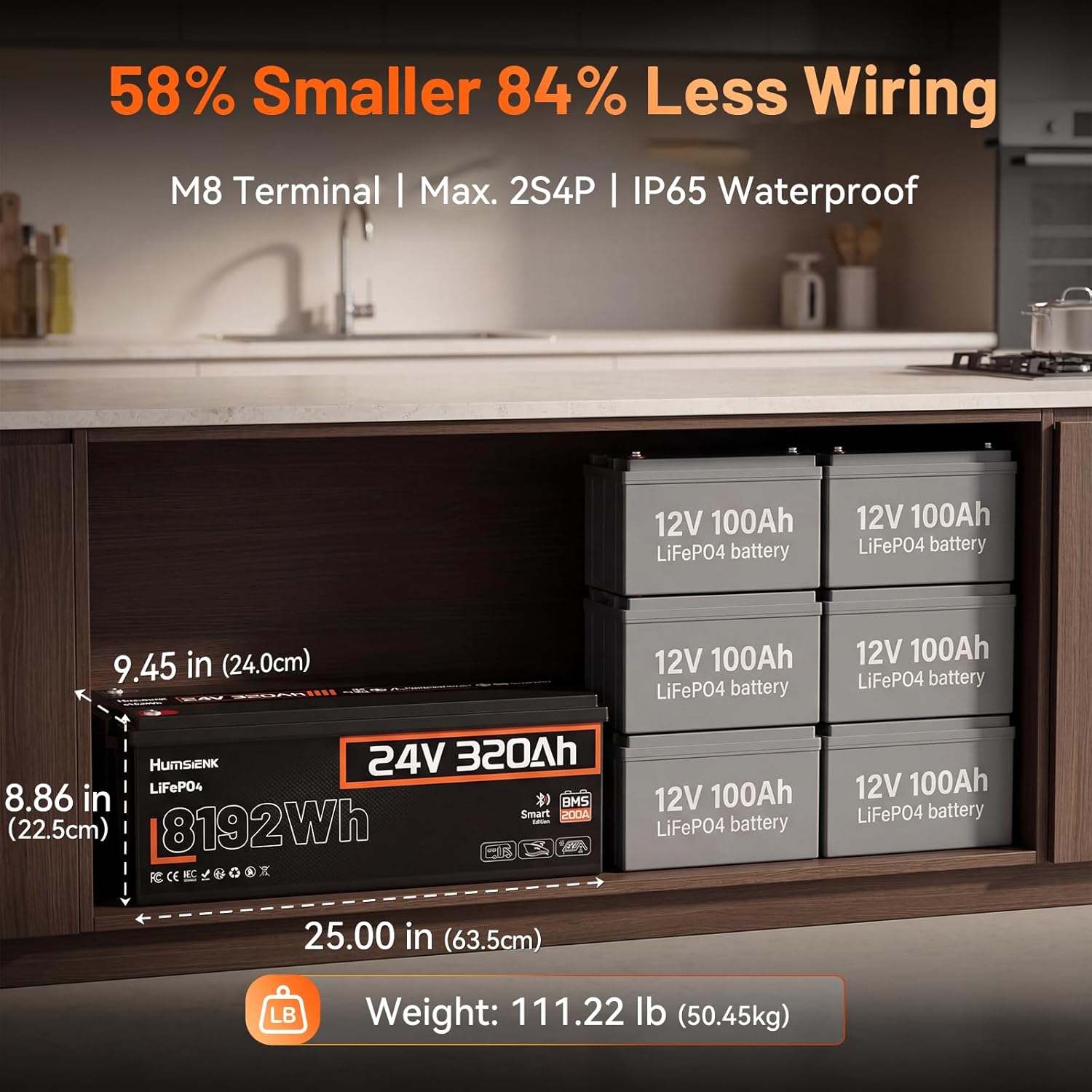

Image 4.1: The 24V 320Ah battery offers a compact design compared to six 12V 100Ah batteries.
ຮູບພາບ 4.2: ພາຍໃນ view highlighting Grade-A LiFePO4 cells and the 200A Battery Management System (BMS).
Image 4.3: Visual representation of the battery's 8192Wh energy and 5120W power capabilities.
Image 4.4: Illustration of the battery's low-temperature cut-off protection features.
5. ຕັ້ງຄ່າ
5.1 ລາຍການກວດກ່ອນການຕິດຕັ້ງ
- ກວດເບິ່ງຫມໍ້ໄຟສໍາລັບຄວາມເສຍຫາຍທີ່ເຫັນໄດ້.
- ຮັບປະກັນວ່າອຸປະກອນເສີມທັງໝົດມີຢູ່.
- Confirm that your charging system (charger, solar controller, inverter) is compatible with 24V LiFePO4 batteries.
- Prepare the installation location, ensuring it is dry, well-ventilated, and protected from extreme temperatures.
5.2 ການຕິດຕັ້ງທາງດ້ານຮ່າງກາຍ
The battery features M8 bolt terminals for secure connections. Use the provided M8 screws and insulated caps. Ensure all connections are tight to prevent resistance and overheating.
5.3 Wiring for Expansion
The battery supports a maximum configuration of 2 units in series and 4 units in parallel (2S4P) to achieve higher voltage or capacity. When connecting batteries in series or parallel, ensure all batteries are of the same model, capacity, and state of charge before connection.
5.4 ວິທີການສາກໄຟ
The battery can be charged using three primary methods:
- LiFePO4 24V Charger: Use a dedicated 24V LiFePO4 charger.
- ແຜງແສງອາທິດ: Connect to a solar charge controller with a minimum output of 800W.
- ເຄື່ອງກໍາເນີດໄຟຟ້າ: Utilize a 60A DC-DC charger connected to a generator.
Image 5.1: Various charging options for the HumsiENK LiFePO4 battery, including LiFePO4 charger, solar panel, and generator.
5.5 ການເຊື່ອມຕໍ່ແອັບ Bluetooth
Download the HumsiENK Bluetooth APP from your device's app store. Enable Bluetooth on your smartphone or tablet and open the app. The app will automatically detect nearby HumsiENK batteries. Select your battery from the list to connect and view ຂໍ້ມູນໃນເວລາຈິງ.
Image 5.2: The Bluetooth App allows monitoring of cell voltage, remaining capacity, and charge/discharge status.
6. ຄໍາແນະນໍາການດໍາເນີນງານ
6.1 ຄ່າບໍລິການເບື້ອງຕົ້ນ
It is recommended to fully charge the battery before its first use to ensure optimal performance and calibration of the BMS.
6.2 ການຕິດຕາມສະຖານະຫມໍ້ໄຟ
Use the HumsiENK Bluetooth APP to monitor critical battery parameters such as:
- Cell voltage
- Remaining capacity (State of Charge)
- Charge/discharge status
- ອຸນຫະພູມ
The app also allows for remote control of charge/discharge functions and data diagnosis.
6.3 Low-Temperature Protection
The integrated BMS features intelligent low-temperature protection:
- Discharging Cut-off: Automatically stops discharging when the battery temperature drops below -4°F (-20°C).
- Charging Cut-off: Automatically stops charging when the battery temperature drops below 32°F (0°C).
- Charge Recovery: Charging will resume automatically when the battery temperature rises above 41°F (5°C).
These features ensure safe operation and extend battery life in cold environments.
7. ບໍາລຸງຮັກສາ
Proper maintenance ensures the longevity and performance of your battery:
- ການກວດກາປົກກະຕິ: Periodically check the battery for any physical damage, loose connections, or corrosion on the terminals.
- ທໍາຄວາມສະອາດ: Keep the battery terminals clean and free of dirt or debris. Use a dry cloth to wipe the battery casinຊ. ຢ່າໃຊ້ຕົວລະລາຍ ຫຼື ນໍ້າຢາເຮັດຄວາມສະອາດທີ່ມີສານຂັດ.
- ການເກັບຮັກສາ: If storing the battery for an extended period, ensure it is charged to approximately 50-70% State of Charge (SOC) and stored in a cool, dry place, away from direct sunlight and extreme temperatures. Disconnect it from all loads and chargers.
- ຫຼີກເວັ້ນການໄຫຼເລິກ: ໃນຂະນະທີ່ແບັດເຕີຣີ LiFePO4 ທົນທານຕໍ່ຮອບວຽນທີ່ເລິກ, ການຫຼີກລ່ຽງຮອບວຽນການລະບາຍປະຈຸເຕັມທີ່ສະໝໍ່າສະເໝີສາມາດຍືດອາຍຸການໃຊ້ງານຂອງແບັດເຕີຣີໄດ້ຕື່ມອີກ.
8. ການແກ້ໄຂບັນຫາ
ຖ້າທ່ານພົບບັນຫາກັບແບັດເຕີຣີ HumsiENK ຂອງທ່ານ, ໃຫ້ອ້າງອີງເຖິງບັນຫາ ແລະ ວິທີແກ້ໄຂທົ່ວໄປຕໍ່ໄປນີ້:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ແບັດເຕີຣີບໍ່ໄດ້ສາກ | Loose connections, incompatible charger, low temperature, BMS protection activated | Check all cable connections. Ensure charger is compatible with 24V LiFePO4. Move battery to a warmer environment if below 0°C (32°F). Check BMS status via Bluetooth app. |
| ບໍ່ມີຜົນຜະລິດພະລັງງານ | BMS protection activated (over-discharge, over-current, short-circuit), loose connections | Check connections. Reduce load if over-current. Recharge battery if over-discharged. Check BMS status via Bluetooth app. |
| ແອັບ Bluetooth ບໍ່ເຊື່ອມຕໍ່ | Bluetooth disabled, app issue, battery too far | Ensure Bluetooth is enabled on your device. Restart the app. Move closer to the battery. Restart the battery (if possible, by disconnecting and reconnecting). |
| Battery capacity seems low | Incomplete initial charge, high load, aging | Perform a full charge cycle. Reduce simultaneous high-power loads. Battery capacity naturally degrades over many years of use. |
If the problem persists after attempting these solutions, please contact HumsiENK customer support.
9. ຂໍ້ມູນຈໍາເພາະ
Detailed technical specifications for the HumsiENK 24V 320Ah LiFePO4 Lithium Battery:
| ຂໍ້ມູນຈໍາເພາະ | ມູນຄ່າ |
|---|---|
| ຍີ່ຫໍ້ | ຮຳຊີເອນເຄ |
| ໝາຍເລກຕົວແບບ | HS24V320AH200BT |
| ສະບັບtage | 24 ໂວນ |
| ຄວາມອາດສາມາດ | 320 Ah |
| ພະລັງງານ | 8192Wh |
| ພະລັງງານອອກສູງສຸດ | 5120W |
| ກະແສໄຟຟ້າປ່ອຍປະຈຸໄຟຟ້າ BMS ຢ່າງຕໍ່ເນື່ອງ | 200A |
| ຮອບວຽນເລິກ | 15000+ (at 60% DOD) |
| ອາຍຸຍືນ | 10+ ປີ |
| Low-Temp Protection | Discharge cut-off below -4°F (-20°C), Charge cut-off below 32°F (0°C), Charge recovery above 41°F (5°C) |
| ຂະໜາດສິນຄ້າ (ກວ້າງ x ຍາວ x ສູງ) | 9.53" x 24.92" x 8.58" |
| ນ້ໍາຫນັກລາຍການ | 107.92 ປອນ |
| ປະເພດ Terminal | Bolt M8 |
| ການຂະຫຍາຍສູງສຸດ | 2S4P (up to 65.53 kWh) |
| ການຢັ້ງຢືນ | IEC/RoHS/CE/FCC/UN38.3/Class9/UL |
10. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
ແບັດເຕີຣີລີທຽມ HumsiENK 24V 320Ah LiFePO4 ໄດ້ຮັບການສະໜັບສະໜູນຈາກ ການຮັບປະກັນຂອງຜູ້ຜະລິດ 5 ປີ. ການຮັບປະກັນນີ້ກວມເອົາຂໍ້ບົກພ່ອງຂອງວັດສະດຸແລະການເຮັດວຽກພາຍໃຕ້ເງື່ອນໄຂການນໍາໃຊ້ແລະການບໍລິການປົກກະຕິ.
For technical assistance, troubleshooting, or warranty claims, please contact HumsiENK customer support. Our team is available 24/7 to provide support and ensure your peace of mind.
ກະລຸນາເກັບຫຼັກຖານການຊື້ຂອງທ່ານໄວ້ເພື່ອກວດສອບການຮັບປະກັນ.
