1. ບົດແນະນຳ
This manual provides essential information for the safe and efficient operation of your Anern 5000W 24V Hybrid Solar Inverter, Model AN-FGI-S5000. This all-in-one solar inverter integrates a 5000W pure sine wave inverter, a 160A MPPT solar charge controller, and a battery charger function into a single unit. It is designed for off-grid solar applications, converting 24V DC battery power to 220-240V AC for various loads. Please read this manual thoroughly before installation and use.
Image 1.1: Application Range. This image illustrates various applications for the Anern Hybrid Solar Inverter, including emergency electricity, home appliance power, yacht power, photovoltaic rooftop systems, agricultural electricity, and outdoor camping.
2. ຄໍາແນະນໍາຄວາມປອດໄພ
- Read all instructions and warnings in this manual before installation and operation.
- ການຕິດຕັ້ງຕ້ອງໄດ້ປະຕິບັດໂດຍພະນັກງານທີ່ມີຄຸນວຸດທິຕາມລະຫັດໄຟຟ້າທ້ອງຖິ່ນທັງໝົດ.
- ຢ່າຖອດເຄື່ອງແປງໄຟຟ້າອອກ. ບໍ່ມີຊິ້ນສ່ວນໃດໆທີ່ຜູ້ໃຊ້ສາມາດສ້ອມແປງໄດ້ພາຍໃນ. ໃຫ້ປຶກສາພະນັກງານທີ່ມີຄຸນວຸດທິເພື່ອສ້ອມແປງ.
- ຮັບປະກັນການລະບາຍອາກາດທີ່ເຫມາະສົມຮອບຕົວ inverter ເພື່ອປ້ອງກັນຄວາມຮ້ອນເກີນ.
- Connect the inverter only to a battery bank with the specified voltage (24V DC).
- Always disconnect all power sources (PV, AC grid, battery) before performing any maintenance or wiring.
- ໃສ່ອຸປະກອນປ້ອງກັນສ່ວນບຸກຄົນທີ່ເຫມາະສົມ (PPE), ລວມທັງຖົງມື insulated ແລະປ້ອງກັນຕາ, ໃນລະຫວ່າງການຕິດຕັ້ງແລະການບໍາລຸງຮັກສາ.
- ໃຫ້ເດັກນ້ອຍຢູ່ຫ່າງຈາກ inverter ແລະການເຊື່ອມຕໍ່ຂອງມັນ.
3. ຜະລິດຕະພັນເກີນview
3.1 ລັກສະນະທີ່ສໍາຄັນ
- ການອອກແບບທັງຫມົດໃນຫນຶ່ງ: Combines a 5000W pure sine wave inverter, 160A MPPT solar charge controller, and battery charger.
- ສະບັບtage ຄວາມເຂົ້າກັນໄດ້: 24V DC input to 220-240V AC output, compatible with 50Hz/60Hz.
- High PV Input: Maximum PV input power of 9000W, with an operating PV voltage range of 60V DC to 450V DC.
- ຜົນຜະລິດ AC ຄູ່: Features primary and secondary AC outputs for optimized energy management.
- Batteryless Operation: Capable of powering loads directly from PV/AC without a connected battery.
- ຄວາມເຂົ້າກັນໄດ້ຂອງຫມໍ້ໄຟ: Supports various battery types, including lithium and lead-acid (recommended capacity ≥ 200Ah).
- ການຕັ້ງຄ່າທີ່ສາມາດກຳນົດໄດ້: ຈໍສະແດງຜົນ LCD ຊ່ວຍໃຫ້ສາມາດຕັ້ງຄ່າລະດັບສຽງເຂົ້າໄດ້tage range, battery charge current, and AC/solar charge priority.
- ການປົກປ້ອງທີ່ສົມບູນແບບ: Includes overload, over-temperature, short-circuit, over-voltage, under-voltage, over-current, and backfill protection.
- ຣີສະຕາດອັດຕະໂນມັດ: Automatically restarts when AC grid power is restored.
Image 3.1: Inverter Overview. This image highlights the key specifications and features of the Anern 5000W Off-Grid Solar Inverter, including its 24V DC to 220/230/240V AC conversion, pure sine wave output, 160A MPPT controller, 9000W max PV input, 450VDC max PV VOC, and 160A max charging current.
3.2 LCD Display and RGB Indicators
The hybrid inverter is equipped with an LCD screen that displays real-time system data and operational status. An RGB light indicator provides visual feedback on the inverter's current mode:
- ສີຂາວ: ໂໝດສະແຕນບາຍ
- ສີແດງ: Battery Mode (operating from battery power)
- ສີຟ້າ: City Electric Mode (operating from grid power)
- ຊ່ວງ 0: Photovoltaic Mode (operating from solar power)
4. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ
4.1 ສະເພາະສາຍໄຟ
Ensure all wiring is correctly sized and installed according to local electrical codes. The following cable sizes are recommended:
- ສາຍຫມໍ້ໄຟ: 2 AWG / 25 mm²
- AC Output Cable: 12 AWG / 4 mm²
- AC Input Cable: 10 AWG / 5.26 mm²
- Photovoltaic (PV) Cable: 10 AWG / 5.26 mm²
4.2 ຄວາມເຂົ້າກັນໄດ້ຂອງຫມໍ້ໄຟ
The inverter is compatible with various 24V battery types. A minimum battery capacity of 200 Amp-hours is recommended for optimal performance.

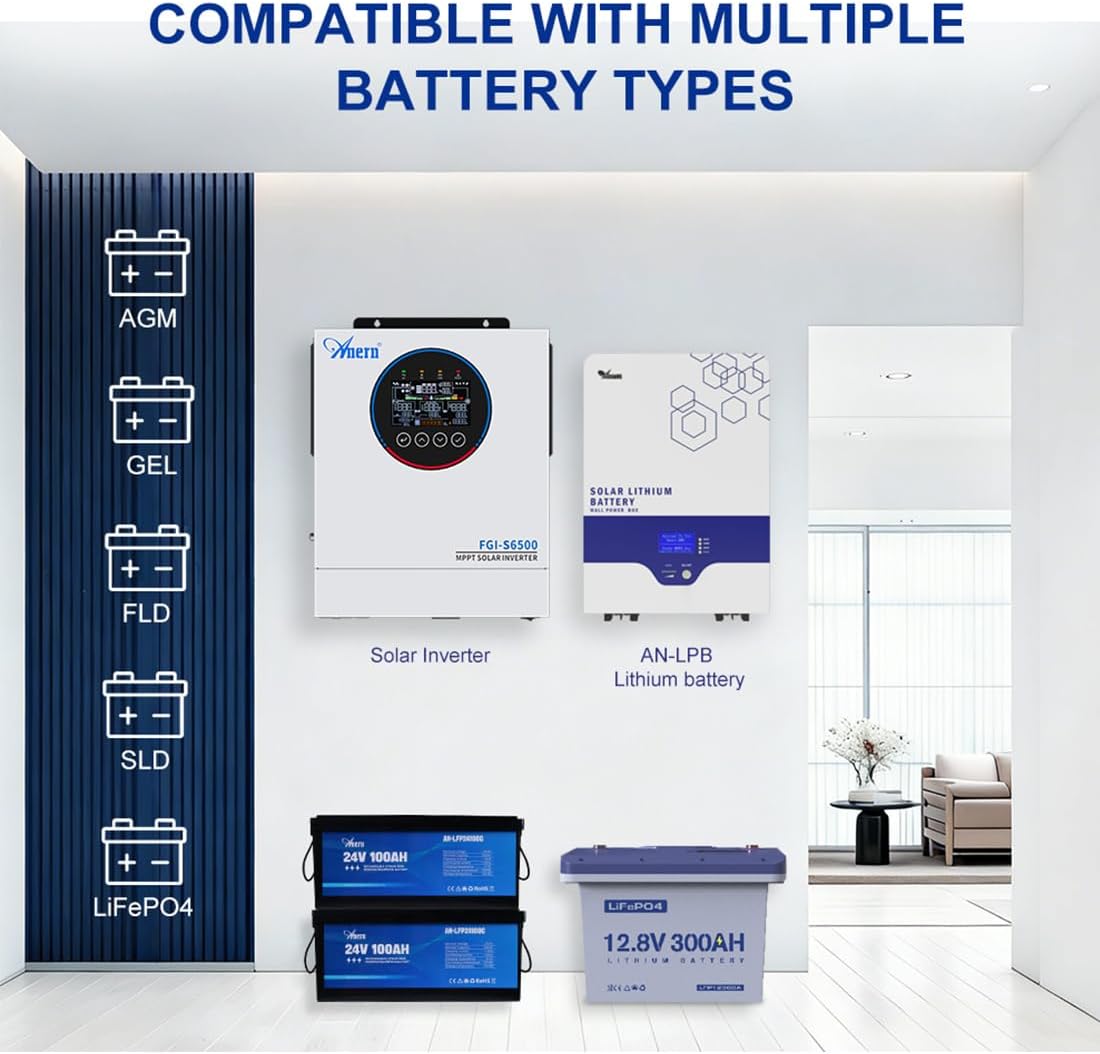

Image 4.1: Battery Compatibility. This image shows the Anern Solar Inverter's compatibility with multiple battery types, including AGM, GEL, FLD, SLD, and LiFePO4 batteries.
4.3 Dual AC Output Configuration
The inverter features two AC output terminals: a primary output and a secondary output. Under normal operating conditions, both outputs are active. In scenarios where there is no PV or grid power, and the battery voltage is low, the primary output will shut down, and only the secondary output will remain active to conserve energy. The secondary output can be configured based on voltage, output duration, and battery State of Charge (SOC).
Image 4.2: Single PV Input Dual AC Output. This diagram illustrates the inverter's capability to provide dual AC outputs from a single PV input. It shows how the primary output can power larger appliances like an air conditioner and refrigerator, while the secondary output can power smaller devices like a laptop, especially when the battery is low.
4.4 ຕົວຢ່າງample Installation Scenario
Image 4.3: Application Scenarios. This image displays an example installation of multiple Anern inverters and battery units in a wall-mounted setup, demonstrating a typical application scenario for the hybrid solar inverter system.
5. ຄໍາແນະນໍາການດໍາເນີນງານ
5.1 ລໍາດັບການເລີ່ມຕົ້ນ
Follow these steps to safely start the inverter system:
- ເປີດສະວິດຫມໍ້ໄຟ.
- ເລີ່ມ inverter ໄດ້.
- Turn on the photovoltaic (PV) switch.
- Turn on the AC grid switch (if connected).
- Turn on the load switches.
ໝາຍເຫດ: For electrical appliances with inductive loads (e.g., motors, refrigerators), the startup power requirement can be at least three times their nominal power. Ensure the inverter's capacity can handle these surge loads.
5.2 ລໍາດັບການປິດລະບົບ
To safely shut down the inverter system, follow the startup sequence in reverse order:
- Turn off the load switches.
- Turn off the AC grid switch (if connected).
- Turn off the photovoltaic (PV) switch.
- ປິດເຄື່ອງ inverter.
- ປິດສະວິດຫມໍ້ໄຟ.
5.3 Configurable Settings
The inverter's LCD display allows configuration of various parameters to optimize performance for specific applications:
- ການປ້ອນຂໍ້ມູນ Voltage ຊ່ວງ: Configurable for home appliances or personal computers.
- ການສາກແບັດເຕີຣີປັດຈຸບັນ: Adjustable based on battery type and capacity.
- ຄວາມສຳຄັນຂອງການສາກໄຟ AC/ແສງອາທິດ: Configurable to prioritize charging from solar or AC grid.
5.4 Operating Modes for Charging
The inverter supports different charging priority modes to maximize energy efficiency:
- ພະລັງງານແສງຕາເວັນທຳອິດ: Solar energy is the primary source for charging the battery. Utility power will only charge the battery if solar energy is unavailable.
- ພະລັງງານແສງຕາເວັນ ແລະ ສາທາລະນູປະໂພກ: Both solar energy and utility power will charge the battery simultaneously.
- Only Solar Charging: Solar energy will be the sole charging source, regardless of utility availability.
Image 5.1: Cost-Efficient Energy Management. This image illustrates three operational modes for the inverter: 'Solar First' (solar energy prioritised for charging), 'Solar and Utility' (both sources charge simultaneously), and 'Only Solar Charging' (solar is the exclusive charging source).
5.5 Batteryless Mode
The inverter can operate in a batteryless mode, directly powering loads from photovoltaic (PV) or AC sources without requiring a connected battery. This feature simplifies installation and offers flexibility in certain applications.
Image 5.2: Support Batteryless Mode. This image explains that the inverter can power loads directly from PV or AC sources without a battery, highlighting 'No batteries required', 'Direct photovoltaic supply', and 'Plug and Play' benefits. It also contrasts simple plug-and-play wiring with complex, cumbersome maintenance wiring.
6. ບໍາລຸງຮັກສາ
ການບຳລຸງຮັກສາເປັນປະຈຳຮັບປະກັນອາຍຸການໃຊ້ງານທີ່ຍາວນານ ແລະ ປະສິດທິພາບທີ່ດີທີ່ສຸດຂອງອິນເວີເຕີຂອງທ່ານ. ໃຫ້ຖອດສາຍໄຟອອກທຸກສາຍກ່ອນທີ່ຈະປະຕິບັດການບຳລຸງຮັກສາໃດໆ.
- ທໍາຄວາມສະອາດ: Periodically clean the inverter's exterior with a dry, soft cloth. Ensure ventilation openings are free from dust and debris.
- ການເຊື່ອມຕໍ່: Check all electrical connections regularly for tightness and signs of corrosion. Tighten any loose connections.
- ສະພາບແວດລ້ອມ: Ensure the inverter is operating within its specified temperature and humidity ranges. Avoid exposure to direct sunlight, moisture, and corrosive substances.
- ການກວດກາຫມໍ້ໄຟ: If using batteries, regularly inspect them for any signs of damage, leakage, or swelling. Follow battery manufacturer's maintenance guidelines.
7. ການແກ້ໄຂບັນຫາ
The inverter is equipped with multi-layered protection features to ensure safe operation. If an issue occurs, the LCD display may show an error code or the RGB indicator may signal a specific status. Refer to the following for common issues:
Image 7.1: Multi-layered Protection. This image highlights the comprehensive 360° protection features of the inverter, including short circuit, overload, under voltage, ໃນໄລຍະ voltage, over current, over temperature, backfill, and over charge protection.
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ບໍ່ມີພະລັງງານຜົນຜະລິດ | Inverter off, low battery, overload, short circuit | Check power switch, battery voltage, reduce load, check for short circuits. |
| ການເຕືອນໄພການໂຫຼດເກີນ / ປິດ | ພະລັງງານທີ່ເຊື່ອມຕໍ່ເກີນຄວາມຈຸຂອງອິນເວີເຕີ | Reduce the connected load. Ensure inductive loads do not exceed surge capacity. |
| ເຕືອນອຸນຫະພູມເກີນ | Insufficient ventilation, high ambient temperature | Ensure proper airflow, clear obstructions, move to a cooler environment if necessary. |
| ແບັດເຕີຣີບໍ່ໄດ້ສາກ | PV input issue, AC input issue, battery fault, incorrect settings | Check PV connections, AC input, battery health, and charging priority settings on LCD. |
| Inverter ບໍ່ເປີດ | No battery connection, battery voltage too low, internal fault | Check battery connections, ensure battery is charged, contact support if issue persists. |
8. ຂໍ້ມູນຈໍາເພາະ
| ພາລາມິເຕີ | ມູນຄ່າ |
|---|---|
| ຍີ່ຫໍ້ | ອັນເນີ |
| ໝາຍເລກຕົວແບບ | AN-FGI-S5000 |
| ລະດັບພະລັງງານ | 5000 ວ |
| ພະລັງງານຜົນຜະລິດສູງສຸດ | 12000 ວ |
| DC Input Voltage | 24 ວ |
| Vol ອອກ ACtage | 220-240 V |
| Output Waveform | Sine Wave ບໍລິສຸດ |
| ຄວາມຖີ່ຂອງຜົນຜະລິດ | 50 Hz / 60 Hz (ກໍານົດໄດ້) |
| ກະແສໄຟຟ້າຂອງຕົວຄວບຄຸມການສາກໄຟ MPPT | 160 ກ |
| ພະລັງງານ Input PV ສູງສຸດ | 9000 ວ |
| PV ປະຕິບັດການສະບັບtage ຂອບເຂດ | 60-450 V ຊິງຕັນດີຊີ |
| Max No-Load PV Voltage | 500 V DC |
| ຄວາມອາດສາມາດຫມໍ້ໄຟທີ່ແນະນໍາ | ≥ 200 Ah (24V) |
| ການນໍາໃຊ້ທີ່ແນະນໍາ | Office, Home, Vehicle |
| ປະເທດຕົ້ນກໍາເນີດ | ຈີນ |
9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Information regarding specific warranty terms and conditions for the Anern 5000W 24V Hybrid Solar Inverter is not available in the provided product details. For warranty claims, technical support, or service inquiries, please contact the seller or manufacturer directly through their official channels. Ensure you have your product model number (AN-FGI-S5000) and purchase details ready when contacting support.
10. ວິດີໂອຜະລິດຕະພັນຢ່າງເປັນທາງການ
No official seller videos were provided in the product data for this model. Please refer to the manufacturer's website or official channels for any available video resources.
