Generic OZ560EGN SOP16 Pin Chip User Manual

1. ບົດແນະນຳ

This document serves as a comprehensive instruction manual for the Generic OZ560EGN SOP16 Pin Chip. It provides essential information regarding the component's characteristics, proper handling, installation procedures, operational considerations, and technical specifications. Adherence to these guidelines ensures optimal performance and longevity of the electronic component.

2. ຜະລິດຕະພັນເກີນview

The OZ560EGN is an integrated circuit (IC) supplied in an SOP16 package. It is designed for use in various electronic applications, functioning as a circuit chip, potentially a voltage regulator or similar module, contributing to precision and stable performance within electronic systems. This component is suitable for integration into printed circuit boards (PCBs) for DIY projects, industrial, automotive, and household electronics.

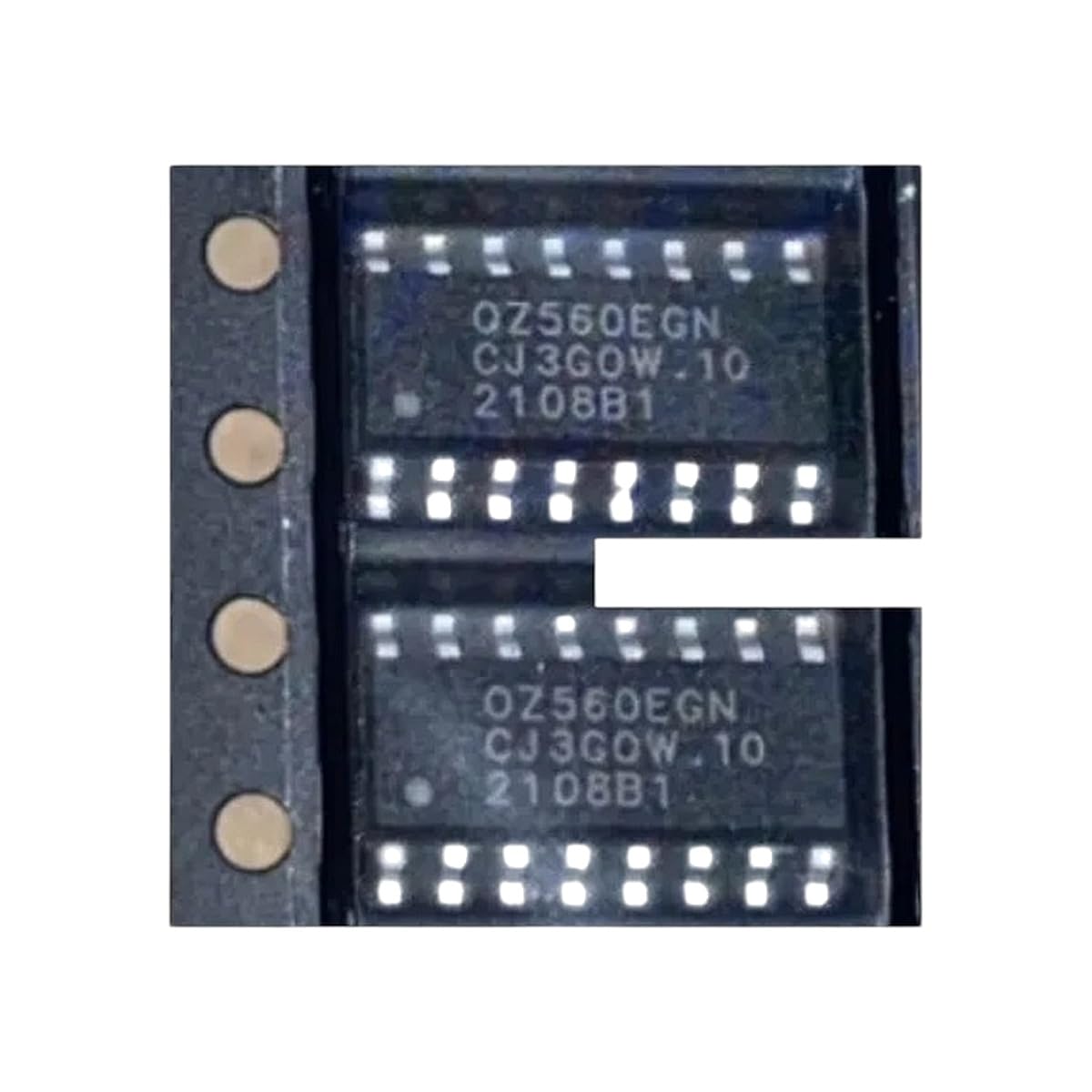

Figure 2.1: Close-up of the OZ560EGN SOP16 Pin Chip, illustrating its physical form factor and markings.

3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

Proper handling and installation are crucial for the functionality and reliability of the OZ560EGN chip. Follow these steps carefully:

1. ຂໍ້ຄວນລະວັງການລະບາຍໄຟຟ້າສະຕິກ (ESD): Always handle the chip in an ESD-safe environment. Use anti-static mats, wrist straps, and tools to prevent damage from static electricity.
2. ການກວດກາ: Before installation, visually inspect the chip for any physical damage, bent pins, or contamination.
3. ປະຖົມນິເທດ: Identify the correct orientation of the chip on the PCB using the pin 1 indicator (usually a dot or notch on the package) and the corresponding marking on the PCB layout.
4. soldering: Use appropriate soldering techniques for SOP16 packages. Ensure proper temperature control to avoid overheating the component. Apply solder evenly to all pins, ensuring no solder bridges or cold joints.
5. ທໍາຄວາມສະອາດ: After soldering, clean any flux residue from the PCB and component using an appropriate solvent to prevent corrosion or electrical leakage.

4. ຫຼັກການດຳເນີນງານ

The OZ560EGN functions as an integral part of an electronic circuit. Its specific operational characteristics depend on the circuit design it is integrated into. As an IC, it processes electrical signals or regulates power according to its internal architecture. Users should refer to the circuit schematic and design documentation for detailed information on its role and expected behavior within a specific application.

ຮູບທີ 4.1: ຕົວຢ່າງample of various electronic components, illustrating the context in which the OZ560EGN chip operates.

5. ບໍາລຸງຮັກສາ

Integrated circuits like the OZ560EGN are generally maintenance-free once properly installed. However, maintaining the operational environment is important:

• ເງື່ອນໄຂສິ່ງແວດລ້ອມ: Ensure the operating temperature and humidity remain within the standard ranges specified for electronic components. Avoid extreme temperatures, high humidity, and corrosive atmospheres.
• ຄວາມສະອາດ: Keep the circuit board free from dust, debris, and moisture.
• ການປົກປ້ອງທາງດ້ານຮ່າງກາຍ: Protect the circuit from physical shock or vibration that could damage solder joints or the component itself.

6. ການແກ້ໄຂບັນຫາ

If the circuit incorporating the OZ560EGN chip does not function as expected, consider the following general troubleshooting steps:

• ການສະຫນອງພະລັງງານ: Verify that the power supply to the circuit is stable and within the specified voltage ຊ່ວງ.
• ການເຊື່ອມຕໍ່: Check all solder joints and connections for continuity and proper contact. Look for any short circuits or open circuits.
• ທິດທາງຂອງອົງປະກອບ: Confirm that the OZ560EGN chip is installed with the correct orientation.
• ອົງປະກອບພາຍນອກ: Inspect other components in the circuit for proper values and functionality.
• ຄວາມເສຍຫາຍ ESD: While difficult to diagnose visually, consider the possibility of ESD damage if proper precautions were not taken during handling.

7. ຂໍ້ມູນຈໍາເພາະ

The following table outlines the general specifications for the OZ560EGN SOP16 Pin Chip:

Figure 7.1: Isometric representation of various semiconductor electronic components, including types similar to the OZ560EGN.

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

This product is backed by a commitment to quality. In the event of any manufacturing defects or issues, a money-back guarantee is offered. For any questions, concerns, or technical assistance regarding the OZ560EGN SOP16 Pin Chip, please contact the seller's customer support team. A knowledgeable team is available to provide support and address inquiries.
