Generic Replacement Remote Control

1. ຂໍ້ມູນຄວາມເຂົ້າກັນໄດ້ທີ່ສໍາຄັນ

This remote control is a replacement specifically designed for Richmat HJC25, NLP150, C25, and MERX adjustable bed base control boxes. It is compatible only with the NL200U 127780C180169 control box. It is NOT compatible with OKIN control boxes.

Your existing remote control must have identical buttons and layout to this replacement remote for proper pairing and functionality. Please verify your control box model number and current remote's appearance before proceeding.

Batteries are not included with this product. This remote requires 2 AAA batteries.

Please confirm that you can pair the remote control before use. Consult the manual for your bed base for additional information.

ຮູບພາບ 1: ຕົວຢ່າງamples demonstrating how to identify your existing remote and control box model numbers, along with the battery compartment of the new remote.

2. ການຕິດຕັ້ງແລະການຕິດຕັ້ງຫມໍ້ໄຟ

2.1 ຄວາມຕ້ອງການຫມໍ້ໄຟ

• The remote control requires two (2) AAA batteries.
• ບໍ່ລວມຫມໍ້ໄຟ.
• ກວດໃຫ້ແນ່ໃຈວ່າໃສ່ໝໍ້ໄຟທີ່ມີຂົ້ວທີ່ຖືກຕ້ອງ (+/-).

2.2 ການຕິດຕັ້ງ ໝໍ້ ໄຟ

1. ຊອກຫາຝາປິດຊ່ອງໃສ່ຫມໍ້ໄຟຢູ່ດ້ານຫຼັງຂອງຣີໂໝດຄວບຄຸມ.
2. ເລື່ອນຝາປິດອອກເພື່ອເປີດຊ່ອງ.
3. Insert two (2) AAA batteries, ensuring they are oriented correctly according to the polarity indicators inside the compartment.
4. Replace the battery compartment cover, sliding it firmly until it clicks into place.

ຮູບພາບ 2: View of the remote control's battery compartment with the cover removed, showing where to insert AAA batteries.

3. Operating and Pairing Instructions

3.1 ການຄວບຄຸມໄລຍະໄກເກີນview

The remote control features several buttons to adjust your bed base. Familiarize yourself with the button layout:

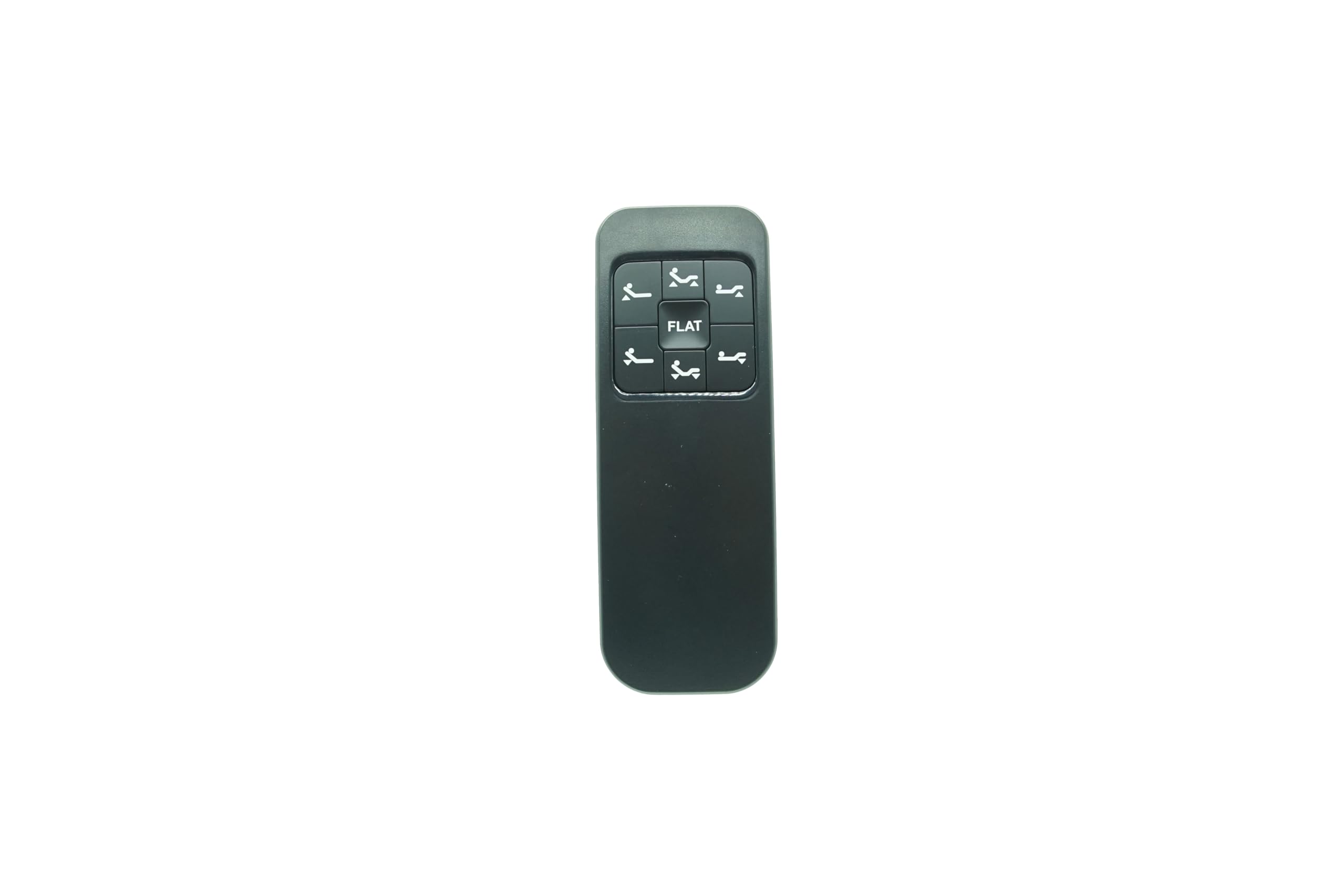

ຮູບພາບ 3: ດ້ານຫນ້າ view of the replacement remote control, showing all buttons for bed base adjustments.

3.2 ການຈັບຄູ່ການຄວບຄຸມໄລຍະໄກ

Follow these steps to pair your new remote control with your adjustable bed base:

1. Step 1: Power Cycle the Bed Base. Unplug your bed base from the power outlet for 10 seconds, then plug it back in.
2. Step 2: Initiate Pairing on Control Box. Locate and press the 'Pair' button on your bed's control box. Do not press it again.
3. Step 3: Activate Remote Pairing. Immediately after pressing the 'Pair' button on the control box, simultaneously press and hold the 'Head UP' and 'Foot Up' buttons on the remote control. Continue holding both buttons until you hear a 'beep' sound from the bed base.
4. Step 4: Release Buttons. Once you hear the 'beep' sound, release both the 'Head UP' and 'Foot Up' buttons. The remote control is now paired with your bed base.

Image 4: The remote control highlighting the 'Head Up' and 'Foot Up' buttons, which are used together during the pairing process.

Image 5: A section from a manual outlining the steps required to pair the remote control with the bed base, similar to the instructions provided.

4. ບໍາລຸງຮັກສາ

4.1 ການທໍາຄວາມສະອາດ

To clean the remote control, use a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as these may damage the remote's surface or internal components.

4.2 ການທົດແທນຫມໍ້ໄຟ

If the remote control's performance degrades or it stops responding, replace the AAA batteries following the installation steps in Section 2.2.

5. ການແກ້ໄຂບັນຫາ

5.1 ໄລຍະໄກບໍ່ຕອບສະໜອງ

• ໃຫ້ແນ່ໃຈວ່າມີການຕິດຕັ້ງຫມໍ້ໄຟຢ່າງຖືກຕ້ອງແລະບໍ່ຫມົດໄປ. ປ່ຽນແທນຖ້າຈໍາເປັນ.
• Verify that the remote is properly paired with the bed base by repeating the pairing steps in Section 3.2.
• Check for any obstructions between the remote and the bed base's receiver.

5.2 ບັນຫາຄວາມເຂົ້າກັນໄດ້

If you are unsure about the compatibility of this remote with your specific bed base or control box, or if you encounter persistent issues after following the instructions, please provide detailed information about your bed, control box (including its model number), and your old remote control (if available) for further assistance.

6. ຂໍ້ມູນຈໍາເພາະ
