CLOUDY BAY Battery Operated Wall Sconces Instruction Manual

ແນະນຳ

Thank you for choosing the CLOUDY BAY Battery Operated Wall Sconces. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixtures. Please read these instructions thoroughly before use and retain them for future reference.

Image: Two CLOUDY BAY wall sconces with white fabric shades and brushed nickel finish, installed on a wall.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​:

• ຂະຫຍາຍເວລາແລ່ນ: Equipped with a 10,000mAh rechargeable battery, providing up to 100 hours of light at the lowest brightness setting or 25 hours at full brightness on a single charge.
• ການສ່ອງແສງເອກະພາບ: Features 360° omnidirectional LED technology for zero dark spots and a natural linen shade for soft, flicker-free light.
• Magnetic Detachable Bulb: The magnetic bulb easily detaches for convenient USB-C charging, making installation and recharging simple without damaging walls.
• Versatile Ambiance: Offers 12 RGB colors and 3 color temperatures (3000K Warm White, 4000K Natural White, 6000K Daylight) to customize your lighting environment.
• ການຄວບຄຸມອັດສະລິຍະ: Includes remote control functionality for dimming (10%-100%), color selection, and a smart timer with 30, 60, and 120-minute settings. Supports group control for multiple units.
• ການອອກແບບພຣີມຽມ: Crafted with an architectural brushed nickel finish and linen+cotton shade for a durable and elegant aesthetic.

ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

The CLOUDY BAY wall sconces are designed for easy, cordless installation. No electrical wiring is required.

ເນື້ອໃນຊຸດ:

• 2 x Wall Sconce Fixtures (Brushed Nickel)
• 2 x 10,000mAh Rechargeable Magnetic LED Bulbs
• 2 x ການຄວບຄຸມໄລຍະໄກ
• ຮາດແວຕິດຕັ້ງ (ສະກູ, ສະມໍ)
• 2 x USB-C Charging Cables (adapter not included)

ຂັ້ນຕອນການປະກອບ:

1. Attach the Sconce Arm: Secure the curved sconce arm to the wall plate using the provided screws.
2. ຕິດຕັ້ງຮົ່ມ: Place the fabric shade onto the sconce arm and secure it with the retaining ring or screw.
3. Insert Magnetic Bulb: The LED bulb is magnetic. Simply place it into the designated socket within the shade. It will snap into place.

Image: A person assembling the sconce, showing the attachment of the arm to the base and the shade to the arm.

Image: A hand demonstrating the magnetic attachment of the LED bulb into the sconce fixture.

ຕິດຝາ:

4. ເລືອກສະຖານທີ່: Select a desired location on your wall. Ensure the surface is suitable for mounting.
5. Mark Holes: Use the wall plate as a template to mark the drilling points on the wall.
6. Drill and Insert Anchors: ເຈາະຮູນັກບິນ ແລະໃສ່ບ່ອນຍຶດຕິດຝາທີ່ໃຫ້ໄວ້ຖ້າຈຳເປັນ.
7. ແຜ່ນຕິດຝາທີ່ປອດໄພ: Attach the wall plate to the wall using the mounting screws.
8. Mount Sconce: Secure the assembled sconce fixture to the wall plate.

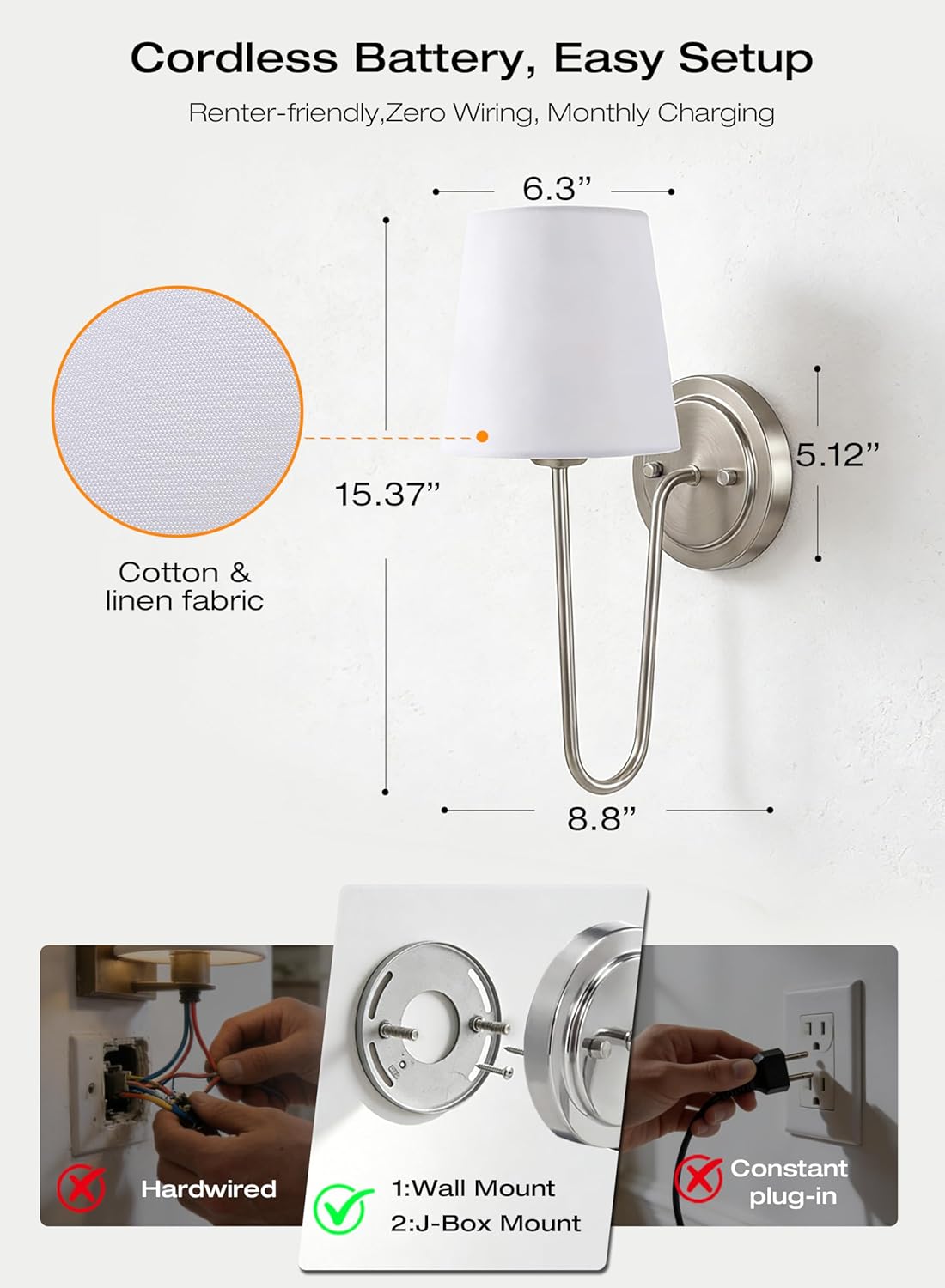

Image: A diagram illustrating the dimensions of the sconce (8.8"L x 6.3"W x 15.4"H) and showing wall mount and J-box mount options, contrasting with hardwired and constant plug-in methods.

ການສາກໄຟເບື້ອງຕົ້ນ:

Before first use, fully charge the LED bulbs. Detach the magnetic bulb from the sconce. Connect the USB-C charging cable to the bulb and a compatible USB power adapter (not included). The indicator light on the bulb will show charging status (e.g., red for charging, green for fully charged).

ຄໍາແນະນໍາການດໍາເນີນງານ

Your CLOUDY BAY wall sconces are controlled via the included remote control.

ຟັງຊັນການຄວບຄຸມໄລຍະໄກ:

• ເປີດ/ປິດ: ກົດ ON or ປິດ ປຸ່ມເພື່ອເປີດຫຼືປິດໄຟ.
• ການປັບຄວາມສະຫວ່າງ: ໃຊ້ + ແລະ - buttons to adjust brightness from 10% to 100%.
• Color Temperature Selection (3CCT): Press the dedicated buttons for 3000K (Warm White), 4000K (Natural White), or 6000K (Daylight) to change the white light tone.
• ການເລືອກສີ RGB: Choose from 12 vibrant RGB colors using the color buttons on the remote.
• ໂໝດໄດນາມິກ: Activate Flash Mode or Smooth Mode for dynamic color transitions.
• ໂມງຈັບເວລາອັດສະລິຍະ: Set the light to automatically turn off after 30, 60, or 120 minutes using the timer buttons.
• ການຄວບຄຸມກຸ່ມ: One remote can control multiple sconces simultaneously. Point the remote towards the desired sconces.

Image: A living room scene with two wall sconces demonstrating the three selectable color temperatures: 3000K Warm White, 4000K Cool White, and 6000K Daylight.

Image: A living room scene with two wall sconces illuminated in various RGB colors, showcasing the 12 color options and two dynamic modes (Flash and Smooth).

Image: A hand holding the remote control, with an overlay showing the auto timer settings (30, 60, 120 minutes) and brightness dimmable from 10% to 100%.

ບໍາລຸງຮັກສາ

Charging the LED Bulb:

When the light output diminishes, it's time to recharge the bulb. Simply detach the magnetic bulb from the sconce fixture. Connect the provided USB-C cable to the bulb and a standard USB power adapter (e.g., phone charger, computer USB port). A full charge typically takes approximately 7 hours. The indicator light on the bulb will change from red (charging) to green (fully charged).

Image: A magnetic LED bulb connected to a USB-C charging cable and plugged into a wall adapter, with indicators for 'Charging' (red) and 'Fully Charged' (green).

ທໍາຄວາມສະອາດ:

To clean the sconce fixture, wipe it with a soft, dry cloth. For the fabric shade, gently dust with a soft brush or cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or fabric.

ການແກ້ໄຂບັນຫາ

ຂໍ້ມູນຈໍາເພາະ

ຂໍ້ມູນການຮັບປະກັນ

This CLOUDY BAY product is covered by a ການຮັບປະກັນຂອງຜູ້ຜະລິດ 1 ປີ ຈາກວັນທີ່ຊື້. ການຮັບປະກັນນີ້ກວມເອົາຂໍ້ບົກພ່ອງຂອງວັດສະດຸແລະການເຮັດວຽກພາຍໃຕ້ການນໍາໃຊ້ປົກກະຕິ. ກະລຸນາຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນ.

ການຊ່ວຍເຫຼືອລູກຄ້າ

If you have any questions, require assistance with installation, or encounter any issues with your CLOUDY BAY Battery Operated Wall Sconces, please contact our customer support team. Refer to your product packaging or the retailer's webເວັບໄຊສໍາລັບຂໍ້ມູນຕິດຕໍ່ໃນປະຈຸບັນຫຼາຍທີ່ສຸດ.

Manufacturer: Cloudybay Lighting Supply
