1. ບົດແນະນຳ
Thank you for choosing the Humsienk 12V 100Ah LiFePO4 Battery. This manual provides essential information for the safe and efficient use of your battery. Please read it thoroughly before installation and operation.
This high-performance lithium iron phosphate battery offers a lightweight design, extended cycle life, and robust protection features, making it suitable for various applications including RVs, solar systems, marine use, and off-grid power solutions.
2. ຂໍ້ມູນຄວາມປອດໄພ
Always prioritize safety when handling batteries. Failure to follow these instructions can result in serious injury or damage to the battery.
- ຫ້າມບໍ່ໃຫ້ເກີດການວົງຈອນຂອງແບັດເຕີລີ່.
- ຫ້າມບໍ່ໃຫ້ແບັດເຕີຣີເກີດໄຟໄໝ້ ຫຼືຄວາມຮ້ອນສູງ.
- Do not immerse the battery in water unless specifically designed for such conditions (this model is IP67 rated, but avoid intentional submersion).
- ໃຊ້ສະເພາະເຄື່ອງສາກທີ່ເຂົ້າກັນໄດ້ທີ່ອອກແບບມາສຳລັບແບັດເຕີຣີ LiFePO4 ເທົ່ານັ້ນ.
- Ensure proper ventilation during charging and discharge.
- ຮັກສາໃຫ້ໄກຈາກເດັກນ້ອຍ.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection when handling.
- ຫ້າມຖອດອອກ, ເຈາະ ຫຼື ດັດແປງແບັດເຕີຣີ.
- In case of leakage, contact with skin or eyes, rinse immediately with plenty of water and seek medical attention.
3. ເນື້ອໃນຊຸດ
ກວດສອບວ່າລາຍການທັງຫມົດແມ່ນມີຢູ່ໃນຊຸດ:
- 1 x ແບັດເຕີຣີ Humsienk 12V 100Ah LiFePO4
- 1 x ຄູ່ມືການສອນ
- 2 x Insulation Caps
- Screws 4 x M6
Image: Humsienk 12V 100Ah LiFePO4 Battery with its dimensions (26x17x21cm), weight (8.95kg), and included M8 screws and insulation caps.
4. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ
ປະຕິບັດຕາມຂັ້ນຕອນເຫຼົ່ານີ້ສຳລັບການຕັ້ງຄ່າ ແລະ ການຕິດຕັ້ງທີ່ຖືກຕ້ອງ:
- ການກວດກາ: Before installation, inspect the battery for any physical damage. Ensure the terminals are clean and free from corrosion.
- ການຕິດຕັ້ງ: Place the battery in a secure, well-ventilated location. The compact design (26x17x21cm) allows for flexible placement. Ensure it is protected from direct sunlight and excessive heat.
- ການເຊື່ອມຕໍ່:
- Connect the positive (+) terminal of the battery to the positive (+) terminal of your system using appropriate cables.
- Connect the negative (-) terminal of the battery to the negative (-) terminal of your system.
- Use the provided M6 screws to secure the cable lugs to the battery terminals.
- Apply the insulation caps over the terminals to prevent accidental short circuits.
- For series or parallel connections (e.g., 24V/36V/48V systems or increased capacity), ensure all batteries are of the same type and capacity, and follow proper wiring diagrams to avoid damage. Consult a qualified electrician for complex setups.
- ຄ່າ ທຳ ນຽມ: It is recommended to fully charge the battery before its first use. Use a LiFePO4 compatible charger.
ຮູບພາບ: Examples of battery applications, such as marine, off-grid, and home energy storage, demonstrating its versatility.
5. ຄໍາແນະນໍາການດໍາເນີນງານ
The Humsienk LiFePO4 battery is designed for reliable performance. Observe the following guidelines:
- ການສາກໄຟ:
- Use a dedicated LiFePO4 battery charger with a voltage range appropriate for 12V LiFePO4 batteries (typically 14.4V - 14.6V).
- The built-in 100A Battery Management System (BMS) protects against overcharge, over-discharge, overcurrent, and short circuits.
- The battery features low-temperature protection, automatically stopping charging below -20°C (-4°F) to prevent damage.
- ຂັບຖ່າຍ:
- The 100A BMS allows for stable high-current discharge, supporting high-power inverters.
- The battery can be discharged up to 100% Depth of Discharge (DoD) without significant impact on its lifespan, offering 15,000+ cycles at 60% DoD.
- Avoid continuous discharge beyond the maximum rated current of 100A.
- ເງື່ອນໄຂສິ່ງແວດລ້ອມ: The IP67 waterproof and dustproof rating ensures durability in various environments. It can withstand submersion in 1 meter of water for 30 minutes.
Image: The robust BMS design provides comprehensive protection for the battery.
Image: Low temperature protection ensures safe operation in cold climates, intelligently blocking charging and discharging outside optimal ranges.
Image: The IP67 waterproof design makes the battery suitable for trolling motors and other marine applications, offering moisture and impact resistance.
6. ບໍາລຸງຮັກສາ
Proper maintenance ensures the longevity and optimal performance of your LiFePO4 battery:
- ການກວດກາປົກກະຕິ: Periodically check the battery terminals for cleanliness and tightness. Ensure there are no signs of damage or swelling.
- ທໍາຄວາມສະອາດ: Keep the battery surface clean and dry. Use a soft, dry cloth to wipe away dust or dirt. Do not use harsh chemicals or abrasive cleaners.
- ການເກັບຮັກສາ: If storing the battery for an extended period, ensure it is charged to approximately 50-70% of its capacity. Store in a cool, dry place, away from direct sunlight and extreme temperatures. Recharge every 3-6 months to prevent deep discharge.
- ອຸນຫະພູມ: While the battery has low-temperature protection, operating and storing it within its recommended temperature range (typically -20°C to 60°C for discharge, 0°C to 45°C for charge) will maximize its lifespan.
7. ການແກ້ໄຂບັນຫາ
If you encounter issues with your Humsienk LiFePO4 battery, refer to the following common problems and solutions:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ແບັດເຕີຣີບໍ່ໄດ້ສາກ |
|
|
| Battery not discharging / No power output |
|
|
| Reduced capacity or runtime |
|
|
If the problem persists after trying these solutions, please contact Humsienk customer support.
8. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຍີ່ຫໍ້ | ຮຳຊີເອນເຄ |
| ຕົວແບບ | 12V 100Ah |
| ປະເພດຫມໍ້ໄຟ | ຟອສເຟດທາດເຫຼັກ Lithium (LiFePO4) |
| ປະລິມານນາມtage | 12.8 ໂວນ |
| ຄວາມອາດສາມາດ | 100 Ah |
| ພະລັງງານ | 1280Wh |
| BMS ໃນຕົວ | 100A |
| ວົງຈອນຊີວິດ | 15,000+ ຮອບວຽນ (ທີ່ 60% DoD) |
| ນ້ຳໜັກ | 8.95 ກິໂລກຣາມ |
| ຂະໜາດ (L x W x H) | 26ຊມ x 17ຊມ x 21ຊມ |
| ການປະເມີນກັນນ້ໍາ | IP67 |
| ການປົກປ້ອງອຸນຫະພູມຕໍ່າ | Charging stops below -20°C (-4°F) |
| ປະເພດ Terminal | M6 |
| ການຢັ້ງຢືນ | PSE ຮັບຮອງ |
Image: Comparison of Humsienk LiFePO4 battery with lead-acid batteries, highlighting superior lifespan, cycle life, and protection.

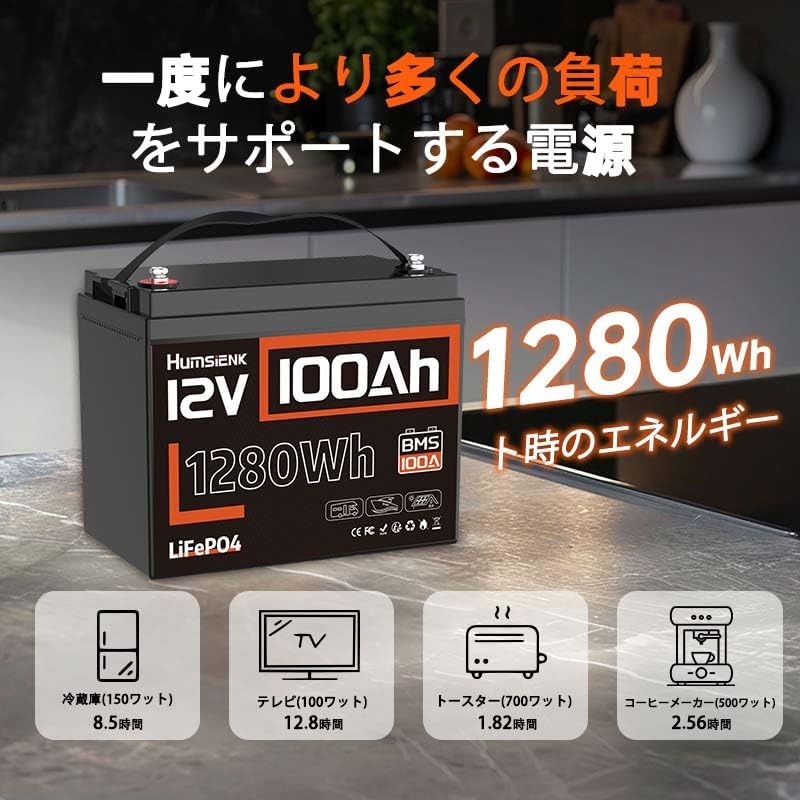

Image: The 1280Wh energy capacity of the battery can power a refrigerator for 8.5 hours, a TV for 12.8 hours, a toaster for 1.82 hours, or a coffee maker for 2.56 hours.
9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
ການຮັບປະກັນ: The Humsienk 12V 100Ah LiFePO4 Battery comes with a 5-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.
ການຊ່ວຍເຫຼືອລູກຄ້າ: For any questions, technical assistance, or warranty claims, please contact Humsienk customer service through the retailer where you purchased the product or visit the official Humsienk webເວັບໄຊສໍາລັບຂໍ້ມູນຕິດຕໍ່.
ພວກເຮົາມຸ່ງຫມັ້ນທີ່ຈະສະຫນອງຜະລິດຕະພັນທີ່ມີຄຸນນະພາບສູງແລະການບໍລິການລູກຄ້າທີ່ດີເລີດ.
