Makita 12Vmax CXT Starter Kit (199645-0) ຄູ່ມືການສອນ

ແນະນຳ

This manual provides essential instructions for the safe and efficient use of your Makita 12Vmax CXT Starter Kit, model 199645-0. This kit includes one 12Vmax CXT Lithium-Ion 2.0Ah Battery (BL1021B) and one Standard Charger (DC10WD). Please read this manual thoroughly before initial use and retain it for future reference.

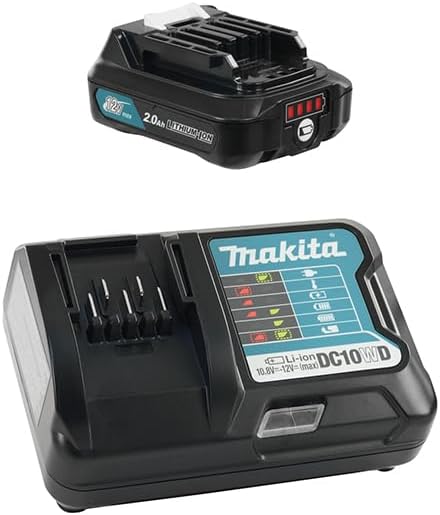

Makita 12Vmax CXT 2.0Ah Lithium-Ion Battery and DC10WD Standard Charger. — This image displays the Makita 12Vmax CXT 2.0Ah Lithium-Ion Battery and the DC10WD Standard Charger, which are the primary components of this starter kit.

ສ່ວນປະກອບຂອງຜະລິດຕະພັນ

The Makita 12Vmax CXT Starter Kit (199645-0) includes the following items:

1x 12Vmax CXT Lithium-Ion 2.0Ah Battery (BL1021B): Provides power to compatible Makita 12Vmax CXT tools. Features an integrated LED battery charge level indicator.
1x Standard Charger (DC10WD): Designed to charge Makita 12Vmax CXT Lithium-Ion batteries. Features digital communication with the battery and a compact, wall-mountable design.

ຕັ້ງຄ່າ

ກຳລັງສາກແບັດເຕີຣີ

Connect the Standard Charger (DC10WD) to a suitable power outlet.
Slide the 12Vmax CXT Lithium-Ion Battery (BL1021B) into the charger until it clicks into place. Ensure it is securely seated.
The charger's indicator lights will show the charging status. The DC10WD charger communicates with the battery's built-in chip to optimize battery life by actively controlling current, voltage, and temperature during the charging process.
A 12Vmax CXT 2.0Ah battery typically charges in approximately 70 minutes.
ເມື່ອການສາກໄຟສຳເລັດແລ້ວ, ເອົາແບັດເຕີຣີອອກຈາກເຄື່ອງສາກ.

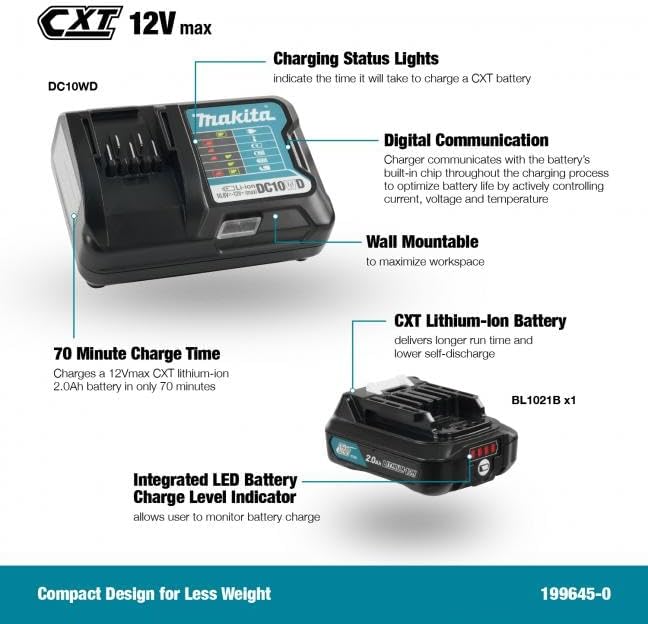

Diagram illustrating Makita DC10WD charger features including charging status lights, digital communication, wall mountable design, 70-minute charge time, and integrated LED battery charge level indicator. — This diagram highlights the key features of the Makita DC10WD charger, detailing its charging status lights, digital communication with the battery, wall-mountable design, 70-minute charge time for a 2.0Ah battery, and the integrated LED battery charge level indicator.

Diagram showing the internal circuitry of the Makita charger, illustrating how it communicates with the battery's built-in chip to optimize battery life. — This diagram illustrates the advanced technology within the Makita charger, demonstrating its ability to communicate with the battery's internal chip. This communication optimizes the charging process, extending battery life by actively controlling current, voltage, ແລະອຸນຫະພູມ.

ປະຕິບັດການ

ການຕິດຕັ້ງແລະການກໍາຈັດຫມໍ້ໄຟ

To install the battery, align the battery with the tool's battery slot and slide it in until it locks securely. To remove, press the release button on the battery and slide it out.

ກຳລັງກວດສອບລະດັບການສາກແບັດເຕີຣີ

The 12Vmax CXT battery features an integrated LED battery charge level indicator. Press the button on the battery to illuminate the LEDs, indicating the remaining charge.

Close-up of Makita 12Vmax CXT battery showing the integrated LED battery charge level indicator with four red lights illuminated. — ຮູບພາບນີ້ສະຫນອງການໃກ້ຊິດ view of the Makita 12Vmax CXT battery, specifically showing its integrated LED charge level indicator. The four illuminated red lights indicate the current charge status of the battery.

ບໍາລຸງຮັກສາ

Proper maintenance ensures the longevity and performance of your Makita CXT Starter Kit.

ທໍາຄວາມສະອາດ: Keep the battery and charger clean and free from dust and debris. Use a dry cloth to wipe surfaces. Do not use water or chemical cleaners.
ການເກັບຮັກສາ: Store batteries and chargers in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge batteries to approximately 50% capacity.
ການກວດກາ: Regularly inspect the battery and charger for any signs of damage, such as cracks, frayed cables, or corrosion. Do not use damaged components.

ການແກ້ໄຂບັນຫາ

If you encounter issues with your Makita 12Vmax CXT Starter Kit, refer to the following common troubleshooting steps:

ບັນຫາ	ສາເຫດທີ່ເປັນໄປໄດ້	ການແກ້ໄຂ
ແບັດເຕີຣີບໍ່ໄດ້ສາກ	Charger not plugged in; faulty power outlet; battery not properly seated; damaged battery or charger.	Ensure charger is securely plugged in. Test power outlet with another device. Re-seat the battery firmly. Inspect battery and charger for damage; replace if necessary.
ໄຟສັນຍານເຄື່ອງສາກບໍ່ເຮັດວຽກ	ບໍ່ມີພະລັງງານເພື່ອຊາດ; ຄວາມຜິດພາດພາຍໃນ.	Check power connection. If still not working, the charger may be faulty and require replacement.
ແບດເຕີຣີບໍ່ຖືສາກ	Battery has reached end of its lifespan; improper charging/storage.	Lithium-ion batteries have a finite lifespan. If the battery is old or has been improperly maintained, it may need to be replaced. Ensure proper charging and storage practices are followed.

ຂໍ້ມູນຈໍາເພາະ

Key technical specifications for the Makita 12Vmax CXT Starter Kit (199645-0):

ໝາຍເລກຕົວແບບ: 199645-0
ປະເພດຫມໍ້ໄຟ: 12Vmax CXT Lithium-Ion
ຄວາມອາດສາມາດຫມໍ້ໄຟ: 2.0Ah (BL1021B)
ເຄື່ອງສາກແບບ: DC10WD
Charging Time (2.0Ah battery): ປະມານ 70 ນາທີ
ແຫຼ່ງພະລັງງານ: AC
ຜົນໄດ້ຮັບ Voltage: 12 ໂວນ (DC)
ຂະໜາດຜະລິດຕະພັນ: 8.7 x 6.4 x 3.7 cm (Battery and Charger combined dimensions may vary)
ນ້ໍາຫນັກລາຍການ: 830 ກຣາມ (ຊຸດທັງໝົດ)
ປະເທດຕົ້ນກໍາເນີດ: ຈີນ

ຂໍ້ມູນການຮັບປະກັນ

The Makita 12Vmax CXT Starter Kit (199645-0) typically comes with a 3-year limited warranty. For specific terms and conditions, please refer to the warranty card included with your product or visit the official Makita website. This warranty generally covers defects in materials and workmanship under normal use.

ສະຫນັບສະຫນູນ

For further assistance, technical support, or to inquire about replacement parts, please contact Makita customer service or visit the official Makita website. You can find more information and support resources at the ຮ້ານ Makita.

ສິນຄ້າເກີນview ວິດີໂອ

This official product summary video provides a concise overview of the Makita 12Vmax CXT Starter Kit, demonstrating its key features and how the battery and charger work together.

Makita 199645-0
