ແນະນຳ
Thank you for choosing the Cuifati Mini Body Camera. This manual provides detailed instructions for the proper use, setup, and maintenance of your device. Please read this manual thoroughly before operating the camera to ensure optimal performance and longevity.
ເນື້ອໃນຊຸດ
- 1 x Wearable Camera
- 1 x ກະເປົາຖື
- 1 x ຄູ່ມືຜູ້ໃຊ້
- 1 x Lanyard
- 1 x Back Shell Bracket
- 1 x Tripod
- 1 x ສາຍ USB
- 1 x ຜ້າອະນາໄມ
Figure 1: Cuifati Mini Body Camera and included accessories.
ຮູບທີ 2: ຄໍາຮ້ອງສະຫມັກຫຼາຍສະຖານະການ examples for the body camera.
ສິນຄ້າເກີນview
Familiarize yourself with the components and controls of your Cuifati Mini Body Camera.

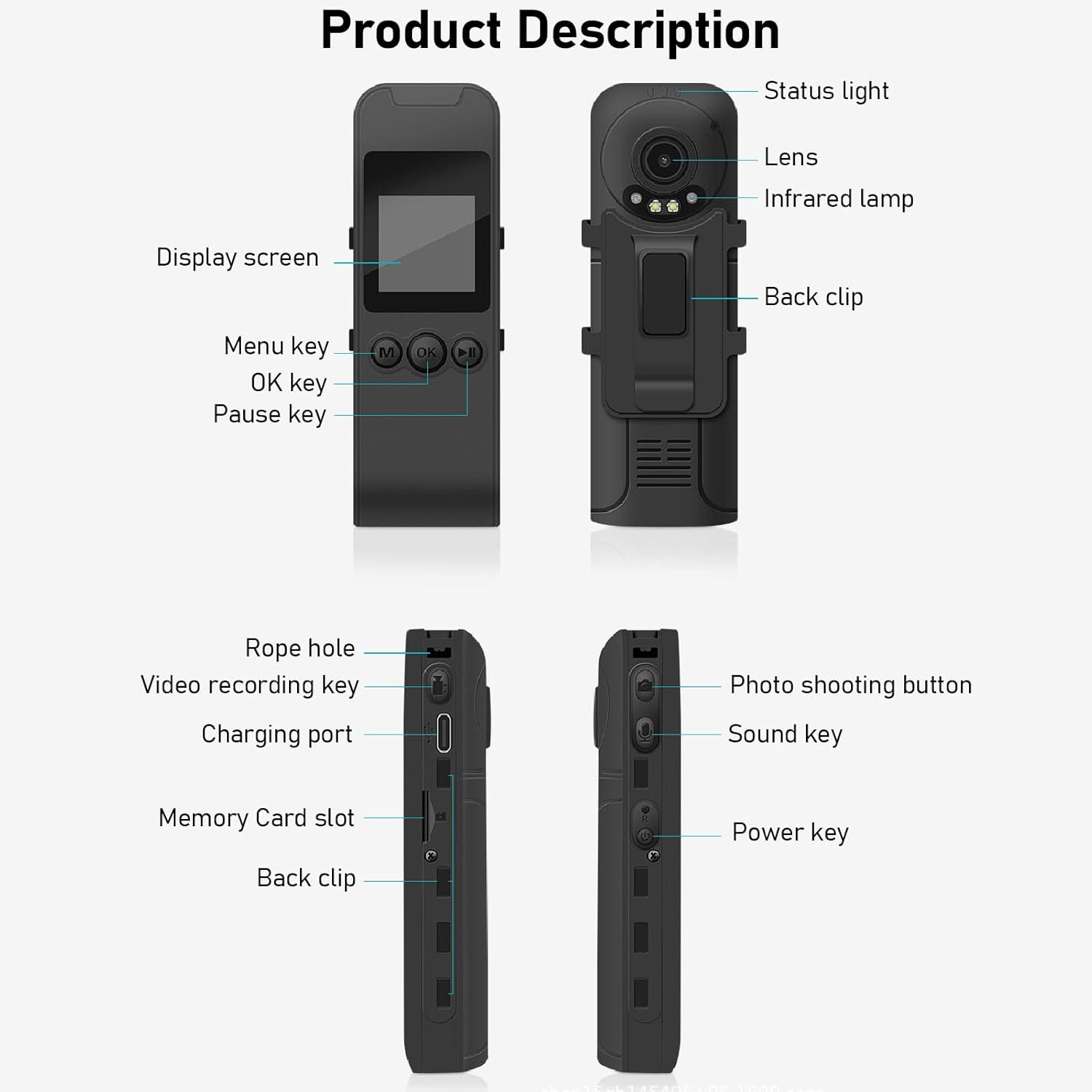

Figure 3: Labeled components of the Cuifati Mini Body Camera.
- ແສງສະຖານະ: Indicates device status (e.g., recording, charging).
- ເລນ: Main camera lens for video and photo capture.
- ແສງ Infrared Lamp: ໃຫ້ແສງສະຫວ່າງສຳລັບວິໄສທັດໃນຕອນກາງຄືນ.
- ຄລິບຫຼັງ: ສຳລັບຕິດກ້ອງຖ່າຍຮູບໃສ່ເສື້ອຜ້າ ຫຼື ພື້ນຜິວອື່ນໆ.
- ຈໍສະແດງຜົນ: 1.3-inch LCD for live view, ການຫຼິ້ນ ແລະການນໍາທາງເມນູ.
- Menu Key (M): Accesses device settings.
- ປຸ່ມຕົກລົງ: Confirms selections or starts/stops functions.
- Pause Key: Pauses playback or recording.
- ຮູເຊືອກ: Attachment point for the lanyard.
- Video Recording Key: ເລີ່ມຕົ້ນ ແລະຢຸດການບັນທຶກວິດີໂອ.
- ຊ່ອງສາກໄຟ (Type-C): For charging the device and connecting to a computer.
- ຊ່ອງໃສ່ກາດຫນ່ວຍຄວາມຈໍາ: Insert microSD card for storage.
- Photo Shooting Button: ຖ່າຍຮູບນິ້ງ.
- ຄີສຽງ: Controls audio recording.
- Power Key: ເປີດ ຫຼື ປິດອຸປະກອນ.
ຕັ້ງຄ່າ
1. ການສາກແບັດເຕີຣີ
Before first use, fully charge the camera's built-in lithium-ion battery. Connect the camera to a power source using the provided Type-C USB cable. The status light will indicate charging status. A full charge provides approximately 20 hours of work time and 10 hours of video recording.
Figure 4: Built-in 1200mAh battery for extended use.
2. ການໃສ່ກາດຫນ່ວຍຄວາມຈໍາ
The camera supports up to a 256GB memory card (not included). Locate the memory card slot on the side of the camera. Gently insert the microSD card with the gold contacts facing down until it clicks into place. To remove, push the card in slightly until it springs out.
Figure 5: Memory card slot for storage expansion.
ຄໍາແນະນໍາການດໍາເນີນງານ
1. ເປີດ / ປິດພະລັງງານ
- ເພື່ອເປີດເຄື່ອງ: Press and hold the Power Key until the display screen illuminates.
- ປິດເຄື່ອງ: Press and hold the Power Key until the device shuts down.
2. ການບັນທຶກວິດີໂອ
The camera records in 1440P HD at 30 frames per second with a 120° wide-angle lens and infrared night vision.
- ເພື່ອເລີ່ມຕົ້ນການບັນທຶກ: Press the Video Recording Key. The status light will change, and a recording indicator will appear on the screen.
- ເພື່ອຢຸດການບັນທຶກ: Press the Video Recording Key again.
- ການບັນທຶກວົງ: ກ້ອງຖ່າຍຮູບຮອງຮັບການບັນທຶກ loop, ຂຽນທັບໄຟລ໌ເກົ່າທີ່ສຸດໂດຍອັດຕະໂນມັດ files ເມື່ອກາດຫນ່ວຍຄວາມຈໍາເຕັມ.

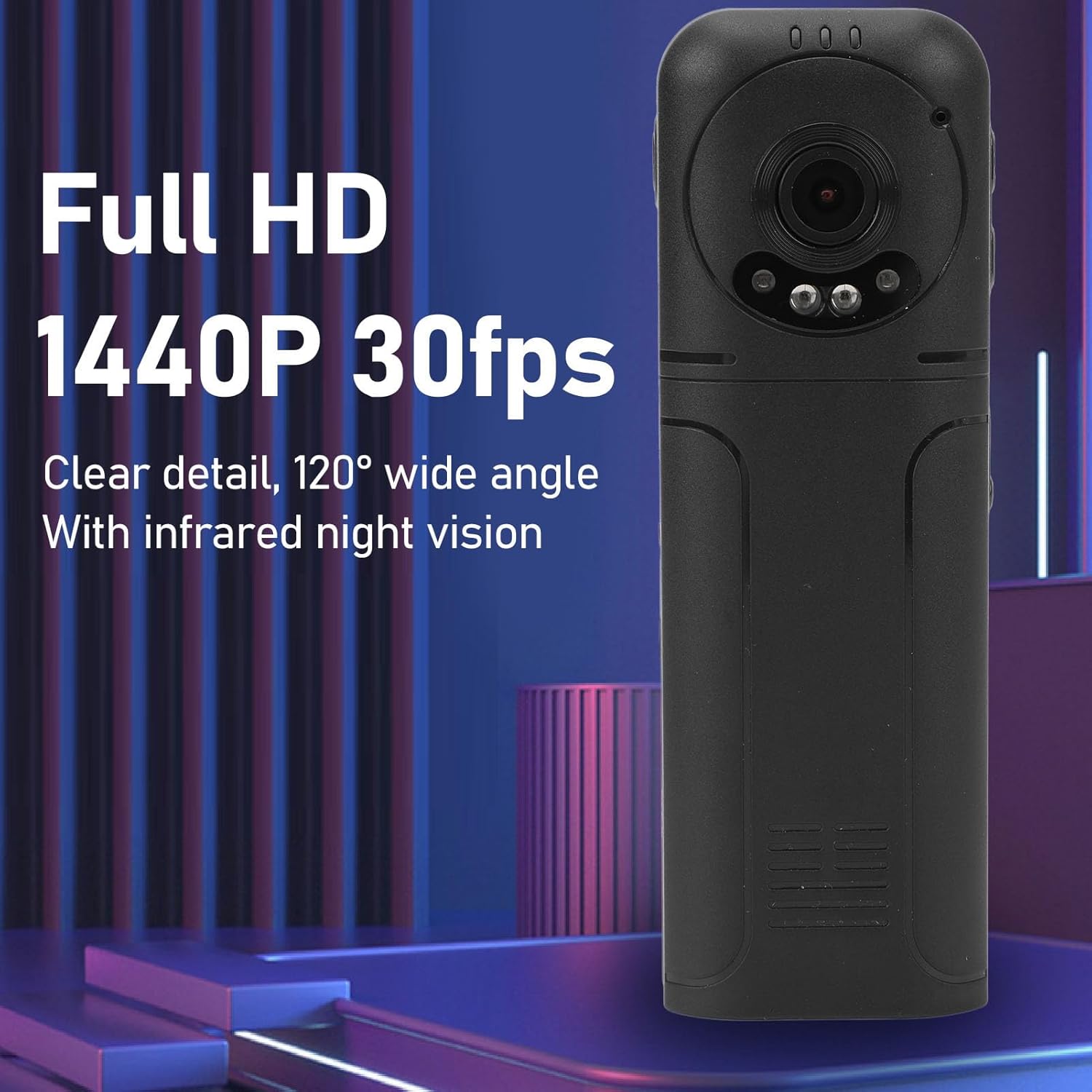

Figure 6: 1440P HD video recording with night vision.
3. ການຖ່າຍຮູບ
- ຖ່າຍຮູບ: In standby mode, press the Photo Shooting Button.
4. ເຄື່ອງບັນທຶກສຽງ
- To Start Audio Recording: Press the Sound Key.
- To Stop Audio Recording: Press the Sound Key again.
Figure 7: Audio recording functionality.
5. ການຫຼິ້ນ ແລະ File ການຄຸ້ມຄອງ
The 1.3-inch LCD screen supports live playback, browsing, and pausing of videos, photos, and recordings directly on the device.
Figure 8: 1.3-inch color screen for on-device playback.
- ການຫຼິ້ນໃນອຸປະກອນ: Use the Menu, OK, and Pause keys to navigate and play files ໃນຫນ້າຈໍ.
- ການເຊື່ອມຕໍ່ກັບຄອມພິວເຕີ: Connect the camera to a computer via the Type-C USB cable to transfer, view, or delete files.
- ຟັງຊັນ OTG: If your mobile phone supports OTG, you can connect the camera directly to your phone for playback and file ການຄຸ້ມຄອງ.
ບໍາລຸງຮັກສາ
1. ທໍາຄວາມສະອາດ
- Use the provided cleaning cloth or a soft, dry cloth to wipe the camera body and lens.
- Do not use liquid cleaners or solvents, as they may damage the device.
2. ການເກັບຮັກສາ
- ເກັບຮັກສາກ້ອງຖ່າຍຮູບໄວ້ໃນບ່ອນທີ່ເຢັນ, ແຫ້ງ, ຫ່າງຈາກແສງແດດໂດຍກົງ ແລະອຸນຫະພູມທີ່ຮຸນແຮງ.
- Remove the memory card if storing for extended periods.
ການແກ້ໄຂບັນຫາ
ຖ້າເຈົ້າພົບບັນຫາກັບກ້ອງຂອງເຈົ້າ, ໃຫ້ອ້າງອີງເຖິງບັນຫາ ແລະວິທີແກ້ໄຂບັນຫາທົ່ວໄປຕໍ່ໄປນີ້:
| ບັນຫາ | ການແກ້ໄຂ |
|---|---|
| ກ້ອງຖ່າຍຮູບບໍ່ເປີດ. | ໃຫ້ແນ່ໃຈວ່າໄດ້ສາກໄຟແລ້ວ. ເຊື່ອມຕໍ່ຫາແຫຼ່ງພະລັງງານແລ້ວລອງໃໝ່ອີກຄັ້ງ. |
| ບໍ່ສາມາດບັນທຶກວິດີໂອ/ຮູບພາບໄດ້. | Check if a memory card is inserted correctly and has sufficient free space. Format the memory card if necessary (this will erase all data). |
| ບໍ່ຮັບຮູ້ບັດຄວາມຈໍາ. | Ensure the memory card is inserted correctly. Try a different compatible memory card. Format the card using the camera's menu or a computer. |
| ຄຸນນະພາບວິດີໂອ/ສຽງບໍ່ດີ. | Ensure the lens is clean. Check lighting conditions. For audio, ensure the microphone is not obstructed. |
| ອຸປະກອນຄ້າງ ຫຼື ບໍ່ຕອບສະໜອງ. | Press and hold the Power Key for 10-15 seconds to force a restart. |
ຂໍ້ມູນຈໍາເພາະ
Below are the technical specifications for the Cuifati Mini Body Camera (Model CUIFATI2vg0ri8moa):
- ປະເພດລາຍການ: Wearable Camera
- ວັດສະດຸ: ABS
- ວິໄສທັດກາງຄືນ: 2pcs Night Vision Light Beads
- ຄວາມລະອຽດວິດີໂອ: 1440P (Maximum)
- ອັດຕາເຟຣມ: 30FPS
- ປະເພດຫມໍ້ໄຟ: ຫມໍ້ໄຟ Lithium Ion
- ຄວາມອາດສາມາດຫມໍ້ໄຟ: 1200mAh (ໃນຕົວ)
- ສະຫນັບສະຫນູນການຈັດເກັບ: Maximum 256GB Memory Card (Not Included)
- ຊ່ອງສາກໄຟ: ປະເພດ-C
- ຊື່ APP: For RoadCam (if applicable for advanced features)
- ຊື່ຕົວແບບ: CUIFATI2vg0ri8moa
- ຜູ້ຜະລິດ: CUIFATI
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact Cuifati customer service directly. Keep your purchase receipt as proof of purchase.
