Denash X79SE Plus LGA 2011 Motherboard User Manual

1. ບົດແນະນຳ

This manual provides detailed instructions for the installation, operation, and maintenance of your Denash X79SE Plus LGA 2011 Motherboard. This motherboard is designed to support Xeon E5 V1 V2 series processors and DDR3 memory, offering robust performance for various computing needs. Please read this manual thoroughly before installation and use to ensure proper setup and functionality.

2. ຄຸນນະສົມບັດທີ່ສໍາຄັນ

• NVME M.2 Interface: Equipped with an NVME M.2 hard drive interface, providing theoretical bandwidth up to 4 Gbit/s for high-speed storage.
• ເຕົ້າຮັບ LGA 2011: Supports Xeon E5 V1 V2 series processors.
• ສະລັອດຕິງ PCIe 3.0 x16: Features a dedicated slot for graphics cards, ensuring high-performance visual output.
• Gigabit-Ethernet: Integrated RTL8111H Gigabit LAN for stable and fast network connectivity.
• ຮອງຮັບ DDR3 Memory: Four DDR3 memory slots supporting up to 128GB (1066/1333/1600 MHz).
• 8-Layer PCB Design: Constructed with an 8-layer printed circuit board for enhanced stability and reliability.
• High-Capacity Power Supply: Utilizes a robust 1x8 and 1x24 pin power supply design for stable performance.
• ພອດ USB 2.0: Includes six USB 2.0 ports for peripheral connectivity.

Figure 2.1: M.2 NVME/NGFF Slot for high-speed storage.

Figure 2.2: Gigabit Ethernet port for reliable network connection.

Figure 2.3: Solid capacitors ensuring stable power delivery and extended motherboard life.

Figure 2.4: Illustration of the durable 8-layer PCB material.

3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

3.1 ເນື້ອໃນຊຸດ

ກວດ​ສອບ​ວ່າ​ລາຍ​ການ​ທັງ​ຫມົດ​ແມ່ນ​ມີ​ຢູ່​ໃນ​ຊຸດ​ຂອງ​ທ່ານ​:

• 1 x Denash X79SE Plus Motherboard
• 1 x I/O Backplate
• 1 x ສາຍຂໍ້ມູນ SATA

Figure 3.1: Motherboard, I/O backplate, and SATA cable included in the package.

3.2 ໂຄງຮ່າງຂອງເມນບອດ

ຮູ້ຈັກກັບອຸປະກອນ ແລະ ຕົວເຊື່ອມຕໍ່ຕ່າງໆທີ່ຢູ່ເທິງເມນບອດ.

ຮູບ 3.2: ເກີນview of the Denash X79SE Plus motherboard.

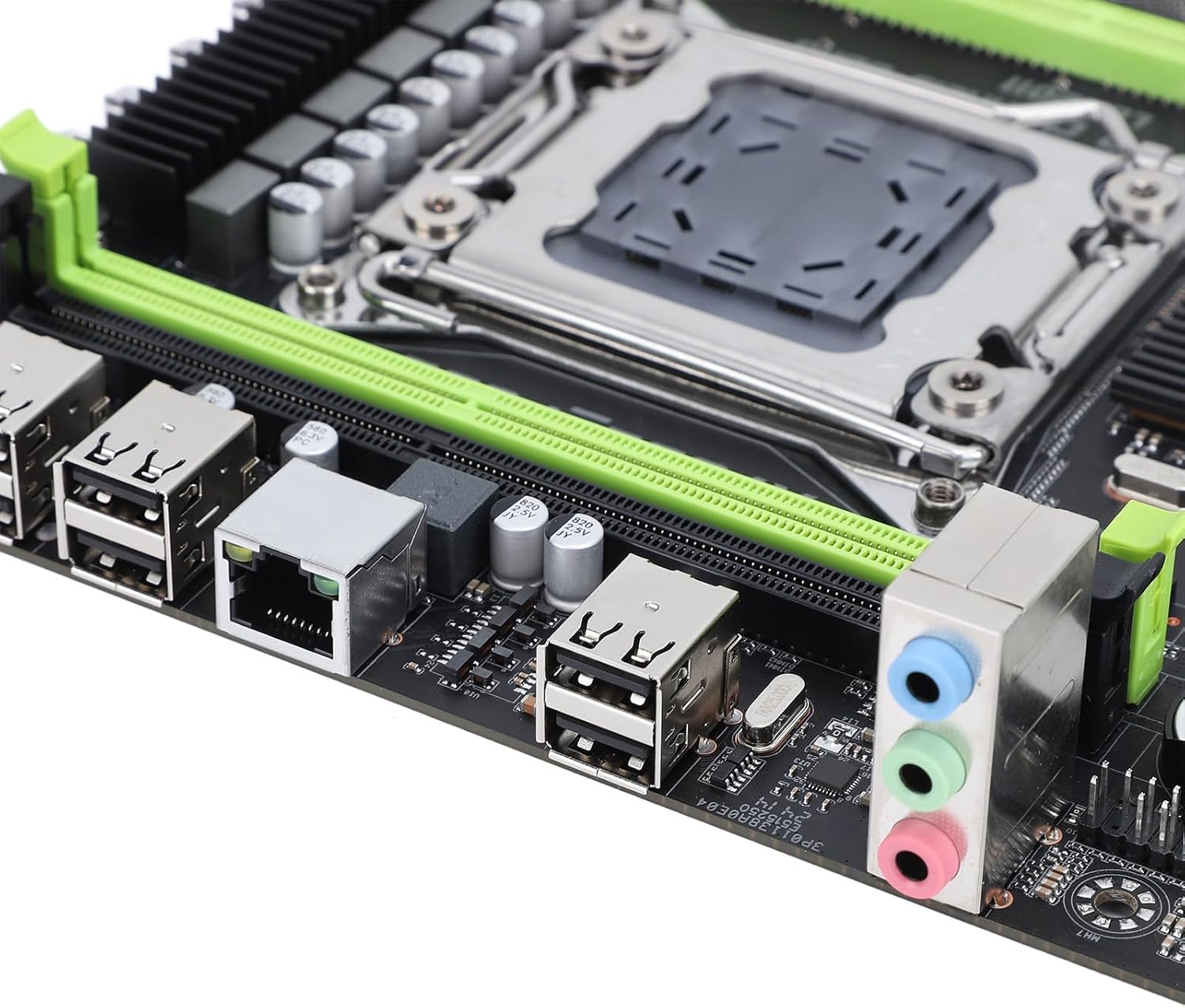

Figure 3.3: Rear I/O panel with USB, Ethernet, and audio ports.

Figure 3.4: SATA 2.0 ports and DDR3 memory slots.

3.3 Component Installation Guide

Follow these steps to install essential components onto your motherboard:

1. ການຕິດຕັ້ງ CPU:
   • Carefully open the LGA 2011 CPU socket lever.
   • Align the CPU (Xeon E5 V1/V2 series) with the socket, ensuring the triangular mark on the CPU matches the mark on the socket.
   • ຄ່ອຍໆວາງ CPU ເຂົ້າໄປໃນເຕົ້າຮັບໂດຍບໍ່ມີການບັງຄັບມັນ.
   • ປິດຊ່ອງສຽບເຕົ້າຮັບເພື່ອຮັບປະກັນ CPU.
   • ໃຊ້ການວາງຄວາມຮ້ອນແລະຕິດຕັ້ງ CPU cooler.
2. Memory (DDR3) Installation:
   • ເປີດຄລິບຢູ່ທັງສອງສົ້ນຂອງຊ່ອງຄວາມຈຳ DDR3.
   • Align the memory module's notch with the slot's key.
   • ກົດລົງໃຫ້ແໜ້ນທັງສອງສົ້ນຂອງໂມດູນໜ່ວຍຄວາມຈຳຈົນກວ່າຄລິບຈະເຂົ້າໃສ່.
3. ການຕິດຕັ້ງອຸປະກອນການເກັບຮັກສາ:
   • SSD M.2 NVME: Insert the M.2 SSD into the M.2 slot at an angle, then push it down and secure it with a screw.
   • SATA Drives: Connect SATA data cables from your storage drives (HDD/SSD) to the SATA 2.0 ports on the motherboard. Connect SATA power cables from your power supply to the drives.
4. Graphics Card (PCIe 3.0 x16) Installation:
   • Open the retention clip on the PCIe 3.0 x16 slot.
   • ຈັດວາງກາດກຣາບຟິກຂອງທ່ານກັບຊ່ອງ ແລະ ກົດລົງໃຫ້ແໜ້ນຈົນກວ່າມັນຈະເຂົ້າທີ່ຮຽບຮ້ອຍແລ້ວ ແລະ ຄລິບລັອກ.
   • ຍຶດກາດກຣາບຟິກໃສ່ກັບເຄສຄອມພິວເຕີຂອງທ່ານດ້ວຍສະກູ.
5. ການເຊື່ອມຕໍ່ການສະຫນອງພະລັງງານ:
   • ເຊື່ອມຕໍ່ຕົວເຊື່ອມຕໍ່ໄຟ ATX 24-pin ຈາກແຫຼ່ງສະໜອງໄຟຂອງທ່ານໄປຫາເຕົ້າສຽບໄຟຫຼັກໃນເມນບອດ.
   • ເຊື່ອມຕໍ່ຕົວເຊື່ອມຕໍ່ພະລັງງານ CPU 8-pin ກັບເຕົ້າສຽບທີ່ສອດຄ້ອງກັນຢູ່ໃກ້ກັບ CPU.
   • Connect any additional power cables required for your graphics card or other components.
6. ຕົວເຊື່ອມຕໍ່ແຜງໜ້າ:
   • Connect the front panel headers (power button, reset button, HDD LED, power LED, USB 2.0, audio) from your PC case to the corresponding pins on the motherboard. Refer to your PC case manual for specific pin assignments.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

4.1 ເປີດເຄື່ອງທຳອິດ

After assembling all components and connecting power, press the power button on your PC case. The system should power on, and you should see a display on your monitor.

4.2 ການຕັ້ງຄ່າ BIOS

To enter the BIOS/UEFI setup utility, press the designated key (usually DEL or F2) during the initial boot sequence. In the BIOS, you can configure boot order, system time, CPU settings, and other hardware parameters.

4.3 ການຕິດຕັ້ງລະບົບປະຕິບັດການ

Once the BIOS is configured, you can proceed with installing your preferred operating system (e.g., Windows, Linux). Boot from your OS installation media (USB drive or DVD) and follow the on-screen instructions.

5. ບໍາລຸງຮັກສາ

5.1 ການທໍາຄວາມສະອາດ

Regularly clean your computer's interior to prevent dust buildup, which can lead to overheating and reduced performance. Use compressed air to remove dust from fans, heatsinks, and other components. Ensure the system is powered off and unplugged before cleaning.

5.2 ການປັບປຸງ BIOS

BIOS updates can provide improved compatibility, stability, and new features. Check the manufacturer's website for the latest BIOS versions and follow their instructions carefully. Incorrect BIOS updates can damage your motherboard.

6. ການແກ້ໄຂບັນຫາ

6.1 ບັນຫາທົ່ວໄປ

• ບໍ່ມີພະລັງງານ:
  • ກວດເບິ່ງການເຊື່ອມຕໍ່ພະລັງງານທັງຫມົດ (24-pin ATX, CPU 8-pin, GPU).
  • ໃຫ້ແນ່ໃຈວ່າສະວິດການສະຫນອງພະລັງງານຢູ່ໃນຕໍາແຫນ່ງ 'ON'.
  • ກວດສອບການເຊື່ອມຕໍ່ປຸ່ມເປີດປິດດ້ານໜ້າກັບເມນບອດ.
• ບໍ່ມີການສະແດງຜົນ:
  • ໃຫ້ແນ່ໃຈວ່າຈໍພາບເຊື່ອມຕໍ່ກັບກາດກາຟິກ (ບໍ່ແມ່ນກາຟິກປະສົມປະສານຂອງເມນບອດ, ຖ້າມີ).
  • ຣີເຊັດບັດກາຟິກ ແລະໂມດູນໜ່ວຍຄວາມຈຳຄືນໃໝ່.
  • ທົດສອບດ້ວຍຈໍພາບ ຫຼືສາຍສະແດງຜົນອື່ນ.
• ລະບົບບໍ່ສະຖຽນ/ຂັດຂ້ອງ:
  • ກວດເບິ່ງອຸນຫະພູມ CPU ແລະ GPU.
  • Ensure all components are properly seated.
  • ແລ່ນເຄື່ອງມືການວິນິດໄສຄວາມຈຳ.
  • Update drivers for all components.
• ບໍ່ພົບອຸປະກອນ Boot:
  • Check SATA/M.2 cable connections to storage drives.
  • ຢືນຢັນຄໍາສັ່ງ boot ໃນ BIOS.
  • ໃຫ້ແນ່ໃຈວ່າລະບົບປະຕິບັດການຖືກຕິດຕັ້ງຢ່າງຖືກຕ້ອງໃນໄດຣຟ໌.

7. ຂໍ້ກໍານົດດ້ານວິຊາການ

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

The Denash X79SE Plus LGA 2011 Motherboard is covered by a ການຮັບປະກັນຂອງຜູ້ຜະລິດ 2 ປີ from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty validation.
