1. ຂໍ້ມູນແນະນໍາ ແລະຄວາມປອດໄພ
This manual provides essential instructions for the safe operation, maintenance, and setup of your Generic TCS115A Mini Circular Saw. Please read this manual thoroughly before using the tool to ensure proper function and to prevent injury.
ຄຳເຕືອນຄວາມປອດໄພທົ່ວໄປ
- ຄວນໃສ່ອຸປະກອນປ້ອງກັນສ່ວນຕົວທີ່ເໝາະສົມສະເໝີ, ລວມທັງແວ່ນຕານິລະໄພ, ເຄື່ອງປ້ອງກັນການໄດ້ຍິນ ແລະ ຖົງມື.
- ໃຫ້ແນ່ໃຈວ່າພື້ນທີ່ເຮັດວຽກແມ່ນສະອາດ, ມີແສງສະຫວ່າງດີ, ແລະບໍ່ມີສິ່ງກີດຂວາງ.
- ໃຫ້ເດັກນ້ອຍ ແລະຜູ້ຢືນຢູ່ຫ່າງໆ ໃນຂະນະທີ່ເປີດເຄື່ອງໃຊ້ໄຟຟ້າ.
- ຫ້າມໃຊ້ເຄື່ອງມືໄຟຟ້າໃນບັນຍາກາດທີ່ລະເບີດ, ເຊັ່ນໃນທີ່ປະທັບຂອງຂອງແຫຼວ, ອາຍແກັສ, ຫຼືຂີ້ຝຸ່ນ.
- Always unplug the saw from the power source before making any adjustments, changing accessories, or storing the tool.
- ຍຶດເອົາຊິ້ນວຽກຢ່າງແຫນ້ນຫນາເພື່ອປ້ອງກັນການເຄື່ອນໄຫວໃນລະຫວ່າງການຕັດ.
- ຫຼີກເວັ້ນການເລີ່ມຕົ້ນໂດຍບັງເອີນ. ໃຫ້ແນ່ໃຈວ່າສະວິດຢູ່ໃນຕໍາແຫນ່ງປິດກ່ອນທີ່ຈະສຽບ.
- ຮັກສາການຍຶດແຫນ້ນຂອງເລື່ອຍດ້ວຍມືທັງສອງໃນເວລາປະຕິບັດງານ.
2. ເນື້ອໃນຊຸດ
ກວດສອບວ່າລາຍການທັງຫມົດແມ່ນມີຢູ່ໃນຊຸດ:
- 1 x TCS115A Mini Circular Saw
- 1 x Elbow Dust Port
- 1 x Hex Key
- 1 x Metal Handle
- 1 x ຄູ່ມືຂະໜານ
- 6 x Blades:
- 2 x 120mm TCT Blades for wood cuts
- 2 x 115mm HSS Blades for wood and soft metal cuts
- 2 x 115mm Grit Diamond Blades for tile cuts

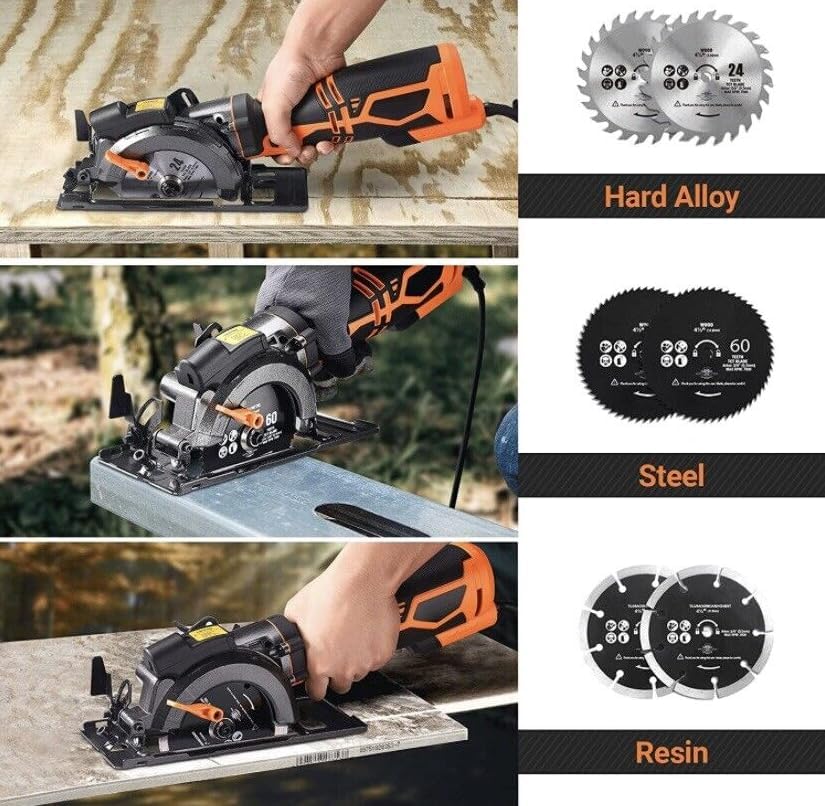

Image: The included set of six blades, featuring TCT blades for wood, HSS blades for wood and soft metal, and diamond blades for tile.
3. ຄຸນລັກສະນະຂອງຜະລິດຕະພັນ
- ມໍເຕີທີ່ມີປະສິດທິພາບ: ມາພ້ອມກັບ 5.8 Amp copper motor, delivering 3500 RPM for efficient cutting.
- Versatile Blades: Includes 6 blades suitable for cutting wood, soft metal, and tile.
- Adjustable Cutting: Offers flexible 0-45° bevel cutting and adjustable depth up to 1-11/16 inches (42.9mm) at 90° and 1-3/8 inches (34.9mm) at 45°.
- ຄູ່ມືເລເຊີ: Integrated laser for enhanced cutting accuracy and straight lines.
- Ergonomic Metal Handle: Provides a firm grip, reduces fatigue, and enhances cutting stability. It is easily installed and removed without auxiliary tools.
- ການອອກແບບຄວາມປອດໄພ: Features a double protection switch to prevent accidental activation.
- ພອດຂີ້ຝຸ່ນ: Allows connection to a shop vacuum for a cleaner work environment.
4. ຕັ້ງຄ່າ
4.1 Installing the Metal Handle
- Locate the threaded port on the front of the saw housing.
- Screw the metal handle clockwise into the port until it is securely tightened. No additional tools are required.
4.2 Installing/Changing the Blade
- ກວດໃຫ້ແນ່ໃຈວ່າໄດ້ຖອດສາຍເລື່ອຍອອກຈາກແຫຼ່ງພະລັງງານ.
- ກົດປຸ່ມລັອກ spindle ຄ້າງໄວ້ເພື່ອປ້ອງກັນບໍ່ໃຫ້ແຜ່ນໃບຫມຸນ.
- Using the provided hex key, loosen the blade arbor screw by turning it counter-clockwise.
- ຖອດຝາຂ້າງນອກ ແລະແຜ່ນໃບເກົ່າອອກ.
- ເຮັດຄວາມສະອາດຝຸ່ນ ຫຼື ສິ່ງເສດເຫຼືອຕ່າງໆອອກຈາກຂອບຂອງໃບມີດ.
- Place the new blade onto the arbor, ensuring the teeth are pointing in the direction of the arrow on the saw guard.
- Replace the outer flange and tighten the blade arbor screw clockwise with the hex key while holding the spindle lock button. Ensure the blade is securely fastened.
5. ຄໍາແນະນໍາການດໍາເນີນງານ
5.1 ການເປີດ/ປິດ
- To turn the saw ON, press the double protection switch (safety button) and then squeeze the trigger switch.
- To turn the saw OFF, release the trigger switch. The double protection switch ensures the saw does not start accidentally.

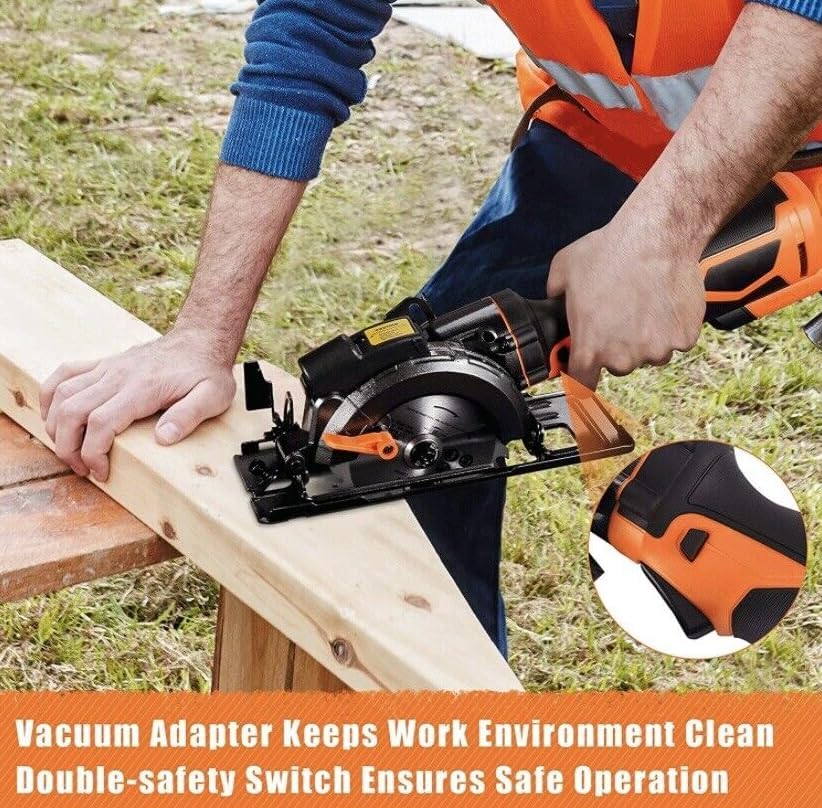

Image: The saw's ergonomic design, highlighting the double safety switch for secure operation and the dust port for debris management.
5.2 ການປັບຄວາມເລິກຂອງການຕັດ
- ກວດໃຫ້ແນ່ໃຈວ່າໄດ້ຖອດສາຍເລື່ອຍອອກແລ້ວ.
- ຖອດ lever ປັບຄວາມເລິກທີ່ຕັ້ງຢູ່ຂ້າງຂອງເລື່ອຍ.
- Raise or lower the base plate to achieve the desired cutting depth. Use the depth scale for precise measurement.
- Tighten the depth adjustment lever securely before operation.
5.3 Adjusting Bevel Angle (0-45°)
- ກວດໃຫ້ແນ່ໃຈວ່າໄດ້ຖອດສາຍເລື່ອຍອອກແລ້ວ.
- Loosen the bevel adjustment knob/lever.
- Tilt the base plate to the desired angle between 0° and 45°. Refer to the angle scale for accuracy.
- Tighten the bevel adjustment knob/lever firmly before operation.

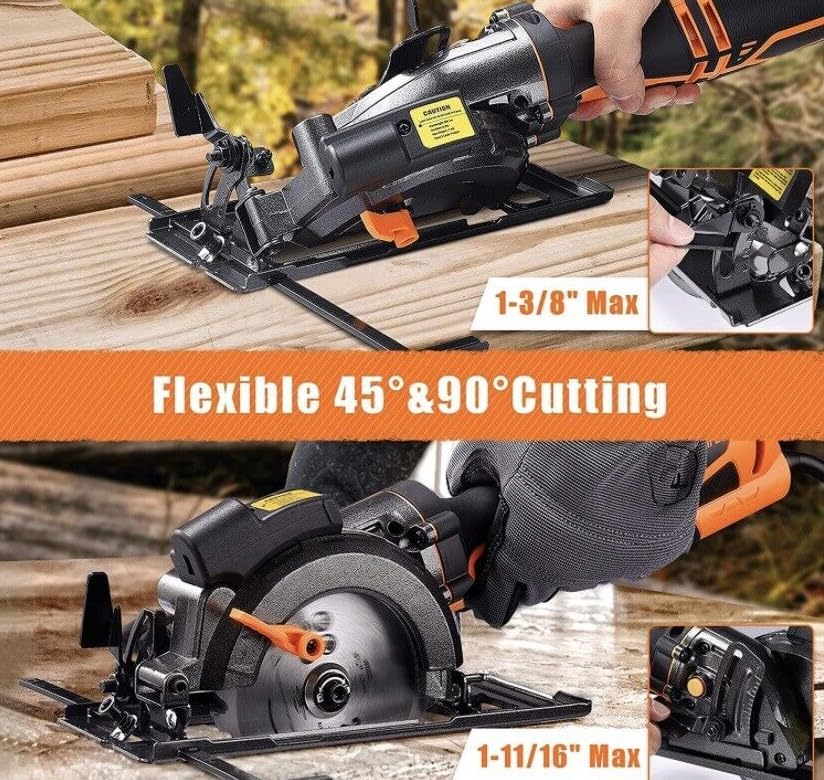

Image: The saw's capability to adjust cutting depth (up to 1-11/16 inches at 90°) and bevel angle (up to 45° with 1-3/8 inches depth).
5.4 ການໃຊ້ຄູ່ມືເລເຊີ
- The integrated laser guide projects a line onto the workpiece, indicating the cutting path.
- Align the laser line with your marked cut line for precise and straight cuts.
Image: A user operating the mini circular saw, demonstrating the laser guide projecting a red line for accurate straight cuts.
5.5 ການເກັບຂີ້ຝຸ່ນ
- Attach the elbow dust port to the saw's dust extraction outlet.
- Connect a shop vacuum hose to the dust port to collect sawdust and debris, maintaining a cleaner work area.
6. ບໍາລຸງຮັກສາ
6.1 ການທໍາຄວາມສະອາດ
- ຖອດສາຍເລື່ອຍອອກສະເໝີກ່ອນທຳຄວາມສະອາດ.
- Regularly clean the saw's ventilation openings to prevent overheating. Use a soft brush or compressed air.
- Wipe down the exterior of the saw with a damp ຜ້າ. ຢ່າໃຊ້ສານເຄມີທີ່ຮຸນແຮງຫຼືເຄື່ອງເຮັດຄວາມສະອາດຂັດ.
- Remove sawdust and debris from the blade guard and base plate to ensure smooth operation and accurate cuts.
6.2 ການດູແລແຜ່ນ
- Inspect blades before each use for damage, dullness, or missing teeth. Replace damaged blades immediately.
- Keep blades sharp for optimal cutting performance and safety.
- Store blades properly to prevent damage and corrosion.
7. ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| Saw ບໍ່ເລີ່ມຕົ້ນ | No power supply; Safety switch not engaged; Faulty power cord/switch | Check power connection; Ensure both safety and trigger switches are pressed; Inspect power cord/switch for damage. |
| Poor cutting performance / Excessive effort required | Dull or incorrect blade; Incorrect cutting depth; Overloading the saw | Replace with a sharp, appropriate blade; Adjust cutting depth; Reduce feed rate, do not force the saw. |
| ເລື່ອຍສັ່ນຫຼາຍໂພດ | Loose blade; Damaged blade; Loose components | Tighten blade arbor screw; Replace damaged blade; Check all fasteners for tightness. |
| ບໍ່ເຫັນຄູ່ມືເລເຊີ | Dirty laser lens; Low battery (if applicable) | Clean laser lens; Replace CR2032 batteries (if applicable, check manual for battery compartment). |
8. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ຂໍ້ມູນຈໍາເພາະ |
|---|---|
| ໝາຍເລກຕົວແບບ | TCS-115-A |
| ແຫຼ່ງພະລັງງານ | ໄຟຟ້າສາຍ |
| ພະລັງງານມໍເຕີ | 5.8 Amps (696 ວັດ) |
| ຄວາມໄວທີ່ບໍ່ມີການໂຫຼດ | 3500 RPM (3600 RPM listed in some specs) |
| ຄວາມເລິກການຕັດສູງສຸດ (90°) | 1-11/16 ນິ້ວ (42.9 ມມ) |
| Max Cutting Depth (45° Bevel) | 1-3/8 ນິ້ວ (34.9 ມມ) |
| ຄວາມອາດສາມາດ Bevel | 0° ຫາ 45° |
| ການຈັດການວັດສະດຸ | ໂລຫະ |
| ນ້ໍາຫນັກລາຍການ | 3.85 ກິໂລ |
| ຂະໜາດສິນຄ້າ | 45L x 18W x 12.5H ຊັງຕີແມັດ |
| ວັດສະດຸແຜ່ນໃບ | High Speed Steel (HSS) for some blades |
| Laser Batteries (if applicable) | CR2032 batteries required (for laser) |
9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
9.1 ຂໍ້ມູນການຮັບປະກັນ
This Generic TCS115A Mini Circular Saw comes with a ການຮັບປະກັນຈໍາກັດ 30 ວັນ from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, abuse, neglect, unauthorized repairs, or normal wear and tear.
9.2 ສະຫນັບສະຫນູນລູກຄ້າ
For technical assistance, warranty claims, or questions regarding your product, please contact the retailer or manufacturer's customer service department. Please have your model number (TCS-115-A) and proof of purchase available when contacting support.
