ແນະນຳ
Thank you for choosing the FOHERE 5L Portable Mini Fridge. This versatile thermoelectric device is designed to provide both cooling and warming functions, making it ideal for various applications. Its compact size and dual power options (AC/DC) allow for convenient use in offices, dormitories, cars, or for storing cosmetics and beverages. Please read this manual thoroughly before operation to ensure proper use and maintenance.
Image: FOHERE 5L Mini Fridge on a desk, showcasing ການອອກແບບກະທັດຮັດແລະ Portable ຂອງຕົນ.
ຄໍາແນະນໍາຄວາມປອດໄພ
ເພື່ອຫຼຸດຜ່ອນຄວາມສ່ຽງຕໍ່ການເກີດອັກຄີໄພ, ໄຟຟ້າຊ໊ອກ, ຫຼືການບາດເຈັບ, ປະຕິບັດຕາມຂໍ້ຄວນລະວັງຄວາມປອດໄພຂັ້ນພື້ນຖານສະເໝີ:
- ອ່ານຄໍາແນະນໍາທັງຫມົດກ່ອນທີ່ຈະໃຊ້ເຄື່ອງໃຊ້.
- ຫ້າມຈຸ່ມເຄື່ອງໃຊ້ໄຟຟ້າ, ສາຍໄຟ, ຫຼືສຽບໃສ່ນ້ຳ ຫຼື ຂອງແຫຼວອື່ນໆ.
- Ensure proper ventilation around the unit. Do not block the ventilation openings.
- ຖອດປລັກເຄື່ອງອອກຈາກປລັກສຽບໄຟກ່ອນທີ່ຈະທໍາຄວາມສະອາດຫຼືເມື່ອບໍ່ໄດ້ໃຊ້.
- Do not operate the appliance if the power cord or plug is damaged, or if the unit malfunctions or has been damaged in any way.
- ຮັກສາເຄື່ອງໃຊ້ໃຫ້ໄກຈາກເດັກນ້ອຍ.
- Use only the provided AC and DC power adapters.
- Do not use the appliance in direct sunlight or near heat sources.
ເນື້ອໃນຊຸດ
ພາຍຫຼັງການຫຸ້ມຫໍ່, ກະລຸນາກວດສອບວ່າສິນຄ້າທັງໝົດຢູ່ໃນສະພາບດີ:
- FOHERE 5L Portable Mini Fridge
- ອະແດັບເຕີໄຟ AC (220-240V)
- DC Car Power Cable (12V)
- ຊັ້ນວາງທີ່ຖອດອອກໄດ້
- ຖາດແຫ້ງ
ສິນຄ້າເກີນview
The FOHERE 5L Mini Fridge offers a compact and efficient solution for your cooling and warming needs. Key features include:
- Compact 5L Capacity: Holds up to 6 standard 330ml beverage cans. Internal dimensions: 20 cm (H) x 13.5 cm (W) x 15 cm (D).
- ໜ້າທີ່ເຮັດຄວາມເຢັນ ແລະ ອຸ່ນ: Cools to 18-22°C below ambient temperature and warms up to 66°C.
- ການປະຕິບັດແບບງຽບໆ: Operates at less than 28 decibels, ensuring minimal disturbance.
- ທາງເລືອກພະລັງງານສອງ: Includes AC (220-240V) and DC (12V) adapters for home, office, or car use.
- ການອອກແບບແບບພົກພາ: Lightweight at 1.8 kg with a premium leather handle for easy transport.
- ອົງປະກອບທີ່ຖອດອອກໄດ້: Features a removable shelf and door basket for flexible storage, plus a drip tray for condensation management.
- Magnetic Door: Ensures a secure seal and easy access.

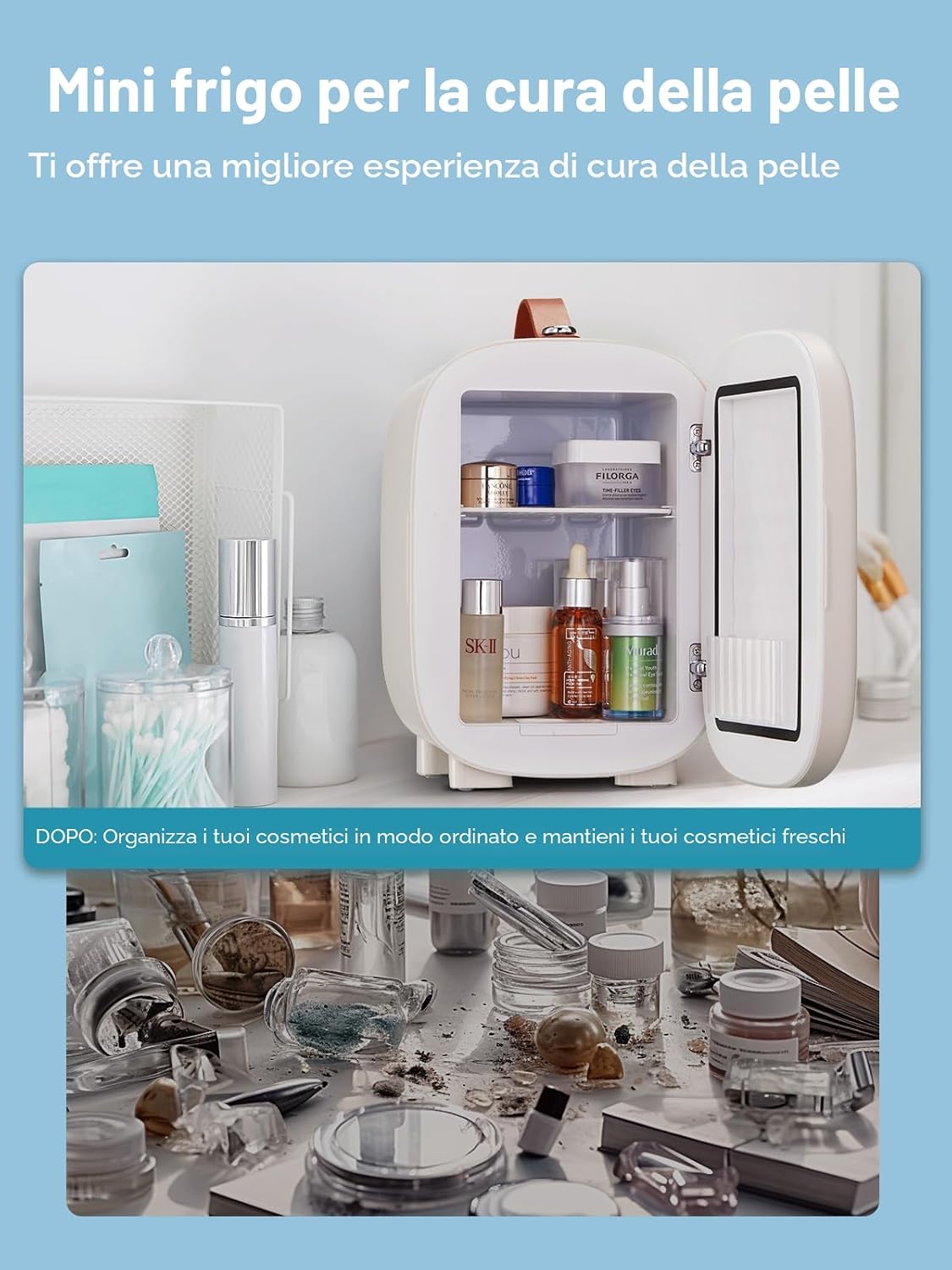

ຮູບພາບ: ພາຍໃນ view of the FOHERE 5L Mini Fridge, demonstrating its capacity for beverages with and without the removable shelf.
Image: The mini fridge used for storing skincare products, highlighting its versatility.
Image: The mini fridge in warming mode, keeping food warm on a desk.
Image: Noise level comparison chart, showing the fridge operates at a quiet 28dB.
ຮູບພາບ: ລາຍລະອຽດ view of product features including the magnetic door, removable shelf, and drip tray.
ຕັ້ງຄ່າ
- ການຫຸ້ມຫໍ່: Carefully remove the mini fridge and all accessories from the packaging. Retain packaging for future transport or storage.
- ການຈັດວາງ: Place the mini fridge on a flat, stable surface. Ensure there is adequate ventilation (at least 10 cm clearance) around all sides, especially the rear fan, to allow for proper heat dissipation. Avoid placing it in direct sunlight or near heat sources.
- ການຕັ້ງຄ່າພາຍໃນ: Insert the removable shelf and door basket as desired for organizing your items. Ensure the drip tray is correctly positioned at the bottom.
- ການເຊື່ອມຕໍ່ພະລັງງານ:
- For Home/Office (AC): Connect the AC power adapter to the AC port on the back of the fridge, then plug it into a standard 220-240V wall outlet.
- For Car (DC): Connect the DC car power cable to the DC port on the back of the fridge, then plug it into your vehicle's 12V cigarette lighter socket.
Image: Compact dimensions of the FOHERE 5L Mini Fridge for easy placement.
Image: Mini fridge connected via AC adapter for home or office use.
Image: Mini fridge connected via DC adapter for car use.
ຄໍາແນະນໍາການດໍາເນີນງານ
The FOHERE Mini Fridge features a simple switch on the back to select between cooling and warming modes.
- ເປີດ/ປິດ: Locate the power switch on the back of the unit. Flip it to the 'ON' position to power on the fridge.
- ເລືອກໂໝດ:
- ໂໝດເຮັດຄວາມເຢັນ: Flip the switch to the 'COLD' setting. The internal temperature will decrease to 18-22°C below the ambient temperature. This mode is suitable for beverages, cosmetics, and certain medications.
- ໂໝດອຸ່ນ: Flip the switch to the 'HOT' setting. The internal temperature will rise and maintain up to 66°C. This mode is suitable for keeping food warm.
- ກຳລັງໂຫຼດລາຍການ: Place items inside the fridge. For optimal performance, pre-chill or pre-warm items before placing them in the unit, especially when switching modes.
- ປິດພະລັງງານ: When not in use, flip the power switch to the 'OFF' position and unplug the unit from the power source.
ໝາຍເຫດ: The cooling effect is dependent on the ambient temperature. For best cooling results, operate in a cool environment.
ບໍາລຸງຮັກສາ
Regular cleaning and maintenance will ensure the longevity and optimal performance of your mini fridge.
- ທໍາຄວາມສະອາດພາຍໃນ: Disconnect the power. Use a soft cloth dampened with mild soap and water to wipe the interior surfaces. Do not use abrasive cleaners or harsh chemicals. Dry thoroughly before reconnecting power.
- ທໍາຄວາມສະອາດພາຍນອກ: ເຊັດພາຍນອກດ້ວຍຜ້າອ່ອນ, ງamp ຜ້າ.
- ຖາດລອຍ: Periodically empty and clean the drip tray located at the bottom of the unit to prevent water accumulation from condensation.
- ການລະບາຍອາກາດ: Ensure the rear fan and vents are free from dust and obstructions. Use a soft brush or vacuum cleaner to gently clean them if necessary.
- ການເກັບຮັກສາ: ຖ້າເກັບຮັກສາອຸປະກອນໄວ້ເປັນເວລາດົນ, ໃຫ້ແນ່ໃຈວ່າມັນສະອາດ ແລະ ແຫ້ງ. ເກັບຮັກສາໄວ້ໃນບ່ອນທີ່ເຢັນ ແລະ ແຫ້ງ.
ການແກ້ໄຂບັນຫາ
If you encounter any issues with your FOHERE Mini Fridge, please refer to the following common problems and solutions:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ໜ່ວຍບໍ່ເປີດ. | ບໍ່ມີການສະຫນອງພະລັງງານ; ການເຊື່ອມຕໍ່ວ່າງ; ອະແດບເຕີຜິດພາດ. | Check if the power cord is securely plugged into both the unit and the outlet. Try a different outlet. Ensure the power switch is 'ON'. |
| ໜ່ວຍບໍ່ເຮັດຄວາມເຢັນ/ອຸ່ນຂຶ້ນຢ່າງມີປະສິດທິພາບ. | Incorrect mode selected; poor ventilation; high ambient temperature; door not sealed properly. | Ensure the correct mode (COLD/HOT) is selected. Check for obstructions around vents. Ensure the door is fully closed and sealed. Allow more time for temperature change. |
| ສຽງດັງເກີນໄປ. | ການຂັດຂວາງພັດລົມ; ຫນ່ວຍບໍລິການບໍ່ໄດ້ຢູ່ໃນຫນ້າດິນທີ່ຫມັ້ນຄົງ. | Check if the fan is clear of debris. Ensure the unit is placed on a flat, stable surface to minimize vibrations. |
| ການໄອນ້ຳພາຍໃນໜ່ວຍ. | Normal operation; frequent door opening. | This is normal. Empty and clean the drip tray regularly. Avoid opening the door too frequently. |
ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ຂໍ້ມູນຈໍາເພາະ |
|---|---|
| ຍີ່ຫໍ້ | ທີ່ນີ້ |
| ຊື່ຕົວແບບ | MFA-5L-GA |
| ຄວາມອາດສາມາດ | 5 Liters (Net Refrigerator Capacity) |
| ຂະໜາດສິນຄ້າ (ກວ້າງ x ຍາວ x ສູງ) | 29ຊມ x 20ຊມ x 27ຊມ |
| ຂະໜາດພາຍໃນ (H x W x D) | 20ຊມ x 13.5ຊມ x 15ຊມ |
| ນ້ໍາຫນັກລາຍການ | 1.8 ກິໂລ |
| ສະບັບtage (AC) | 220-240V |
| ສະບັບtage (DC) | 12V |
| ວິທີການເຮັດຄວາມເຢັນ | Thermoelectric |
| ປະສິດທິພາບການເຮັດຄວາມເຢັນ | Cools 18-22°C below ambient temperature |
| ປະສິດທິພາບການອຸ່ນເຄື່ອງ | Warms up to 66°C |
| ລະດັບສຽງ | < 28 dB |
| ການບໍລິໂພກພະລັງງານປະຈໍາປີ | 60 kWh/ປີ |
| ລະບົບ Defrost | ບໍ່ມີອາກາດ ໜາວ |
| ປະເພດຊັ້ນວາງ | Plastic (removable) |
| ປະເທດຕົ້ນກໍາເນີດ | ຈີນ |
| UPC | 616943002836 |
ການຮັບປະກັນ & ສະຫນັບສະຫນູນ
ການຮັບປະກັນ: This FOHERE Mini Fridge comes with a 2-year product warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.
ການຊ່ວຍເຫຼືອລູກຄ້າ: For any questions, technical assistance, or warranty claims, please contact FOHERE customer service. Refer to the contact information provided with your purchase or visit the official FOHERE webເວັບໄຊສໍາລັບລາຍລະອຽດສະຫນັບສະຫນູນ.
