DEUSES Carburetor Instruction Manual

1. ບົດແນະນຳ

This manual provides essential information for the installation, operation, and maintenance of your DEUSES replacement carburetor. This carburetor is designed for specific Robin 49CC brush cutter and trimmer models, including NB411, CG411, BG411, and EC04, serving as a direct replacement for part number 5416040000. Please read this manual thoroughly before attempting any installation or maintenance to ensure proper function and safety.

2. ຂໍ້ມູນຄວາມປອດໄພ

ຄຳເຕືອນ:

• Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection, when working with fuel systems and engine components.
• Ensure the engine is turned off and cooled down before performing any installation, maintenance, or inspection.
• Work in a well-ventilated area to avoid inhaling fuel fumes.
• Keep open flames, sparks, and other ignition sources away from fuel and fuel system components.
• Handle fuel with extreme care. Fuel is highly flammable and can cause serious injury or death.
• ຖ້າທ່ານບໍ່ແນ່ໃຈກ່ຽວກັບຂັ້ນຕອນໃດໆ, ໃຫ້ປຶກສາກັບນັກວິຊາການທີ່ມີຄຸນວຸດທິ.

3. ເນື້ອໃນຊຸດ

ເມື່ອເປີດການຫຸ້ມຫໍ່, ໃຫ້ກວດສອບວ່າສິນຄ້າທຸກຢ່າງມີຢູ່ແລ້ວ ແລະ ບໍ່ເສຍຫາຍ.

• 1 x DEUSES Carburetor (Replacement for Robin NB411, CG411, BG411, EC04)

ຮູບພາບ 3.1: ຂ້າງ view of the DEUSES Carburetor, showing the main body and throttle linkage.

4. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

This carburetor is a direct replacement part. Installation typically involves removing the old carburetor and installing the new one. Refer to your specific brush cutter or trimmer's service manual for detailed instructions on removing and installing engine components.

ເຄື່ອງມືທີ່ຕ້ອງການ (ບໍ່ລວມ):

• Screwdrivers (Phillips ແລະ flathead)
• Wrenches or sockets (appropriate sizes for your engine)
• ເຂັມ
• ສາຍນໍ້າມັນ clamps or plugs
• ລ້າງ rags ສະອາດ

ຂັ້ນ​ຕອນ​ການ​ຕິດ​ຕັ້ງ​:

1. ກຽມເຄື່ອງຈັກ: ໃຫ້ແນ່ໃຈວ່າເຄື່ອງຈັກດັບແລະເຢັນລົງ. ຖອດສາຍໄຟຂອງຫົວທຽນອອກເພື່ອປ້ອງກັນການສະຕາດໂດຍບັງເອີນ.
2. Drain Fuel: If necessary, drain the fuel tank or clamp the fuel lines to prevent fuel leakage during removal.
3. Remove Air Filter Assembly: Carefully remove the air filter housing and air filter to access the carburetor.
4. Disconnect Linkages and Lines:
   • Disconnect the throttle cable from the carburetor.
   • Disconnect the choke linkage (if applicable).
   • Carefully detach all fuel lines (inlet and return) from the carburetor. Note their positions for reinstallation.
5. ເອົາ Carburetor ເກົ່າອອກ: Unscrew the mounting bolts or nuts that secure the carburetor to the engine intake manifold. Carefully remove the old carburetor, ensuring any gaskets are also removed.
6. ກວດ​ສອບ​ແລະ​ທໍາ​ຄວາມ​ສະ​ອາດ​: Inspect the intake manifold and surrounding areas for debris. Clean as necessary. Ensure new gaskets (if required and not included with the carburetor) are ready.
7. ຕິດຕັ້ງ Carburetor ໃໝ່:
   • Place new gaskets (if applicable) onto the intake manifold.
   • Position the new DEUSES carburetor onto the mounting studs/bolts.
   • Secure the carburetor with the mounting bolts/nuts. Tighten evenly to prevent air leaks, but do not overtighten.
8. Reconnect Linkages and Lines:
   • Reconnect the fuel lines to their correct ports on the new carburetor. Ensure connections are secure.
   • Reconnect the throttle cable and choke linkage. Verify smooth operation of both.
9. Reinstall Air Filter Assembly: Reattach the air filter and its housing.
10. ເຊື່ອມຕໍ່ປລັກຫົວທຽນຄືນໃໝ່: ເຊື່ອມຕໍ່ສາຍໄຟສຽບ.

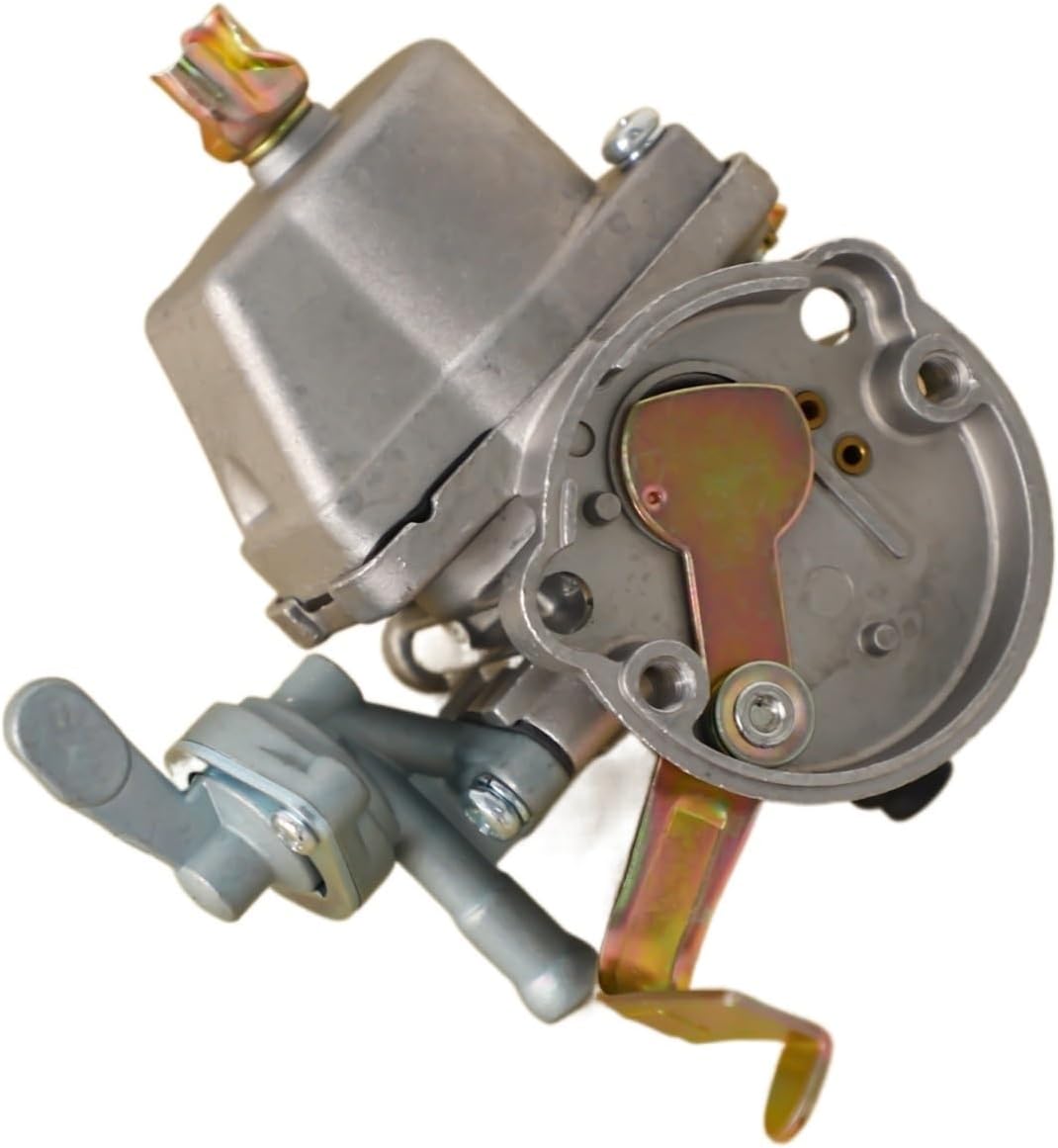

ຮູບພາບ 4.1: ມຸມ view of the carburetor, highlighting the fuel inlet and adjustment screws (if present).

ຮູບພາບ 4.2: ເທິງ view of the carburetor, showing the choke lever and air intake.

5. ຄໍາແນະນໍາການດໍາເນີນງານ (ຫຼັງການຕິດຕັ້ງ)

After installing the new carburetor, perform the following checks before starting the engine:

1. Fuel Check: Ensure the fuel tank contains the correct fuel/oil mixture as specified by your engine manufacturer. Check for any fuel leaks around the carburetor and fuel lines.
2. Throttle and Choke: Verify that the throttle and choke levers move freely and return to their proper positions.
3. ການ​ເລີ່ມ​ຕົ້ນ​:
   • Set the choke to the "START" or "CLOSED" position.
   • Prime the carburetor if your engine has a primer bulb, until fuel is visible.
   • Pull the starter cord according to your engine's starting procedure.
   • Once the engine fires or attempts to start, move the choke to the "RUN" or "OPEN" position.
   • Continue pulling the starter cord until the engine runs smoothly.
4. ການປັບຕົວບໍ່ເຮັດວຽກ: Allow the engine to warm up for a few minutes. If the idle speed is too high or too low, locate the idle adjustment screw on the carburetor (refer to your engine's manual for exact location) and adjust it until the engine idles smoothly without stalling.
5. ການກວດສອບປະສິດທິພາບ: Test the engine under light load to ensure proper acceleration and power delivery.

6. ບໍາລຸງຮັກສາ

Regular maintenance of your carburetor and associated fuel system components will ensure optimal engine performance and longevity.

• ການກັ່ນຕອງອາກາດ: Regularly inspect and clean or replace the air filter. A clogged air filter can restrict airflow to the carburetor, leading to poor engine performance.
• ການກັ່ນຕອງນໍ້າມັນ: Check and replace the in-tank fuel filter periodically. A dirty fuel filter can restrict fuel flow and cause carburetor issues.
• ສາຍນໍ້າມັນ: Inspect fuel lines for cracks, leaks, or hardening. Replace damaged fuel lines immediately.
• ທໍາ​ຄວາມ​ສະ​ອາດ Carburetor​: If the engine experiences performance issues due to fuel contamination, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with mechanical experience.
• ຄຸນນະພາບນໍ້າມັນເຊື້ອໄຟ: Always use fresh, clean fuel mixed with the correct ratio of 2-stroke oil (if applicable to your engine). Stale or contaminated fuel is a common cause of carburetor problems.

7. ການແກ້ໄຂບັນຫາ

ຖ້າທ່ານພົບບັນຫາຫຼັງຈາກຕິດຕັ້ງຄາບູເລເຕີໃໝ່, ໃຫ້ພິຈາລະນາບັນຫາ ແລະ ວິທີແກ້ໄຂທົ່ວໄປຕໍ່ໄປນີ້:

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified small engine mechanic.

8. ຂໍ້ມູນຈໍາເພາະ

• ປະເພດຜະລິດຕະພັນ: ຄາບູເລເຕີທົດແທນ
• ຍີ່ຫໍ້: DEUSES
• ຄວາມເຂົ້າກັນໄດ້ຂອງຕົວແບບ: Robin NB411, CG411, BG411, EC04
• ການຍ້າຍເຄື່ອງຈັກ: 49CC
• ປ່ຽນແທນໝາຍເລກສ່ວນ: 5416040000
• ວັດສະດຸ: ໂລຫະ
• ສີ: ເງິນ
• ນ້ໍາຫນັກລາຍການ: 1 ກຣາມ
• ຈຳນວນຫົວໜ່ວຍ: 1.0 ນັບ

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For information regarding warranty coverage and customer support, please refer to the seller or manufacturer's official documentation provided at the time of purchase. Keep your proof of purchase for any warranty claims.
