BAOFENG UV-16R Walkie Talkie Instruction Manual

1. ຜະລິດຕະພັນເກີນview

The BAOFENG UV-16R is a professional handheld dual-band two-way radio designed for reliable long-range communication. It features USB-C charging, IP45 waterproof rating, and a robust build for various environments.

Figure 1: BAOFENG UV-16R Walkie Talkie, Red with Programming Cable.

2. ການເລີ່ມຕົ້ນ

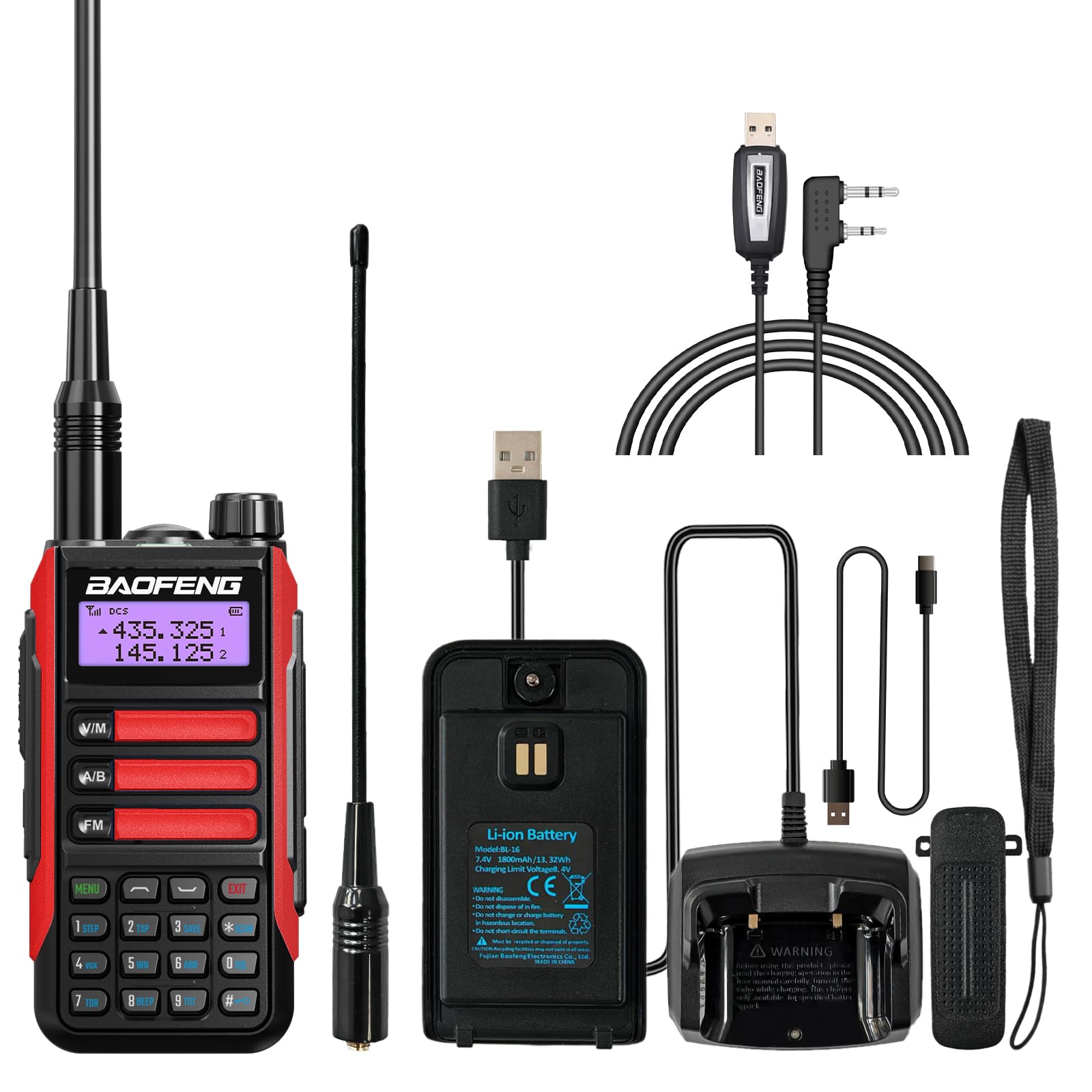

2.1 ເນື້ອໃນຊຸດ

• ວິທະຍຸ Portable
• ສາຍສາກໄຟ Type-C
• ສາຍໂປຣແກຣມ
• ເສົາອາກາດຕົ້ນສະບັບ
• ຫມໍ້ໄຟ Li-ion
• Clip ສາຍແອວ
• Sling
• ຖານຊາດ
• ຄູ່ມືຜູ້ໃຊ້

2.2 ການຕິດຕັ້ງ ແລະສາກແບັດ

Install the provided Li-ion battery into the radio. The UV-16R supports direct charging via a Type-C cable, offering convenience from various power sources like power banks, PCs, or car chargers. It can also be charged using the included charger base.

Figure 2: The UV-16R supports convenient USB-C charging from various sources.

2.3 Antenna and Accessories Attachment

Attach the original antenna by screwing it clockwise onto the top connector until secure. The belt clip can be screwed onto the back of the radio for easy carrying. Attach the sling for additional portability.

Figure 3: The radio with its high gain antenna, designed for longer and more stable communication.

3. ການດໍາເນີນງານພື້ນຖານ

3.1 ເປີດ/ປິດ ແລະລະດັບສຽງ

ເພື່ອເປີດວິທະຍຸ, ໃຫ້ໝຸນປຸ່ມດ້ານເທິງຕາມເຂັມໂມງ. ສືບຕໍ່ໝຸນເພື່ອປັບລະດັບສຽງ. ເພື່ອປິດ, ໃຫ້ໝຸນປຸ່ມທວນເຂັມໂມງຈົນກວ່າມັນຈະມີສຽງຄລິກ.

3.2 Channel Selection and Dual Watch

The radio features 128 channels. Use the up/down arrow keys to navigate through channels. The Dual Watch and Sync Switchable function allows monitoring two channels simultaneously. This is particularly useful for users who wish to see both channel name and frequency information on the display.

3.3 Push-to-Talk (PTT)

Press and hold the large button on the left side of the radio to transmit. Release the button to receive.

3.4 Flashlight and FM Radio

The UV-16R includes an LED high-power torch with constant light and flash light modes for night vision. It also has a built-in FM radio function for entertainment.

Figure 4: The radio's integrated LED flashlight provides illumination in low-light conditions.

4. ຄຸນສົມບັດຂັ້ນສູງ

4.1 ການຂຽນໂປຣແກຣມ

The UV-16R is compatible with CHIRP software for programming custom frequencies and settings. A programming cable is included for this purpose.

4.2 Repeater Capable

The radio supports customizable repeater channels, allowing for expanded communication range and enhanced signal strength.

4.3 ຄຸນນະພາບສຽງ

Equipped with a professional audio decoder chip, the UV-16R delivers loud treble and strong bass, providing clear audio comparable to original voice.

Figure 5: The radio's audio system ensures clear and robust sound output.

4.4 ການສື່ສານໄລຍະໄກ

The radio can achieve a communication range of 4-5 miles in open, flat, or suburban areas. In forested environments, the range is typically 3-4 miles, and in urban settings, 2-3 miles.

5. ບໍາລຸງຮັກສາ

5.1 ການຕໍ່ຕ້ານນ້ໍາ

The UV-16R has an IP45 waterproof/water-resistant rating, providing protection against dust and rain. While designed to withstand accidental splashes and light rain, it is not recommended for submersion.

Figure 6: The radio is equipped with a waterproof protective structure, suitable for use in various weather conditions.

5.2 ຄວາມທົນທານ

The radio's housing is constructed from high-hardness ABS+PC material, offering heat resistance, fall resistance, and wear resistance for enhanced durability.

Figure 7: The robust housing material provides excellent fall and wear resistance.

6. ການແກ້ໄຂບັນຫາ

6.1 ບັນຫາທົ່ວໄປ

• ບໍ່ມີພະລັງງານ: Ensure the battery is fully charged and correctly installed. Check the power knob is turned on.
• ການຮັບ/ສົ່ງສັນຍານບໍ່ດີ: Verify the antenna is securely attached. Check the selected frequency/channel. Ensure you are within the effective communication range.
• ບັນຫາສຽງ: Adjust the volume. Ensure the speaker is not obstructed.
• Programming Problems: Ensure the programming cable is correctly connected and the CHIRP software is properly configured.

7. ຂໍ້ມູນຈໍາເພາະ

8. ວິດີໂອຜະລິດຕະພັນຢ່າງເປັນທາງການ

9. ການຮັບປະກັນແລະການສະ ໜັບ ສະ ໜູນ

A 1-year warranty is provided exclusively through "Shiqun Electronics Co., Ltd." For support or warranty claims, please contact the manufacturer directly.
