User Manual for Ajblg X15 Wireless Headphones

ແນະນຳ

Thank you for choosing the Ajblg X15 Wireless Headphones. These Bluetooth earbuds are designed to provide a superior audio experience with deep bass, extended play time, and a convenient digital display. They are also IPX7 waterproof, making them suitable for various activities.

Image: Ajblg X15 Wireless Headphones and their charging case, showcasing the pink color and digital display.

ເນື້ອໃນຊຸດ

ໃຫ້ແນ່ໃຈວ່າທຸກລາຍການຢູ່ໃນຊຸດຂອງທ່ານ:

• Ajblg X15 Wireless Earbuds (Left and Right)
• Charging Case with Digital Display
• ສາຍສາກ USB-C
• ຄູ່ມືການສອນ
• Multiple sizes of Eartips for optimal fit

Image: A visual representation of all items included in the Ajblg X15 product package, including earbuds, charging case, USB-C cable, and eartips.

ຕັ້ງຄ່າ

ການຈັບຄູ່ເບື້ອງຕົ້ນ

1. Ensure earbuds are charged (refer to Charging section).
2. ເປີດຝາກະເປົ໋າສາກໄຟ. ຫູຟັງເອຍບັດຈະເຂົ້າສູ່ໂໝດຈັບຄູ່ໂດຍອັດຕະໂນມັດ.
3. ໃນອຸປະກອນຂອງທ່ານ (ໂທລະສັບສະຫຼາດ, ແທັບເລັດ, ແລະອື່ນໆ), ໄປທີ່ການຕັ້ງຄ່າ Bluetooth.
4. ຊອກຫາ "X15" in the list of available devices and select it to connect.
5. Once connected, the earbuds will automatically reconnect to your device when you open the charging case lid after the first pairing.

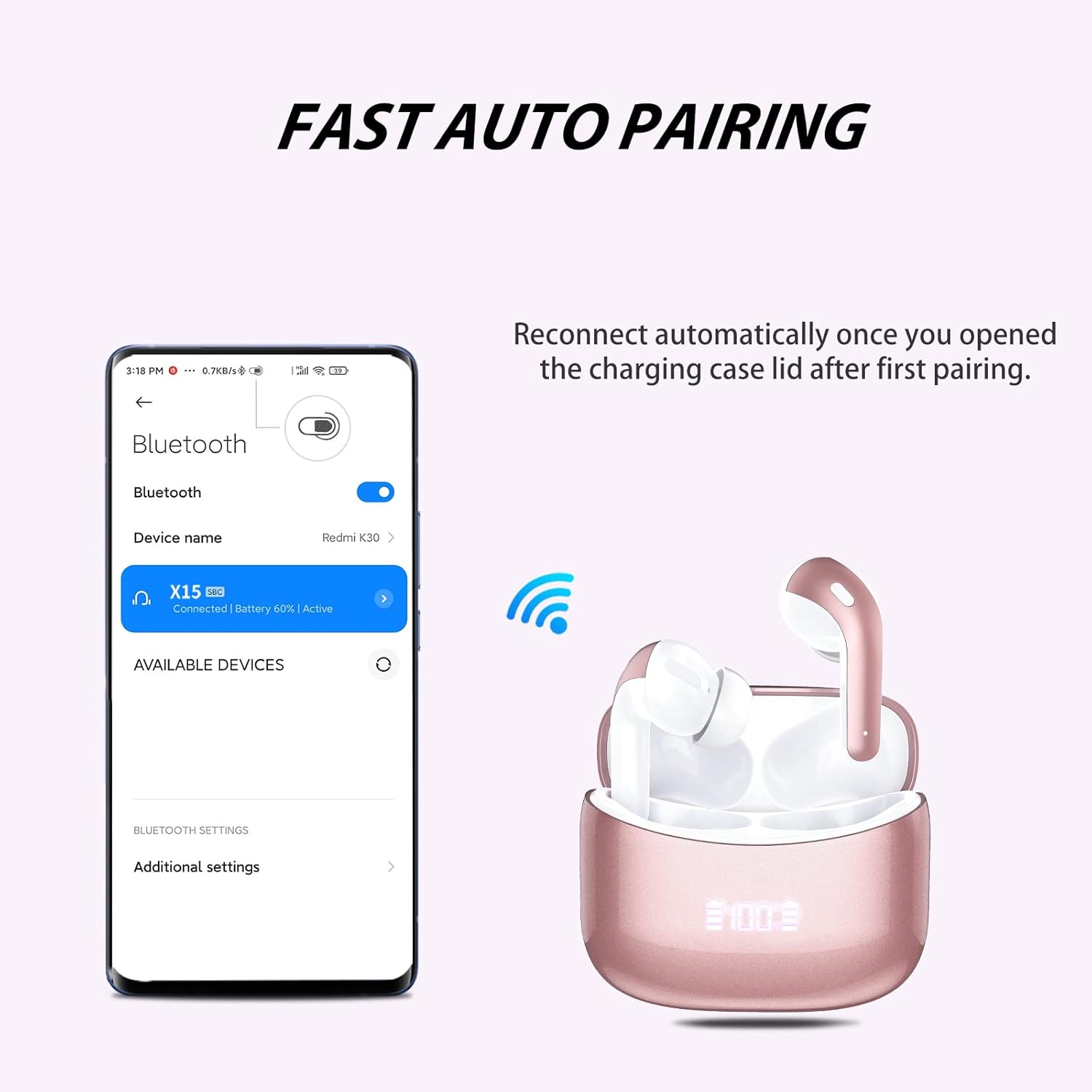

Image: Illustration demonstrating the fast auto-pairing process of the X15 earbuds with a mobile phone, showing the "X15 Connected" status.

ເຕັກໂນໂລຊີ Bluetooth 5.3

The X15 earbuds utilize advanced Bluetooth 5.3 technology, which offers improved transmission efficiency and a stable connection, reducing latency for a seamless audio experience.

Image: Diagram illustrating the upgrade to Bluetooth 5.2, highlighting improved transmission efficiency and reduced latency compared to Bluetooth 5.0.

ຄໍາແນະນໍາການດໍາເນີນງານ

ໃສ່ຫູຟັງ

The X15 earbuds are ergonomically designed to be small and ultra-light (4g per earbud) for comfortable and secure fit during extended use. Insert each earbud gently into your ear canal until it feels snug and stable.

Image: A person wearing the X15 earbuds, demonstrating their small, light, and ergonomic design for comfortable fit.

ການຄວບຄຸມການສໍາພັດອັດສະລິຍະ

The X15 earbuds feature intuitive touch controls on the side of each earbud for easy management of music and calls:

• ຫຼິ້ນ/ຢຸດ: Double-tap (x2) on either earbud.
• ສະຫຼັບເພງ (ຕໍ່ໄປ/ກ່ອນໜ້ານີ້): Hold the touch sensor on the right earbud for next song, hold on the left earbud for previous song.
• ຜູ້ຊ່ວຍສຽງ: Triple-tap (x3) on either earbud.
• ສະຫຼັບລະດັບສຽງ: Single-tap (x1) on the right earbud to increase volume, single-tap on the left earbud to decrease volume.
• ຮັບ/ສາຍໂທ: Double-tap (x2) on either earbud.
• ປະຕິເສດການໂທ: Hold the touch sensor on either earbud.

Image: A detailed guide to the smart touch controls on the X15 earbuds, showing gestures for play/pause, song switching, voice assistant, volume control, and call management.

ກຳລັງສາກຫູຟັງ ແລະ ເຄສ

The charging case features an LED digital display that shows the battery percentage of the case and the charging status of each earbud. The earbuds offer up to 7 hours of play time on a single charge, with the charging case providing multiple additional charges for a total of 35 hours of play time.

1. To charge the earbuds, place them back into their respective slots in the charging case. They are magnetized and will snap into place. The LED display will show their charging status.
2. To charge the case, connect the provided USB-C charging cable to the USB-C port on the bottom of the case and plug the other end into a compatible USB power source. The LED display will show the case's battery percentage.
3. Charging time for both earbuds and the carrying case is approximately 1.5 hours.

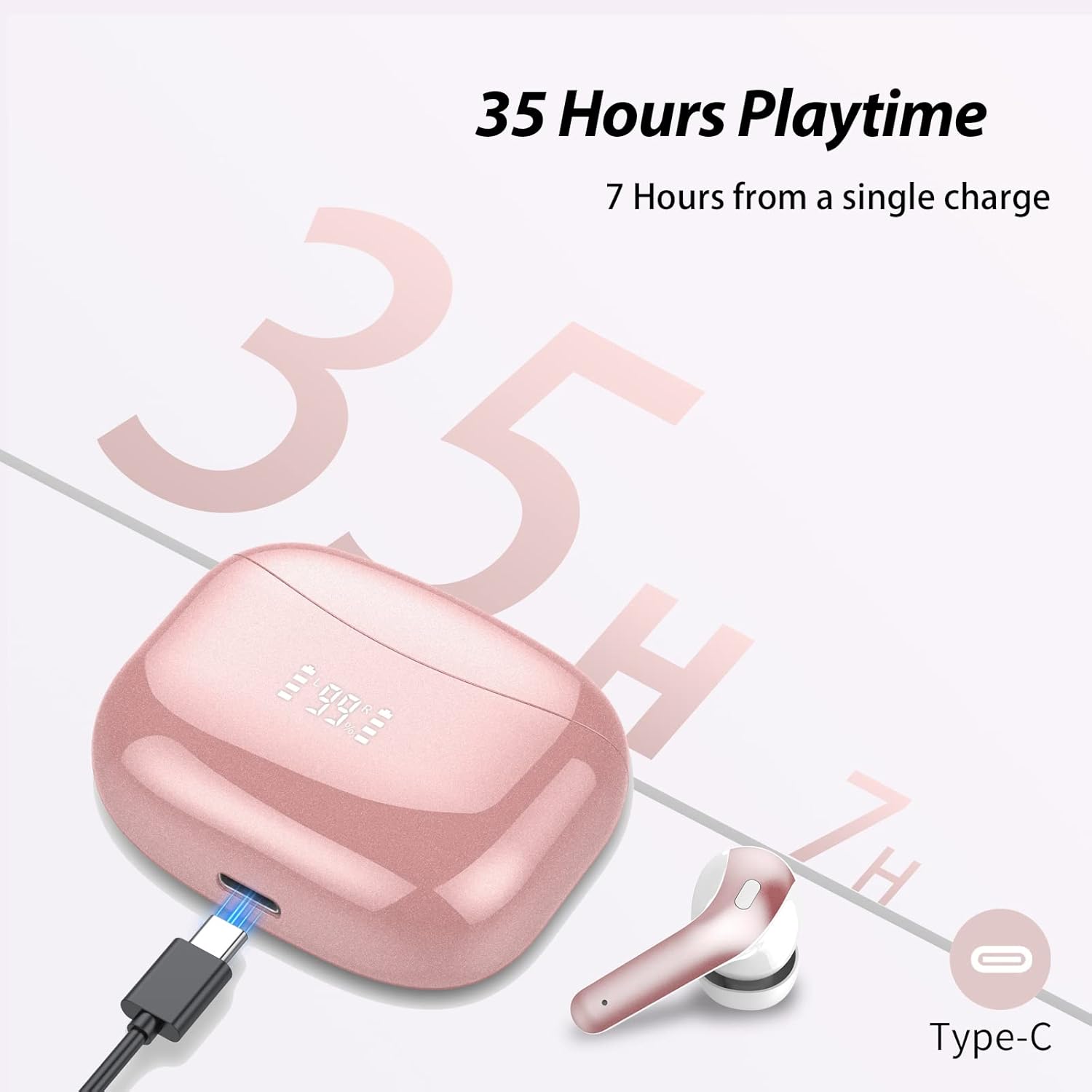

Image: An illustration highlighting the 35-hour total playtime and the USB-C charging port on the case, along with the digital battery display.

ບໍາລຸງຮັກສາ

• ທໍາຄວາມສະອາດ: ອະນາໄມຫູຟັງຫູຟັງ ແລະກະເປົ໋າສາກໄຟເປັນປະຈຳດ້ວຍຜ້າແພທີ່ອ່ອນ, ແຫ້ງ, ບໍ່ມີສານຂັດ. ຫຼີກເວັ້ນການນໍາໃຊ້ວັດສະດຸຂັດຫຼືສານເຄມີທີ່ຮຸນແຮງ.
• ກັນນ້ໍາ (IPX7): The earbuds are IPX7 waterproof, meaning they can withstand immersion in water up to 1 meter for 30 minutes. However, the charging case is not waterproof. Ensure earbuds are completely dry before placing them back in the charging case to prevent damage.
• ການເກັບຮັກສາ: ເມື່ອບໍ່ໄດ້ໃຊ້, ໃຫ້ເກັບຫູຟັງເອຍບັດໃສ່ໃນກະເປົ໋າສາກໄຟເພື່ອປົກປ້ອງພວກມັນ ແລະ ສືບຕໍ່ສາກໄຟ. ເກັບຮັກສາໄວ້ໃນບ່ອນທີ່ເຢັນ, ແຫ້ງ, ຫ່າງຈາກອຸນຫະພູມທີ່ສຸດ.
• ການດູແລຫມໍ້ໄຟ: To prolong battery life, avoid fully discharging the earbuds and case frequently. Charge them regularly, even if not used for a long period.

Image: Visual representation of the IPX7 waterproof rating, showing the earbuds submerged in water.

ການແກ້ໄຂບັນຫາ

ຂໍ້ມູນຈໍາເພາະ

• ຊື່ຕົວແບບ: X15
• ຍີ່ຫໍ້: Ajblg
• ເຕັກໂນໂລຍີການເຊື່ອມຕໍ່: ໄຮ້ສາຍ (Bluetooth 5.3)
• ຊ່ອງສຽບຫູຟັງ: USB-C (ສໍາ​ລັບ​ການ​ສາກ​ໄຟ​)
• ເວລາຫຼິ້ນ: 7 ຊົ່ວໂມງ (ຫູຟັງ), 35 ຊົ່ວໂມງ (ພ້ອມກ່ອງສາກໄຟ)
• ເວລາສາກໄຟ: 1.5 ຊົ່ວໂມງ (ຫູຟັງ ແລະ ເຄສ)
• ລະດັບຄວາມຕ້ານທານນ້ໍາ: IPX7 Waterproof (earbuds only)
• ວິທີການຄວບຄຸມ: ແຕະ, ສຽງ
• ຂະໜາດໄດເວີສຽງ: 13 ມິນລິແມັດ
• ລະດັບ Bluetooth: 10 ແມັດ
• ນ້ໍາຫນັກລາຍການ: 3.52 ອອນ
• ຂະໜາດຜະລິດຕະພັນ: 2.44 x 1.97 x 1.04 ນິ້ວ

ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official Ajblg webເວັບໄຊ. ຮັກສາໃບຮັບເງິນການຊື້ຂອງທ່ານສໍາລັບການຮ້ອງຂໍການຮັບປະກັນ.
