1. ຂໍ້ມູນແນະນໍາ ແລະຄວາມປອດໄພ
Thank you for choosing the Waykar 120 Pints Energy Star Dehumidifier. This manual provides essential information for the safe and efficient operation of your appliance. Please read it thoroughly before use and retain it for future reference.
ຄໍາແນະນໍາຄວາມປອດໄພທີ່ສໍາຄັນ
- Always place the dehumidifier on a level, stable surface to prevent tipping.
- Ensure the power cord is not damaged and is properly plugged into a grounded outlet.
- ຫ້າມໃຊ້ອຸປະກອນທີ່ມີສາຍໄຟ ຫຼືປລັກສຽບເສຍຫາຍ.
- Keep the unit at least 8 inches (20 cm) away from walls or furniture to ensure proper airflow.
- ຫ້າມກັ້ນທາງເຂົ້າຫຼືທາງອອກຂອງອາກາດ.
- ຖອດປລັກໜ່ວຍອອກກ່ອນທຳຄວາມສະອາດ ຫຼືເຮັດການບຳລຸງຮັກສາ.
- ຢ່າໃຊ້ເຄື່ອງດູດຄວາມຊຸ່ມໃນບໍລິເວນທີ່ເກັບຮັກສາອາຍແກັສໄວໄຟ ຫຼື ຂອງແຫຼວ.
- ເຄື່ອງໃຊ້ນີ້ບໍ່ໄດ້ມີຈຸດປະສົງເພື່ອໃຊ້ໂດຍບຸກຄົນ (ລວມທັງເດັກນ້ອຍ) ທີ່ມີຄວາມສາມາດທາງຮ່າງກາຍ, ຄວາມຮູ້ສຶກ ຫຼືຈິດໃຈທີ່ຫຼຸດລົງ, ຫຼືຂາດປະສົບການ ແລະຄວາມຮູ້, ເວັ້ນເສຍແຕ່ວ່າພວກເຂົາໄດ້ຮັບການຊີ້ນໍາ ຫຼືຄໍາແນະນໍາກ່ຽວກັບການນໍາໃຊ້ເຄື່ອງໃຊ້ໂດຍບຸກຄົນທີ່ຮັບຜິດຊອບຄວາມປອດໄພຂອງເຂົາເຈົ້າ.
- ເດັກນ້ອຍຄວນໄດ້ຮັບການເບິ່ງແຍງເພື່ອຮັບປະກັນວ່າພວກເຂົາບໍ່ໄດ້ຫຼີ້ນກັບເຄື່ອງໃຊ້.
2. ຄຸນລັກສະນະຂອງຜະລິດຕະພັນ
- ຄວາມອາດສາມາດສູງ: ກຳຈັດຄວາມຊຸ່ມຊື່ນໄດ້ເຖິງ 120 ພິນຕໍ່ມື້, ເໝາະສຳລັບພື້ນທີ່ສູງເຖິງ 6,000 ຕາລາງຟຸດ.
- 90° Auto Swing Airflow: Distributes dry air evenly, improving circulation and dehumidification efficiency.
- ການຄວບຄຸມຄວາມຊຸ່ມຊື່ນອັດສະລິຍະ: Adjustable humidity range from 30% to 80% RH for flexible drying.
- Energy Star ຮັບການຮັບຮອງ: Engineered for efficient operation, minimizing energy consumption.
- AI-Smart Protection System: Features automatic defrost and overload protection for reliable performance.
- ການດໍາເນີນງານງຽບ: Operates at approximately 42 dB, suitable for various environments including bedrooms.
- Flexible Drainage: Supports both manual drainage with a 1.14-gallon water tank and continuous gravity drainage with the included 3.3 ft drain hose.
- ໂມງຈັບເວລາ 24 ຊົ່ວໂມງ: Allows scheduling of automatic on/off cycles for convenience and energy saving.
- ຕົວກອງທີ່ສາມາດຖອດອອກໄດ້ ແລະ ລ້າງອອກໄດ້: Easy to remove and clean for consistent air quality.
- ການພົກພາ: Equipped with caster wheels and integrated handles for easy movement.
3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ
Before first use, ensure the unit has been standing upright for at least 24 hours to allow the refrigerant to settle. Remove all packaging materials and tape from the unit.
Unboxing ແລະການຈັດວາງເບື້ອງຕົ້ນ
Image: The Waykar 120 Pints Dehumidifier positioned in a living room, showcasinການອອກແບບທີ່ກະທັດຮັດ ແລະ ງ່າຍຕໍ່ການພົກພາ.
- ເອົາເຄື່ອງດູດຄວາມຊຸ່ມອອກຈາກບັນຈຸພັນຂອງມັນຢ່າງລະມັດລະວັງ.
- Place the unit on a firm, level surface in the desired location.
- ໃຫ້ແນ່ໃຈວ່າມີຊ່ອງຫວ່າງຢ່າງໜ້ອຍ 8 ນິ້ວ (20 ຊຕມ) ອ້ອມຕົວເຄື່ອງສໍາລັບການໄຫຼວຽນຂອງອາກາດທີ່ເຫມາະສົມ.
ການເຊື່ອມຕໍ່ພະລັງງານ
ສຽບສາຍໄຟໃສ່ບ່ອນສຽບໄຟຟ້າທີ່ມີດິນ. ດຽວນີ້ ໜ່ວຍ ດັ່ງກ່າວກຽມພ້ອມ ສຳ ລັບການ ດຳ ເນີນງານ.
Video: Waykar 120 Pints Energy Star Dehumidifier Overview
Video Description: An official Waykar video demonstrating the key features and benefits of the 120 Pints Energy Star Dehumidifier, including its quiet operation, auto-swing function, and ease of use.
4. ຄໍາແນະນໍາການດໍາເນີນງານ
ແຜງຄວບຄຸມຜ່ານview

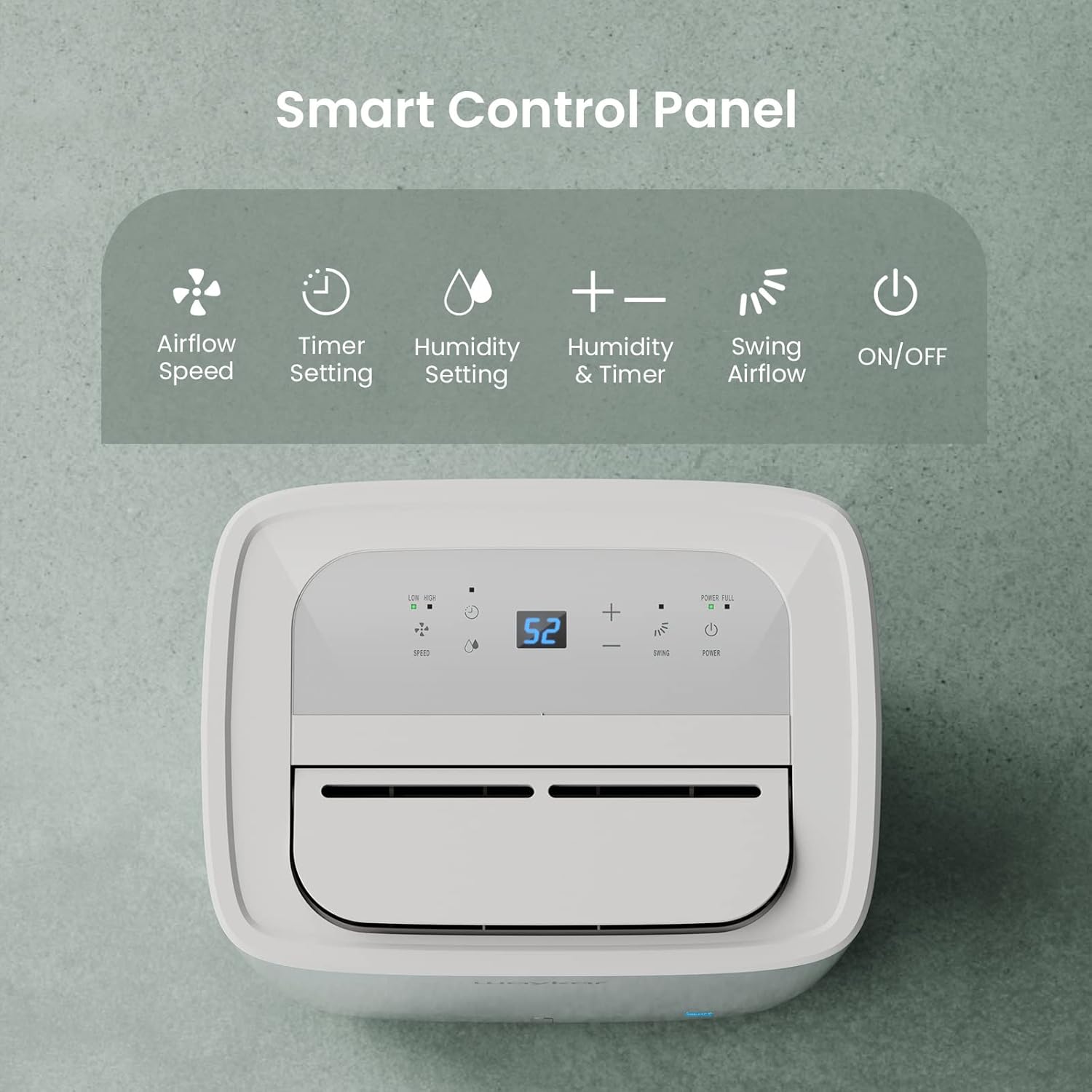

ຮູບພາບ: A ລາຍລະອຽດ view of the dehumidifier's smart control panel, showing buttons for Airflow Speed, Timer Setting, Humidity Setting, Swing Airflow, and ON/OFF.
- ປຸ່ມເປີດປິດ: ກົດເພື່ອເປີດ ຫຼືປິດເຄື່ອງ.
- ການຕັ້ງຄ່າຄວາມຊຸ່ມຊື່ນ: Use the '+' and '-' buttons to set your desired humidity level between 30% and 80% RH. The unit will operate until this level is reached.
- ຄວາມໄວພັດລົມ: Press the 'Speed' button to toggle between Low and High fan speeds.
- ຟັງຊັນ Swing: Press the 'Swing' button to activate or deactivate the 90° auto swing airflow.
- ໂມງຈັບເວລາ: Press the 'Timer' button to set a 1-24 hour timer for automatic ON/OFF operation.
- Power Full Indicator: Illuminates when the water tank is full, and the unit will automatically shut off.
ການຕັ້ງຄ່າຄວາມຊຸ່ມຊື່ນທີ່ຕ້ອງການ
Once powered on, the display will show the current room humidity. Use the '+' or '-' buttons to adjust the target humidity. The unit will run until the set humidity is achieved, then cycle on and off to maintain it.
ຟັງຊັນ Defrost ອັດຕະໂນມັດ
The dehumidifier is equipped with an AI-Smart Protection System that automatically activates defrost mode when frost builds up on the evaporator coils, ensuring efficient operation in low temperatures.
5. ທາງເລືອກໃນການລະບາຍນ້ໍາ
Your Waykar dehumidifier offers two convenient drainage methods:
ການລະບາຍນໍ້າດ້ວຍມື (ຖັງນໍ້າ)
Image: The detachable water tank of the Waykar Dehumidifier, showing its visible water level indicator and washable design.
- When the 1.14-gallon water tank is full, the "Power Full" indicator will light up, and the unit will automatically stop operating.
- ດຶງຖັງນ້ໍາອອກຈາກດ້ານຫນ້າຂອງຫນ່ວຍງານຢ່າງລະມັດລະວັງ.
- Empty the collected water and slide the tank back into place until it clicks securely.
- The unit will resume operation automatically once the tank is reinserted.
Continuous Drainage (Drain Hose)
Image: The Waykar Dehumidifier illustrating its dual drainage capabilities: the removable water tank for manual emptying and the rear connection for a continuous drain hose.
- For continuous operation without emptying the tank, attach the included 3.3 ft drain hose to the drainage port at the back of the unit.
- Ensure the hose is sloped downwards to allow gravity drainage into a suitable floor drain or container.
- The drainage port uses a standard 3/4" garden hose connection for easy compatibility.
6. ບໍາລຸງຮັກສາ
ການບໍາລຸງຮັກສາເປັນປົກກະຕິຮັບປະກັນການປະຕິບັດທີ່ດີທີ່ສຸດແລະອາຍຸຍືນຂອງເຄື່ອງດູດຝຸ່ນຂອງທ່ານ.
ເຮັດຄວາມສະອາດເຄື່ອງກອງອາກາດ
- The detachable and washable filter should be cleaned every two weeks or more frequently depending on usage and air quality.
- ປິດເຄື່ອງລະບາຍຄວາມຊຸ່ມຊື່ນ ແລະຖອດປລັກອອກຈາກປລັກສຽບໄຟ.
- ເອົາການກັ່ນຕອງອອກຈາກດ້ານຫລັງຂອງຫນ່ວຍງານ.
- ລ້າງການກັ່ນຕອງດ້ວຍນ້ໍາສະບູທີ່ອົບອຸ່ນ. ລ້າງໃຫ້ສະອາດແລະປ່ອຍໃຫ້ມັນແຫ້ງຫມົດກ່ອນທີ່ຈະໃສ່ໃຫມ່.
- Never operate the dehumidifier without the filter in place.
ການເຮັດຄວາມສະອາດຖັງນ້ໍາ
- Clean the water tank periodically to prevent mold and bacteria growth.
- Remove the tank, empty any water, and wash it with mild detergent and warm water.
- ລ້າງໃຫ້ສະອາດ ແລະ ຕາກໃຫ້ແຫ້ງ ກ່ອນທີ່ຈະເອົາມັນຄືນໃສ່ເຄື່ອງ.
7. ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ເຄື່ອງດູດຄວາມຊຸ່ມຊື້ນບໍ່ເປີດ. | No power, tank full, temperature too low. | Check power connection, empty water tank, ensure room temperature is above 41°F (5°C). |
| ຫນ່ວຍບໍລິການເຮັດວຽກແຕ່ບໍ່ dehumidify. | Filter clogged, room too large, doors/windows open. | Clean air filter, ensure unit is sized correctly for the space, close all doors and windows. |
| "Power Full" light is on, but tank is not full. | Float switch stuck or misaligned. | Remove and reinsert the water tank, check the float switch for obstructions. |
| ໜ່ວຍມີສຽງດັງ. | Unit not level, filter clogged, internal issue. | Place on a level surface, clean filter. If noise persists, contact customer support. |
8. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຍີ່ຫໍ້ | Waykar |
| ຊື່ຕົວແບບ | JD-CE |
| ໝາຍເລກຕົວແບບ | JD025CE-120 |
| ຄວາມອາດສາມາດ | 120 Pints (95°F, 90% RH) / 15 Gallons per Day |
| ພື້ນທີ່ຄອບຄຸມ | Up to 6,000 Sq. Ft |
| ປະລິມານຖັງ | 1.14 ກາລອນ (4.3L) |
| ຊ່ວງຄວາມຊຸ່ມຊື່ນ | 30%–80% RH |
| ລະດັບສຽງ | ປະມານ 42 dB |
| ຂະໜາດສິນຄ້າ | 9.84"D x 13.39"W x 21.86"H |
| ນ້ໍາຫນັກລາຍການ | 34 ປອນ |
| ວັດtage | 350 ວັດ |
| ຄຸນນະສົມບັດພິເສດ | Auto swing, Automatic Defrost, ENERGY STAR Certified, Overheat Protection, Quiet Operation, Timer, Washable Filter |
| ອົງປະກອບລວມ | Dehumidifier, Visible Water Tank, Drain Hose (3.3 ft), Detachable & Washable Filter, Power Cord |
9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Waykar is a U.S.-based brand with over 10 years of dehumidifier expertise. We are committed to providing reliable products and excellent customer service.
- ການຮັບປະກັນ: Each unit includes a 1-year warranty plus an additional free year upon registration.
- ການຊ່ວຍເຫຼືອລູກຄ້າ: Our team is available 24/7 to assist with any questions or concerns.
- ຂໍ້ມູນຕິດຕໍ່: Please refer to the contact details provided in your product registration card or visit the official Waykar webເວັບໄຊສໍາລັບການສະຫນັບສະຫນູນ.
