STANLEY FatMax SFMCF800M2K 18V Cordless Impact Driver

1. ບົດແນະນຳ

Thank you for choosing the STANLEY FatMax SFMCF800M2K 18V Cordless Impact Driver. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference. Proper understanding and adherence to these instructions will ensure optimal performance and extend the life of your impact driver.

2. ຂໍ້ມູນຄວາມປອດໄພ

ຄຳເຕືອນ: ອ່ານຄຳເຕືອນຄວາມປອດໄພທັງໝົດ, ຄຳແນະນຳ, ຮູບປະກອບ, ແລະຂໍ້ສະເພາະທີ່ສະໜອງໃຫ້ກັບເຄື່ອງມືໄຟຟ້ານີ້. ການບໍ່ປະຕິບັດຕາມຄໍາແນະນໍາທັງຫມົດທີ່ລະບຸໄວ້ຂ້າງລຸ່ມນີ້ອາດຈະເຮັດໃຫ້ໄຟຟ້າຊ໊ອກ, ໄຟໄຫມ້, ແລະ / ຫຼືການບາດເຈັບທີ່ຮ້າຍແຮງ.

ຄວາມປອດໄພຂອງເຄື່ອງມືພະລັງງານທົ່ວໄປ

• ຄວາມປອດໄພໃນພື້ນທີ່ເຮັດວຽກ: ຮັກສາພື້ນທີ່ບ່ອນເຮັດວຽກຂອງເຈົ້າໃຫ້ສະອາດ ແລະ ມີແສງສະຫວ່າງດີ. ພື້ນທີ່ວຸ້ນວາຍ ຫຼືບ່ອນມືດພາໃຫ້ເກີດອຸປະຕິເຫດ. ຫ້າມໃຊ້ເຄື່ອງມືໄຟຟ້າໃນບັນຍາກາດທີ່ລະເບີດ, ເຊັ່ນໃນທີ່ປະທັບຂອງຂອງແຫຼວ, ອາຍແກັສ, ຫຼືຝຸ່ນ.
• ຄວາມປອດໄພທາງໄຟຟ້າ: ຫຼີກເວັ້ນການສໍາຜັດກັບຮ່າງກາຍກັບພື້ນດິນຫຼືຫນ້າດິນເຊັ່ນ: ທໍ່, radiators, ຂອບເຂດ, ແລະຕູ້ເຢັນ. ມີຄວາມສ່ຽງສູງຕໍ່ການເກີດໄຟຟ້າຊັອດ ຖ້າຮ່າງກາຍຂອງເຈົ້າຖືກດິນ ຫຼືດິນ.
• ຄວາມປອດໄພສ່ວນຕົວ: ໃສ່ອຸປະກອນປ້ອງກັນດວງຕາສະເໝີ. ໃຊ້ອຸປະກອນປ້ອງກັນສ່ວນຕົວເຊັ່ນ: ຜ້າອັດປາກກັນຝຸ່ນ, ເກີບນິລະໄພທີ່ບໍ່ເລື່ອນ, ໝວກແຂງ, ຫຼື ອຸປະກອນປ້ອງກັນການໄດ້ຍິນເມື່ອເໝາະສົມ. ຈົ່ງມີສະຕິລະວັງຕົວ, ລະວັງສິ່ງທີ່ທ່ານກຳລັງເຮັດ, ແລະ ໃຊ້ສະຕິປັນຍາທົ່ວໄປເມື່ອໃຊ້ເຄື່ອງມືໄຟຟ້າ.
• ການ​ນໍາ​ໃຊ້​ແລະ​ການ​ດູ​ແລ​ເຄື່ອງ​ມື​: Do not force the power tool. Use the correct power tool for your application. It will do the job better and safer at the rate for which it was designed. Disconnect the plug from the power source and/or remove the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

ການ​ນໍາ​ໃຊ້​ແລະ​ການ​ດູ​ແລ​ເຄື່ອງ​ມື​ຫມໍ້​ໄຟ​

• ເຕີມເງິນດ້ວຍເຄື່ອງສາກທີ່ລະບຸໂດຍຜູ້ຜະລິດເທົ່ານັ້ນ. ເຄື່ອງສາກທີ່ເໝາະສົມກັບແບັດເຕີລີຊະນິດໜຶ່ງອາດຈະເຮັດໃຫ້ເກີດຄວາມສ່ຽງໄຟໄໝ້ເມື່ອໃຊ້ກັບແບັດເຕີລີອື່ນ.
• ໃຊ້ເຄື່ອງມືພະລັງງານກັບຊຸດຫມໍ້ໄຟທີ່ກໍານົດໂດຍສະເພາະ. ການ​ນໍາ​ໃຊ້​ຫມໍ້​ໄຟ​ອື່ນໆ​ອາດ​ຈະ​ສ້າງ​ຄວາມ​ສ່ຽງ​ຕໍ່​ການ​ບາດ​ເຈັບ​ແລະ​ໄຟ​ໄຫມ້​.
• ເມື່ອແບັດເຕີລີບໍ່ໄດ້ໃຊ້, ໃຫ້ເກັບຮັກສາມັນໄວ້ຫ່າງຈາກວັດຖຸໂລຫະອື່ນໆ, ເຊັ່ນ: ກະດາດກະດາດ, ຫຼຽນ, ກະແຈ, ຕະປູ, ສະກູ ຫຼືວັດຖຸໂລຫະຂະຫນາດນ້ອຍອື່ນໆ, ເຊິ່ງສາມາດເຮັດໃຫ້ການເຊື່ອມຕໍ່ຈາກສະຖານີຫນຶ່ງໄປຫາອີກ. ການສຽບປ້ຳແບັດເຕີຣີໃຫ້ສັ້ນເຂົ້າກັນອາດເຮັດໃຫ້ເກີດການເຜົາໄໝ້ ຫຼືໄຟໄໝ້ໄດ້.

3. ເນື້ອໃນຊຸດ

Your STANLEY FatMax SFMCF800M2K Impact Driver package includes the following items:

• STANLEY FatMax SFMCF800 Impact Driver
• Two (2) STANLEY FatMax V20 18V 4.0 Ah Lithium-Ion Batteries
• STANLEY FatMax V20 Fast Charger
• ກະເປົາຖື

Image: The STANLEY FatMax SFMCF800M2K Impact Driver kit, including the tool, two batteries, a charger, and a durable carrying case for storage and transport.

4. ຄຸນລັກສະນະຂອງຜະລິດຕະພັນ

The STANLEY FatMax SFMCF800 Impact Driver is designed for demanding fastening applications, offering a blend of power, control, and ergonomic design.

• Powerful Variable Speed Motor: Provides enhanced control across various applications, delivering up to 2800 RPM.
• ແຮງບິດສູງ Output: Delivers a maximum torque of 165 Nm for challenging fastening tasks.
• ການອອກແບບນ້ຳໜັກເບົາ ແລະກະທັດຮັດ: Ensures comfortable use and reduces user fatigue during extended operation.
• Ergonomic Grip: Designed for improved handling and control.
• ແສງ LED ປະສົມປະສານ: Illuminates the work area for better visibility in dimly lit conditions.
• V20 Lithium-Ion System: Part of the STANLEY FATMAX V20 18V Lithium-Ion cordless system, ensuring compatibility with other V20 tools and batteries.
• Quick-Change Hex Chuck: 6.35 mm (1/4") hex attachment for fast and easy bit changes.

Image: The STANLEY FatMax SFMCF800 Impact Driver, showcasing ການອອກແບບທີ່ຫນາແຫນ້ນແລະການຈັດການ ergonomic ຂອງມັນ.

Image: The integrated LED light on the STANLEY FatMax SFMCF800 Impact Driver illuminating the work surface, demonstrating its utility in low-light conditions.

5. ຕັ້ງຄ່າ

ການຕິດຕັ້ງແລະການກໍາຈັດຫມໍ້ໄຟ

1. To install the battery, align the battery pack with the slot in the tool's handle. Slide the battery pack into the handle until it clicks securely into place.
2. To remove the battery, press the release button located on the battery pack and slide the battery out of the handle.

Image: A STANLEY FatMax V20 18V 4.0 Ah Lithium-Ion battery pack, ready for installation into the impact driver or charger.

ກຳລັງສາກແບັດເຕີຣີ

Before first use, fully charge the battery pack. Refer to the charger's instruction manual for detailed charging procedures.

1. Plug the STANLEY FatMax V20 Fast Charger into a standard electrical outlet.
2. Slide the battery pack onto the charger until it is fully seated. The charger's indicator light will show the charging status.
3. ເມື່ອການສາກໄຟສຳເລັດແລ້ວ, ໃຫ້ຖອດຊຸດແບັດເຕີຣີອອກຈາກເຄື່ອງສາກ.

Image: The STANLEY FatMax V20 Fast Charger, designed for quick and efficient charging of V20 Lithium-Ion batteries.

ການ​ຕິດ​ຕັ້ງ​ບິດ​ແລະ​ການ​ໂຍກ​ຍ້າຍ​

1. To install a bit, pull the chuck collar forward and insert the hex shank of the bit fully into the chuck. Release the chuck collar to lock the bit in place. Tug on the bit to ensure it is securely fastened.
2. To remove a bit, pull the chuck collar forward and pull the bit straight out. Release the chuck collar.

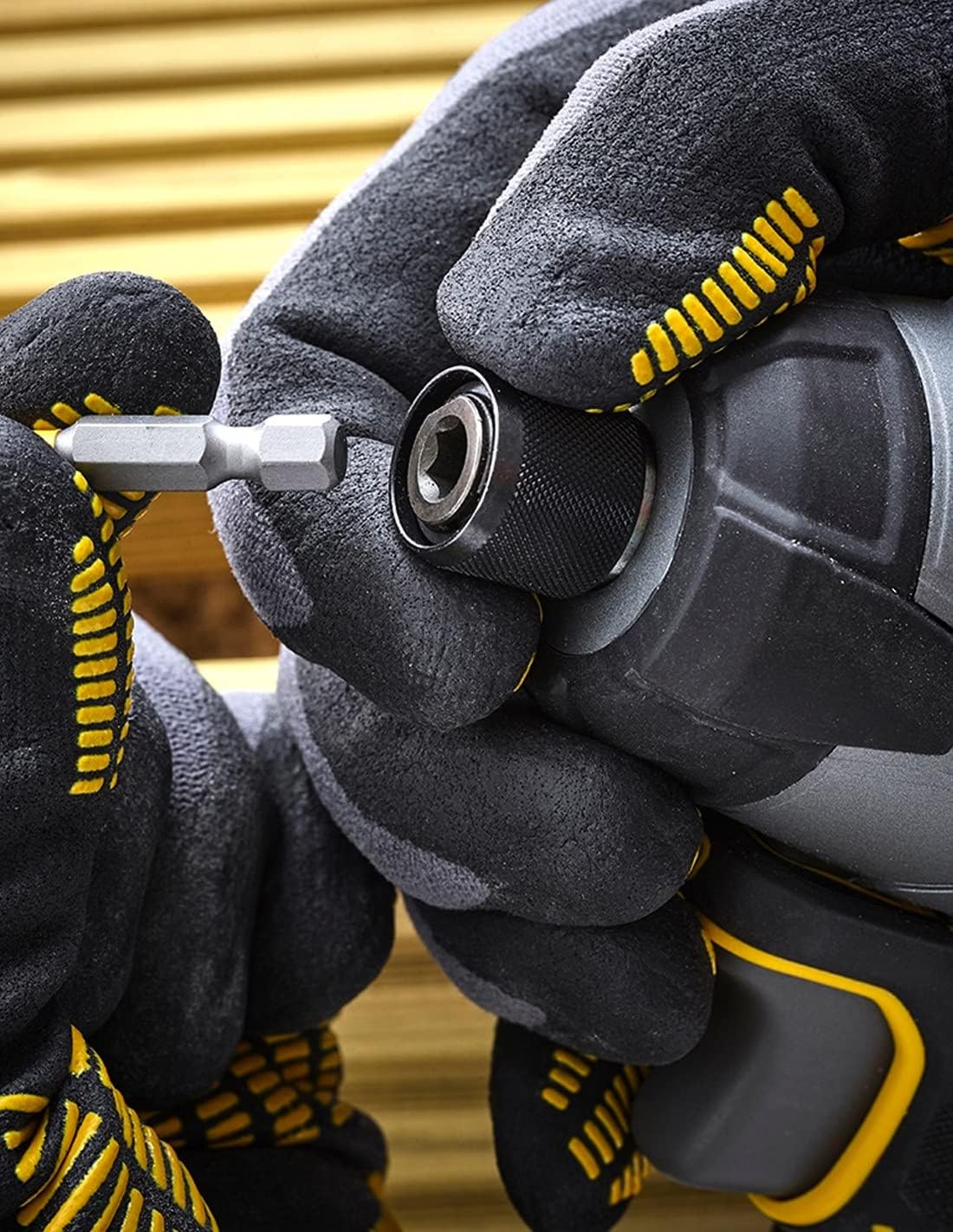

ຮູບພາບ: A close-up view of a hand inserting a hex drive bit into the 6.35 mm (1/4") quick-change chuck of the impact driver.

6. ຄໍາແນະນໍາການດໍາເນີນງານ

Turning On/Off and Variable Speed Control

• To turn the tool ON, squeeze the trigger switch. The tool speed is controlled by the amount of trigger depression; the more the trigger is pressed, the faster the tool operates.
• ເພື່ອປິດເຄື່ອງມື, ໃຫ້ປ່ອຍສະວິດໄກ.

Direction Control (Forward/Reverse)

The forward/reverse button is located above the trigger. Push the button to the left for forward rotation (tightening) and to the right for reverse rotation (loosening). Ensure the tool has come to a complete stop before changing direction.

ການນໍາໃຊ້ໄຟ LED ເຮັດວຽກ

The integrated LED work light automatically activates when the trigger is pressed, illuminating the work surface for improved visibility. It remains on for a short period after the trigger is released.

ຄໍາແນະນໍາການນໍາໃຊ້ທົ່ວໄປ

• ຖືເຄື່ອງມືໃຫ້ແໜ້ນດ້ວຍມືທັງສອງສະເໝີ, ໂດຍສະເພາະເມື່ອໃຊ້ແຮງບິດສູງ.
• Ensure the fastener is properly seated before starting the impact action.
• For optimal performance and safety, use only genuine STANLEY FatMax accessories.

Image: A user demonstrating the STANLEY FatMax SFMCF800 Impact Driver in action, highlighting its ergonomic design and ease of use during fastening tasks.

7. ບໍາລຸງຮັກສາ

ທໍາຄວາມສະອາດ

• ຮັກສາຊ່ອງລະບາຍອາກາດຂອງເຄື່ອງມືໃຫ້ສະອາດເພື່ອປ້ອງກັນຄວາມຮ້ອນເກີນ.
• ໃຊ້ອ່ອນ, ງamp ຜ້າອະນາໄມເຄື່ອງມື ຄasing. ຢ່າໃຊ້ເຄື່ອງເຮັດຄວາມສະອາດຂັດຫຼືສານລະລາຍ.
• Regularly remove dust and debris from the chuck area.

ການເກັບຮັກສາ

• ເກັບຮັກສາເຄື່ອງມື ແລະ ໝໍ້ໄຟໄວ້ໃນບ່ອນທີ່ເຢັນ, ແຫ້ງ, ຫ່າງຈາກແສງແດດໂດຍກົງ ແລະ ອຸນຫະພູມທີ່ຮ້າຍກາດ.
• ໃຫ້ແນ່ໃຈວ່າເອົາຫມໍ້ໄຟອອກຈາກເຄື່ອງມືກ່ອນທີ່ຈະເກັບຮັກສາ.
• Store batteries with a partial charge (around 50%) if storing for extended periods to prolong battery life.

ການດູແລຫມໍ້ໄຟ

• ຫ້າມບໍ່ໃຫ້ແບດເຕີຣີ້ຖືກນ້ຳ ຫຼື ຄວາມຊຸ່ມຊື່ນ.
• Do not attempt to open or modify battery packs.
• ຖິ້ມແບດເຕີຣີເກົ່າຫຼືເສຍຫາຍຢ່າງມີຄວາມຮັບຜິດຊອບຕາມກົດລະບຽບທ້ອງຖິ່ນ.

8. ການແກ້ໄຂບັນຫາ

If you encounter issues with your STANLEY FatMax SFMCF800 Impact Driver, refer to the following common problems and solutions:

ຖ້າບັນຫາຍັງຄົງຢູ່ຫຼັງຈາກພະຍາຍາມແກ້ໄຂເຫຼົ່ານີ້, ກະລຸນາຕິດຕໍ່ຝ່າຍຊ່ວຍເຫຼືອລູກຄ້າ.

9. ຂໍ້ກໍານົດດ້ານວິຊາການ

The following are the technical specifications for the STANLEY FatMax SFMCF800 Impact Driver:

10. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

ຂໍ້ມູນການຮັບປະກັນ

This STANLEY FatMax product is covered by a limited warranty. Please refer to the warranty card included with your purchase or visit the official STANLEY FatMax webເວັບໄຊສໍາລັບເງື່ອນໄຂການຮັບປະກັນລາຍລະອຽດ. ຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮ້ອງຂໍການຮັບປະກັນ.

ການຊ່ວຍເຫຼືອລູກຄ້າ

For technical assistance, spare parts, or service, please contact STANLEY FatMax customer support. Contact information can typically be found on the official STANLEY FatMax webສະຖານທີ່ຫຼືຢູ່ໃນການຫຸ້ມຫໍ່ຜະລິດຕະພັນ.

ຊັບພະຍາກອນອອນໄລນ໌: For additional information, product registration, and FAQs, visit the official STANLEY FatMax webເວັບໄຊ.
