DynaScan M-6D-V VHF FM Radio Instruction Manual

1. ບົດແນະນຳ

Thank you for choosing the DynaScan M-6D-V VHF FM Radio. This manual provides detailed instructions for the proper installation, operation, and maintenance of your radio. Please read this manual thoroughly before using the device to ensure optimal performance and safety. The M-6D-V is a robust VHF FM radio designed for reliable communication within the 136-174 MHz frequency range, featuring 200 programmable channels, CTCSS/DCS tones, and various advanced functions.

2. ຂໍ້ມູນຄວາມປອດໄພ

Always observe the following safety precautions to prevent fire, injury, or damage to the radio:

• Do not operate the radio in explosive atmospheres (e.g., near flammable gas, dust particles, metallic powders, etc.).
• Do not transmit without an antenna connected.
• ຮັບປະກັນການສະຫນອງພະລັງງານ voltage matches the radio's requirements (13.8 Vdc). Incorrect voltage ສາມາດທໍາລາຍຫນ່ວຍງານ.
• ຫຼີກລ່ຽງການໃຫ້ວິທະຍຸສຳຜັດກັບແສງແດດໂດຍກົງເປັນເວລາດົນ ຫຼື ໃນອຸນຫະພູມທີ່ຮຸນແຮງ.
• ເກັບຮັກສາວິທະຍຸໃຫ້ຫ່າງຈາກນໍ້າ ແລະ ຄວາມຊຸ່ມ.
• Do not attempt to open or modify the radio. Repairs should only be performed by qualified technicians.
• ໃຊ້ອຸປະກອນເສີມທີ່ອະນຸມັດເທົ່ານັ້ນ.

3. ເນື້ອໃນຊຸດ

ກວດ​ສອບ​ວ່າ​ລາຍ​ການ​ທັງ​ຫມົດ​ແມ່ນ​ມີ​ຢູ່​ໃນ​ຊຸດ​:

• DynaScan M-6D-V VHF FM Radio Unit
• Microphone with DTMF keypad
• ສາຍໄຟ DC
• ວົງເລັບຕິດຕັ້ງ
• ຮາດແວຕິດຕັ້ງ (ສະກູ, ເຄື່ອງຊັກຜ້າ)
• ຄູ່ມືແນະ ນຳ (ເອກະສານນີ້)

Image 3.1: Contents of the DynaScan M-6D-V package, including the radio unit, microphone, power cable, and mounting bracket.

4. ຜະລິດຕະພັນເກີນview

The DynaScan M-6D-V is a compact and powerful VHF mobile radio. Familiarize yourself with its main components:

4.1 Radio Unit

ຮູບພາບ 4.1.1: ດ້ານຫນ້າ view of the DynaScan M-6D-V radio unit with the microphone connected. Shows the display, control knobs, and function buttons.

• ແຜງໜ້າ: Features an LCD screen, power button, volume/squelch knob, channel selector, and various function buttons (FUN, SET, CAL, H/L, SQL, POW).
• ກະດານດ້ານຫລັງ: Includes the antenna connector (SO-239 type), DC power input, and external speaker jack (if applicable).
• ເຄື່ອງລະບາຍຄວາມຮ້ອນ: The ribbed metal casing on the top and sides acts as a heat sink to dissipate heat during transmission.

ຮູບພາບ 4.1.2: ດ້ານຫລັງ view of the DynaScan M-6D-V radio unit, highlighting the antenna connector and the extensive heat sink fins.

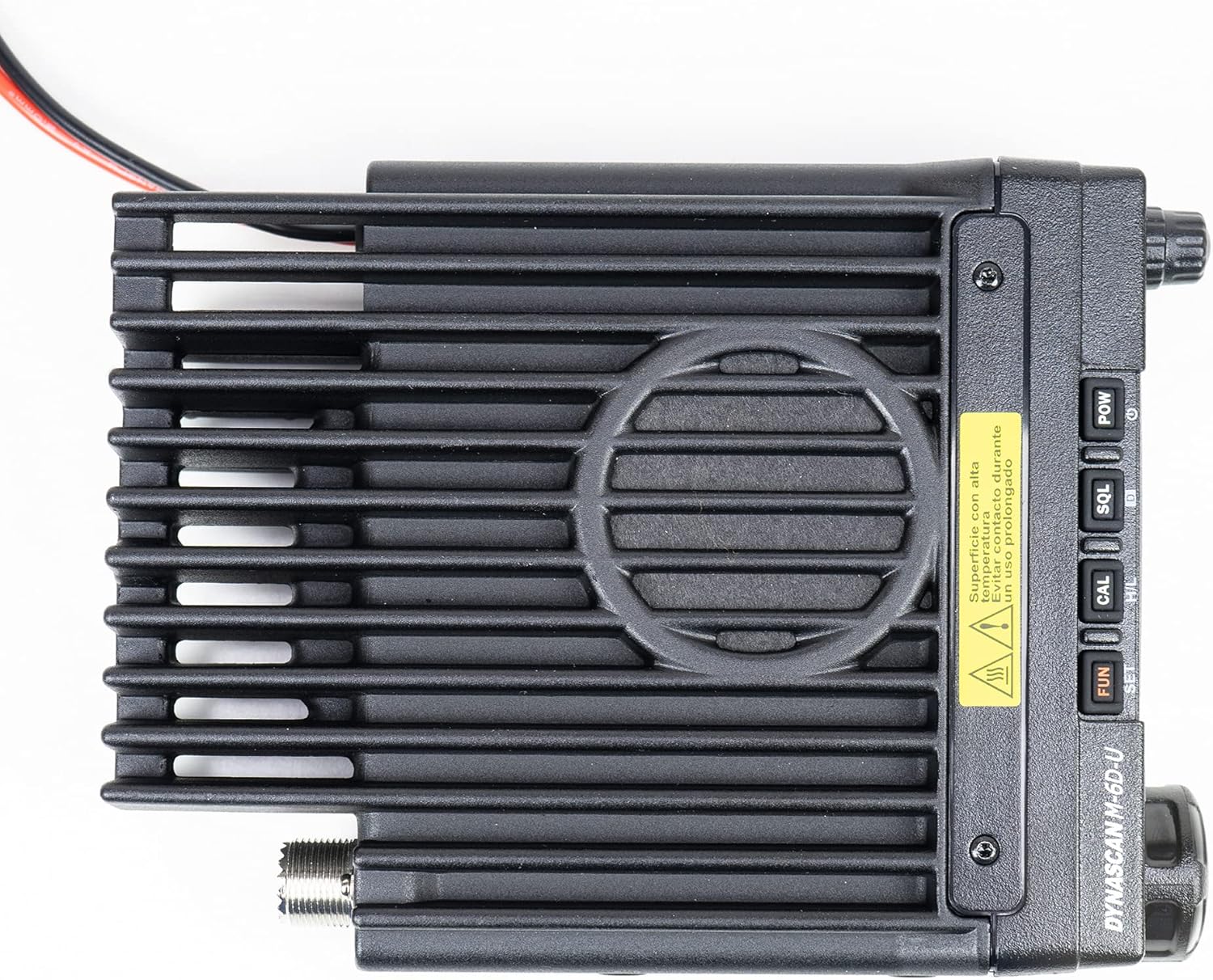

ຮູບພາບ 4.1.3: ທາງເທິງ view of the DynaScan M-6D-V radio unit, emphasizing the heat sink design for thermal management.

4.2 ໄມໂຄຣໂຟນ

ຮູບພາບທີ 4.2.1: ໄລຍະໃກ້ view of the DynaScan M-6D-V microphone, featuring a full DTMF keypad and function buttons.

The supplied microphone includes a DTMF keypad for direct frequency entry, channel selection, and accessing various functions. It also has a PTT (Push-To-Talk) button on the side.

5. ຕັ້ງຄ່າ

Follow these steps for initial setup of your DynaScan M-6D-V radio:

5.1 ການຕິດຕັ້ງວິທະຍຸ

1. Choose a secure and accessible location for mounting the radio, ensuring adequate ventilation around the heat sink.
2. ໃຊ້ຂາຍຶດທີ່ໃຫ້ມາເປັນແມ່ແບບເພື່ອໝາຍສະຖານທີ່ເຈາະ.
3. Drill pilot holes and secure the mounting bracket using the supplied screws.
4. Slide the radio into the bracket and secure it with the bracket screws.

5.2 ການເຊື່ອມຕໍ່ເສົາອາກາດ

Connect a suitable VHF antenna (136-174 MHz) to the SO-239 connector on the rear of the radio. Ensure the connection is tight to prevent signal loss and potential damage to the radio's final ampຊີວິດ stage.

5.3 ການເຊື່ອມຕໍ່ການສະຫນອງພະລັງງານ

1. Connect the supplied DC power cable to the power input on the rear of the radio.
2. Connect the red wire to the positive (+) terminal of a 13.8 Vdc power supply and the black wire to the negative (-) terminal.
3. Ensure the power supply can provide sufficient current for the radio's maximum output power (60W).
4. ຂໍ້ຄວນລະວັງ: Incorrect polarity or insufficient power supply can damage the radio.

5.4 ການເຊື່ອມຕໍ່ໄມໂຄຣໂຟນ

Plug the microphone's RJ-45 connector into the corresponding jack on the front panel of the radio.

6. ຄໍາແນະນໍາການດໍາເນີນງານ

6.1 ເປີດ/ປິດ ແລະຄວບຄຸມລະດັບສຽງ

• ເປີດ: ກົດຄ້າງໄວ້ POW ປຸ່ມໃນກະດານທາງຫນ້າ.
• ປິດພະລັງງານ: ກົດຄ້າງໄວ້ POW ປຸ່ມອີກເທື່ອຫນຶ່ງ.
• ປະລິມານ: Rotate the outer knob (Volume) on the front panel clockwise to increase volume, counter-clockwise to decrease.

6.2 ການປັບຕົວ Squelch

The squelch function mutes the speaker when no signal is received, eliminating background noise.

• Adjust Squelch: Rotate the inner knob (Squelch) on the front panel. Turn it clockwise until the background noise disappears. Turn it counter-clockwise to open the squelch and hear all signals, including noise.

6.3 ການເລືອກຊ່ອງທາງ ແລະ ຄວາມຖີ່

The radio supports both VFO (Variable Frequency Oscillator) mode for direct frequency input and Memory Channel mode for pre-programmed channels.

• ສະຫຼັບໂໝດ: ກົດ VFO/MR button on the microphone or the corresponding function on the front panel.
• ໂໝດ VFO: Use the channel selector knob on the front panel or the microphone keypad to enter frequencies directly.
• Memory Channel Mode: Rotate the channel selector knob to cycle through the 200 programmable channels.

6.4 Frequency Step

The frequency step determines the increment when tuning. Available steps are 12.5 KHz, 20 KHz, and 25 KHz.

• Change Step: Refer to the programming software manual or the radio's menu system for step adjustment.

6.5 ສຽງ CTCSS/DCS

CTCSS (Continuous Tone-Coded Squelch System) and DCS (Digital Coded Squelch) tones are used to filter unwanted signals and allow private group communication. The radio supports 50 CTCSS and 1024 DCS codes.

• Setting Tones: Access the menu system (usually via the ມ່ວນ or SET button) to select and set the desired CTCSS or DCS codes for both transmit and receive.

6.6 ການສະແກນ

The scanning function allows the radio to automatically search for active signals across frequencies or memory channels.

• Activate Scan: ກົດ SCN button on the microphone or the corresponding function on the front panel.
• Stop Scan: ກົດ SCN again or the PTT button.

6.7 Time Out Timer (TOT)

The TOT feature prevents excessively long transmissions by automatically stopping transmission after a pre-set time. This protects the radio from overheating and ensures fair use of the channel.

• Setting TOT: The TOT duration is typically configured via the programming software.

6.8 Busy Channel Lockout (BCL)

BCL ປ້ອງກັນການສົ່ງຕໍ່ໃນຊ່ອງທາງທີ່ໃຊ້ງານຢູ່ແລ້ວ, ຫຼີກລ່ຽງການແຊກແຊງກັບການສົນທະນາທີ່ກຳລັງດຳເນີນຢູ່.

• Enable/Disable BCL: This feature is usually enabled or disabled through the radio's menu or programming software.

6.9 High/Low Power Selection

The radio offers selectable transmit power levels (Hi/Low) to conserve battery power and reduce interference when full power is not required.

• Switch Power: ກົດ H/L button on the front panel or microphone. The display will indicate the current power setting.

6.10 ລັກສະນະອື່ນໆ

• Scrambler: Provides basic voice privacy. Activation is typically via a menu setting or a dedicated function key.
• ລົມກັນ: Allows direct communication between two radios on a repeater output frequency, bypassing the repeater.
• DTMF Lock: Locks the DTMF keypad on the microphone to prevent accidental key presses.
• Compander: Compresses the audio signal during transmission and expands it during reception, improving audio clarity in noisy environments.
• Alphanumeric Display: The LCD screen displays channel names, frequencies, and status icons.
• Programmable by Software: Advanced settings, channel programming, and feature customization are performed using dedicated PC software and a programming cable (sold separately).

7. ບໍາລຸງຮັກສາ

ການບຳລຸງຮັກສາທີ່ເໝາະສົມຮັບປະກັນອາຍຸການໃຊ້ງານທີ່ຍາວນານ ແລະ ໜ້າເຊື່ອຖືຂອງວິທະຍຸຂອງທ່ານ.

• ທໍາຄວາມສະອາດ: Use a soft, dry cloth to clean the radio's exterior. For stubborn dirt, a slightly damp cloth with mild soap can be used, followed by a dry cloth. Do not use harsh chemicals or solvents.
• ເສົາອາກາດ: Regularly check the antenna connection for tightness and ensure the antenna itself is in good condition.
• ສາຍໄຟ: Inspect the power cable for any signs of damage or fraying.
• ການເກັບຮັກສາ: ເມື່ອບໍ່ໄດ້ໃຊ້ງານເປັນເວລາດົນ, ໃຫ້ເກັບຮັກສາວິທະຍຸໄວ້ໃນບ່ອນແຫ້ງ, ເຢັນ, ຫ່າງຈາກແສງແດດໂດຍກົງ ແລະ ອຸນຫະພູມສູງສຸດ.

8. ການແກ້ໄຂບັນຫາ

If you encounter issues with your DynaScan M-6D-V, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact DynaScan customer support or a qualified service technician.

9. ຂໍ້ມູນຈໍາເພາະ

10. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

DynaScan products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official DynaScan website. For technical support, service, or inquiries, please contact your authorized DynaScan dealer or customer service representative.
