Kobalt Hybrid 24-Volt Max Jobsite Fan Instruction Manual

1. ບົດແນະນຳ

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Kobalt Hybrid 24-Volt Max Jobsite Fan. Please read this manual thoroughly before operating the fan and retain it for future reference. This fan is designed for air circulation in various indoor and outdoor environments, offering both battery-powered portability and corded operation.

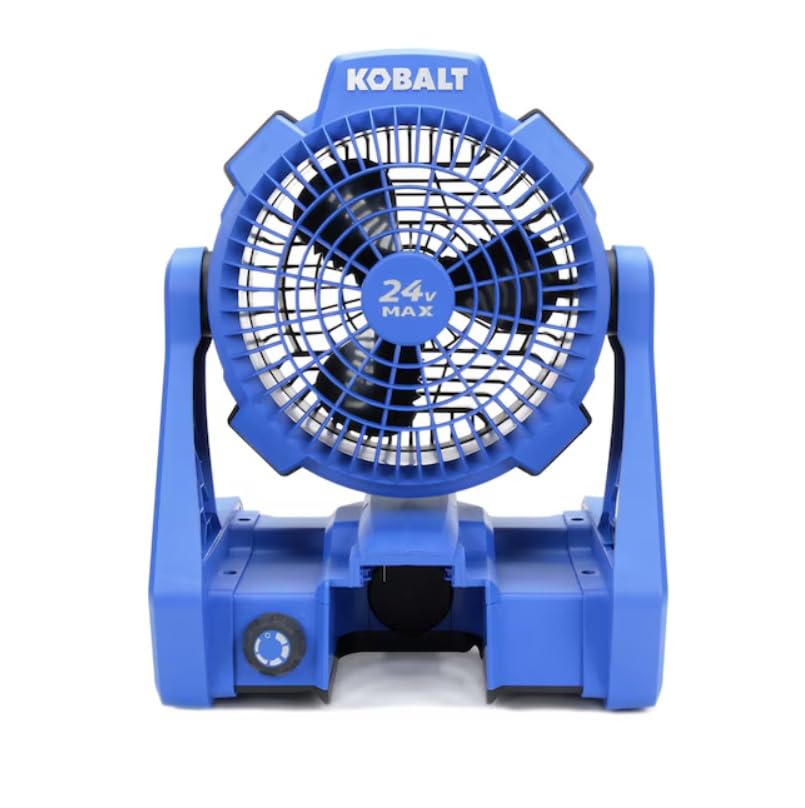

Figure 1: Kobalt Hybrid 24-Volt Max Jobsite Fan. This image displays the fan in its upright position, highlighting its robust blue and black casing and the 24V MAX branding on the fan grille.

2. ຂໍ້ມູນຄວາມປອດໄພ

ຕິດຕາມການລະມັດລະວັງດ້ານຄວາມປອດໄພຂັ້ນພື້ນຖານສະເໝີ ເພື່ອຫຼຸດຜ່ອນຄວາມສ່ຽງຕໍ່ການເກີດອັກຄີໄພ, ໄຟຊັອດ ແລະ ການບາດເຈັບສ່ວນບຸກຄົນ.

• ຢ່າໃຊ້ພັດລົມດ້ວຍສາຍໄຟ ຫຼືປລັກສຽບທີ່ເສຍຫາຍ.
• Avoid placing hands or objects near the fan blades during operation.
• ໃຫ້ແນ່ໃຈວ່າພັດລົມຖືກວາງຢູ່ເທິງພື້ນຜິວທີ່ມີລະດັບຄວາມຫມັ້ນຄົງເພື່ອປ້ອງກັນການບິດ.
• Keep the fan away from water or wet environments when using AC power.
• Use only Kobalt 24-Volt Max batteries and chargers with this product.
• ຕັດການເຊື່ອມຕໍ່ໄຟຟ້າກ່ອນທີ່ຈະທໍາຄວາມສະອາດຫຼືດໍາເນີນການບໍາລຸງຮັກສາໃດໆ.

3. ເນື້ອໃນຊຸດ

ກວດ​ສອບ​ວ່າ​ລາຍ​ການ​ທັງ​ຫມົດ​ແມ່ນ​ມີ​ຢູ່​ໃນ​ການ​ຍົກ​ເລີກ​ການ​ຫຸ້ມ​ຫໍ່​:

• Kobalt Hybrid 24-Volt Max Jobsite Fan (Model KJF 124B-03)
• ສາຍໄຟ AC

ໝາຍເຫດ: ແບັດເຕີຣີ ແລະເຄື່ອງສາກແມ່ນຂາຍແຍກຕ່າງຫາກ.

4. ຄຸນສົມບັດ

The Kobalt Hybrid 24-Volt Max Jobsite Fan offers versatile performance with the following key features:

• Hybrid Power Source: Operates on a Kobalt 24-Volt Max battery or standard AC power.
• ການຄວບຄຸມຄວາມໄວຕົວແປ: A rotary knob allows for precise adjustment of airflow from low to high.
• ຫົວພັດລົມປັບໄດ້: The fan head pivots to direct airflow where needed.
• Hooks ປະສົມປະສານ: Convenient hooks on the frame allow for easy suspension in various locations.
• ການກໍ່ສ້າງທົນທານ: Built to withstand demanding jobsite conditions.
• ການອອກແບບນ້ຳໜັກເບົາ: Facilitates easy transport and repositioning.

5. ການຕິດຕັ້ງແລະການປະກອບ

5.1 ການຕິດຕັ້ງ/ການຖອດແບັດເຕີຣີ

1. To install the battery (not included), align the battery pack with the battery port on the fan base.
2. ເລື່ອນແບດເຕີລີ່ເຂົ້າໄປໃນພອດຈົນກ່ວາມັນກົດເຂົ້າທີ່ປອດໄພ.
3. To remove the battery, press the battery release button (usually located on the battery pack) and slide the battery out.

5.2 ການເຊື່ອມຕໍ່ພະລັງງານ AC

1. Locate the AC power inlet on the fan base.
2. Insert the provided AC power cord firmly into the inlet.
3. Plug the other end of the power cord into a standard 120V AC electrical outlet.

6. ຄໍາແນະນໍາການດໍາເນີນງານ

6.1 ການເປີດ/ປິດ

The fan features a rotary knob that controls both power and speed.

1. To turn on the fan, rotate the knob clockwise from the 'OFF' position.
2. To turn off the fan, rotate the knob counter-clockwise until it reaches the 'OFF' position.

6.2 ການປັບຄວາມໄວພັດລົມ

The rotary knob provides variable speed control:

• ໝຸນລູກບິດຕາມເຂັມໂມງເພື່ອເພີ່ມຄວາມໄວພັດລົມ.
• ໝຸນລູກບິດຕາມເຂັມໂມງເພື່ອຫຼຸດຄວາມໄວພັດລົມ.

6.3 Adjusting Fan Angle

The fan head can be manually tilted to direct airflow:

• Grasp the fan housing firmly and gently tilt it to the desired angle. The fan head will hold its position.

6.4 Using Hanging Hooks

For elevated airflow, utilize the integrated hanging hooks:

• Extend the metal hooks located on the sides of the fan frame.
• Hang the fan from a secure overhead structure, such as a tent frame or scaffolding. Ensure the structure can support the fan's weight.

7. ບໍາລຸງຮັກສາ

7.1 ການທໍາຄວາມສະອາດ

1. Always disconnect the fan from its power source (remove battery or unplug AC cord) before cleaning.
2. ເຊັດພື້ນຜິວພາຍນອກຂອງພັດລົມໃຫ້ອ່ອນໆ, ງamp ຜ້າ. ຢ່າໃຊ້ເຄື່ອງເຮັດຄວາມສະອາດຂັດຫຼືສານລະລາຍ.
3. Use a vacuum cleaner with a brush attachment to remove dust and debris from the fan grille and blades.

7.2 ການດູແລຫມໍ້ໄຟ

• ເກັບຮັກສາຫມໍ້ໄຟໃນບ່ອນທີ່ເຢັນ, ແຫ້ງ, ຫ່າງຈາກແສງແດດໂດຍກົງແລະອຸນຫະພູມທີ່ສຸດ.
• ສາກແບັດເຕີຣີໃຫ້ເຕັມກ່ອນເກັບຮັກສາ ແລະ ສາກເປັນໄລຍະໆໃນຊ່ວງເວລາທີ່ຍາວນານເພື່ອຮັກສາສຸຂະພາບຂອງແບັດເຕີຣີ.

8. ການແກ້ໄຂບັນຫາ

ຖ້າເຈົ້າພົບບັນຫາກັບພັດລົມຂອງເຈົ້າ, ໃຫ້ອ້າງອີງເຖິງບັນຫາທົ່ວໄປ ແລະວິທີແກ້ໄຂບັນຫາຕໍ່ໄປນີ້:

9. ຂໍ້ມູນຈໍາເພາະ

10. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

This Kobalt product is covered by the manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Kobalt website. For technical support, replacement parts, or service inquiries, please contact Kobalt customer service through their official channels.
