TOPWAY Adjustable Mobile Base for Washing Machines and Dryers - Model 552215

ສິນຄ້າເກີນview

The TOPWAY Adjustable Mobile Base, Model 552215, is a versatile and robust solution designed to facilitate the movement and elevation of various household appliances and heavy items. Constructed from durable chrome-plated steel and ABS material, this base offers exceptional stability and corrosion resistance. Its adjustable design accommodates a wide range of appliance sizes, while the integrated swivel wheels with locking brakes ensure easy maneuverability and secure positioning. This base helps reduce appliance vibrations and noise, and promotes better ventilation underneath.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​:

• ການກໍ່ສ້າງທີ່ເຂັ້ມແຂງ: Made from sturdy chrome-plated steel and ABS, ensuring corrosion resistance and a maximum load capacity of 300 kg (660 lbs).
• Adjustable Dimensions: Telescopic design allows vertical and horizontal adjustment from 52 cm x 52 cm to 72 cm x 72 cm to fit various appliance sizes.
• ການເຄື່ອນທີ່ທີ່ລຽບງ່າຍ: Equipped with 4x2 PVC rubber-coated wheels that reduce vibrations and noise during movement.
• ສະ​ພາ​ແຫ່ງ​ງ່າຍ​ດາຍ​: Simple setup process involving connecting tubes, securing buckles, adjusting height, and placing your appliance.
• ຄໍາຮ້ອງສະຫມັກອະເນກປະສົງ: Suitable for washing machines, refrigerators, portable washers, dryers, mini-fridges, cabinets, heavy equipment, and flower pots.

ຄໍາແນະນໍາການຕິດຕັ້ງ

Follow these steps to assemble and prepare your TOPWAY Mobile Base for use:

1. Unpack ອົງປະກອບ: Carefully remove all parts from the packaging. Ensure all components are present: four corner pieces with wheels, four connecting tubes, and any locking mechanisms.
2. Connect Tubes to Corner Pieces: Insert the ends of the connecting tubes into the designated slots on the corner pieces. Ensure a secure fit. The base is designed to be telescopic, allowing for adjustment.

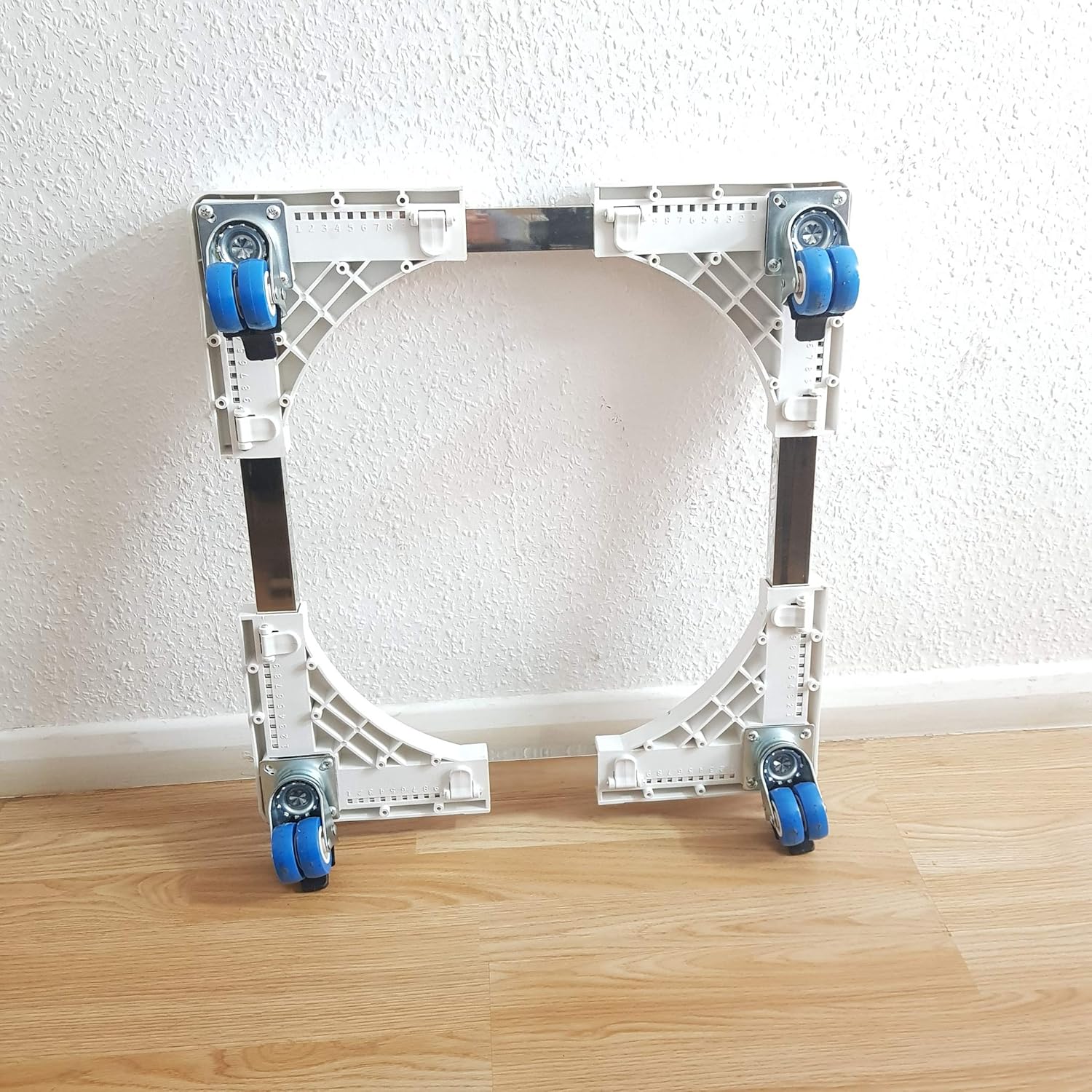

Figure 1: Components of the TOPWAY Mobile Base before assembly. This image displays the four corner pieces with wheels and the connecting tubes.
3. Adjust Dimensions: Extend or retract the connecting tubes to achieve the desired width and length for your appliance. The adjustable range is from 52 cm x 52 cm to 72 cm x 72 cm.


Figure 2: Detail of the adjustable mechanism, showing numbered markings for precise size configuration.

4. Secure Locking Buckles: Once the desired dimensions are set, ensure all locking buckles or clamps on the connecting tubes are firmly closed to prevent accidental changes in size.
5. ກວດສອບລະດັບ: Verify that the base is level. Some models may include small spirit levels on the corner pieces for assistance. Adjust as necessary.

Figure 3: A corner piece of the mobile base, highlighting the integrated spirit level for ensuring proper alignment.
6. ຕຳແໜ່ງອຸປະກອນ: Carefully lift and place your appliance onto the assembled mobile base. Ensure the appliance's feet are securely seated within the corner platforms of the base.

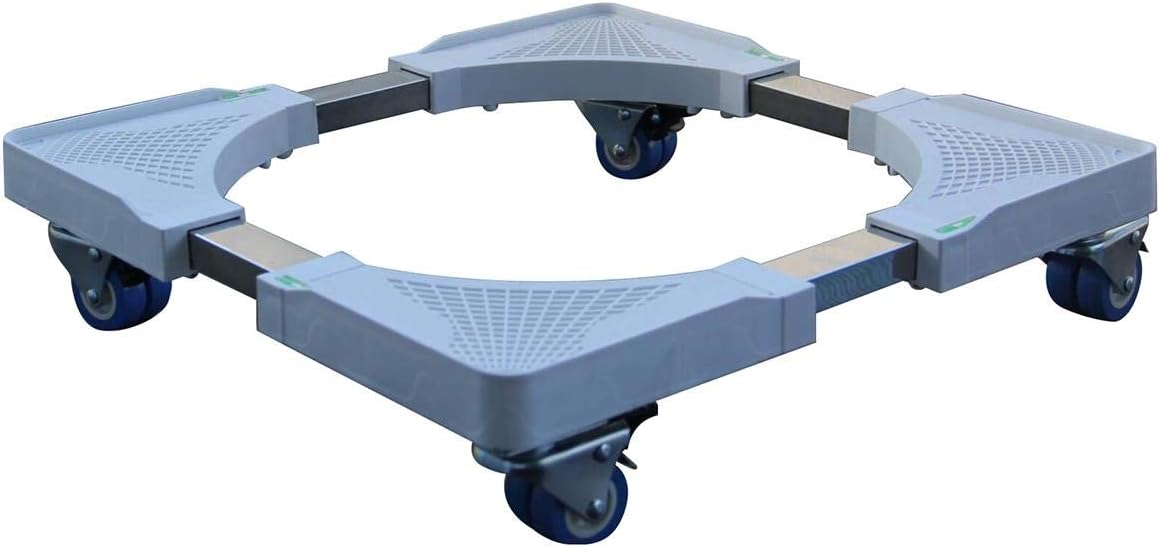

Figure 4: The TOPWAY mobile base fully assembled and extended, ready to support an appliance.

7. ລໍ້ລັອກ: Engage the locking brakes on all wheels to prevent unintended movement of the appliance.


ຮູບທີ 5: ຮູບທີ່ໃກ້ຊິດ view of one of the swivel wheels, showing the locking brake mechanism in the engaged position.

ຄໍາແນະນໍາການດໍາເນີນງານ

The TOPWAY Mobile Base is designed for simple and safe operation:

• ການເຄື່ອນຍ້າຍເຄື່ອງໃຊ້ໄຟຟ້າ: To move your appliance, first ensure that the path is clear of obstacles. Disengage the locking brakes on all wheels. Gently push or pull the appliance to its new desired location.
• Securing the Appliance: Once the appliance is in its new position, immediately engage the locking brakes on all wheels to prevent any accidental movement, especially during operation of appliances like washing machines or dryers.
• Adjusting Size (without appliance): If you need to adjust the size of the base for a different appliance, first remove the current appliance. Then, disengage the locking buckles, adjust the telescopic tubes to the new dimensions, and re-secure the buckles.
• ຄວາມອາດສາມາດນ້ໍາຫນັກ: Do not exceed the maximum load capacity of 300 kg (660 lbs). Overloading can damage the base and lead to instability.

ບໍາລຸງຮັກສາ

ການບຳລຸງຮັກສາເປັນປະຈຳຮັບປະກັນອາຍຸການໃຊ້ງານທີ່ຍາວນານ ແລະ ປອດໄພຂອງຖານມືຖືຂອງທ່ານ:

• ທໍາຄວາມສະອາດ: Wipe down the base periodically with a damp cloth to remove dust and debris. Avoid using harsh chemicals that could damage the ABS plastic or chrome finish.
• ການກວດກາລໍ້: Regularly check the wheels for any signs of wear, damage, or accumulation of hair/debris that might hinder smooth movement. Clean the wheels as needed.
• Locking Mechanism Check: Periodically test the locking brakes on the wheels to ensure they engage and disengage properly.
• ຄວາມສົມບູນຂອງໂຄງສ້າງ: Inspect the chrome-plated steel tubes and ABS corner pieces for any cracks, bends, or loose connections. Tighten any loose parts if possible.

ການແກ້ໄຂບັນຫາ

ນີ້ແມ່ນວິທີແກ້ໄຂບັນຫາທົ່ວໄປທີ່ເຈົ້າອາດຈະພົບ:

• Base is not moving smoothly:
  • Check if the wheel brakes are engaged. Disengage them.
  • Inspect wheels for obstructions (e.g., hair, lint, small debris). Clean them thoroughly.
  • Ensure the floor surface is clean and free of obstacles.
• Appliance feels unstable on the base:
  • Verify that the appliance is centered and evenly distributed on the four corner platforms.
  • Ensure the base's dimensions are correctly adjusted to the appliance's footprint and that all locking buckles are securely fastened.
  • Check that all wheel brakes are engaged when the appliance is stationary.
  • Confirm the floor surface is level. Use the integrated spirit levels if available, or a separate leveling tool.
• Difficulty adjusting the base size:
  • Ensure all locking buckles or clamps on the telescopic tubes are fully disengaged before attempting to adjust.
  • Clean any dirt or debris from the telescopic tracks that might be causing resistance.

ຂໍ້ມູນຈໍາເພາະ

ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

This TOPWAY Mobile Base is covered by a standard return policy, typically 30 days from the date of purchase, as per retailer terms. For specific warranty details, please refer to the documentation provided with your purchase or contact the seller directly.

For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact TOPWAY customer support or the retailer from whom you purchased the product. Please have your model number (552215) and purchase information ready when contacting support.
