iBasso DX150 Digital Audio Player User Manual

ແນະນຳ

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your iBasso DX150 High Performance Digital Audio Player. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your listening experience.

1. ຕັ້ງຄ່າ

1.1 ເນື້ອໃນຊຸດ

ກວດ​ສອບ​ວ່າ​ລາຍ​ການ​ທັງ​ຫມົດ​ແມ່ນ​ມີ​ຢູ່​ໃນ​ຊຸດ​:

• iBasso DX150 ເຄື່ອງຫຼິ້ນສຽງດິຈິຕອນ
• AMP6 Amplifier Card (pre-installed)
• ສາຍ USB-C
• Protective Case (may vary by region/bundle)

1.2 ການສາກອຸປະກອນ

Before first use, fully charge the iBasso DX150. Connect the provided USB-C cable to the device's USB-C port and to a compatible USB power adapter (not included). The device supports PD2.0 and QC2.0 quick charging protocols.

The DX150 is equipped with a 3.8V 4400mAh Li-polymer battery. A full charge provides approximately 10.5 hours of playback, depending on resolution and headphone impedance.

1.3 ການໃສ່ບັດ MicroSD

The iBasso DX150 has 32GB of internal eMMC storage. For expanded storage, a microSD card can be inserted into the dedicated slot.

ຮູບພາບ: ຂ້າງ view of the iBasso DX150 highlighting the microSD card slot for expandable storage.

1. ຊອກຫາຊ່ອງໃສ່ກາດ microSD ຢູ່ດ້ານຂ້າງຂອງອຸປະກອນ.
2. Gently insert the microSD card with the gold contacts facing down until it clicks into place.
3. To remove, press the card inward until it springs out.

Ensure the microSD card is formatted correctly for optimal performance. The device supports various file ລະບົບ.

1.4 ການເປີດເຄື່ອງເບື້ອງຕົ້ນ

Press and hold the power button located on the side of the device until the screen illuminates. The device will boot into the Android 6.0 operating system.

2. ຄໍາແນະນໍາການດໍາເນີນງານ

2.1 ການໂຕ້ຕອບຜູ້ໃຊ້ແລະການນໍາທາງ

The DX150 features a 4.2-inch high-resolution touchscreen. Navigate the Android 6.0 interface by tapping, swiping, and using the physical buttons.

Image: The iBasso DX150's touchscreen interface showing the main music playback menu.

Physical buttons on the side include:

• ປຸ່ມເປີດປິດ: Power on/off, screen on/off.
• ປຸ່ມລະດັບສຽງ: ປັບລະດັບສຽງການຫຼິ້ນ.
• ປຸ່ມຄວບຄຸມການຫຼິ້ນ: ຫຼິ້ນ/ຢຸດຊົ່ວຄາວ, ເພງຕໍ່ໄປ, ເພງກ່ອນໜ້ານີ້.

ຮູບພາບ: ຂ້າງ view of the iBasso DX150, illustrating the physical volume knob and playback control buttons.

2.2 ການຫລີ້ນດົນຕີ

The DX150 supports various audio formats and resolutions, including PCM up to 384kHz (8/16/24/32bits) and native DSD64/128/256. Use the pre-installed music player application or other compatible Android applications to manage and play your audio files.

ຫຼິ້ນ​ດົນ​ຕີ​:

1. Tap "All Music" or "My Music" on the home screen.
2. Browse by Artist, Album, Genre, or Directory.
3. ເລືອກເພງເພື່ອເລີ່ມຕົ້ນການຫຼິ້ນ.
4. Use the physical buttons or on-screen controls for play/pause, skipping tracks, and volume adjustment.

2.3 ການເຊື່ອມຕໍ່

• Wi-Fi: Supports 802.11 (b/g/n/ac) on 2.4GHz/5GHz bands for network access and streaming (if supported by installed apps).
• Bluetooth: Features Bluetooth 4.1 for wireless headphone or speaker connection.
• ຟັງຊັນ USB DAC: The device can function as a USB DAC using the XMOS XU208 and Thesycon USB driver, allowing it to process audio from a computer.

2.4 Replaceable Amplifier Card (AMP6)

The DX150 comes with the AMP6 amplifier card pre-installed. This modular design allows for future upgrades or customization with other compatible amplifier cards (sold separately).

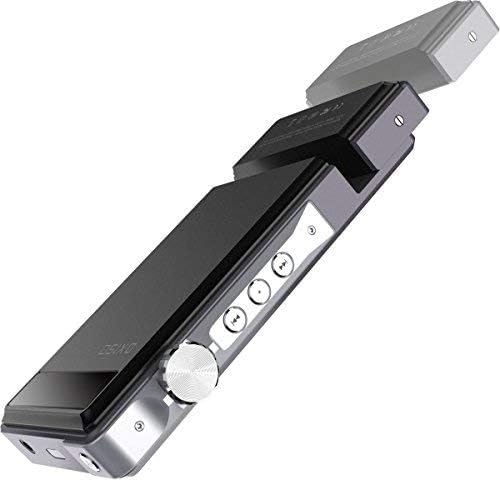

Image: The iBasso DX150 demonstrating the removable amplifier module, allowing for customization.

ເພື່ອທົດແທນການ AMP ບັດ:

1. ປິດອຸປະກອນຢ່າງສົມບູນ.
2. Locate the screws securing the AMP card to the main unit.
3. Carefully remove the screws and slide out the AMP ບັດ.
4. ຈັດຮຽງໃໝ່ AMP card and gently slide it into place, then secure it with the screws.

3. ບໍາລຸງຮັກສາ

3.1 ການທໍາຄວາມສະອາດ

Use a soft, dry, lint-free cloth to clean the device's screen and body. Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the finish or screen.

3.2 ການດູແລຫມໍ້ໄຟ

ເພື່ອຍືດອາຍຸແບັດເຕີຣີ:

• ຫຼີກ​ລ້ຽງ​ການ​ປະ​ຈຸ​ຫມໍ້​ໄຟ​ຢ່າງ​ເຕັມ​ທີ່​ເລື້ອຍໆ​.
• ຢ່າເຮັດໃຫ້ອຸປະກອນຢູ່ໃນອຸນຫະພູມທີ່ຮຸນແຮງ.
• If storing the device for an extended period, charge it to approximately 50% before storage.

3.3 ການເກັບຮັກສາ

Store the device in a cool, dry place away from direct sunlight and excessive humidity. Use the provided protective case to prevent scratches and minor impacts.

4. ການແກ້ໄຂບັນຫາ

This section addresses common issues you might encounter with your iBasso DX150.

4.1 ອຸປະກອນບໍ່ເປີດ

• Ensure the device is sufficiently charged. Connect it to a power source and allow it to charge for at least 30 minutes before attempting to power on again.
• ລອງໃຊ້ສາຍ USB-C ແລະອະແດັບເຕີໄຟອື່ນ.
• Perform a hard reset by holding the power button for an extended period (e.g., 10-15 seconds).

4.2 MicroSD Card Not Detected

• Ensure the microSD card is fully inserted into the slot.
• Try removing and re-inserting the card.
• Verify the card is not damaged and is formatted to a compatible file system (e.g., FAT32, exFAT).
• Test with a different microSD card if available.

4.3 Music Playback Issues (Skipping, Lag)

• ຮັບປະກັນສຽງ files are not corrupted. Try playing different files.
• Check if the device's internal storage or microSD card is nearly full, which can affect performance.
• Close any unnecessary background applications.
• Consider updating the device's firmware to the latest version (refer to iBasso's official support for instructions).

4.4 ບັນຫາການເຊື່ອມຕໍ່ Wi-Fi ຫຼື Bluetooth

• Toggle Wi-Fi/Bluetooth off and on in the device settings.
• ໃຫ້ແນ່ໃຈວ່າທ່ານຢູ່ໃນຂອບເຂດຂອງເຄືອຂ່າຍ Wi-Fi ຫຼືອຸປະກອນ Bluetooth.
• Forget the network/device and attempt to reconnect.
• Restart the DX150.

4.5 App Functionality Limitations (e.g., Google Play Store)

The iBasso DX150 runs on a customized Android 6.0 system. Certain Google services or applications may have limited functionality or require specific firmware versions or workarounds. Refer to official iBasso support forums or documentation for guidance on specific app compatibility or installation methods.

5. ຂໍ້ມູນຈໍາເພາະ

5.1 General Device Specifications

5.2 AMP6 Module Specifications (Measured with DX150)

2.5mm Balanced Output:

• ຜົນໄດ້ຮັບ Voltage: 4.8Vrms (without load), 3.7Vrms (32Ω load), 425mW
• THD+N: <0.001% (0.00028% without load @2.4Vrms, 0.00032% 32Ω load @2.4Vrms)
• Frequency Response: 10Hz-40KHz +/-0.5dB
• ຊ່ວງໄດນາມິກ: 118dB
• S / N: 118dB
• Crosstalk: -119dB

3.5mm Single Ended Output:

• ຜົນໄດ້ຮັບ Voltage: 2.4Vrms (without load), 2.4Vrms (32Ω load), 185mW
• THD+N: <0.001% (0.0004% without load @1.2Vrms, 0.0004% 32Ω load @1.2Vrms)
• Frequency Response: 10Hz-40KHz +/-0.5dB
• ຊ່ວງໄດນາມິກ: 117dB
• S / N: 117dB
• Crosstalk: -115dB

ເສັ້ນອອກ:

• ຜົນໄດ້ຮັບ Voltage: 2.4Vrms
• Frequency Response: 10Hz-40KHz +/-0.5dB
• THD+N: 0.0004% (without load @1.5Vrms)
• ຊ່ວງໄດນາມິກ: 118dB
• S / N: 117dB

6. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

6.1 ຂໍ້ມູນການຮັບປະກັນ

Warranty terms and conditions for the iBasso DX150 Digital Audio Player are provided by the manufacturer, iBasso, and/or your retailer at the time of purchase. Please retain your proof of purchase for warranty claims. For specific details regarding warranty coverage, duration, and procedures, refer to the documentation included with your product or visit the official iBasso webເວັບໄຊ.

Optional protection plans may be available from your retailer to extend coverage beyond the standard manufacturer's warranty.

6.2 ສະຫນັບສະຫນູນລູກຄ້າ

For technical assistance, firmware updates, or further inquiries, please contact iBasso customer support through their official website or the retailer from whom you purchased the device. Always refer to official sources for the most accurate and up-to-date information.
