ແນະນຳ
This manual provides essential instructions for the safe installation, operation, and maintenance of your Marinco AMRM-301EL-B 30 Amp Standard Shore Power Inlet. Please read this manual thoroughly before installation and use to ensure proper function and safety.
ຂໍ້ມູນຄວາມປອດໄພ
WARNING: Risk of electric shock or fire. Improper installation or use can result in serious injury or death.
- Always disconnect shore power at the source before attempting any installation, maintenance, or inspection of the inlet.
- Installation should be performed by a qualified marine electrician or technician in accordance with all applicable electrical codes and standards.
- ໃຫ້ແນ່ໃຈວ່າການເຊື່ອມຕໍ່ສາຍໄຟທັງຫມົດແມ່ນປອດໄພແລະຖືກ insulated ຢ່າງຖືກຕ້ອງ.
- Do not operate the inlet if it appears damaged or corroded.
- This product is designed for 125V, 30 Amp applications. Do not exceed these ratings.
ຄຸນສົມບັດຜະລິດຕະພັນ
- 30 Amp shore power standard inlet
- Easy lock system for secure connection
- Constructed from glass-filled polyester for durability
- Watertight design
- Rear safety enclosure with strain relief
- ສີ: ສີຂາວ
- Ampອາຍຸ: 30 AMP
ເນື້ອໃນຊຸດ
ກວດສອບວ່າອົງປະກອບທັງຫມົດແມ່ນມີຢູ່ກ່ອນທີ່ຈະເລີ່ມຕົ້ນການຕິດຕັ້ງ:
- Marinco AMRM-301EL-B 30 Amp Standard Shore Power Inlet
- ການຕິດຕັ້ງ gasket
- Mounting screws (typically included, verify with packaging)
ການຕິດຕັ້ງແລະການຕິດຕັ້ງ
Professional installation is highly recommended for this electrical product.
1. ການຄັດເລືອກ ແລະ ການກະກຽມສະຖານທີ່
- Choose a mounting location that is easily accessible, protected from excessive spray, and allows for proper cable routing.
- Ensure there is sufficient clearance behind the mounting surface for the rear safety enclosure and wiring.
- Cut a mounting hole according to the template provided with the product (if applicable) or the manufacturer's specifications. Deburr edges.
2. ສາຍໄຟ
Before wiring, ensure all power sources are disconnected.
- Route the appropriate gauge marine-grade electrical cable (typically 10 AWG for 30 Amp) to the inlet location.
- Connect the wires to the inlet terminals:
- ສາຍສີຂຽວ: ດິນ (G)
- ສາຍສີຂາວ: ເປັນກາງ (N)
- ສາຍສີດຳ: Hot (L)
- Ensure all connections are tight and secure. Use appropriate crimp terminals if necessary.
- Install the rear safety enclosure and strain relief to protect the wiring and prevent accidental disconnection or damage.
3. ການຕິດຕັ້ງ
- Apply a marine-grade sealant around the edge of the mounting hole to ensure a watertight seal.
- Place the gasket over the mounting hole.
- Position the inlet into the mounting hole, aligning the screw holes.
- Secure the inlet with the provided mounting screws, tightening them evenly until snug. Do not overtighten.

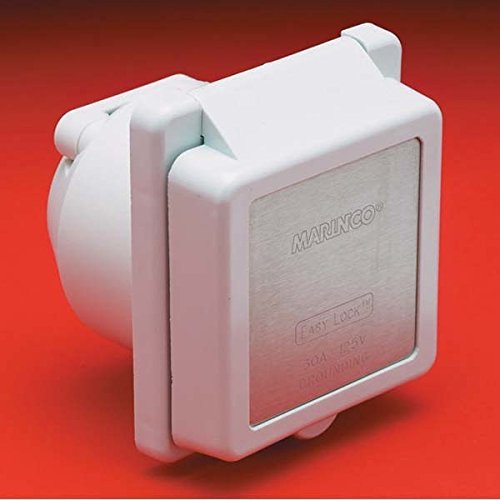

This image shows the Marinco AMRM-301EL-B 30 Amp Standard Shore Power Inlet, highlighting its white glass-filled polyester housing and the easy-lock system. The front face with the three-prong receptacle is visible.
ຄໍາແນະນໍາການດໍາເນີນງານ
ກຳລັງເຊື່ອມຕໍ່ Shore Power
- Ensure the shore power pedestal breaker is in the OFF position.
- Align the shore power cord plug with the inlet on your vessel.
- Push the plug firmly into the inlet until it is fully seated.
- Rotate the locking ring on the shore power cord clockwise until it is securely tightened to the inlet. This engages the easy lock system, creating a watertight and secure connection.
- Turn the shore power pedestal breaker to the ON position.
Disconnecting Shore Power
- Turn the shore power pedestal breaker to the OFF position.
- Rotate the locking ring on the shore power cord counter-clockwise to loosen it.
- Pull the plug straight out from the inlet. Do not pull by the cable.
- Replace the inlet cap (if applicable) to protect it from the elements when not in use.
ບໍາລຸງຮັກສາ
- ການກວດກາປົກກະຕິ: Periodically inspect the inlet for signs of wear, corrosion, cracks, or damage to the housing or terminals. Check the integrity of the watertight seal.
- ທໍາຄວາມສະອາດ: Keep the inlet clean and free of salt, dirt, and debris. Use a mild soap and fresh water solution, then rinse thoroughly. Avoid abrasive cleaners or solvents.
- ກວດສອບຢູ່ປາຍຍອດ: Annually, or if issues arise, have a qualified technician check the terminal connections for tightness and corrosion.
- ການທົດແທນ: If any part of the inlet is damaged or shows significant wear, it should be replaced immediately by a qualified professional.
ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| No power at vessel when connected to shore power. | Shore power pedestal breaker is off or tripped. Shore power cord is faulty. Inlet wiring is loose or damaged. | Check and reset the shore power pedestal breaker. Test the shore power cord. Inspect inlet wiring (with power off); consult a professional if unsure. |
| Shore power cord feels loose in the inlet. | Locking ring not fully tightened. Inlet or cord plug is worn or damaged. | Ensure the locking ring is rotated clockwise until fully secure. Inspect the inlet and cord plug for damage; replace if necessary. |
| Corrosion visible on inlet terminals. | Exposure to marine environment. | Clean terminals carefully (with power off) using a non-abrasive cleaner. Apply dielectric grease to prevent future corrosion. Consider professional inspection. |
ຂໍ້ມູນຈໍາເພາະ
- ຍີ່ຫໍ້: ມາຣິນໂກ
- ໝາຍເລກຕົວແບບ: AMRM-301EL-B
- ປະຈຸບັນການປ້ອນຂໍ້ມູນ: 30 Amps
- ສະບັບtage: 125 ໂວນ
- ເພດຂອງຕົວເຊື່ອມຕໍ່: Male-to-Female (referring to the overall connection system)
- ປະເພດປລັກ: Type B (NEMA L5-30R equivalent for the inlet receptacle)
- UL ລາຍຊື່: ແມ່ນແລ້ວ
- ວັດສະດຸ: Glass-filled polyester
- ສີ: ສີຂາວ
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
For warranty information or technical support, please refer to the official Marinco website or contact Marinco customer service directly. Keep your purchase receipt as proof of purchase.
