Swordfish 31930-420pc Stainless Steel Screw Assortment User Manual

1. ບົດແນະນຳ

This manual provides comprehensive instructions for the Swordfish 31930-420pc Stainless Steel Screw Assortment. It covers product details, proper usage, maintenance, and troubleshooting to ensure optimal performance and longevity of the fasteners. Please read this manual thoroughly before using the product.

Figure 1: Swordfish 31930-420pc Stainless Steel Screw Assortment in its clear plastic case, closed.

2. ຜະລິດຕະພັນເກີນview ແລະອົງປະກອບ

The Swordfish 31930-420pc Stainless Steel Screw Assortment provides a selection of common Phillips drive machine screws made from durable stainless steel. This assortment is designed for various applications requiring corrosion resistance.

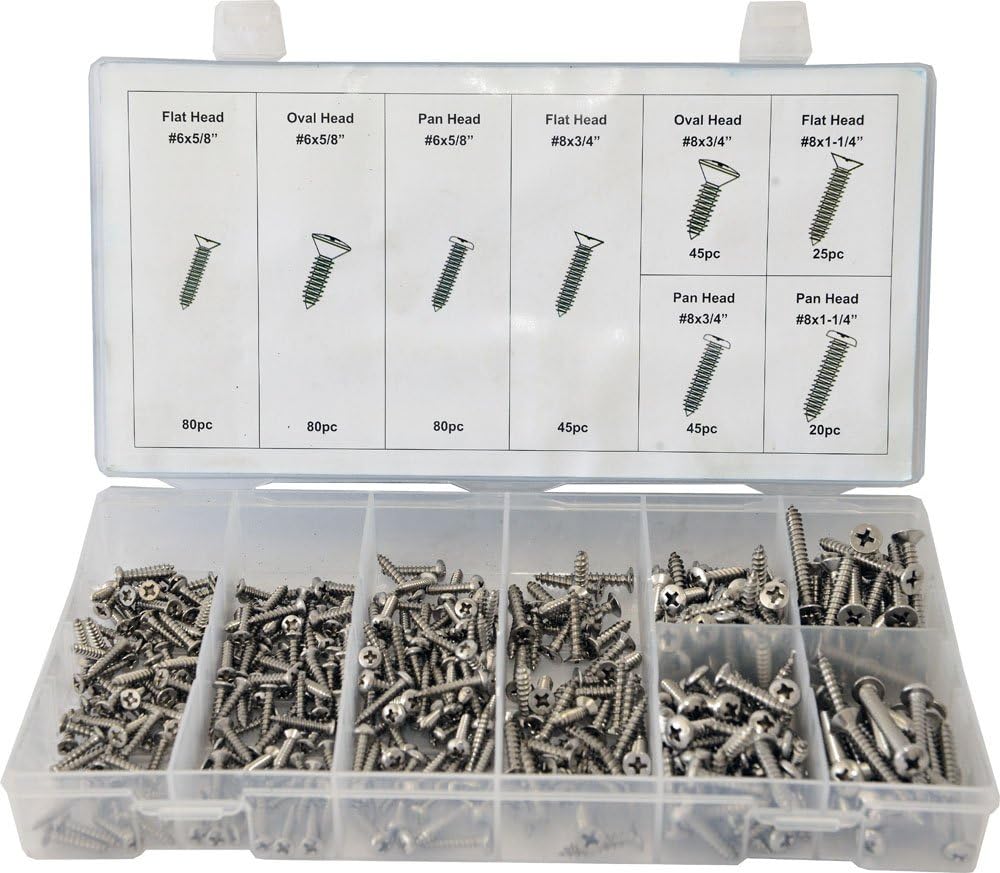

Figure 2: The 420-piece screw assortment with its organizational chart.

2.1. Assortment Contents

The assortment includes 420 pieces of stainless steel screws across various sizes and head types, all featuring a Phillips drive. The types included are:

• Flat Head Phillips Drive Screws: ມີຢູ່ໃນ 3 ຂະຫນາດ.
• Pan Head Phillips Drive Screws: ມີຢູ່ໃນ 3 ຂະຫນາດ.
• Oval Head Phillips Drive Screws: ມີຢູ່ໃນ 2 ຂະຫນາດ.

Refer to the label inside the case lid for specific quantities and dimensions of each screw type.

ຮູບທີ 3: ຕົວຢ່າງamples of various screw types and sizes included in the assortment.

3. ຕັ້ງຄ່າ

The Swordfish 31930-420pc Stainless Steel Screw Assortment comes pre-sorted in a clear, re-sealable plastic case. No assembly is required for the assortment itself.

3.1. ການກວດກາເບື້ອງຕົ້ນ

1. Carefully open the plastic case.
2. Verify that all compartments are intact and the screws are properly separated according to their type and size.
3. Familiarize yourself with the screw identification chart located on the inside of the case lid. This chart indicates the head type, size, and quantity of screws in each compartment.

3.2. ການເກັບຮັກສາ

Store the case in a dry environment to prevent any potential moisture exposure, although the stainless steel material offers significant corrosion resistance.

4. ການນຳໃຊ້

These stainless steel machine screws are suitable for a wide range of applications where a secure fastening and resistance to corrosion are required. They are designed for use with pre-tapped holes or with nuts.

4.1. Selecting the Correct Screw

• ຂະໜາດ: Match the screw's diameter and length to the requirements of your application. Ensure the screw is long enough to provide adequate thread engagement without protruding excessively.
• ປະເພດຫົວ:
  • ຫົວຮາບພຽງຢູ່: Designed to sit flush with the surface when countersunk.
  • Pan Head: Features a slightly rounded, low-profile head that sits above the surface.
  • Oval Head: A decorative head type, similar to flat head but with a rounded top, often used in applications where appearance is important.
• ວັດສະດຸ: Stainless steel offers excellent resistance to rust and corrosion, making these screws ideal for outdoor, marine, or humid environments.

4.2. ການຕິດຕັ້ງ

1. ການ​ກະ​ກຽມ​ຂຸມ​: Ensure the hole is correctly sized and, if necessary, tapped for machine screws. For flat or oval head screws, countersink the hole if a flush or semi-flush finish is desired.
2. Use the Correct Driver: All screws in this assortment feature a Phillips drive. Use a Phillips head screwdriver or bit that correctly fits the screw head to prevent stripping.
3. Tighten ຢ່າງ​ປອດ​ໄພ​: Apply appropriate torque to secure the screw. Avoid over-tightening, which can strip threads or damage the screw head.

5. ບໍາລຸງຮັກສາ

Proper maintenance ensures the longevity and usability of your screw assortment.

• ການເກັບຮັກສາ: Always return unused screws to their designated compartments in the plastic case. Close the lid securely to prevent mixing and loss. Store the case in a dry, temperate environment.
• ທໍາຄວາມສະອາດ: If screws become dirty, wipe them with a clean, dry cloth. Avoid abrasive cleaners or harsh chemicals that could potentially damage the stainless steel finish.
• ການກວດກາ: Periodically inspect the screws for any signs of damage or wear before use.

6. ການແກ້ໄຂບັນຫາ

This section addresses common issues that may arise during the use of the screw assortment.

6.1. Screw Head Stripping

• ບັນຫາ: The Phillips head of the screw becomes rounded or damaged during installation, preventing further tightening or removal.
• ການແກ້ໄຂ: Ensure you are using the correct size Phillips screwdriver or bit that fits snugly into the screw head. Apply firm, consistent pressure while turning. Avoid using worn-out screwdriver bits.

6.2. Screws Not Holding Securely

• ບັນຫາ: The screw does not tighten properly or pulls out easily.
• ການແກ້ໄຂ: Verify that the hole is correctly sized and tapped for the machine screw. If fastening into a material without pre-tapped threads, ensure a compatible nut or threaded insert is used. The screw length should be appropriate for the material thickness.

6.3. Rust or Corrosion Appears

• ບັນຫາ: Despite being stainless steel, signs of rust or corrosion appear.
• ການແກ້ໄຂ: While stainless steel is highly corrosion-resistant, it is not entirely rust-proof, especially in highly aggressive environments (e.g., prolonged exposure to saltwater without proper rinsing, or contact with certain chemicals). Ensure the screws are suitable for the specific environment. Clean any surface rust immediately with a non-abrasive method to prevent further spread. Avoid using these screws in direct contact with dissimilar metals that can cause galvanic corrosion.

7. ຂໍ້ມູນຈໍາເພາະ

Detailed technical specifications for the Swordfish 31930-420pc Stainless Steel Screw Assortment:

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For specific warranty information regarding the Swordfish 31930-420pc Stainless Steel Screw Assortment, please refer to the product packaging or contact Swordfish Tools Inc. directly.

For customer support, technical assistance, or to inquire about other Swordfish products, please visit the official Swordfish store on Amazon: SWORDFISH Store.
