Wiltec Diesel or Fuel Meter Model 4020 Instruction Manual

1. ບົດແນະນຳ

This manual provides essential information for the safe and efficient use of your Wiltec Diesel or Fuel Meter, Model 4020. Please read these instructions carefully before installation and operation to ensure optimal performance and longevity of the device. This meter is designed for accurate measurement of diesel, fuel oil, and rapeseed oil.

2. ຄໍາແນະນໍາຄວາມປອດໄພ

• Always wear appropriate personal protective equipment (PPE) when handling fuels and operating the meter.
• Ensure all connections are secure and leak-free before operation to prevent spills and hazards.
• Do not use the meter with flammable liquids other than those specified (diesel, fuel oil, rapeseed oil) to avoid fire or explosion risks.
• ຮັກສາພື້ນທີ່ເຮັດວຽກໃຫ້ມີລະບາຍອາກາດດີ.
• In case of a spill, follow local safety regulations for cleanup.
• Do not attempt to modify the meter. Any modifications may void the warranty and create safety hazards.

3. ຜະລິດຕະພັນເກີນview

The Wiltec Diesel or Fuel Meter, Model 4020, is a robust device featuring a clear dual display for current and total volume. Its durable construction ensures reliable performance in demanding environments.

ດ້ານໜ້າ view of the Wiltec Diesel or Fuel Meter, Model 4020, showing its digital display and robust casing.

A diagram illustrating the key components of the Wiltec Diesel or Fuel Meter, Model 4020, including the adjustment knob, 4-digit subtotal display, 8-digit total display, unit, oil inlet, and oil outlet.

ວິດີໂອຜະລິດຕະພັນ

4. ຂໍ້ມູນຈໍາເພາະ

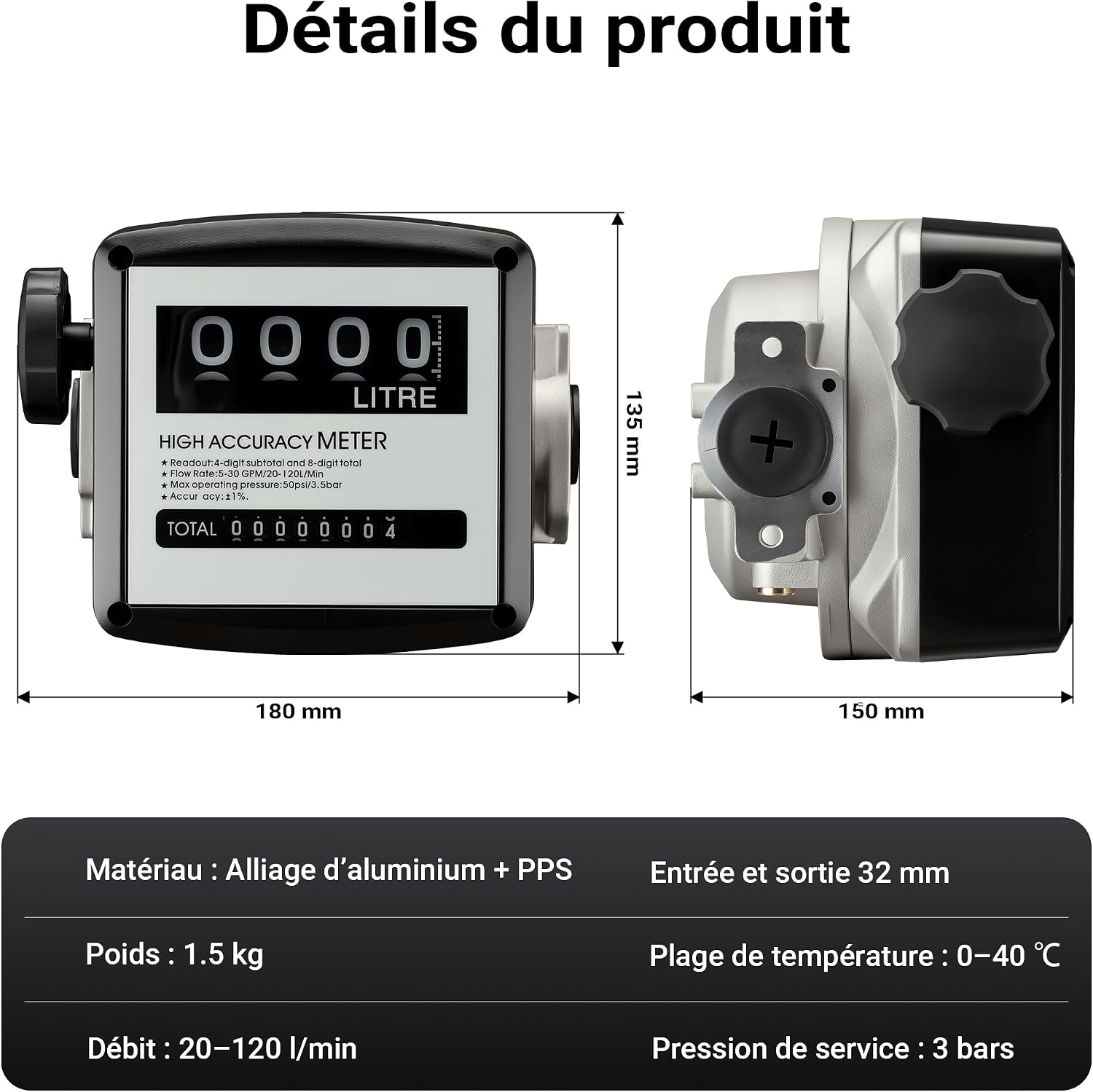

An illustration detailing the dimensions of the Wiltec Diesel or Fuel Meter, Model 4020, with measurements of 180mm length, 150mm width, and 135mm height.

An image emphasizing the robust construction of the Wiltec Diesel or Fuel Meter, Model 4020, made from aluminum alloy and PPS for durability, corrosion resistance, and water resistance.

5. ຕັ້ງຄ່າ

Proper installation is crucial for accurate measurement and safe operation. Follow these steps for setting up your Wiltec Diesel or Fuel Meter:

1. ຖອດ​ຫໍ່​ແລະ​ກວດ​ກາ​: Carefully remove the meter from its packaging and inspect for any visible damage.
2. ເລືອກສະຖານທີ່: Select a stable and secure location for mounting the meter, ensuring it is easily accessible for reading and maintenance.
3. ເຊື່ອມຕໍ່ທໍ່: The meter is equipped with 1-inch (30.93 mm) female threaded connections. Connect your fuel hoses to the inlet and outlet ports. Ensure the flow direction arrow on the meter body aligns with the direction of fluid flow.
4. ການເຊື່ອມຕໍ່ປະທັບຕາ: Use appropriate thread sealant (e.g., PTFE tape or liquid sealant compatible with fuels) on all threaded connections to prevent leaks. Tighten connections firmly but do not overtighten.
5. ການເຊື່ອມໂຍງລະບົບ: Integrate the meter into your existing fuel transfer system, ensuring it is positioned correctly between the pump and the dispensing nozzle or receiving tank.
6. ກວດສອບເບື້ອງຕົ້ນ: Before full operation, perform a visual check for any leaks and ensure all components are securely fastened.

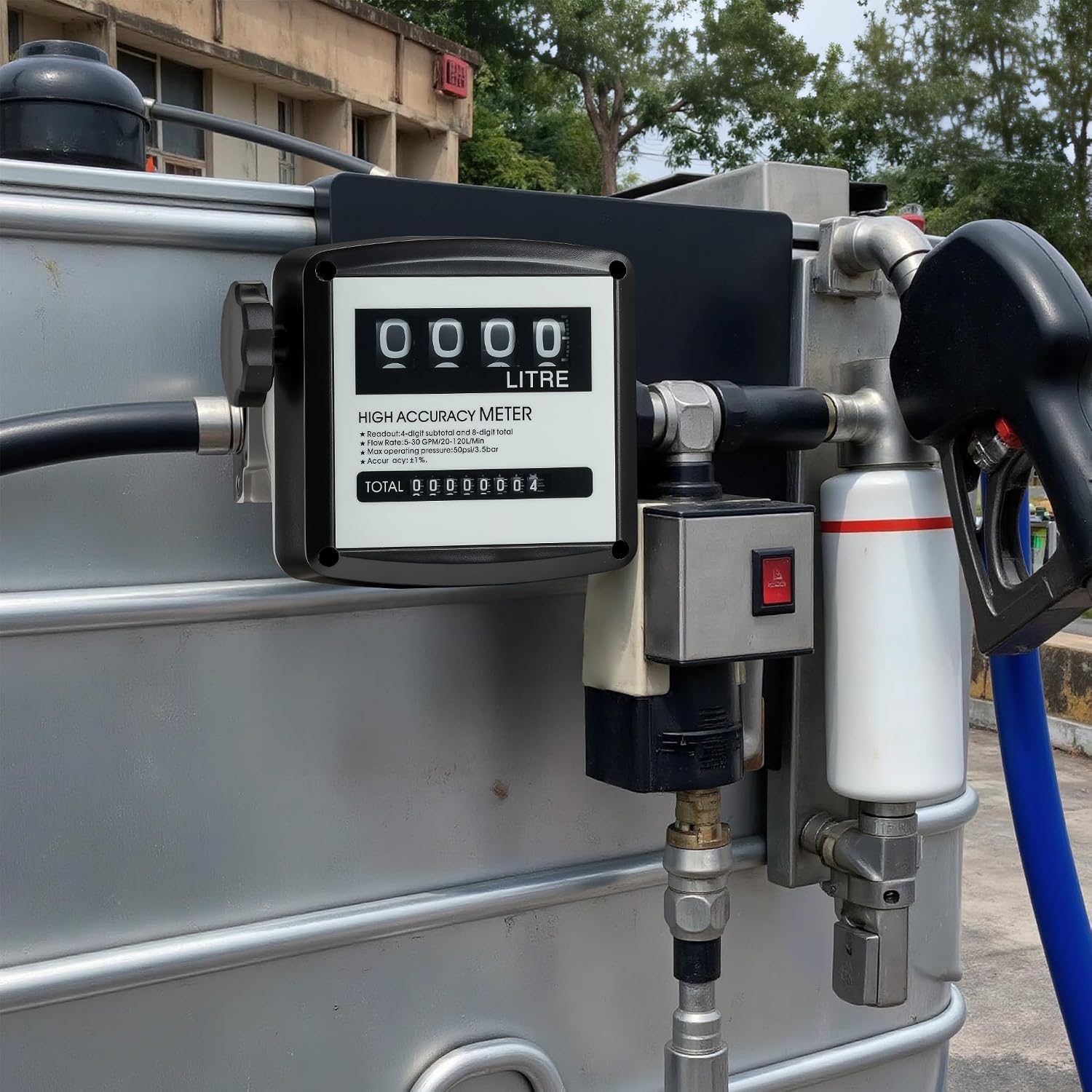

The Wiltec Diesel or Fuel Meter, Model 4020, securely installed on the side of a large fuel tank, connected to hoses for fluid transfer.

6. ຄໍາແນະນໍາການດໍາເນີນງານ

The Wiltec Diesel or Fuel Meter is designed for straightforward operation. Follow these steps to accurately measure fluid volumes:

1. ເປີດເຄື່ອງ (ຖ້າມີ): If your system includes a pump, ensure it is powered on and ready for operation. The meter itself is mechanical and does not require external power.
2. Reset Batch Volume: Before starting a new measurement, locate the reset knob (typically on the side of the meter). Turn this knob until the 4-digit subtotal display reads "0000". This resets the current batch volume. The 8-digit total volume is cumulative and cannot be reset.
3. Begin Fluid Transfer: Start the flow of diesel, fuel oil, or rapeseed oil through the meter. The display will begin to register the volume of fluid passing through.
4. ຈໍສະແດງຜົນ: Observe the 4-digit subtotal display for the current volume being dispensed. The 8-digit total display will continuously accumulate the total volume measured over the meter's lifetime.
5. End Fluid Transfer: Once the desired volume has been dispensed, stop the fluid flow. Record the reading from the 4-digit subtotal display if needed.
6. ອັດຕາການໄຫຼ: Ensure the fluid flow rate remains within the specified range of 20-120 l/min for optimal accuracy.

ໃກ້ຊິດ views of the Wiltec Diesel or Fuel Meter, Model 4020, showing its large, readable digits on the display and the adjustment knob for user convenience.

The Wiltec Diesel or Fuel Meter, Model 4020, highlighting its high precision of ±1% for accurate fluid measurement.

7. ບໍາລຸງຮັກສາ

Regular maintenance ensures the longevity and accuracy of your fuel meter:

• ການກວດກາ: Periodically inspect the meter, hoses, and all connections for signs of wear, damage, or leaks. Address any issues promptly.
• ທໍາຄວາມສະອາດ: Keep the meter's exterior and display window clean using a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the materials.
• ການປົກປ້ອງສິ່ງແວດລ້ອມ: While robust, avoid exposing the meter to extreme temperatures, direct prolonged sunlight, or harsh weather conditions when not in use.
• ກວດ​ສອບ​ການ​ສອບ​ທຽບ​: If precise measurements are critical, periodically check the meter's accuracy against a known volume. If significant discrepancies are observed, recalibration may be necessary. Refer to manufacturer guidelines or a qualified technician for calibration procedures.

8. ການແກ້ໄຂບັນຫາ

If you encounter issues with your Wiltec Diesel or Fuel Meter, refer to the following troubleshooting guide:

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information, technical assistance, or to inquire about replacement parts, please contact WilTec customer service directly. Ensure you have your purchase receipt and the product model number (4020) or manufacturer part number (50756) available when contacting support. You can find contact details on the official WilTec webເວັບໄຊຫຼືຜ່ານຈຸດຊື້ຂອງທ່ານ.

10. ຄໍາຮ້ອງສະຫມັກ

The Wiltec Diesel or Fuel Meter, Model 4020, is suitable for a wide range of applications requiring accurate measurement of diesel, fuel oil, and rapeseed oil. These include:

• Agricultural machinery refueling
• Industrial fluid transfer and monitoring
• Construction equipment fuel management
• Vehicle refueling (non-commercial)
• Monitoring fuel consumption in various systems

A collage of images demonstrating the wide range of applications for the Wiltec Diesel or Fuel Meter, Model 4020, including agricultural machinery, industrial barrel transfers, construction equipment, and vehicle refueling.
